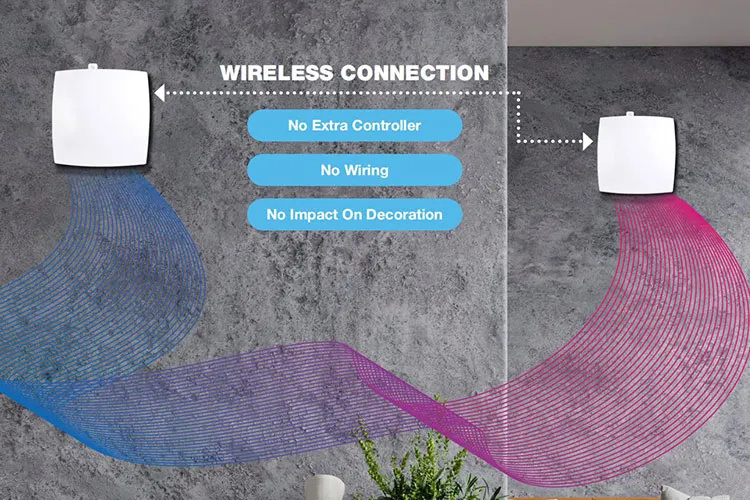

Wireless connection of master and slave unit, no wiring or dialing needed, 30 meters ultra long distance transmission.
*30 meters was tested without barrier and interference. In practical application, it is recommended to install within 8-15 meters. Please avoid strong interference sources and shielding objects.

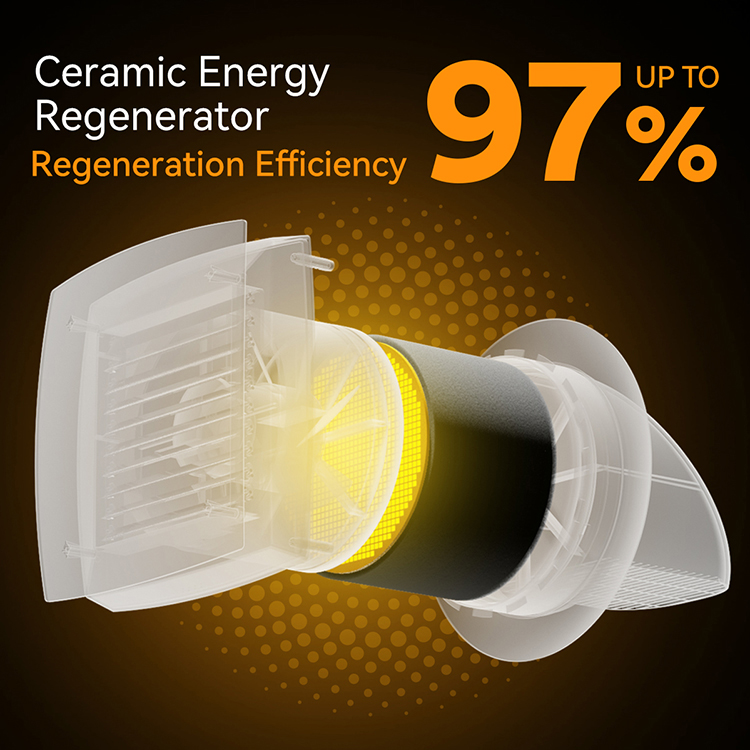

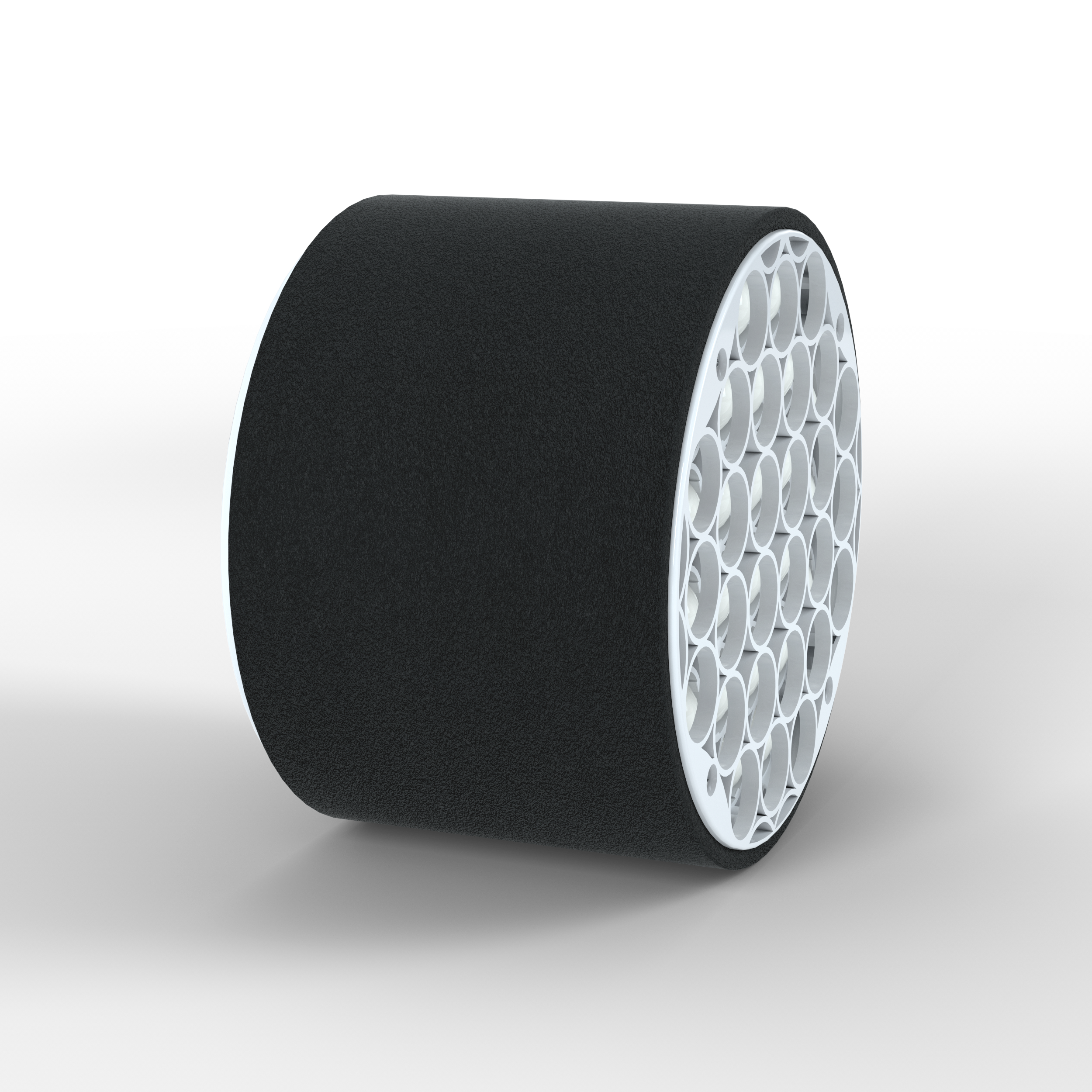

The high-tech ceramic energy accumulator with regeneration efficiency up to 97% ensures extract air heat recovery for warming of supply air flow. Due to the cellular structure, the unique regenerator has a large air contact surface and high heat-conducting and heat-accumulating properties. Treated with an antibacterial composition which prevents bacteria growth for 10 years.
Two integrated air filters (G3) provide supply and extract air filtration, preventing dust and insects. F8 filter is available as an accessory (reduces air flow to 40 m³/h). Filters can be cleaned with vacuum or water.
Reversible axial fan with EC motor features low power consumption and silent operation. Includes integrated thermal overheating protection and ball bearings.

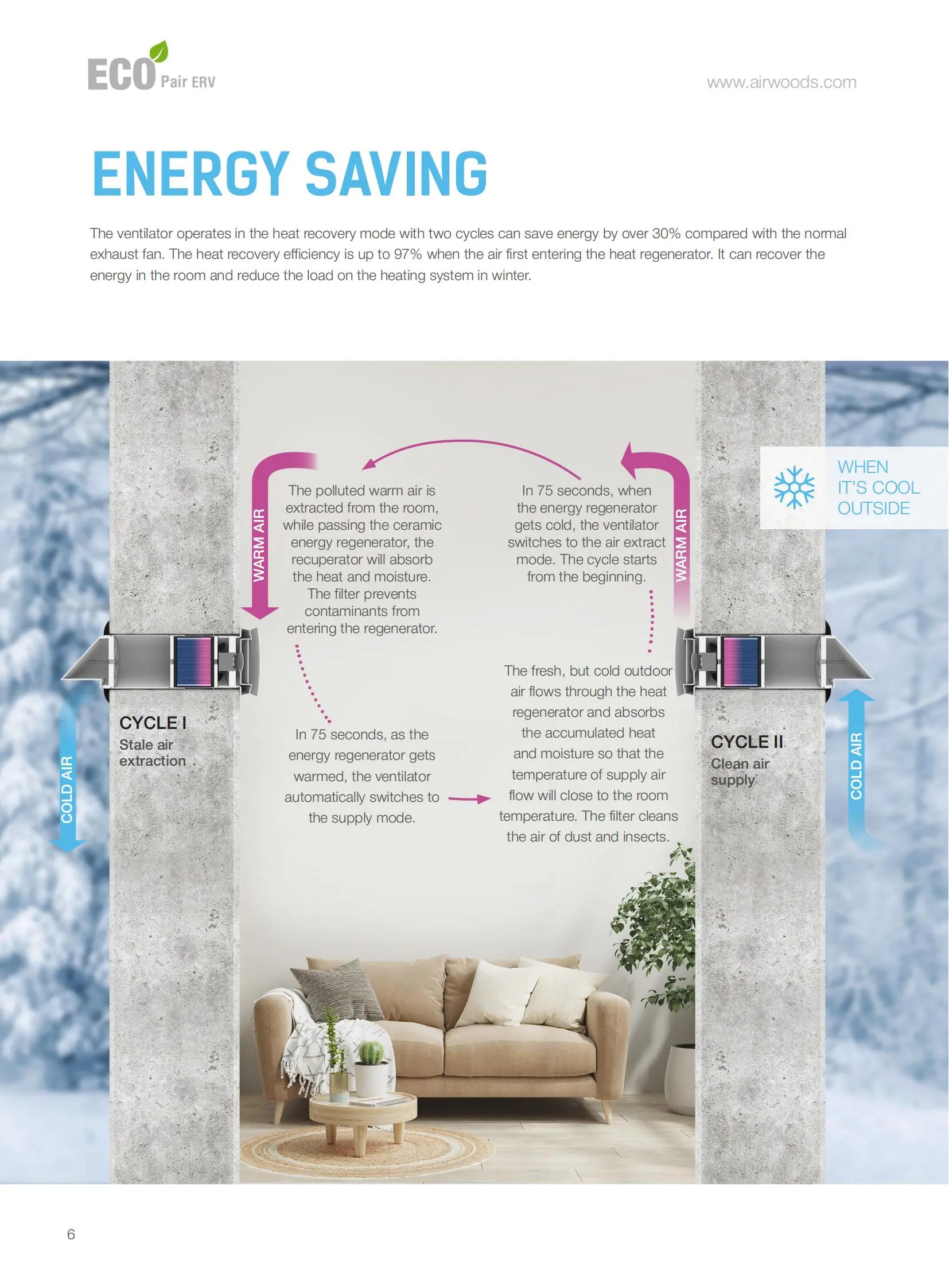

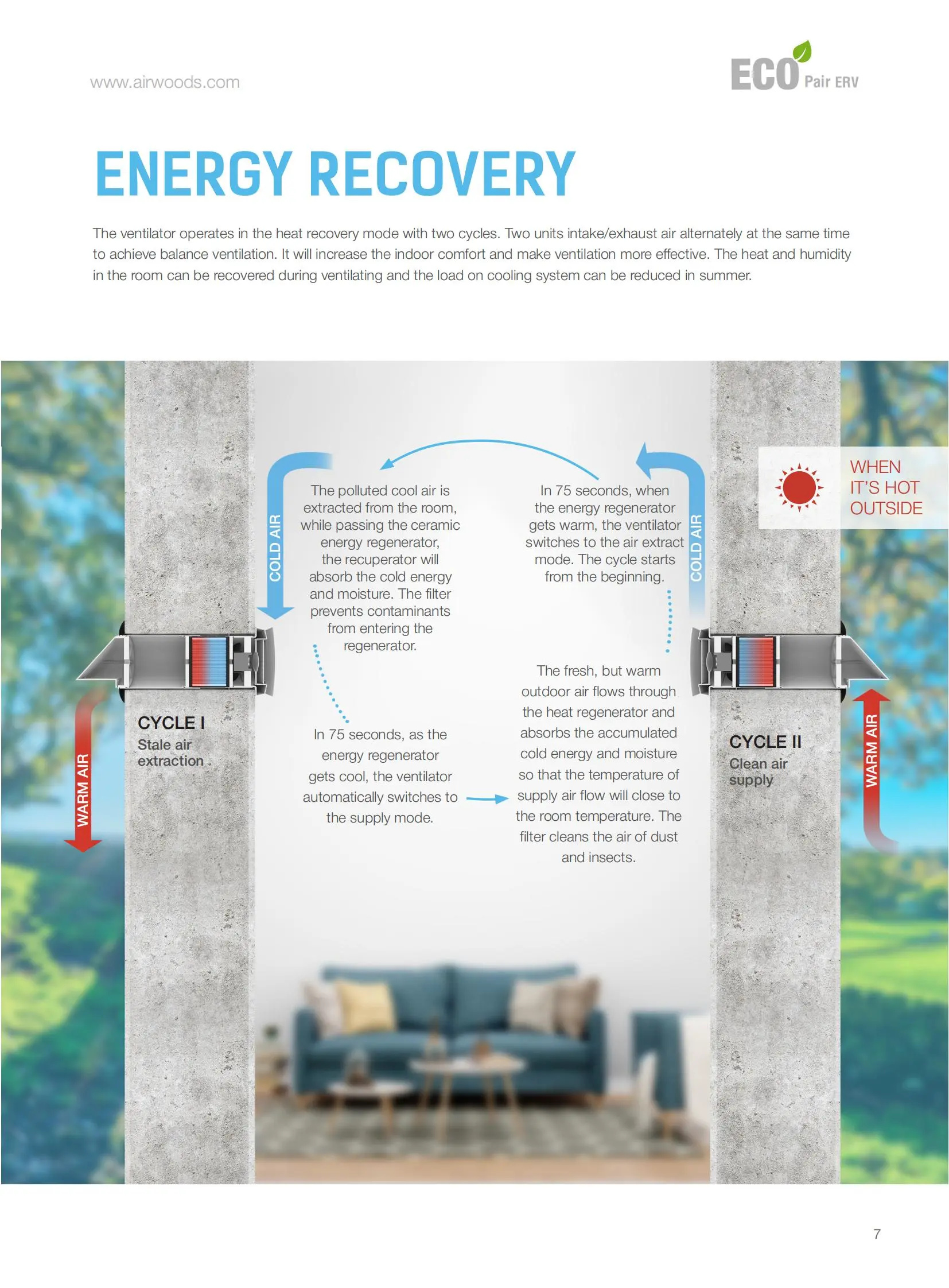

The ventilator operates in heat recovery mode with two cycles, saving energy by over 30% compared with normal exhaust fans. Heat recovery efficiency is up to 97%. It reduces the load on heating systems in winter and cooling systems in summer by recovering indoor heat and humidity.
| Model No. | AV-TTW5-W | ||
| Voltage | 100V~240V AC / 50-60Hz | ||
| Power [W] | 6 | 7 | 7.8 |
| Current [A] | 0.04 | 0.05 | 0.06 |
| Air flow (Regeneration) [m³/h] | 20 | 40 | 50 |
| Sound pressure level [dBA] | 32.7 | ||
| SEC / IP Rating | Class A / IP22 | ||

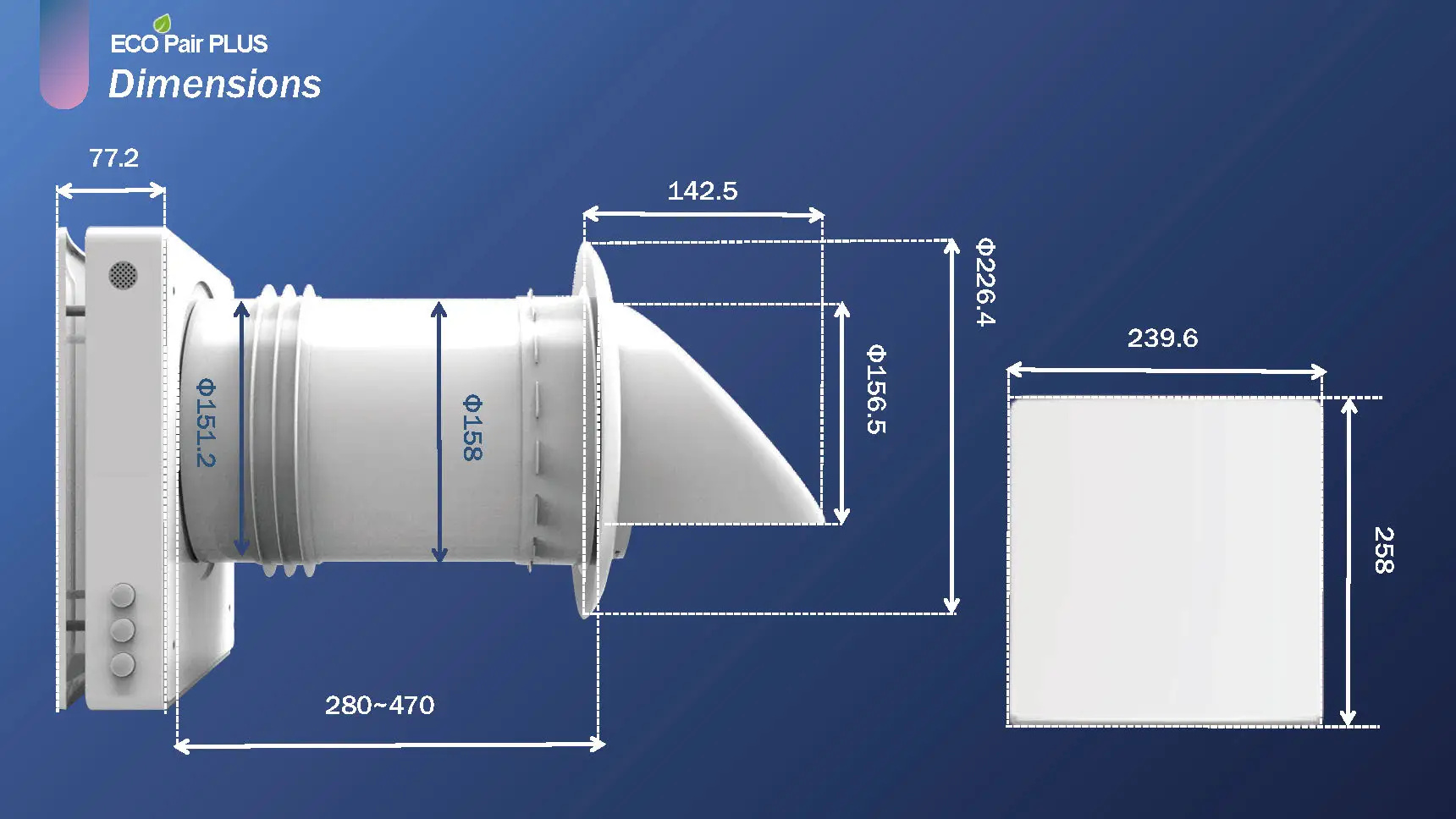

| Diameter of duct | 158mm | ||
| Net Weight | 4.2kg | ||

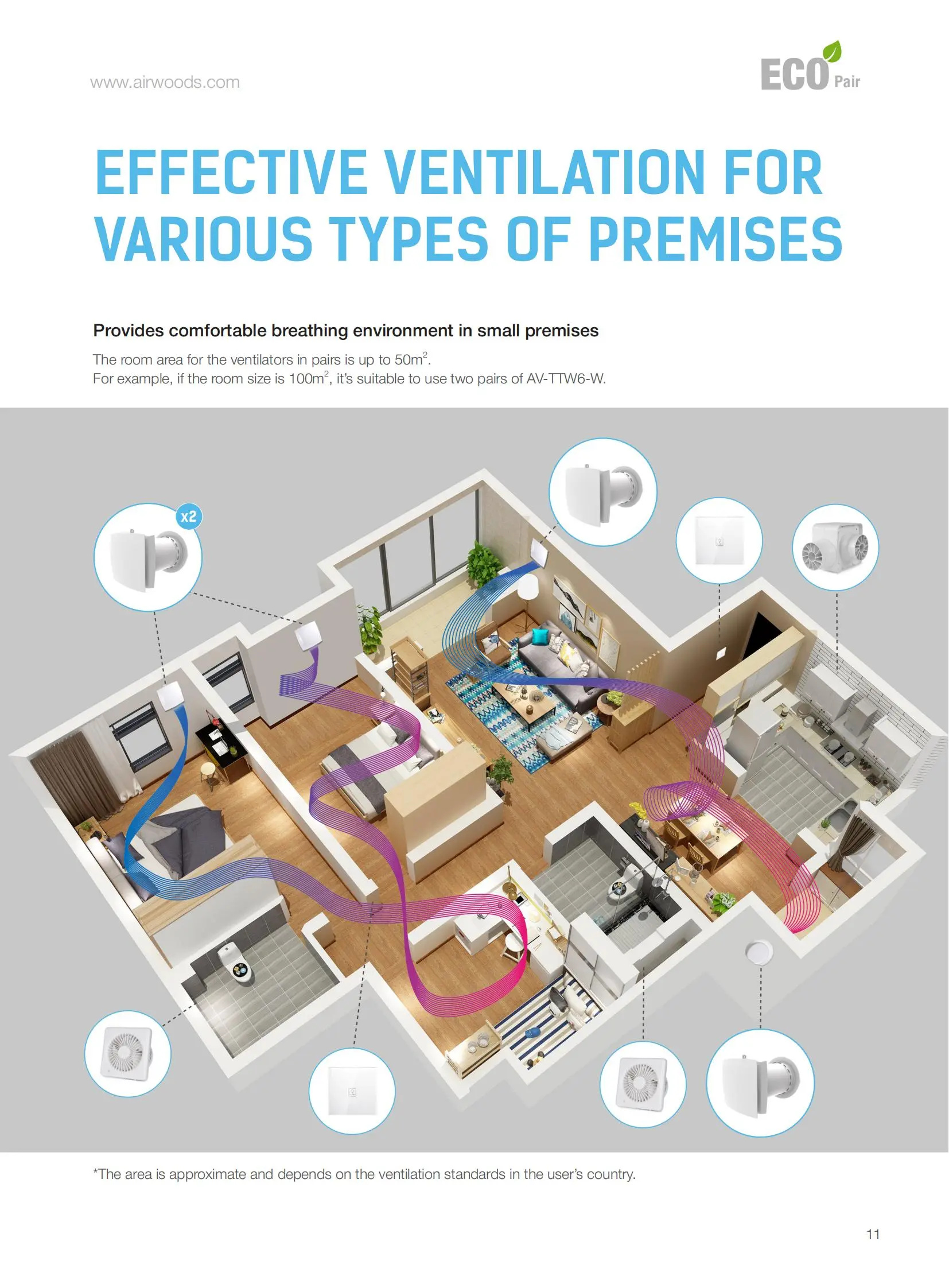

Designed for continuous mechanical air exchange in houses, offices, hotels, cafes, and conference halls. Designed for through-the-wall mounting and rated for non-stop operation.
