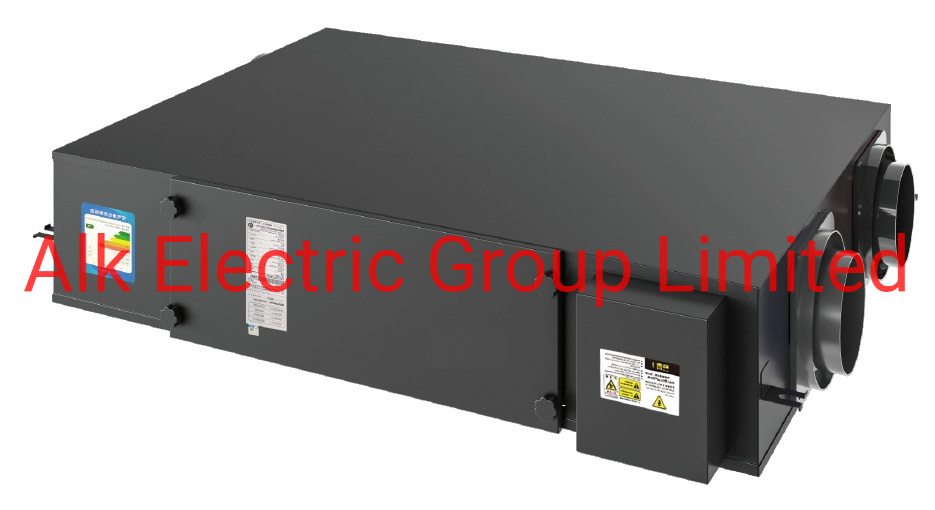

Dehumidification Total Heat Recovery Fresh Air Ventilation System Equipment with HEPA Filter

1 / 5

Dehumidification Total Heat Recovery Fresh Air Ventilation System Equipment with HEPA Filter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

AHE-25

Type

Fan Coil Unit

Air Tube Material

Galvanized Sheet

Corrosion Durability

Ultrahigh

Operating Voltage

230 VAC

Noise Level

Low

Application Fields

Mechanical Engineering

Mounting

Ceiling Mount

Lifetime

10~15 years

Certification

ISO, CE, CCC

Condition

New

Refrigerant Type

Chilled Water or Hot Water

Power Supply

50Hz/60Hz

Capacity Range

0.5ton to 4 Ton

Air Flow Range

340 to 23800 M3/H

Dimensions

870mm*466mm*230mm

HS Code

84186920

Production Capacity

5000 PCS Per Month

✓

Product Description & Features

Slim DesignHeight is only 218mm, saving installation space significantly.

Low NoiseDC inverter motor with art designed centrifugal fan wheel for quiet operation.

High FiltrationPM2.5 filtered up to 95% for cleaner indoor air quality.

Heat RecoveryMore than 75% heat recovery efficiency achieved through advanced exchange elements.

Bypass FunctionIn summer and autumn, outdoor fresh air can bypass the heat exchange for direct ventilation.

Smart ControlIndependent system with temperature reading, fan speed adjustment, and filter replacement alarms.

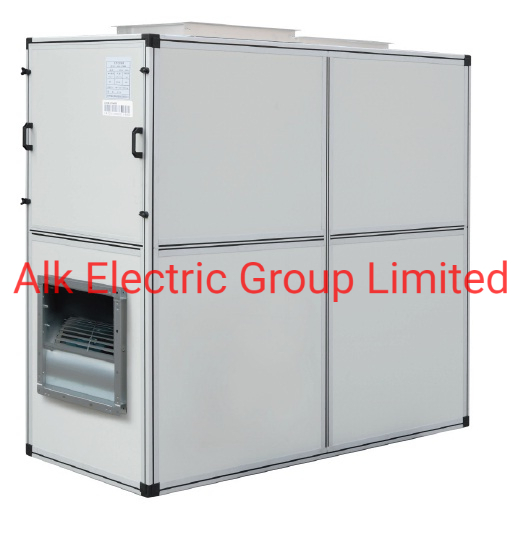

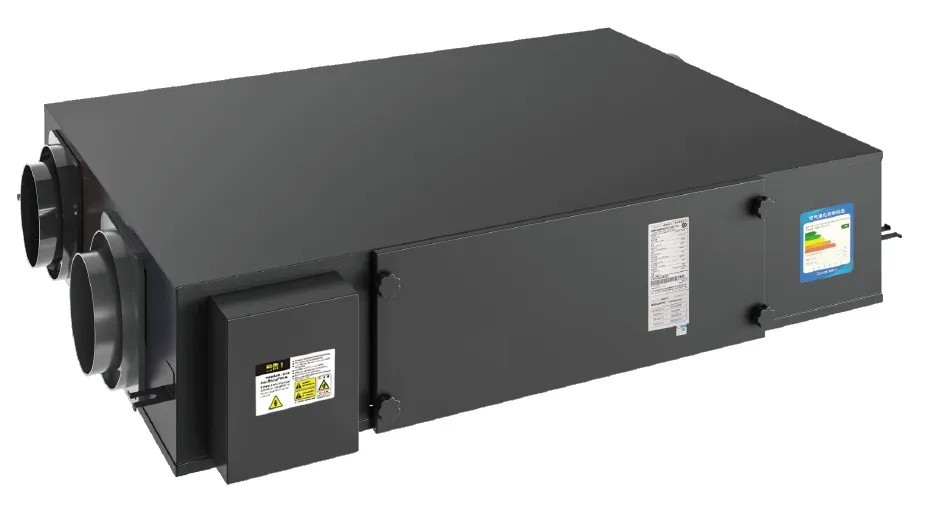

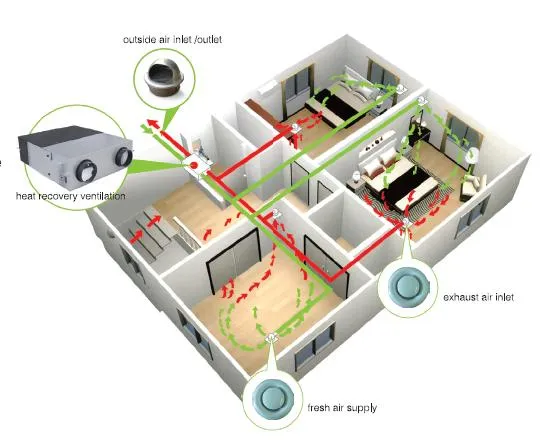

HRV Unit Gallery

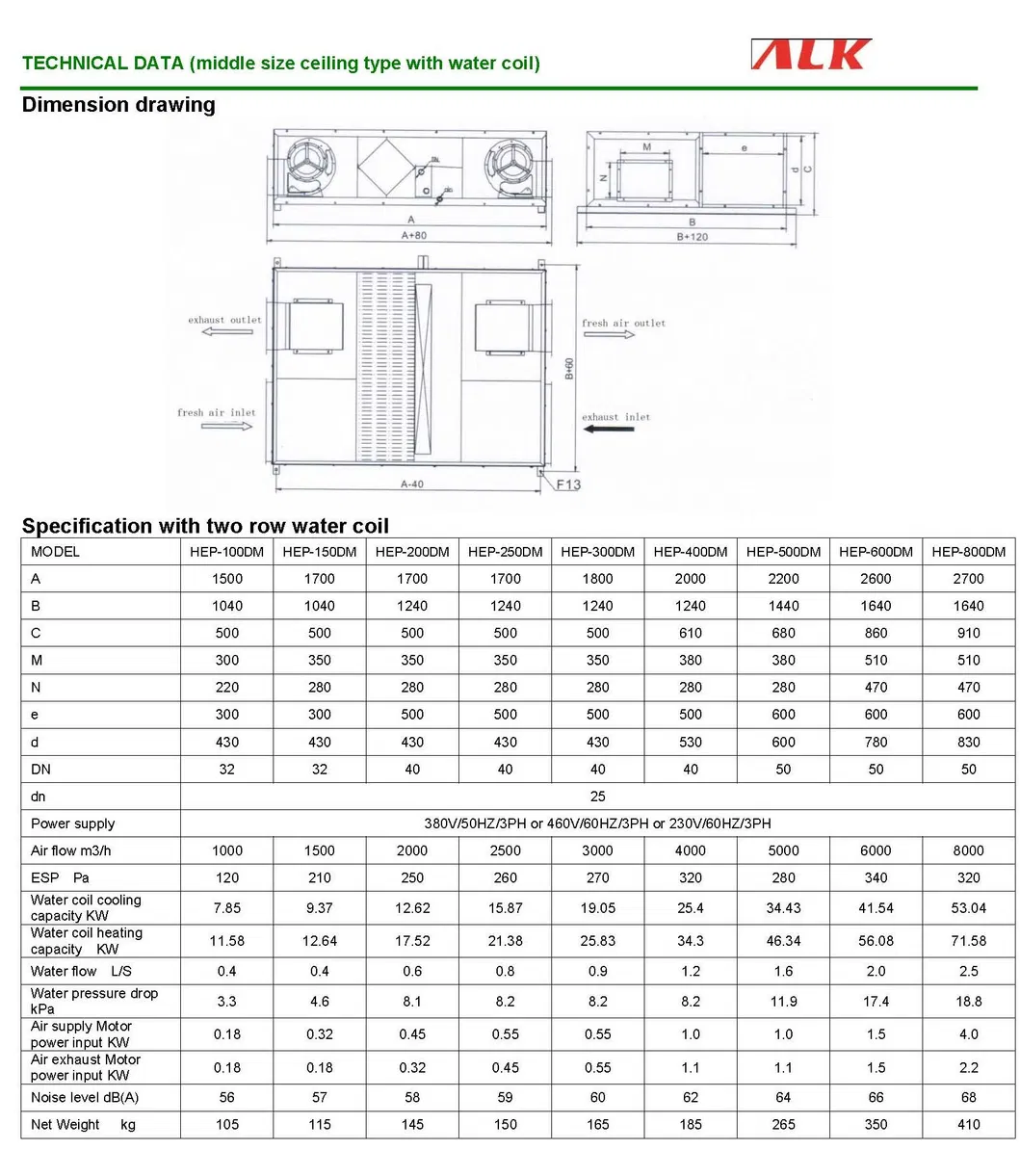

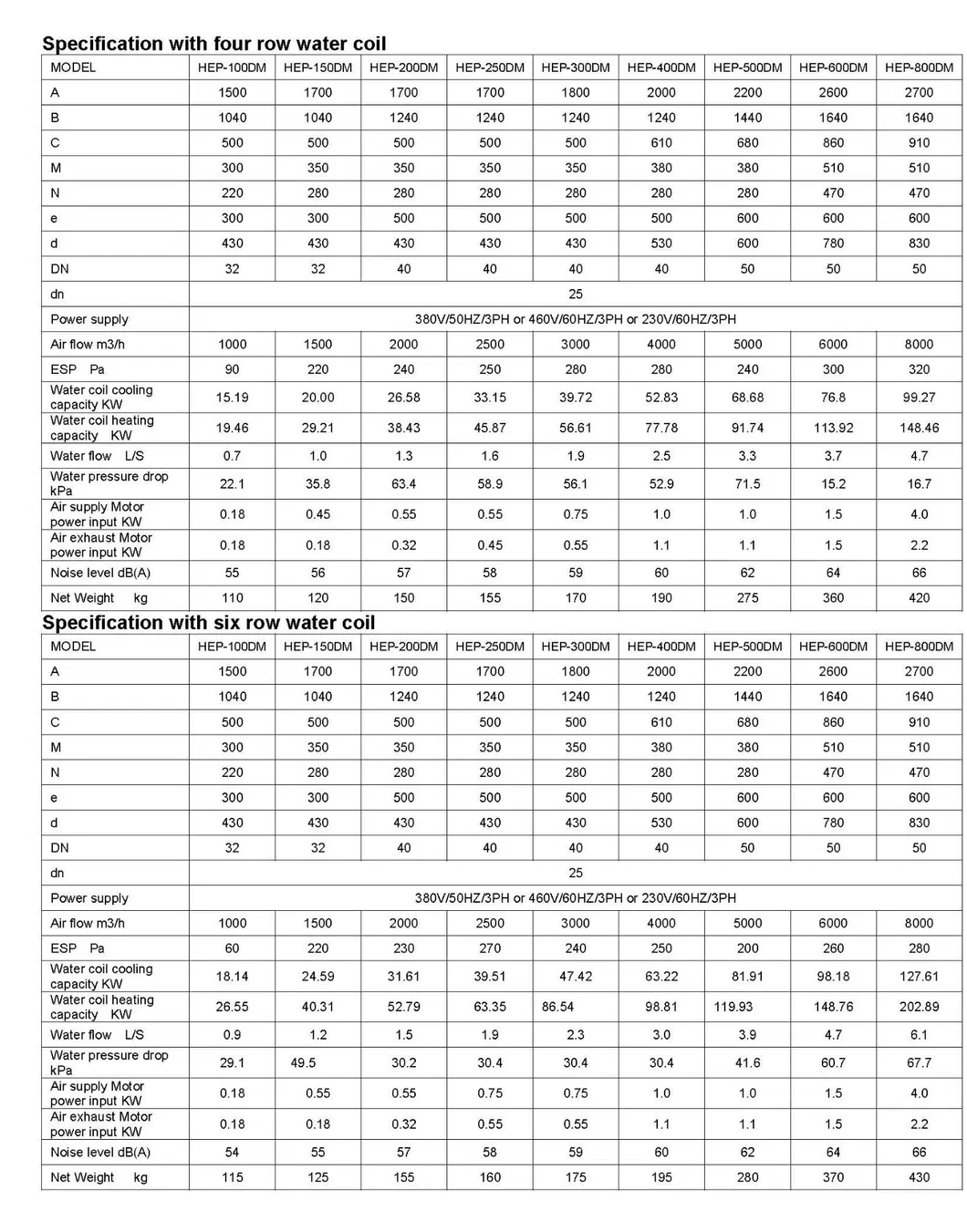

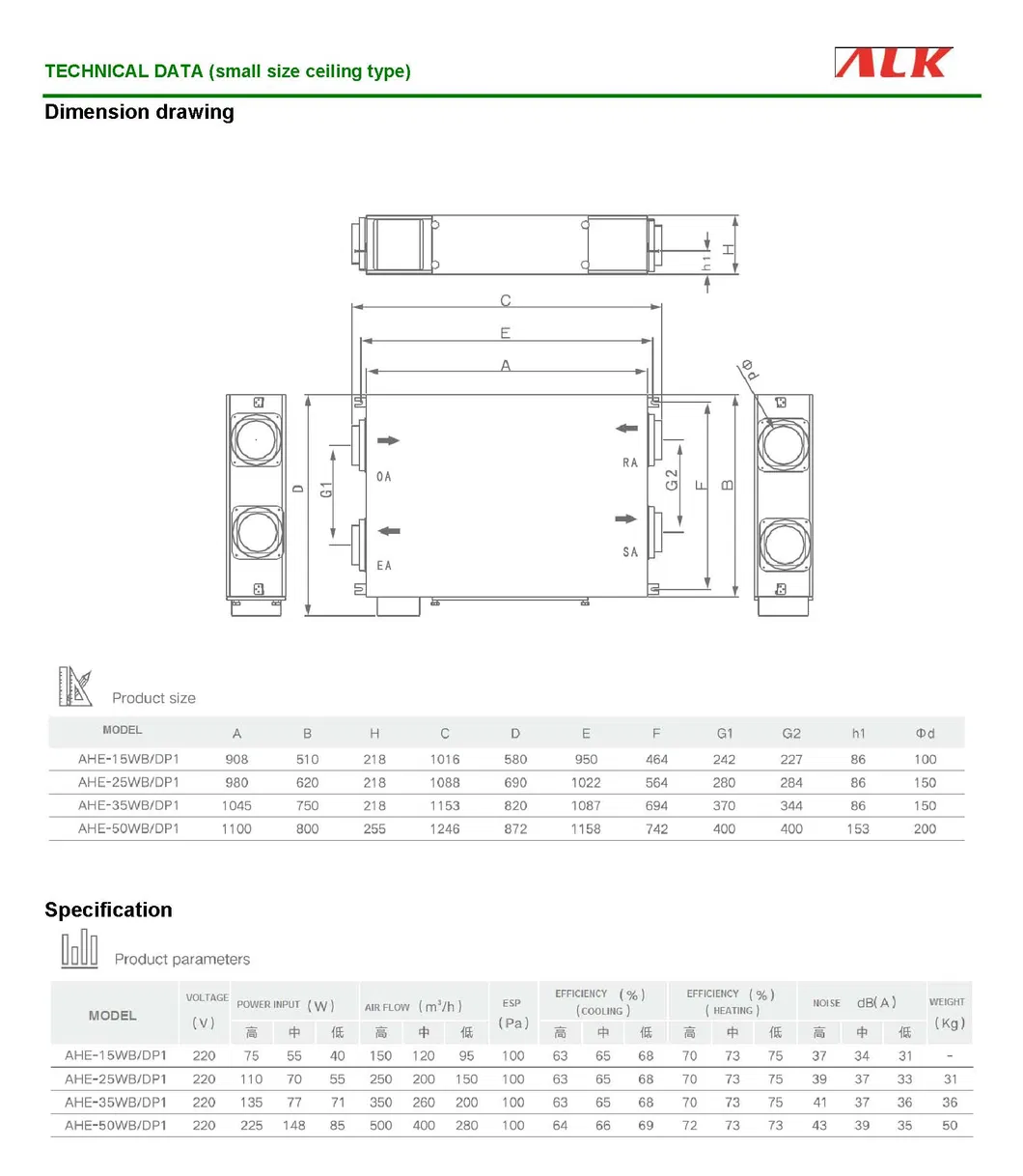

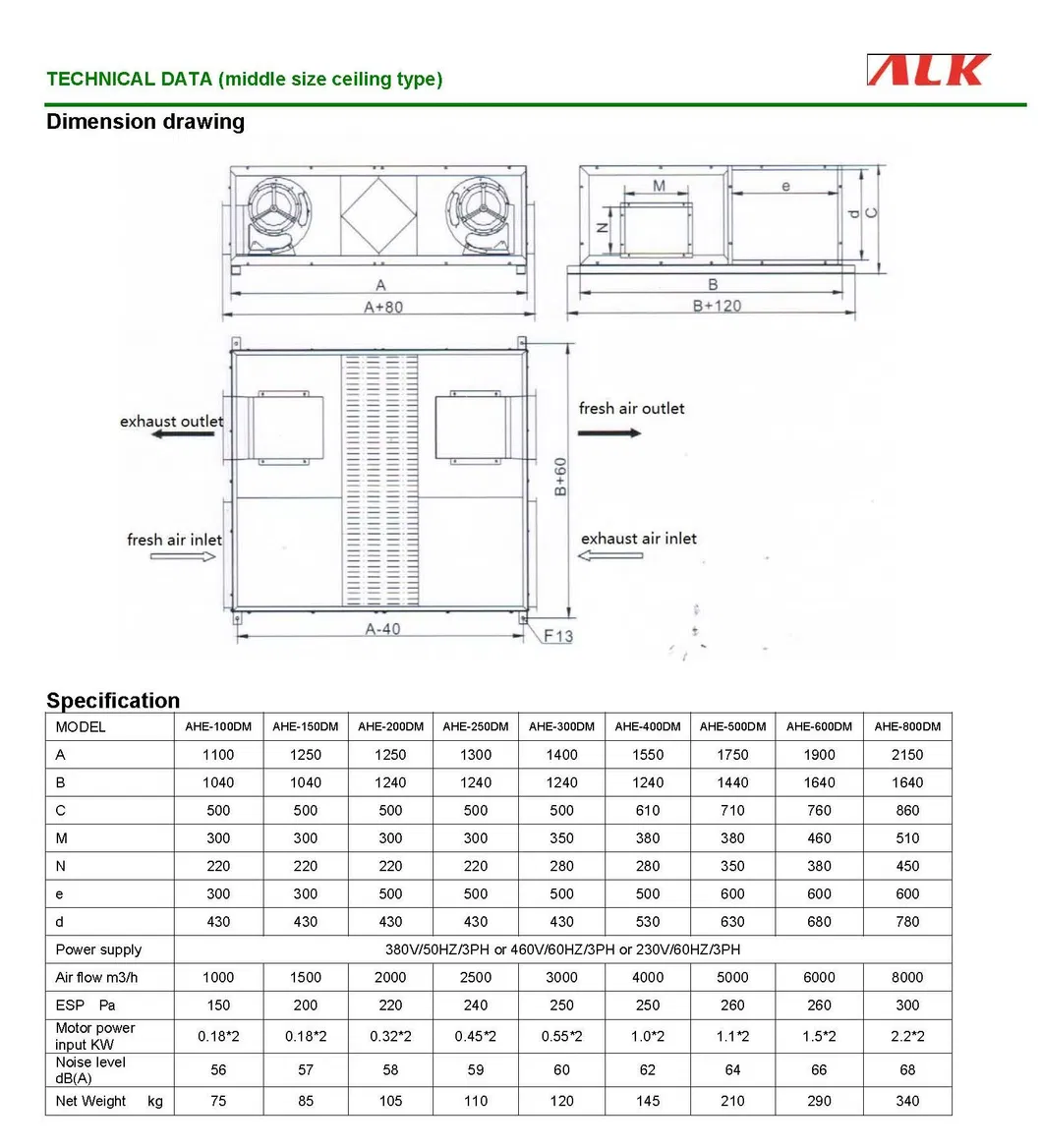

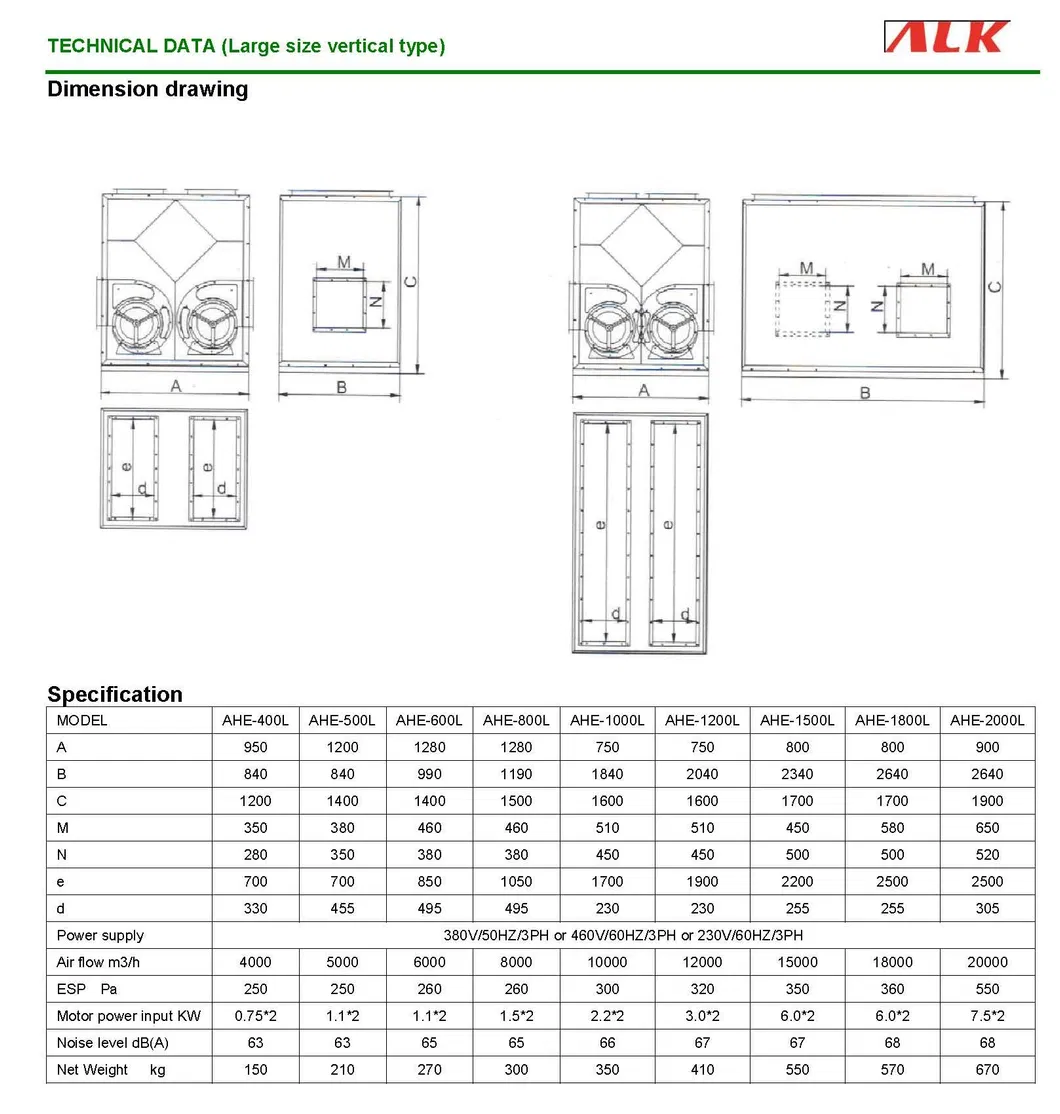

Technical Data Sheets

Historical Project List

PROJECT TIME	EQUIPMENTS QUANTITY	PROJECT TYPE
2018	10000 UNITS	FOR TOTAL SALES PROJECTS
2019	15000 UNITS	FOR TOTAL PROJECTS
2020	20000 UNITS	FOR TOTAL SALES PROJECTS

Frequently Asked Questions

What is the heat recovery efficiency of the HRV unit?

The unit offers a high heat recovery efficiency of more than 75%, ensuring significant energy savings by exchanging heat between indoor exhaust and outdoor fresh air.

How effective is the air filtration system?

The system features high-efficiency filtration capable of filtering PM2.5 particles with an efficiency rate of up to 95%, providing a clean and healthy environment.

Does the unit require a lot of installation space?

No, the unit features a slim design with a height of only 218mm, making it ideal for ceiling-mount installations where space is limited.

What is the purpose of the Bypass function?

The bypass function is designed for use during mild seasons like summer and autumn. It allows outdoor fresh air to enter the room directly without going through the heat exchange element.

Is the motor efficient and quiet?

Yes, the unit uses a DC inverter motor paired with a specially designed centrifugal fan wheel to ensure both low noise levels and high operating efficiency.

What power supplies are supported?

The unit is compatible with both 50Hz and 60Hz power supplies, operating at a standard voltage of 230 VAC.
