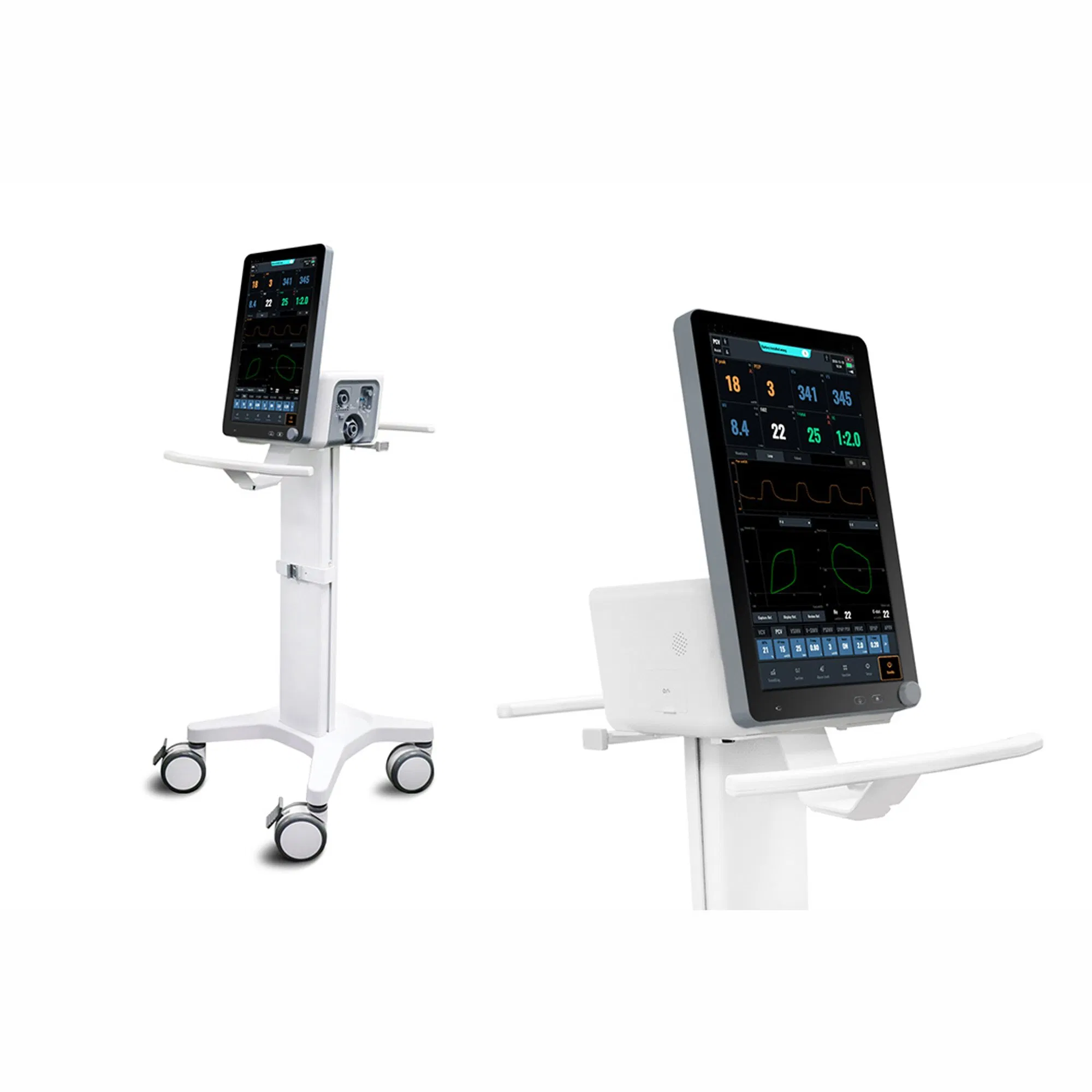

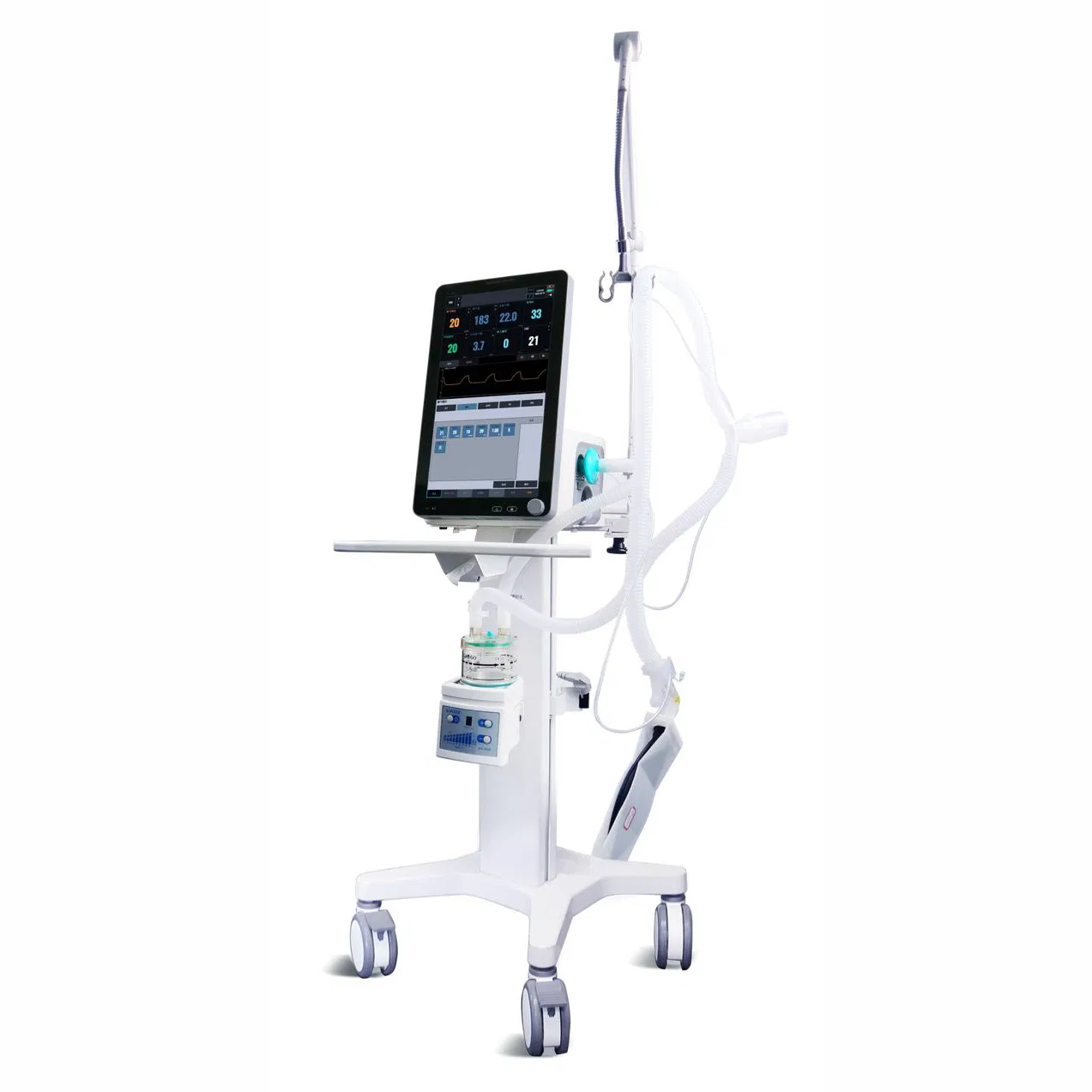

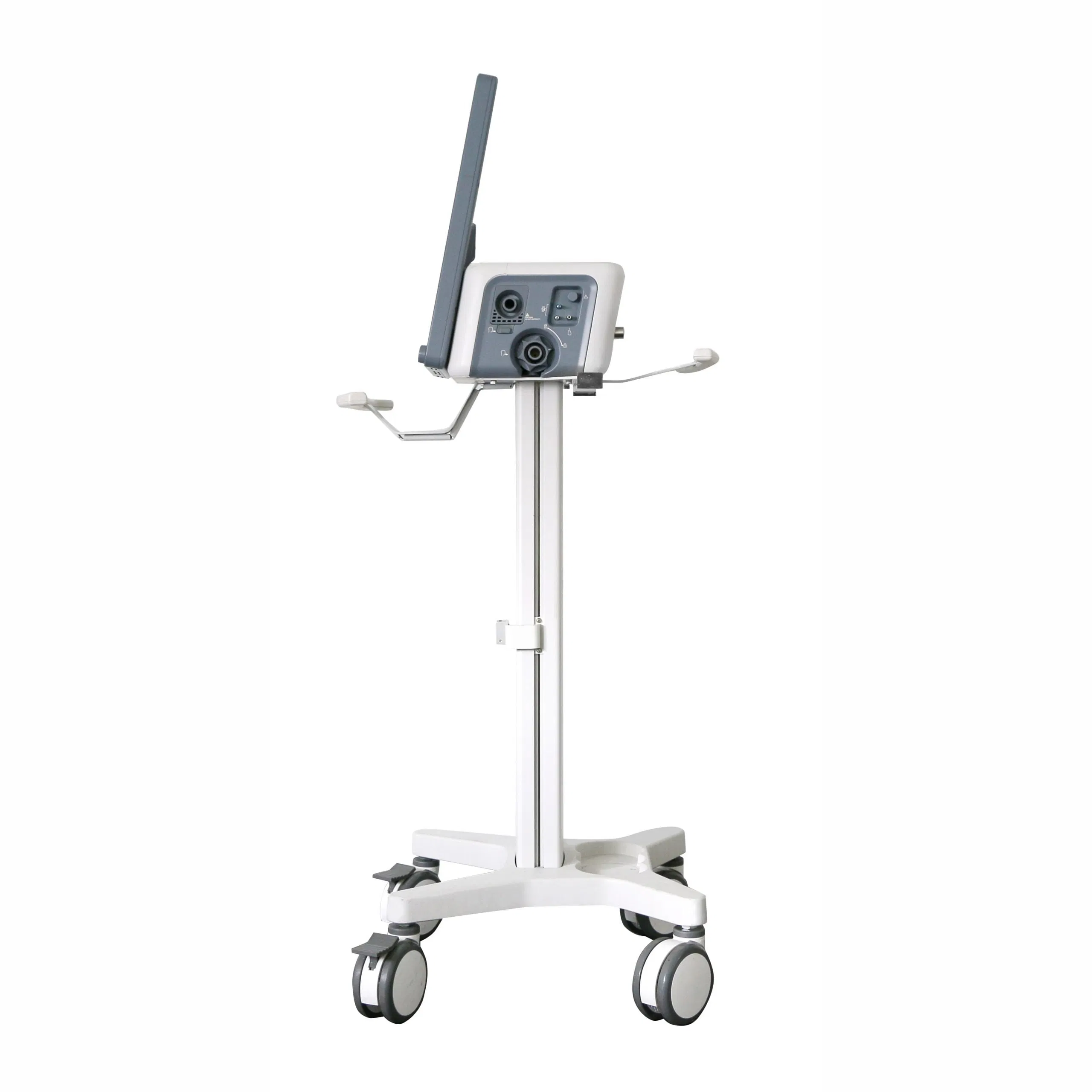

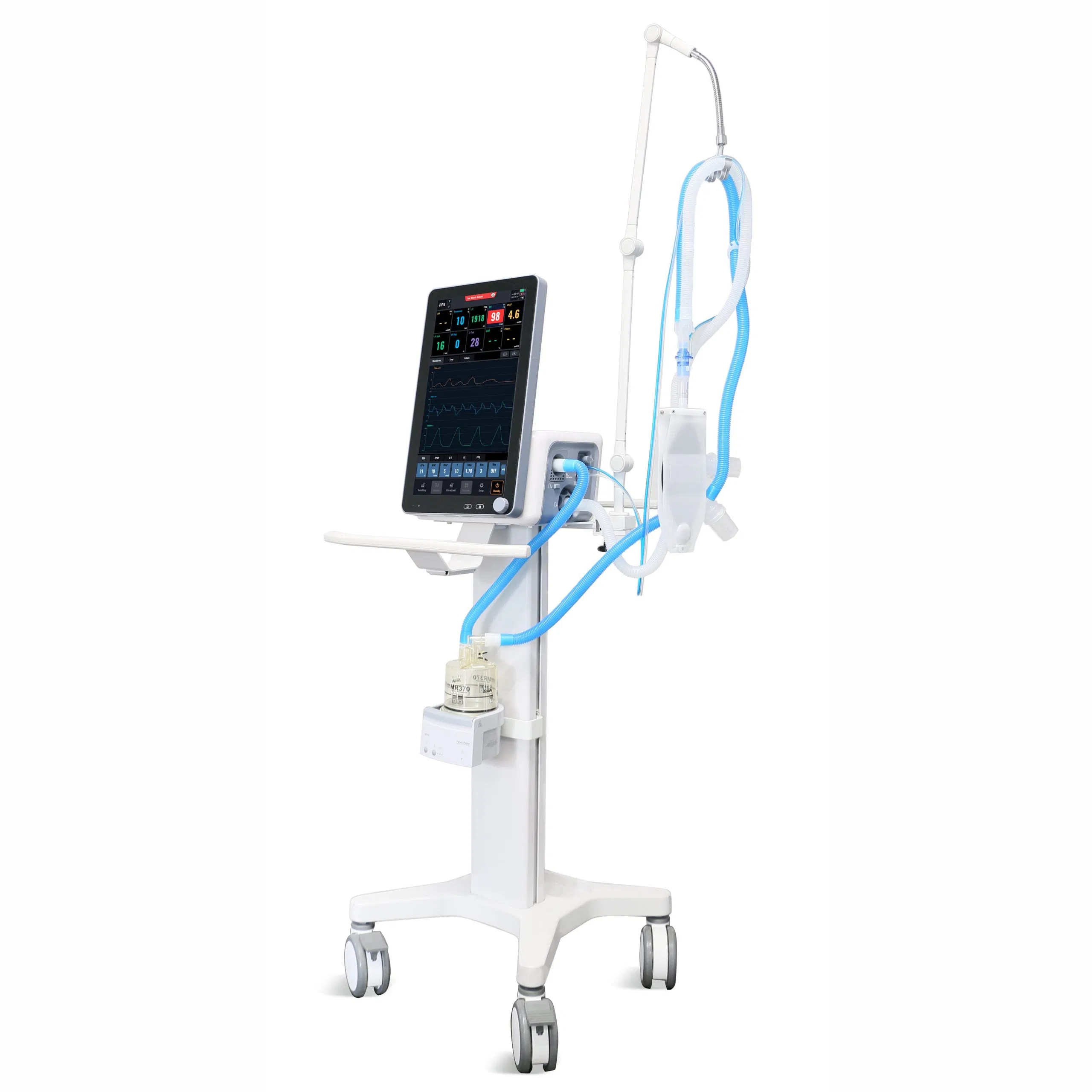

High End Turbine Drive Electrically Controlled ICU Ventilator for Adult Children and Infant
High End Turbine Drive Electrically Controlled ICU Ventilator for Adult Children and Infant
High End Turbine Drive Electrically Controlled ICU Ventilator for Adult Children and Infant
High End Turbine Drive Electrically Controlled ICU Ventilator for Adult Children and Infant
High End Turbine Drive Electrically Controlled ICU Ventilator for Adult Children and Infant
1 / 5
High End Turbine Drive Electrically Controlled ICU Ventilator for Adult Children and Infant
High End Turbine Drive Electrically Controlled ICU Ventilator for Adult Children and Infant
High End Turbine Drive Electrically Controlled ICU Ventilator for Adult Children and Infant
High End Turbine Drive Electrically Controlled ICU Ventilator for Adult Children and Infant
High End Turbine Drive Electrically Controlled ICU Ventilator for Adult Children and Infant

High End Turbine Drive Electrically Controlled ICU Ventilator for Adult Children and Infant

Customized: Customized
Certification: CE, ISO13485
Ventilator Mode: Invasive and Non-Invasive
Send Inquiry

Product Description

Basic Info.
Model NO.
YH-RS300
Tidal Volume (Vt)
20-2000ml
Frequency (Freq)
1-150bpm
Oxygen Concentration
21 % ~ 100 %
I : E
1 : 10 ~ 4 : 1
Peep
1 CMH2o ~ 45 CMH2o
Oscillogram
P-T, F-T, V-T, P-V P-F F-T Loop
Gas Source
O2
Pressure
280 Kpa - 600 Kpa
Voltage
220 V
Specification
ICU Ventilator
Origin
China
Production Capacity
500 PCS / Month

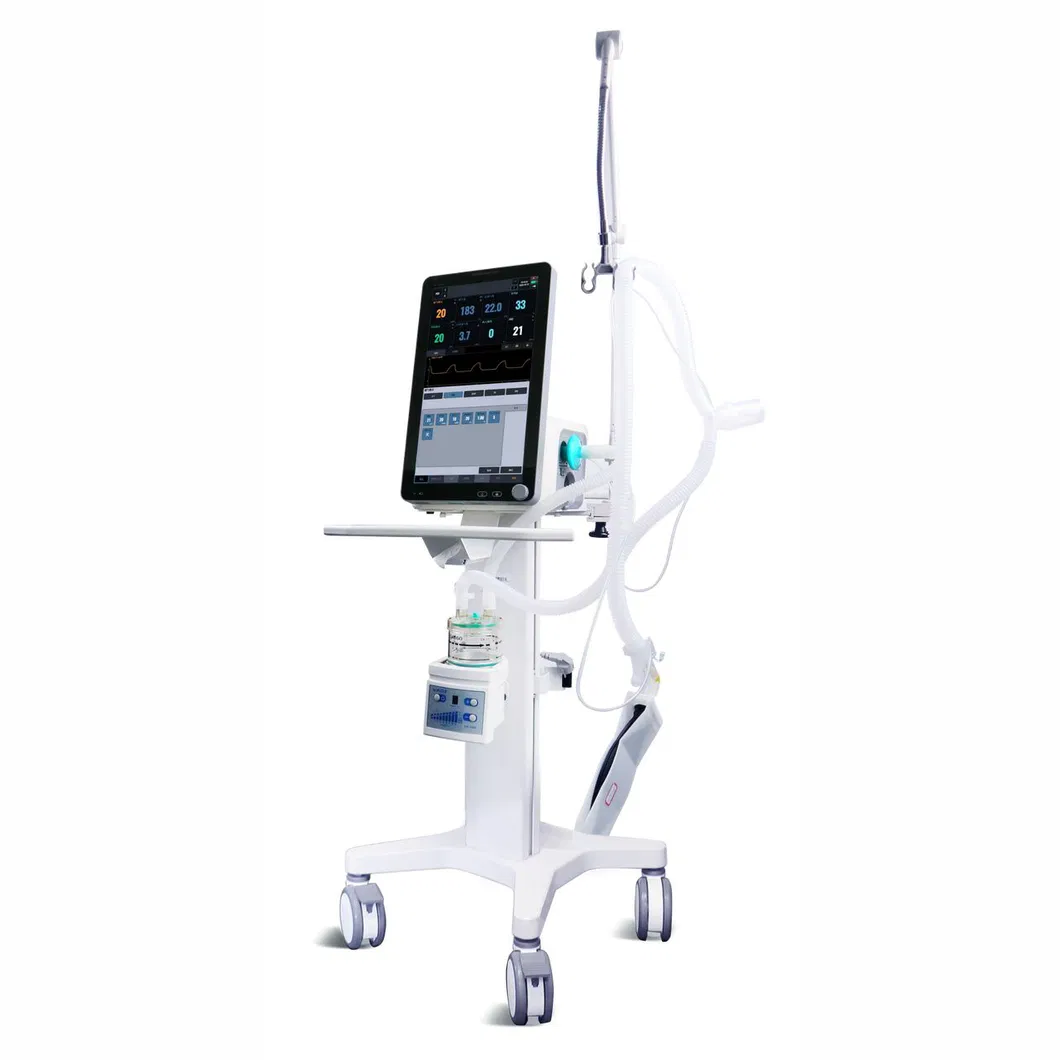

High End Turbine Drive ICU Ventilator
Product Description

Application

The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. It addresses acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction, intra-operation support, post-operation respiratory support, and other respiratory treatments.

Key Features

Versatile Solution: Integrates single-limb non-invasive and invasive ventilation for Respiratory departments and ICUs.

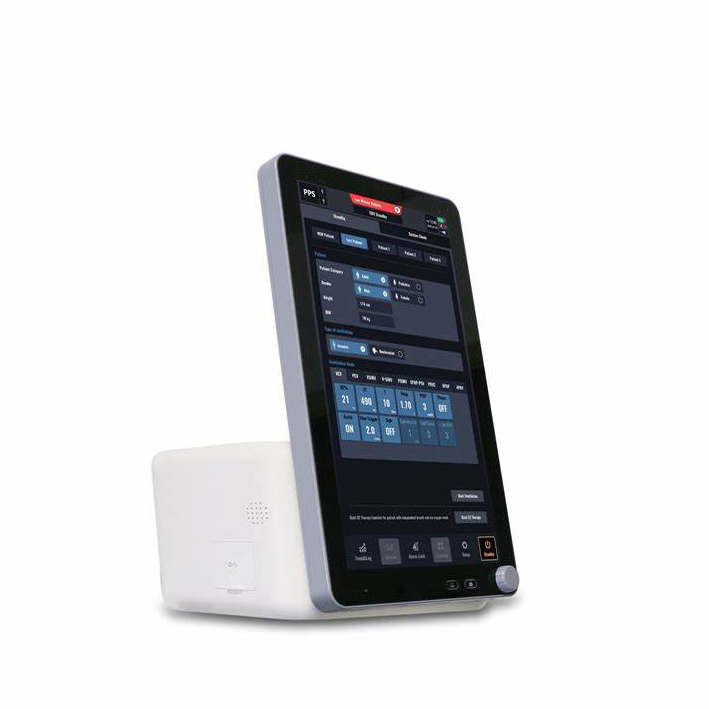

HD Display: 18.5-inch HD touch screen with 30° rotatable capability for optimal viewing.
Intuitive UI: Humanized design to smooth workflow with clear trend displays and 72-hour data storage (20,000 records).
Turbine Driven: High-performance turbine supports 20,000 hours of work, removing the need for an air compressor.
Technical Parameters
Display18.5 inch high visibility color TFT display
Ventilation Modes (Invasive)VCV, PCV, PRVC, VSIMV, PSIMV, V+SIMV, CPAP/PSV, BPAP, APRV
Ventilation Modes (Non-invasive)PCV, ST, CPAP, VS, PPS
Minute Volume0.2-100 L
Back-up Power SupplyAt least 4 hours
Tidal VolumeAdjustable range: 20-2000ml
Respiratory Rate1-150bpm
I:E Ratio1:10-4:1
PEEP1-45cmH2O, Off
Trigger Sensitivity (Flow)0.5-15L/m
Oxygen Concentration21-100%
Ventilator Detail 1
Ventilator Detail 2

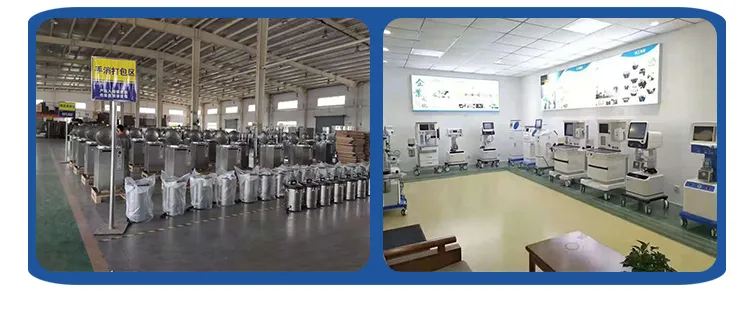

Ventilator Detail 3
Ventilator Detail 4
Ventilator Detail 5
Ventilator Detail 6
Ventilator Detail 7

Frequently Asked Questions

Which patient groups can use the YH-RS300 ventilator?
The YH-RS300 is a versatile ICU ventilator designed for adults, children, and infants, making it suitable for a wide range of clinical environments.
Does this ventilator require an external air compressor?
No, it features a high-performance built-in turbine that supports up to 20,000 hours of operation, providing intra-hospital mobility without the need for a central air supply or external compressor.
What are the main advantages of the display screen?
It comes with an 18.5-inch HD touch screen that is 30° rotatable. This allows medical staff to view patient data clearly from different angles and manage workflows through a humanized UI design.
What ventilation modes are supported?
The device supports complete invasive modes (VCV, PCV, PRVC, etc.) and non-invasive modes (PCV, ST, CPAP, VS, PPS), including specialized neonatal ventilation options.
How long can the backup battery operate during a power failure?
The internal backup power supply ensures the ventilator can continue operating for at least 4 hours in the event of a power interruption.
Does it have integrated special respiratory functions?
Yes, it includes special functions such as manual breath, O2 therapy, inspiratory/expiratory hold, sigh, nebulizer, O2 suction, and a PV tool for lung recruitment.
