QMS Medical
1 / 5
| Model NO. | HV-V7 |
| Specification | CE, ISO |
| Origin | China |
| HS Code | 9018909090 |

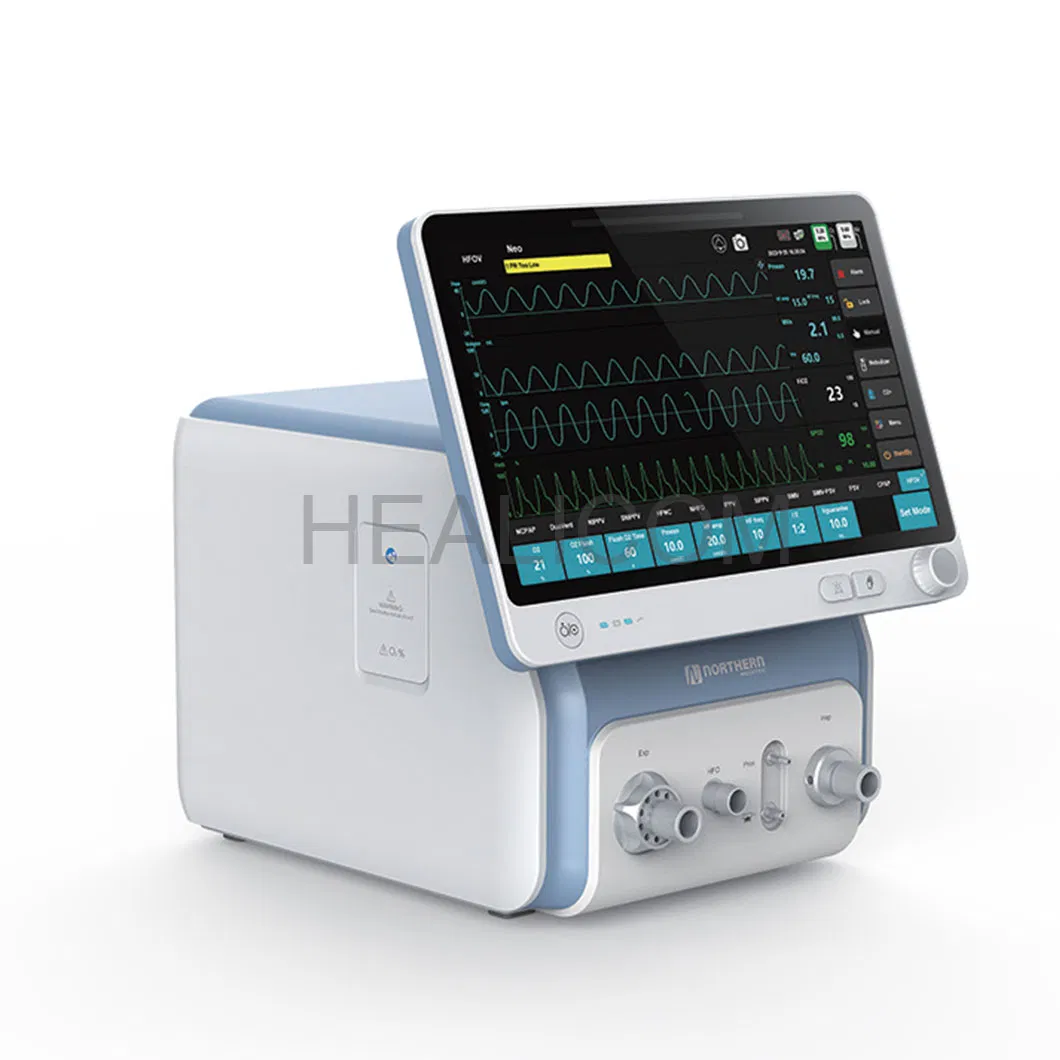

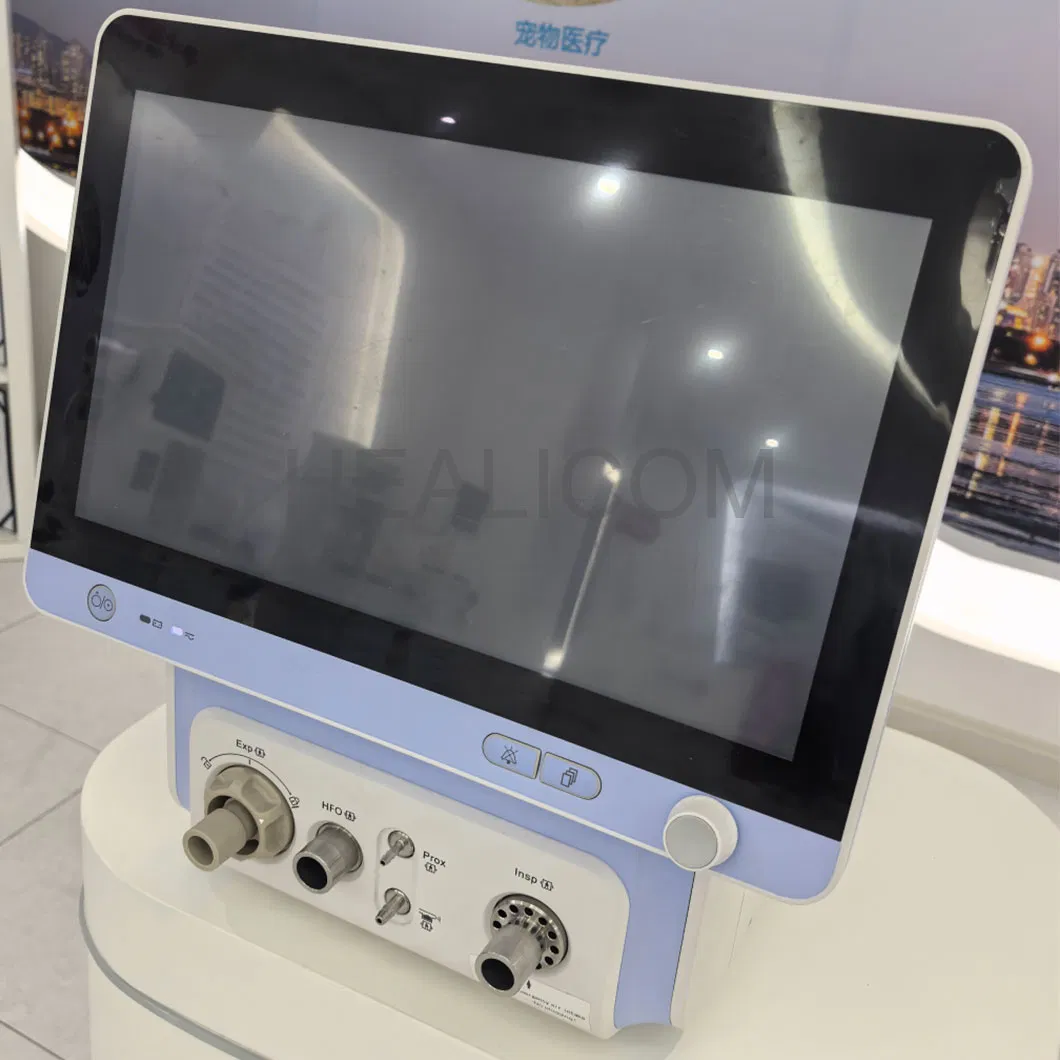

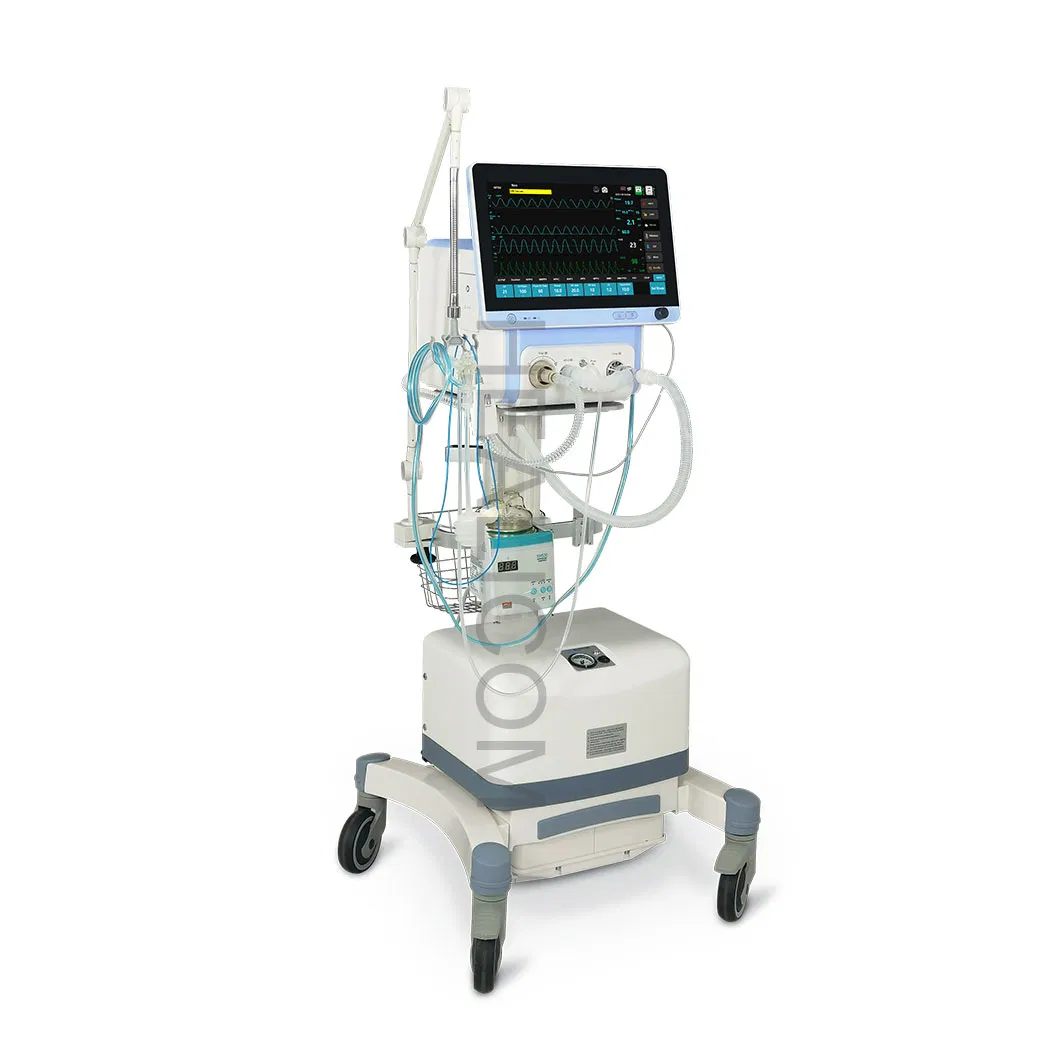

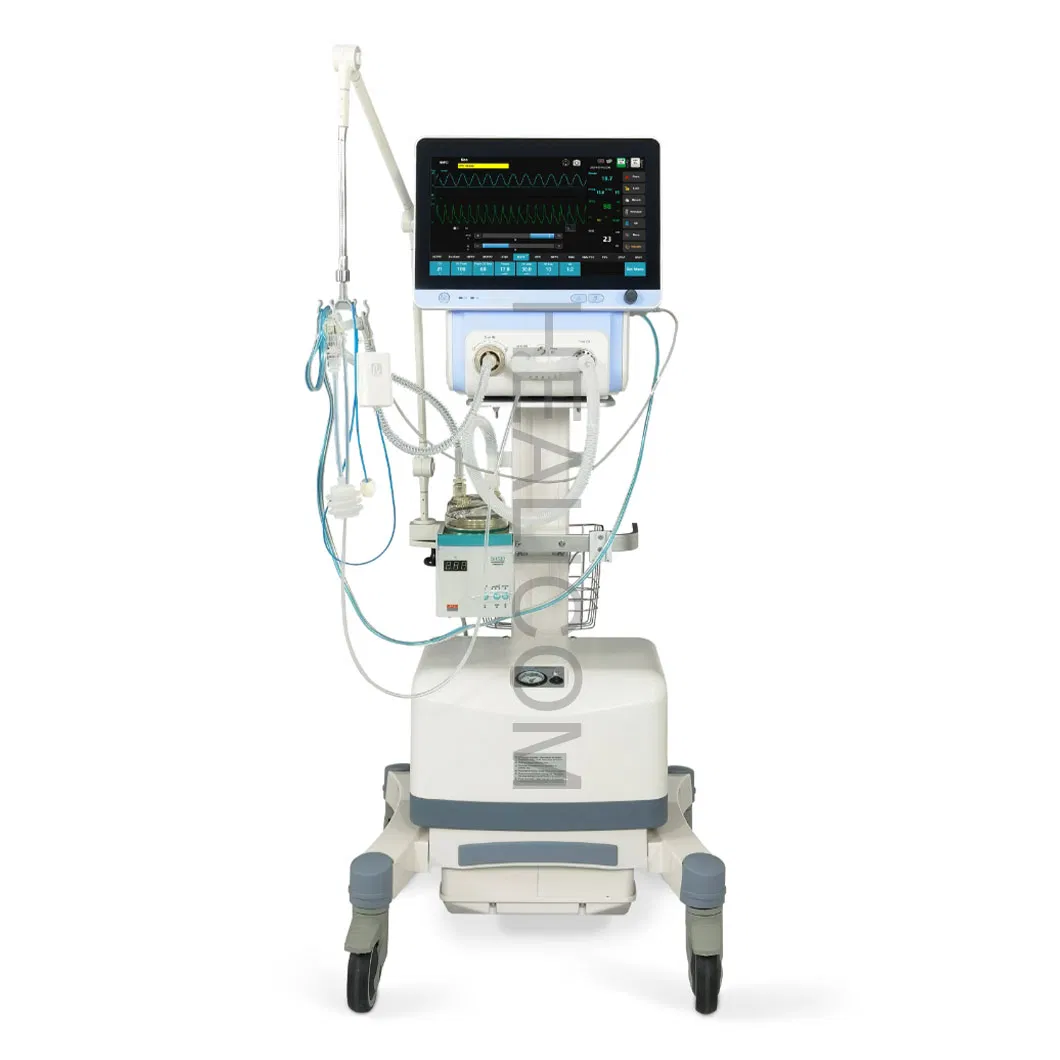

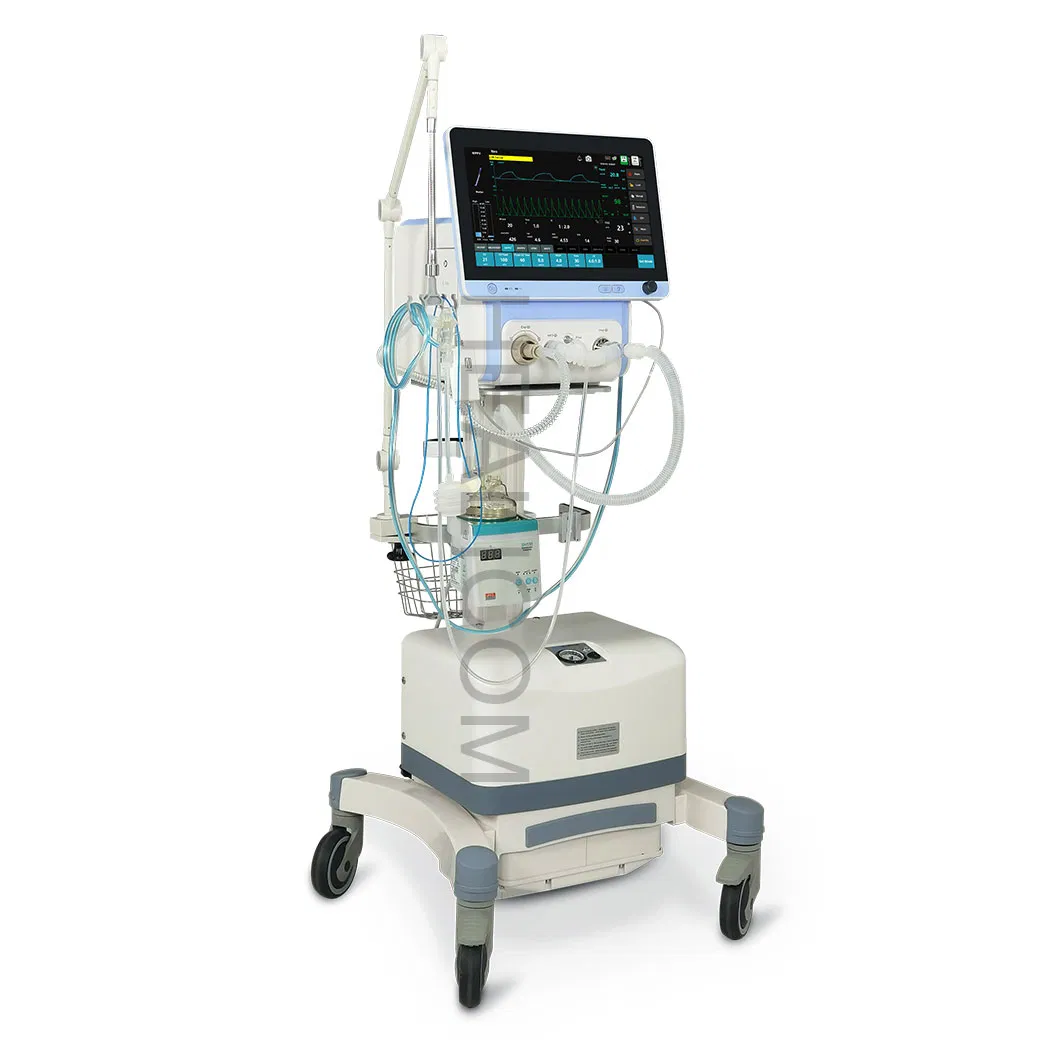

Professional Neonatal Respiratory Support: HV-V7 is a pneumatic and electronically controlled therapeutic ventilator. It combines volume control and pressure control, integrating High-Flow Oxygen Therapy (HFNC), Non-Invasive Ventilation (NIV), Invasive Ventilation (IV), Manual Ventilation (M), Constant Frequency Ventilation (CV), and High Frequency Oscillatory Ventilation (HFOV).
Patient Safety: Designed to prevent volutrauma in HFO with VG and reduce contamination risks with pulse generation from the inspiratory side.
Developmental Care: Low-noise operation creates a stress-free environment for bonding and kangaroo care.
Ease of Use: Optimizes workflow for clinicians, reducing time spent on configurations.
| Ventilator Setting Ranges | Other Parameters | ||
|---|---|---|---|
| Tinsp | 0.10 ~ 15.00s | Apnea Pinsp | 2.0 - 25.0 cmH2O |
| Rate | 1 ~ 200 bpm | Amplitude (Delta P) | 1.0 ~ 150.0 cmH2O |
| PEEP | 1.0 ~ 30.0 cmH2O | HF Frequency | 2 - 20Hz |
| O2 Concentration | 21 ~ 100% | Vt Limit | 1 ~ 500mL |

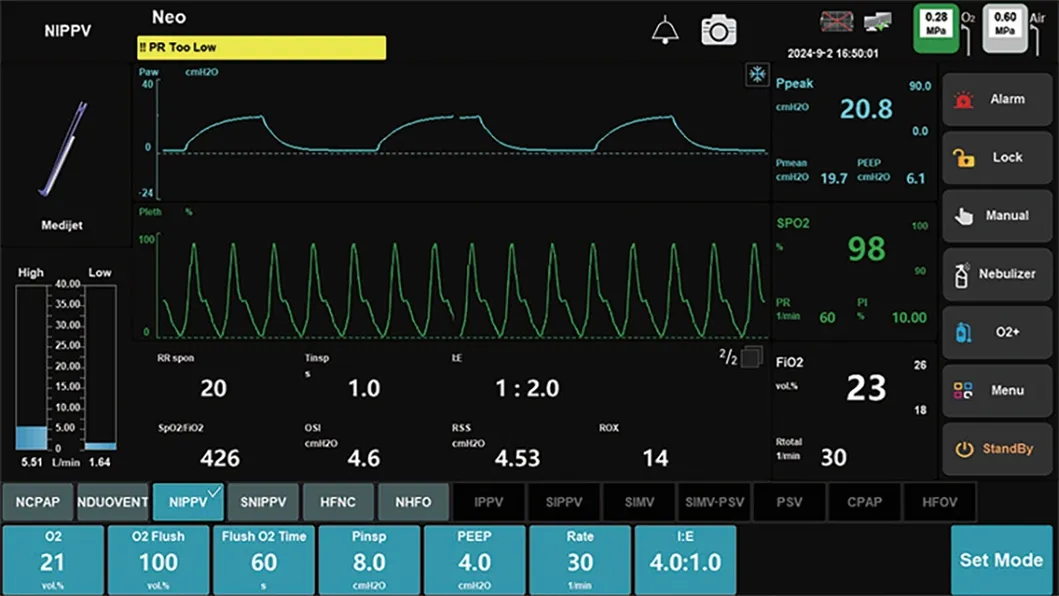

| Weight | ≤ 21.5Kg (including HFOV module) | Display Type | TFT LCD Color Touch-screen |
| Dimensions | 398mm x 425mm x 437mm | Screen Size | 15.6 inch |
| Power / Noise | 70W / 46dB | Resolution | 1366 x 768 pixels |
