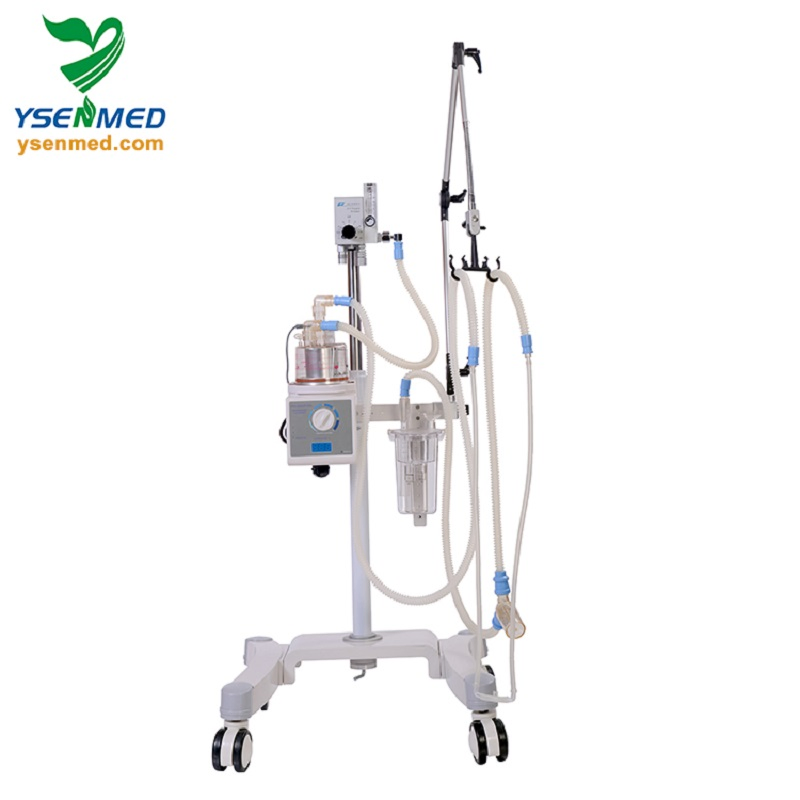

Ysav-5-M1 Medical Equipment Mobile Infant Bubble CPAP Ventilator Bubble Ncpap Infant Respirator
Ysav-5-M1 Medical Equipment Mobile Infant Bubble CPAP Ventilator Bubble Ncpap Infant Respirator
Ysav-5-M1 Medical Equipment Mobile Infant Bubble CPAP Ventilator Bubble Ncpap Infant Respirator
Ysav-5-M1 Medical Equipment Mobile Infant Bubble CPAP Ventilator Bubble Ncpap Infant Respirator
Ysav-5-M1 Medical Equipment Mobile Infant Bubble CPAP Ventilator Bubble Ncpap Infant Respirator
1 / 5
Ysav-5-M1 Medical Equipment Mobile Infant Bubble CPAP Ventilator Bubble Ncpap Infant Respirator
Ysav-5-M1 Medical Equipment Mobile Infant Bubble CPAP Ventilator Bubble Ncpap Infant Respirator
Ysav-5-M1 Medical Equipment Mobile Infant Bubble CPAP Ventilator Bubble Ncpap Infant Respirator
Ysav-5-M1 Medical Equipment Mobile Infant Bubble CPAP Ventilator Bubble Ncpap Infant Respirator
Ysav-5-M1 Medical Equipment Mobile Infant Bubble CPAP Ventilator Bubble Ncpap Infant Respirator

Ysav-5-M1 Medical Equipment Mobile Infant Bubble CPAP Ventilator Bubble Ncpap Infant Respirator

Customization: Available
Ventilation Mode: Newborn Babies CPAP
Gas-Source Require: Oxygen 0.3MPa~0.4MPa
Send Inquiry

Product Description

Basic Specifications
Model NO.
YSAV-5-M1
Power Supply
AC220V/110V
Noise
<55dB(a)
Fio2
21%~100%
Flow
0~18lpm
Certificate
CE, ISO
CPAP Pressure
0.3~1.0kpa (3~10CMH2o)
Battery
Built-in Backup Battery
Package
Wooden Case
Origin
China
Product Description

Mobile Infant Bubble CPAP Ventilator NCPAP Respirator

Infant Bubble CPAP Ventilator

Bubble CPAP is a special medical equipment for supporting babies' breath which devised and manufactured based on the wide application of closed continuous NCPAP in department of pediatrics. It uses on the course of ventilation treatment of Nasal-CPAP for premature, neonate, infant to children below 14 year old. The mode of CPAP can reduce babies' WOB effectively, while keeping the autonomous respiration well.

Key Features
🛡️
Supply a safe and controllable FIO2 and keep FRC effectively.
👶
Reduce infant's WOB and the need for invasive mechanical ventilation.
💧
Supply better warm and humid gas to reduce CLD occurrence rate.
📈
Improve physical signs, such as height and weight development.
Technical Parameters
Parameter Specification
FIO2 21% ~ 100%
Flow Range 0 ~ 18LPM
CPAP Pressure 0.3 ~ 1.0kPa (3 ~ 10cmH2O)
Generator Water Capacity 500ml or more
Alarm Mechanism Differential pressure > 0.1MPa, sound alarm
Gas Supply Pressure Oxygen and Air: 0.3MPa ~ 0.4MPa
Certification ISO 13485, CE
Parts & CPAP Generator Details

Medical Electric Respiratory Humidifier:

  • Working temperature: 30ºC ~ 37ºC
  • Max temperature of heating plate: 85ºC
  • Chamber Capacity: 280ml (Adult); 230ml (Infant)
  • Max flow: 180L/min; Max working pressure: 2kPa

CPAP Generator:

  1. Easy oscillating gas pressure setting (3cmH2O to 10cmH2O) via pressure bar.
  2. Automatic water-level regulating mechanism ensures constant CPAP pressure.
  3. Dismountable chamber for convenient maintenance.
Hospital Operation Room Reference
Department Basic Items
Operation Room Items Anesthesia machine, Ventilator, Operating lamp
Operation table, Medical Pendant
Medical drill and saw, ECG
Patient monitor, Defibrillator
Infusion pump, Electrocoagulation
Oxygen generator, Electric suction device
Autoclave sterilizer
Product Gallery
Mobile CPAP System
Infant Respirator Details
CPAP Ventilator Components
Medical Equipment Display
Frequently Asked Questions
❓ What is the primary use of the Bubble CPAP ventilator?
It is designed for respiratory support using Nasal-CPAP ventilation for premature infants, neonates, and children up to 14 years old.
❓ How does this device benefit neonatal care?
It effectively reduces the baby's Work of Breathing (WOB), maintains Functional Residual Capacity (FRC), and minimizes the need for invasive mechanical ventilation.
❓ Can the oxygen concentration be adjusted?
Yes, the FIO2 (Fraction of Inspired Oxygen) is fully controllable and adjustable from 21% to 100%.
❓ What safety alarms are included in the system?
The system includes a sound alarm that activates if the differential pressure exceeds 0.1MPa, ensuring patient safety.
❓ Does the unit work during power failures?
The device features a built-in backup battery to ensure continuous operation and patient safety during power interruptions.
❓ How is the CPAP pressure maintained?
The CPAP generator uses an automatic water-level regulating mechanism to ensure constant and stable pressure throughout the treatment.
