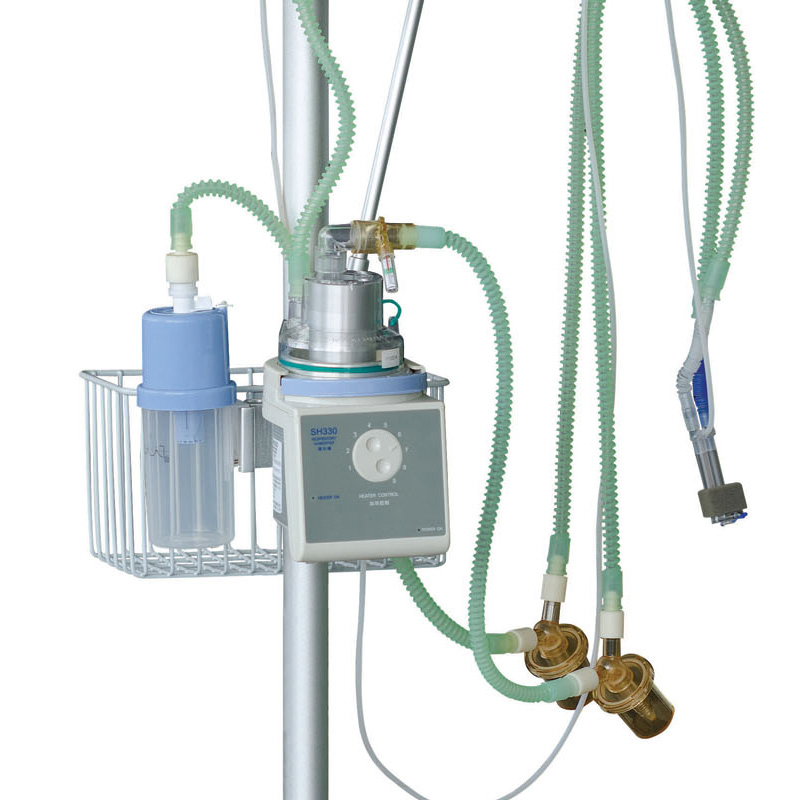

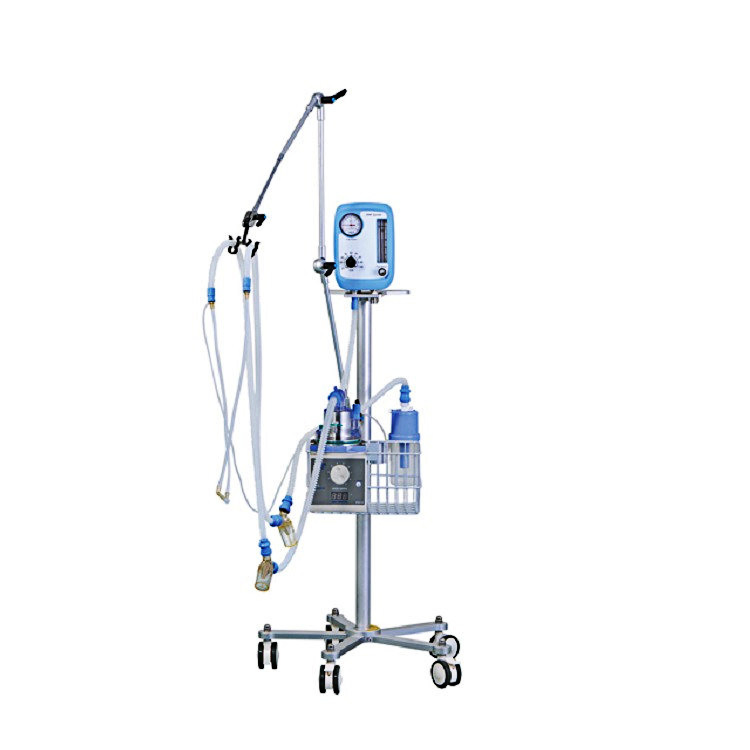

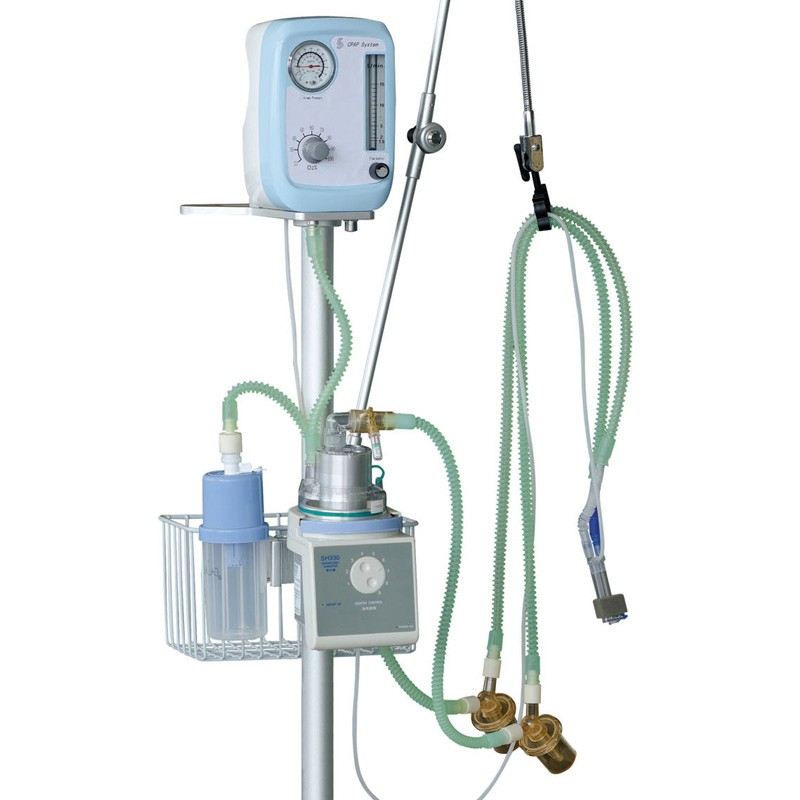

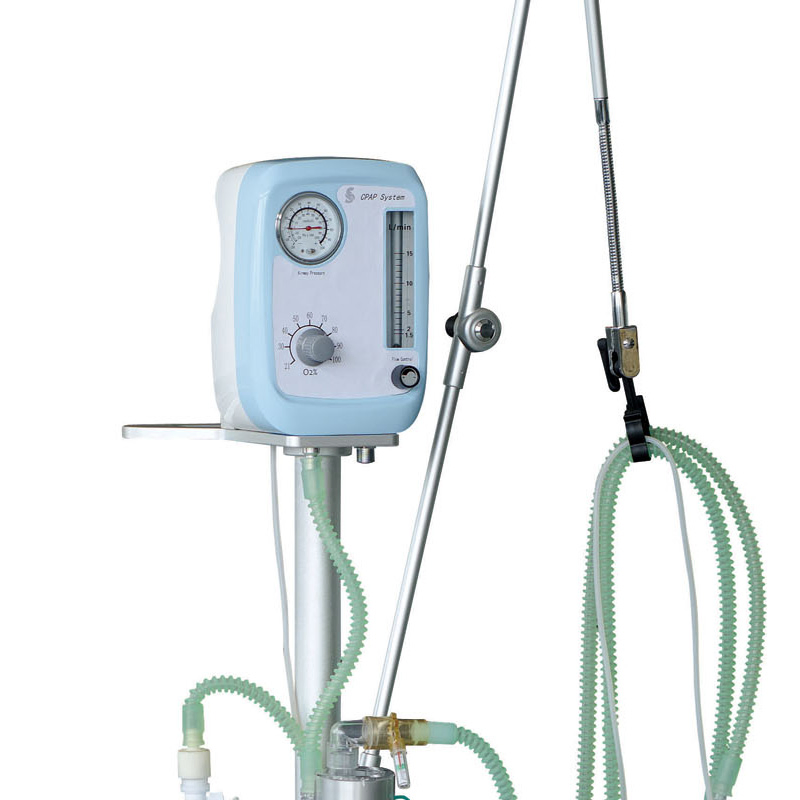

Medical Instrument Neonatal Resuscitation ICU Portable Ventilator
Medical Instrument Neonatal Resuscitation ICU Portable Ventilator
Medical Instrument Neonatal Resuscitation ICU Portable Ventilator
Medical Instrument Neonatal Resuscitation ICU Portable Ventilator
1 / 4
Medical Instrument Neonatal Resuscitation ICU Portable Ventilator
Medical Instrument Neonatal Resuscitation ICU Portable Ventilator
Medical Instrument Neonatal Resuscitation ICU Portable Ventilator
Medical Instrument Neonatal Resuscitation ICU Portable Ventilator

Medical Instrument Neonatal Resuscitation ICU Portable Ventilator

Customization: Available
Type: Ventilator
Applicate: Newborns and Children
Send Inquiry

Product Description

Technical Specifications

Model NO.
NYJ-200D
CPAP
0CMH2o ~ 10CMH2o
Oxygen Concentration
21% ~ 100%
Continuous Flow
1.5L/Min ~ 15L/Min
Gas Source
O2, Air (Medical Use)
Working Pressure
350KPA ± 50KPA
Certification
CE, ISO13485
Patient Group
Infant / Children (<14 years)
Device Kind
Baby Ventilator
Specification
160*195*1100mm

Product Overview

The NYJ-200D Surgical instrument portable NICU ventilator machine is specifically designed for baby care. This CPAP system provides continuous positive airway pressure, used for infants with stronger spontaneous breath and slight respiratory failure. It is widely applicable in pediatrics, neonatology, and for children under the age of 14 requiring NCPAP ventilation.

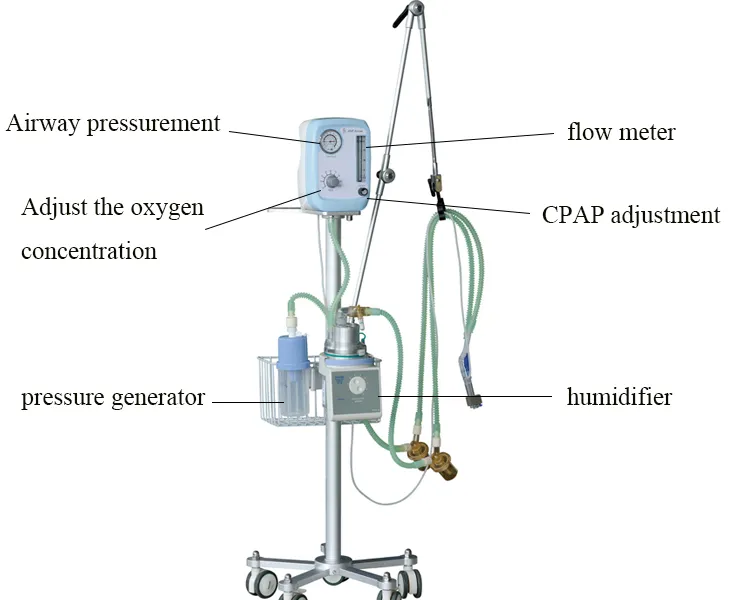

NICU Ventilator Machine for Baby Care

Key Features

  • CPAP ventilation mode maintains spontaneous breathing and reduces the respiratory workload for children.
  • Provides a constant flow and limited pressure CPAP mode specifically for newborn babies.
  • Delivers air/O2 mixtures with adjustable oxygen concentration and continuous positive pressure to improve safety and efficacy.
  • Equipped with a built-in oxygen/air blender to ensure stable O2 concentration adjustment.
  • High-reliability CPAP control valve and pressure monitoring system for precise adjustments.
  • Optional humidifier with heating device available for enhanced patient comfort.

Detailed Parameters

Item Technical Content
Oxygen Concentration 21% - 100%
CPAP Range 0cmH2O ~ 10cmH2O
Continuous Flow 1.5L/min ~ 15L/min
Gas Source Requirements Medical Grade O2 and Air
Rated Working Pressure 350KPA ± 50KPA

Professional Certification & Facilities

Certification

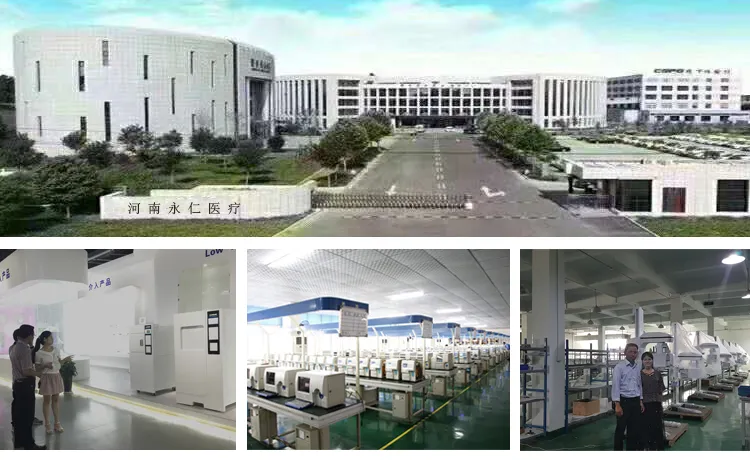

Production Facility
Global Presence

Frequently Asked Questions

What is the primary application of the NYJ-200D?
The NYJ-200D is designed to provide continuous positive airway pressure (CPAP) for infants and neonates who have spontaneous breathing but suffer from slight respiratory failure.
Which age group is this device suitable for?
It is specifically engineered for pediatrics and neonatology, suitable for children under the age of 14.
Can the oxygen concentration be adjusted?
Yes, the device features a built-in oxygen/air blender that allows for stable oxygen concentration adjustment ranging from 21% to 100%.
What type of gas source does it require?
The system requires medical-grade Oxygen (O2) and Air, operating at a rated working pressure of 350KPA ± 50KPA.
Is the CPAP pressure monitoring precise?
Yes, the NYJ-200D includes a reliable CPAP control valve and a dedicated pressure monitoring system to improve adjustment precision.
What are the physical dimensions for transport?
The main unit specifications are 160*195*1100mm, and it is shipped in standard protective medical equipment packaging.
