Model NO.:PA-700B
Ventilation Mode:A/C, Ippv, Sippv, Imv, Simv, Standby, Manual
Tidal Volume:50-1500ml
Respiratory Rate:1-99bpm
(I:E) Ratio:4:1-1:4
Source:Oxygen and Air
Transport Package:Cartons for Export
Specification:0.50 CBM; 77kg GS
HS Code:9019200000
Production Capacity:500

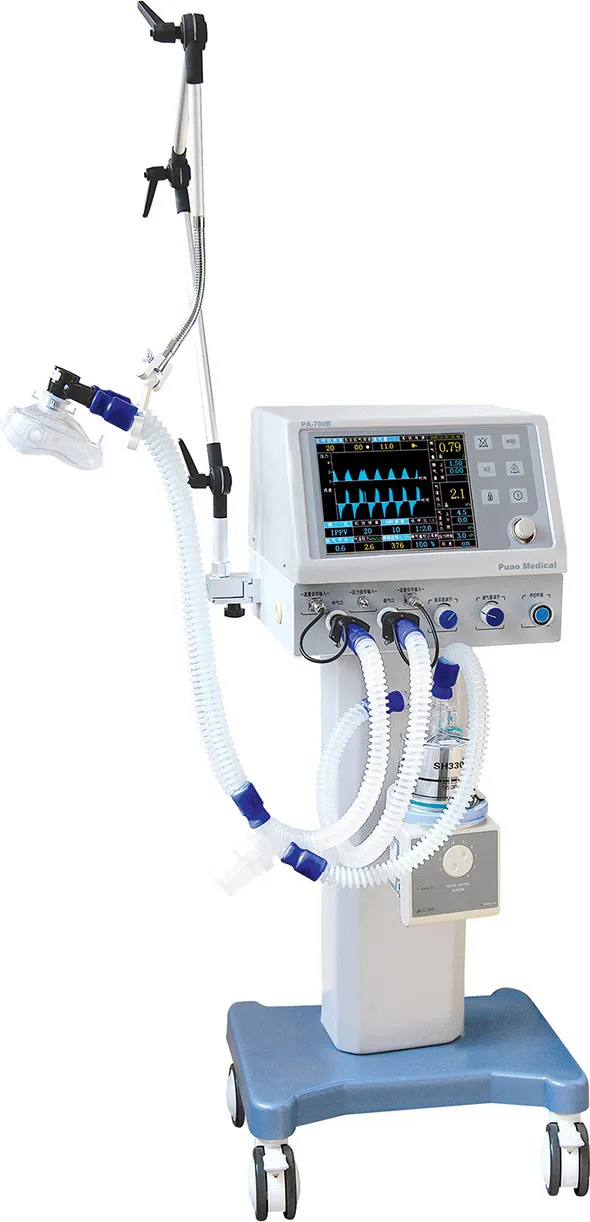

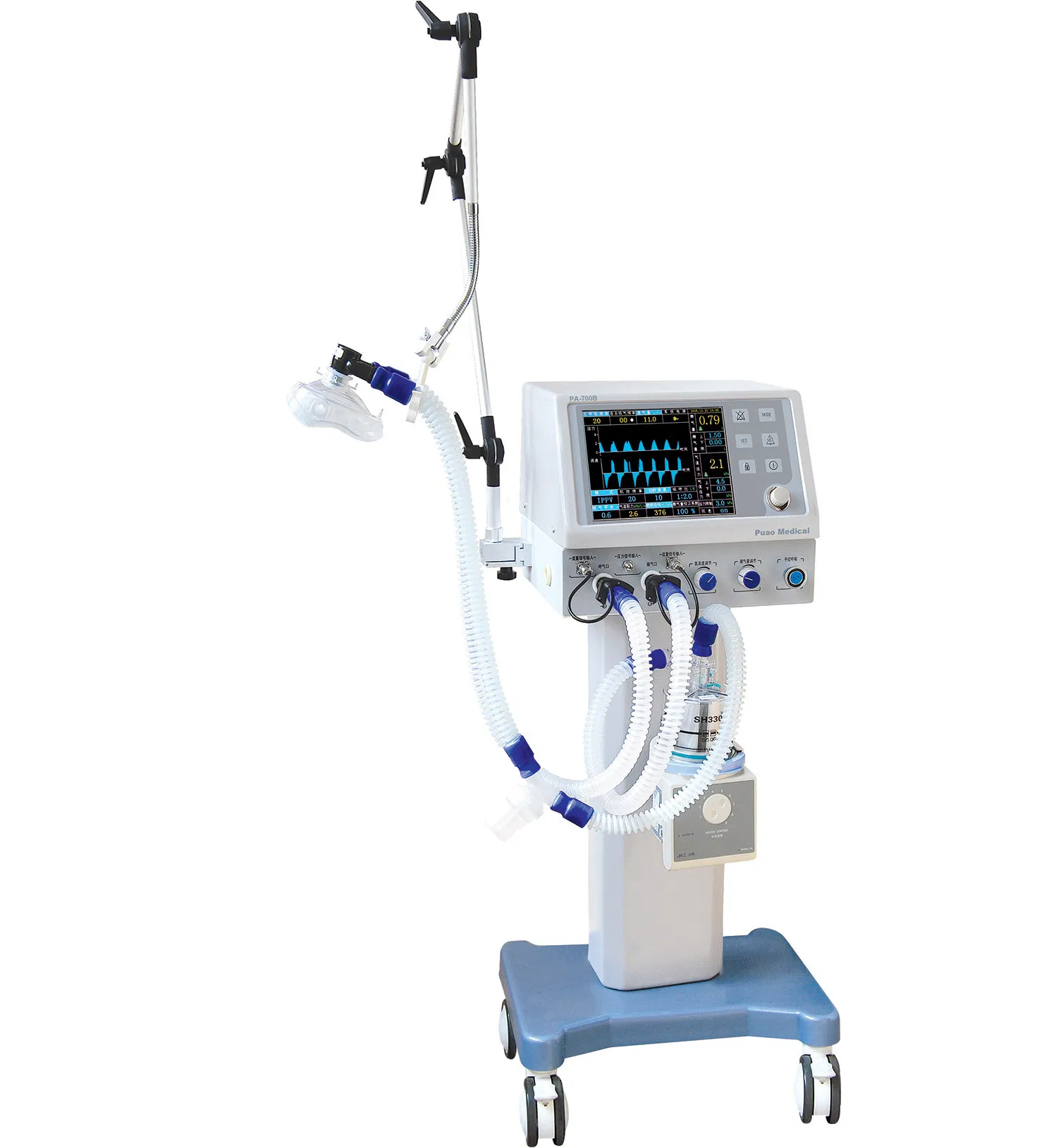

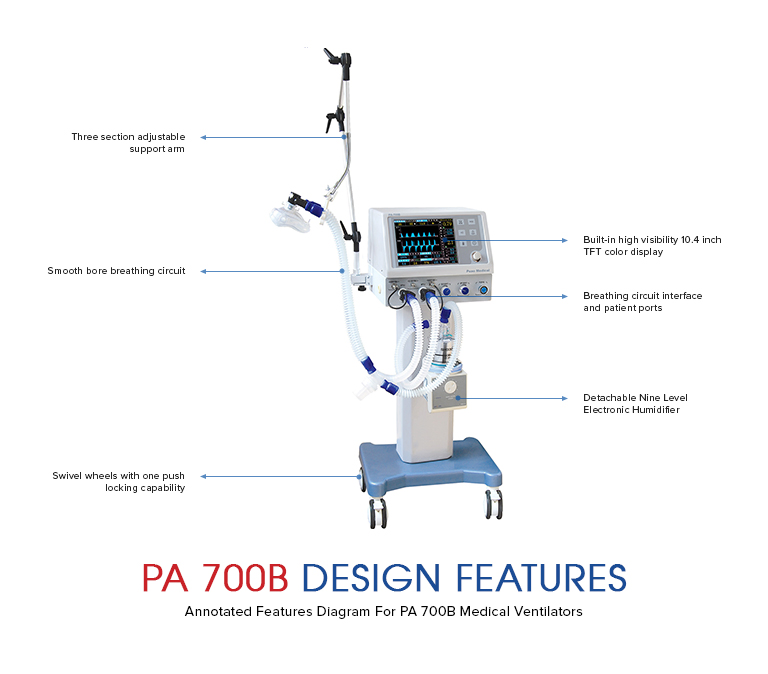

Medical Anti-Epidemic High Flow Humidifier Oxygen Therapy Ventilators Pediatric / ICU Ventilator for Hospital
●
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open options.
●
Emergency Use: Suitable for emergency clinical resuscitation and respiratory therapy.
●
Design: Nonhazardous environmentally friendly frame with precise construction and elegant design; features automated self-checking and self-calibrating sensors.
●

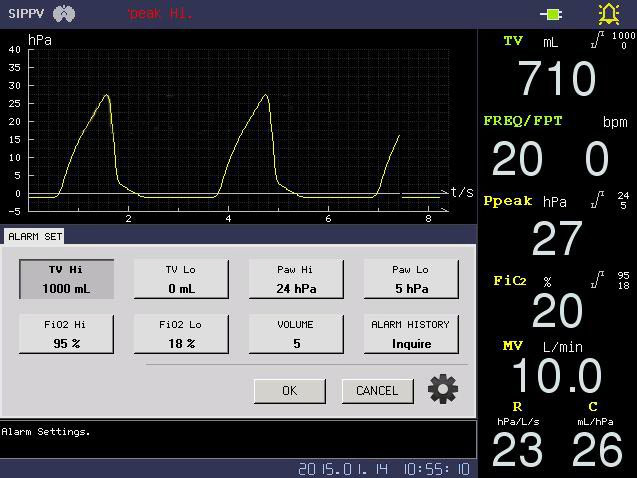

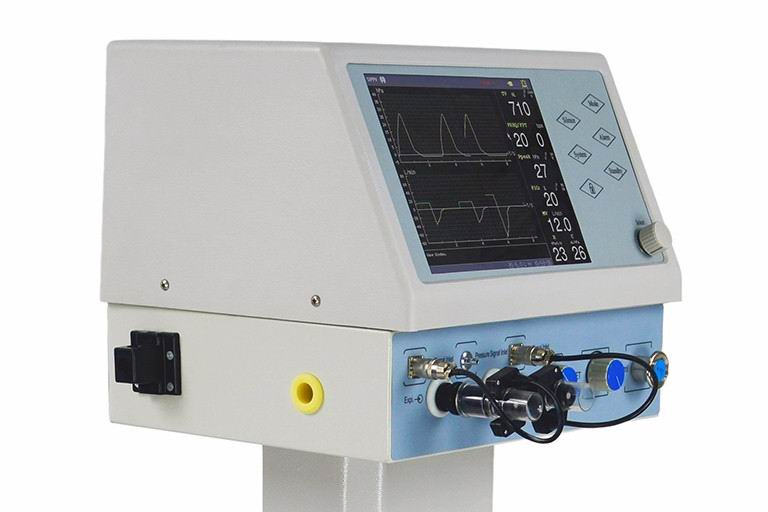

Display: Built-in 10.4 inch high visibility color TFT display, capable of showing Pressure-Time and Frequency-Time waveforms in real time.
●
Sigh Function: Ability to insert 1-8 sigh breaths in every 100 breaths (no less than 1.5 the tidal volume).
●
Sensor: Infrared turbine flow sensor for stable and reliable gas flow measurement.
●
Power Failure Support: Automatically converts to standby mode during AC power outages.
●
Humidifier: 9 Level adjustable humidifier.
●
Comprehensive Monitoring: Tracks tidal volume, respiration rate, airway pressure, I:E ratio, trigger status, and more.
●
Advanced Alarms: Visual and audible alarms for volume, oxygen concentration, asphyxia, airway pressure, and disconnection.
✚
Medical Grade Compressor: Tailored for long clinical durations with low noise requirements.
✚

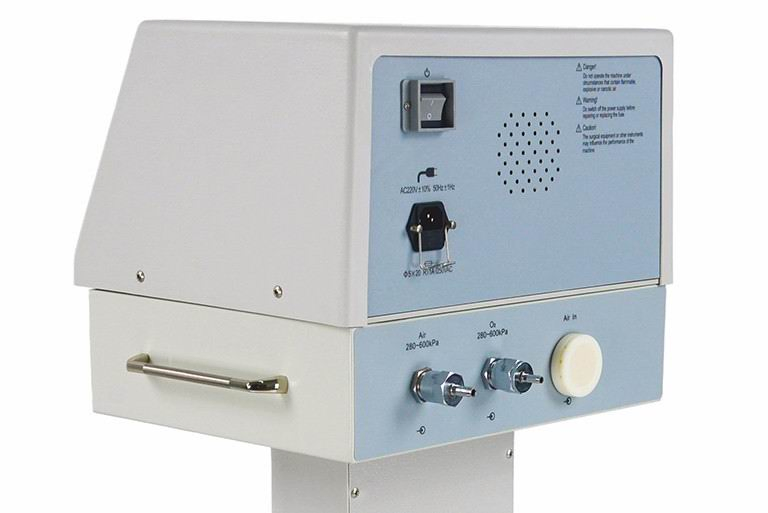

Air Compressor Specs: 220V AC±10%, 50±1Hz, 700VA with protective grounding.
✚
Gas Flow: Output pressure 0.4MPa±20%; continuous flow ≥ 20L/min; instantaneous flow ≥ 60L/min.
Frequently Asked Questions
Q1: What is the tidal volume range for the PA-700B?
The tidal volume is adjustable from 50ml to 1500ml, making it suitable for both pediatric and adult ICU patients.
Q2: How long can the backup power supply last?
The system includes a backup power supply that provides at least 4 hours of operation during power outages.
Q3: What type of display does the ventilator use?
It features a built-in 10.4 inch high-visibility color TFT display that simultaneously shows Pressure-Time and Frequency-Time waveforms.
Q4: Does the ventilator support PEEP?
Yes, it supports PEEP (Positive End-Expiratory Pressure) with an adjustable range of 0-10cmH2O.
Q5: What are the primary ventilation modes available?
The PA-700B includes multiple modes: A/C, SIPPV, IPPV, SIMV, PSIMV, PEEP, SPONT, and MANUAL.
Q6: Is an air compressor included?

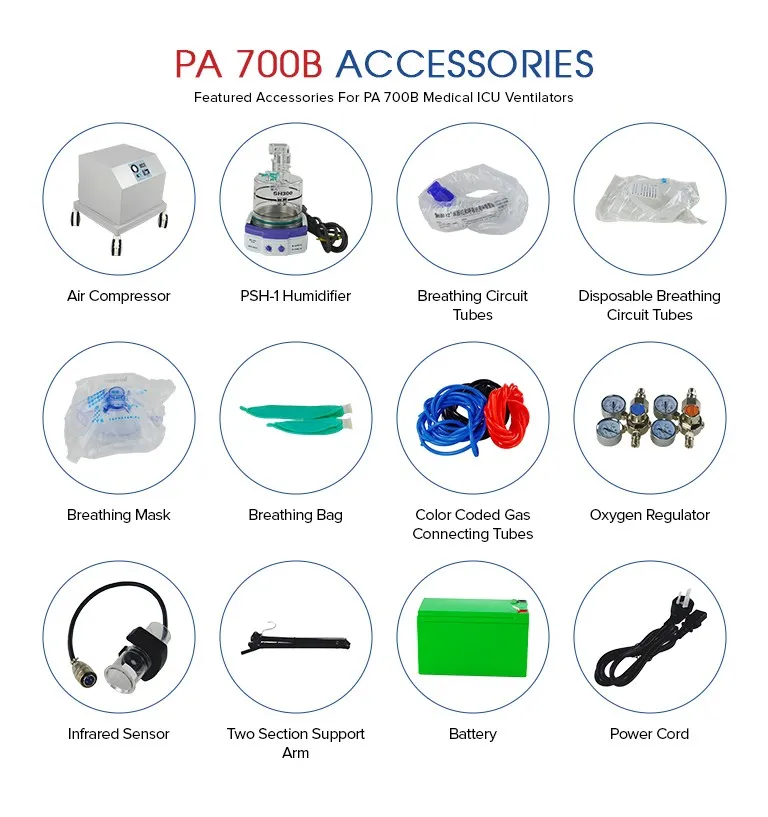

The advanced model comes equipped with a professional medical-grade air compressor designed for low noise and long clinical operation.
