📋 Basic Specification
Certification
CE, ISO13485
Ventilation Mode
Vcv, Pcv, Simv, Psv, Psv+Simv, CPAP
Power Supply
AC 100-240V, 50/60Hz
Production Capacity
100set/Month

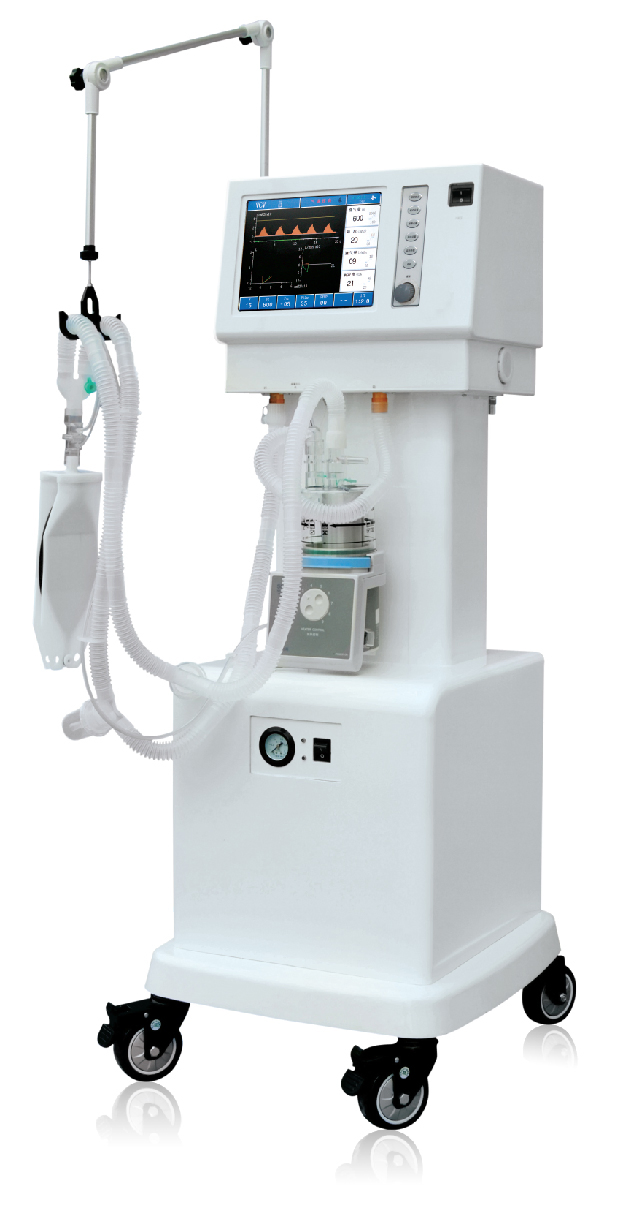

🔍 Accurate Monitoring ICU Critical Care Ventilator
Main Features
SD-2000B3 Ventilator is a multi-functional Ventilator adopting pneumatic, electronic control and microcomputer technology. Imported components guarantee operational stability and reliability. With 10.4" LCD color screen display various measuring and configuration parameters, the device is very suitable for respiratory treatment, applicable for first aid department, surgical department, gynecological departments, pediatrics department, and ICU department of hospitals. Built-in Air Compressor, the machine can be used directly in the ICU department.

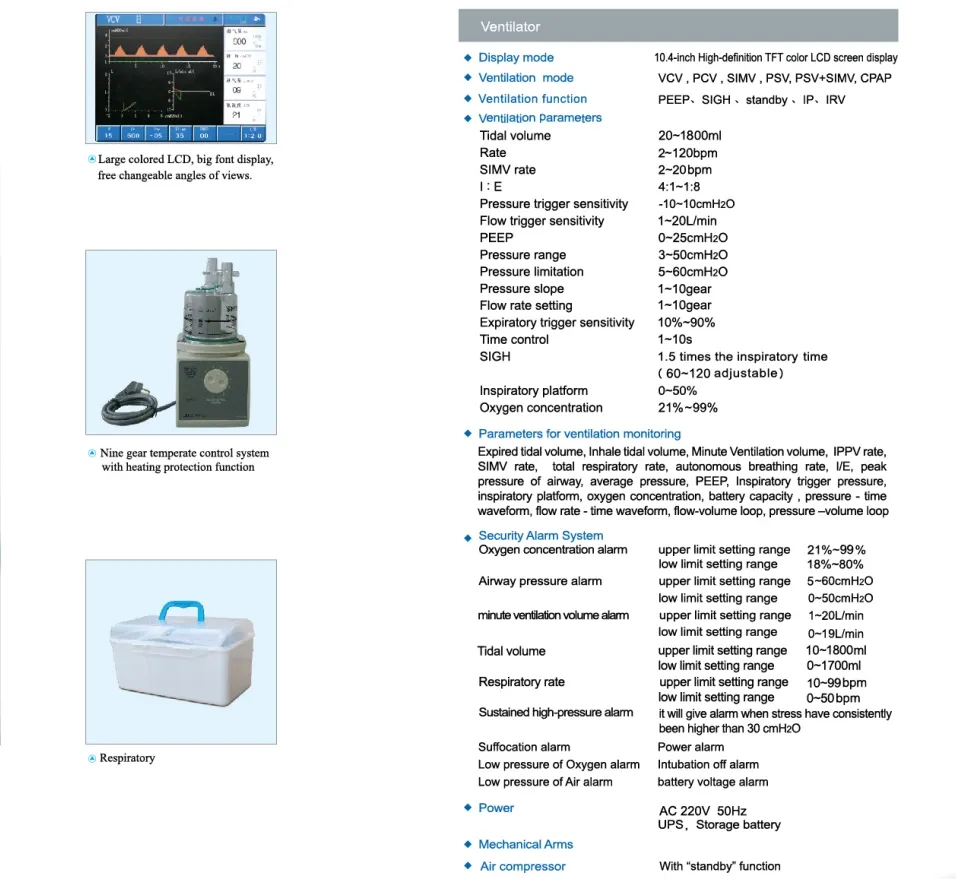

📊 Ventilation Monitoring Parameters
VI tidal volume, VE tidal volume, Minute Ventilation volume, IPPV rate, SIMV rate, Total respiratory rate, autonomous breathing rate, I/E, peak pressure of airway, average pressure, PEEP, Inspiratory trigger pressure, inspiratory platform, oxygen concentration, battery capacity, pressure - time waveform, flow rate - time waveform, flow-volume loop, pressure -volume loop
⚠️ Security Alarm System
- Oxygen Concentration Alarm: Upper limit 21%~99%, Low limit 15%~80%
- Airway Pressure Alarm: Upper limit 1~60 cmH2O, Low limit 0~50cmH2O
- Per-minute Ventilation Volume Alarm: Upper limit 1~30L/min, Low limit 0~20L/min
- Tidal Volume alarm: Upper limit 10~2000ml, Low limit 0~1800ml
- Respiratory rate: Upper limit 10~99bPm, Low limit 0~50 bPm
- Sustained High Pressure Alarm: Triggers after stress higher than 25 cmH2O for 15s
- Low Battery Level Alarm: Triggers when level is less than 14±0.5V
- Gas shortage / Low pressure of Oxygen & Air alarm
- Power alarm & Intubation off alarm
⚡ Power Supply
AC 100~240V, 50/60Hz
Built-in Li Battery (Work at least for 4-6 hours with battery)

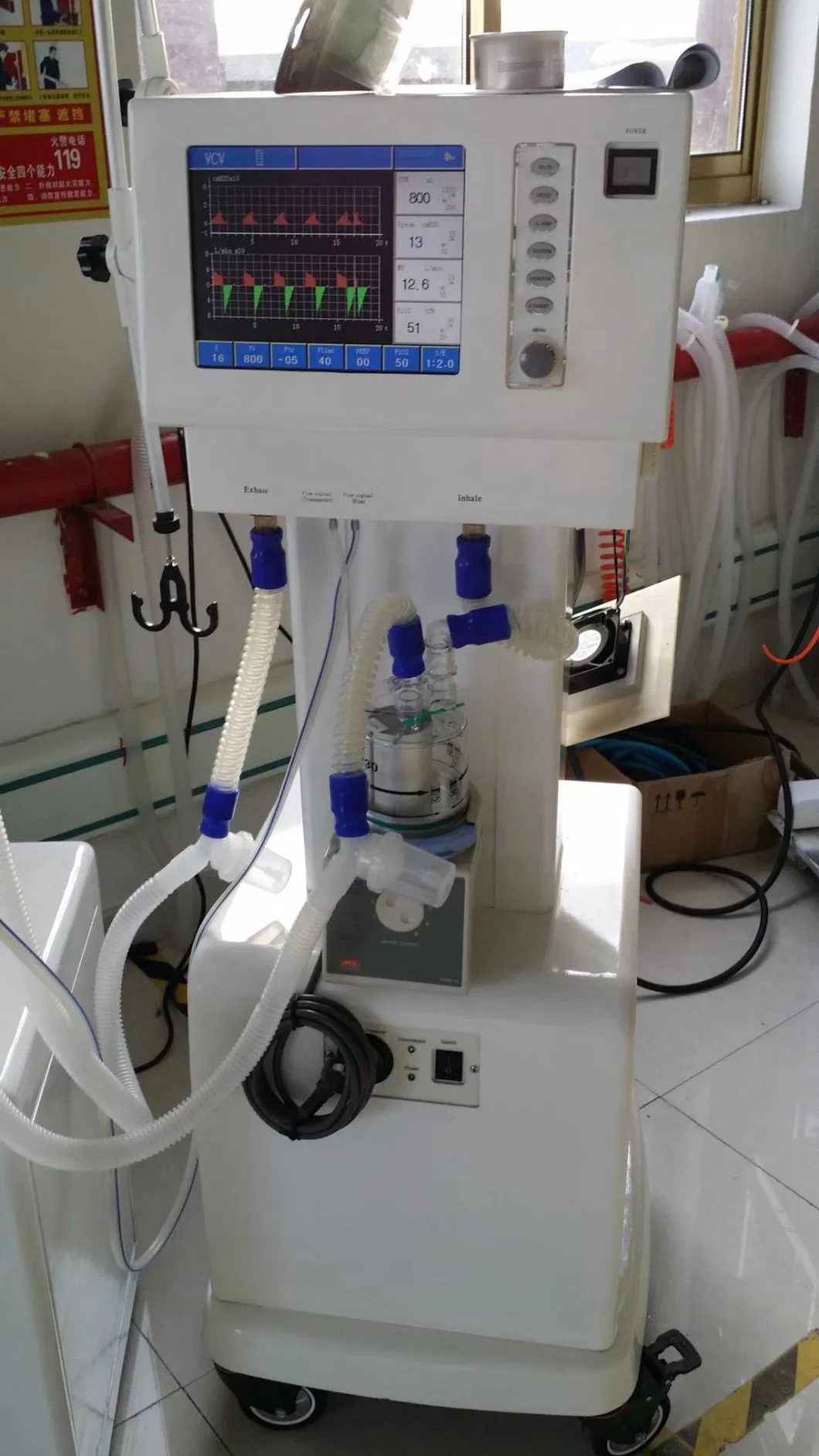

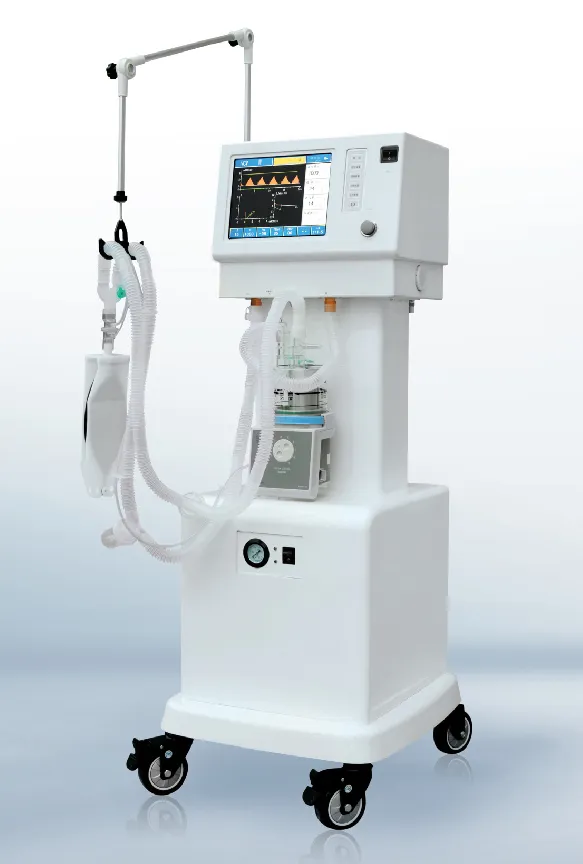

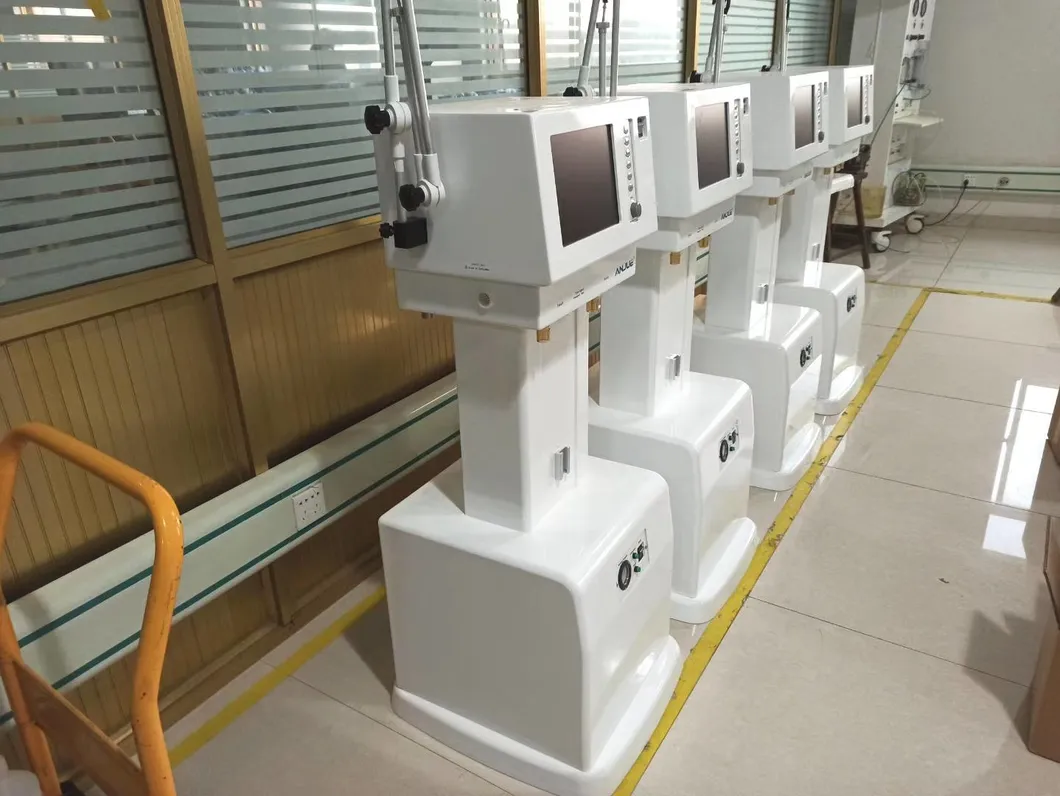

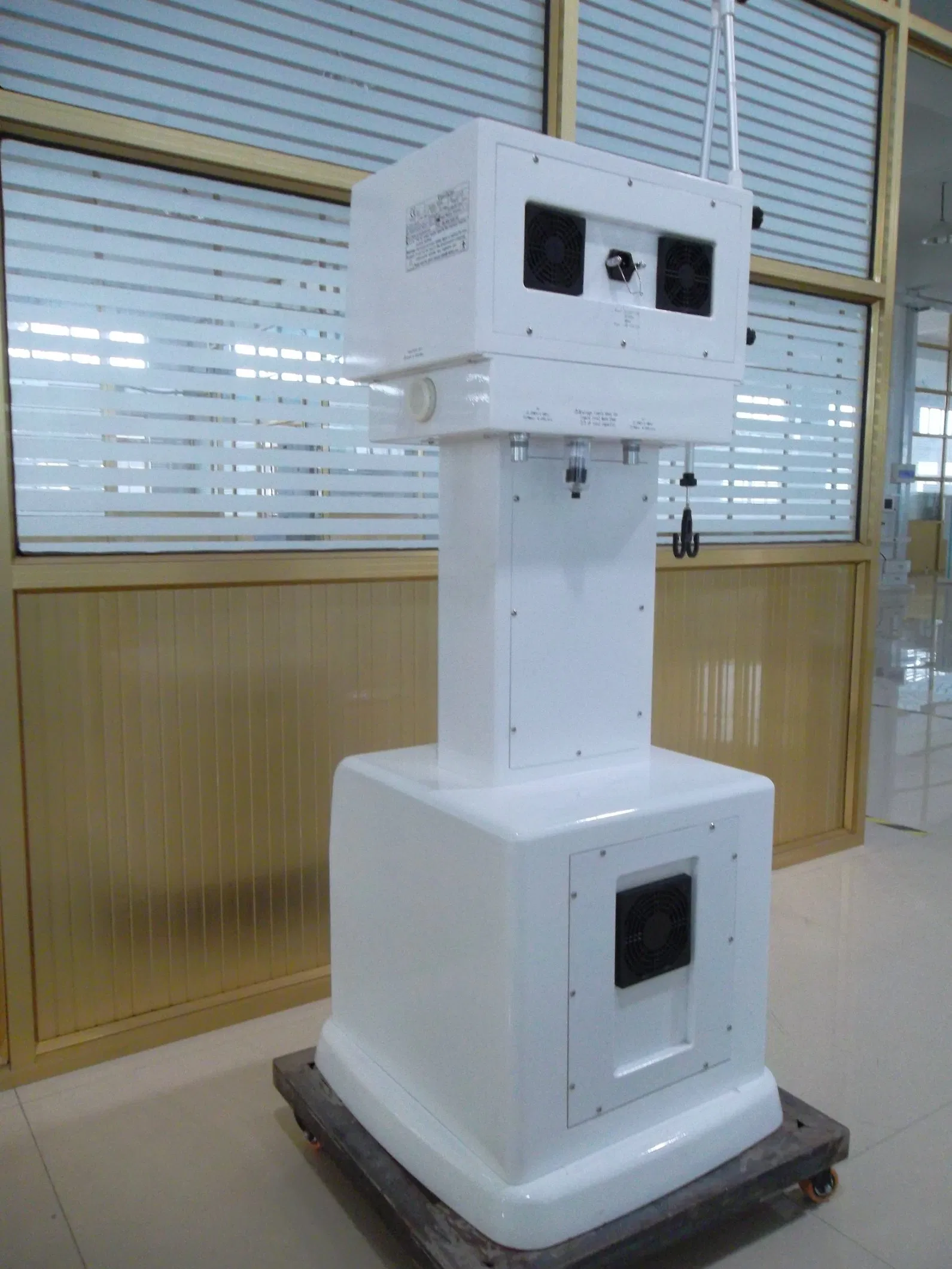

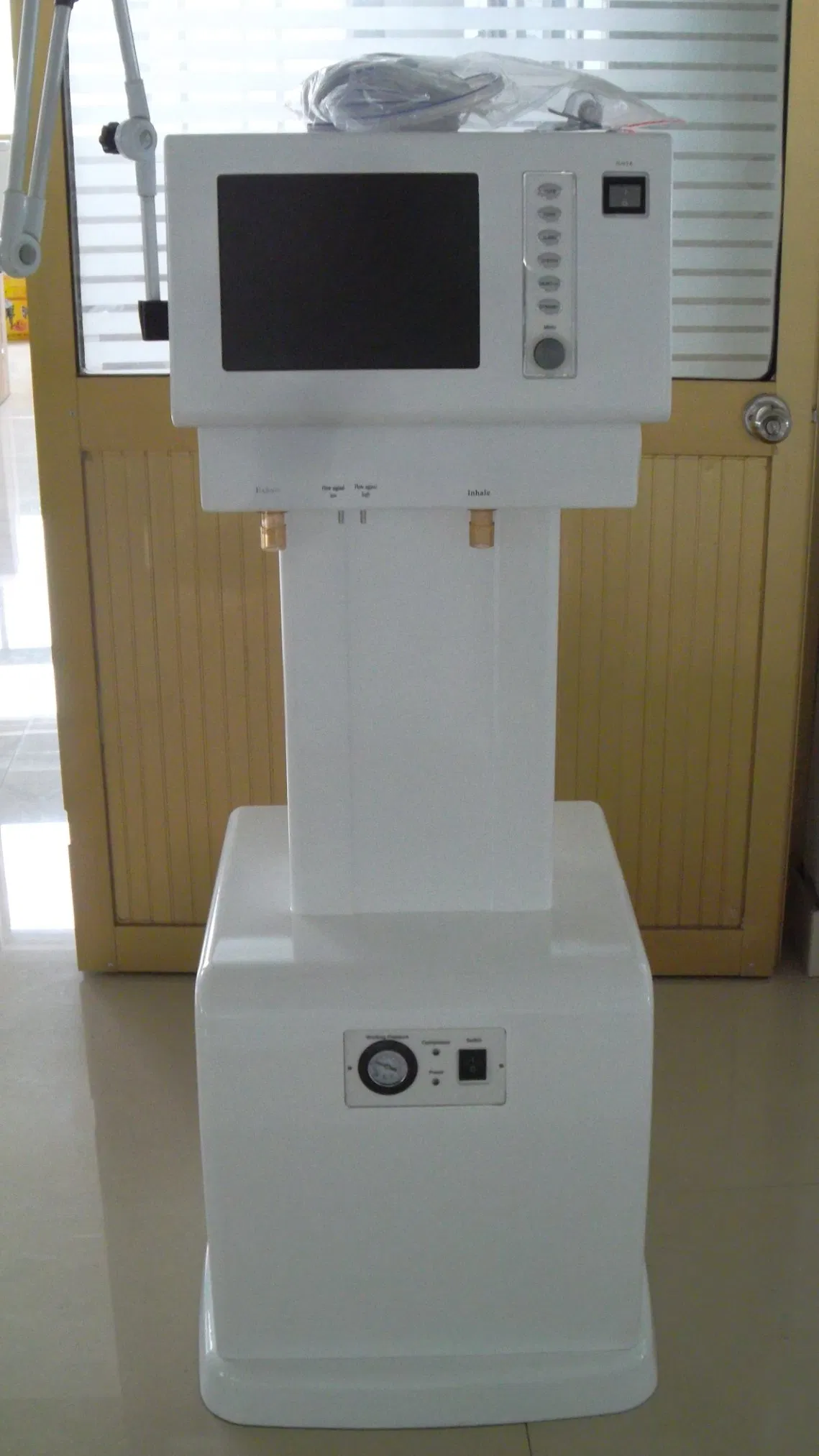

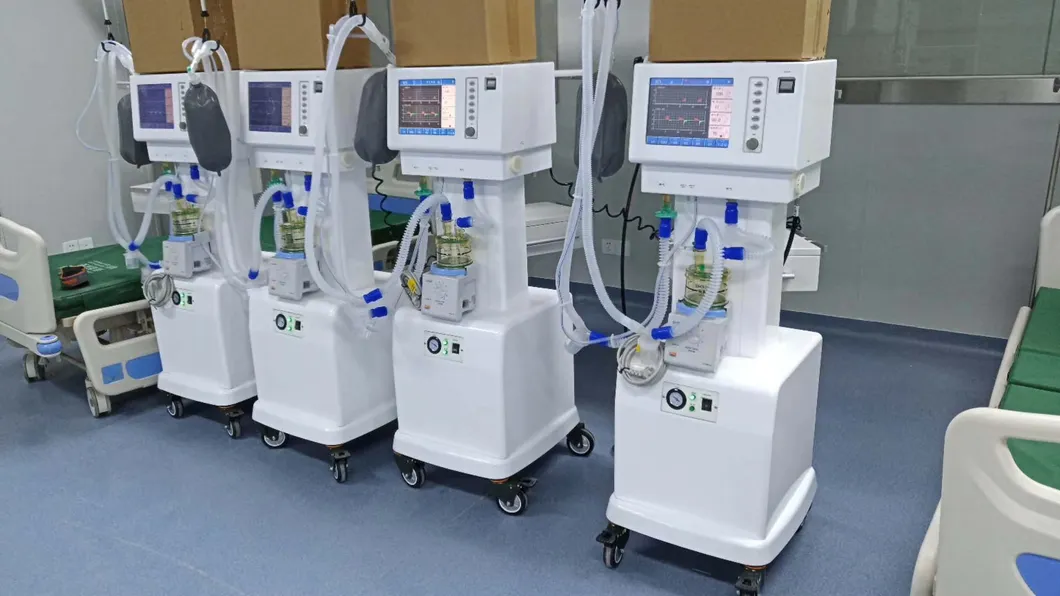

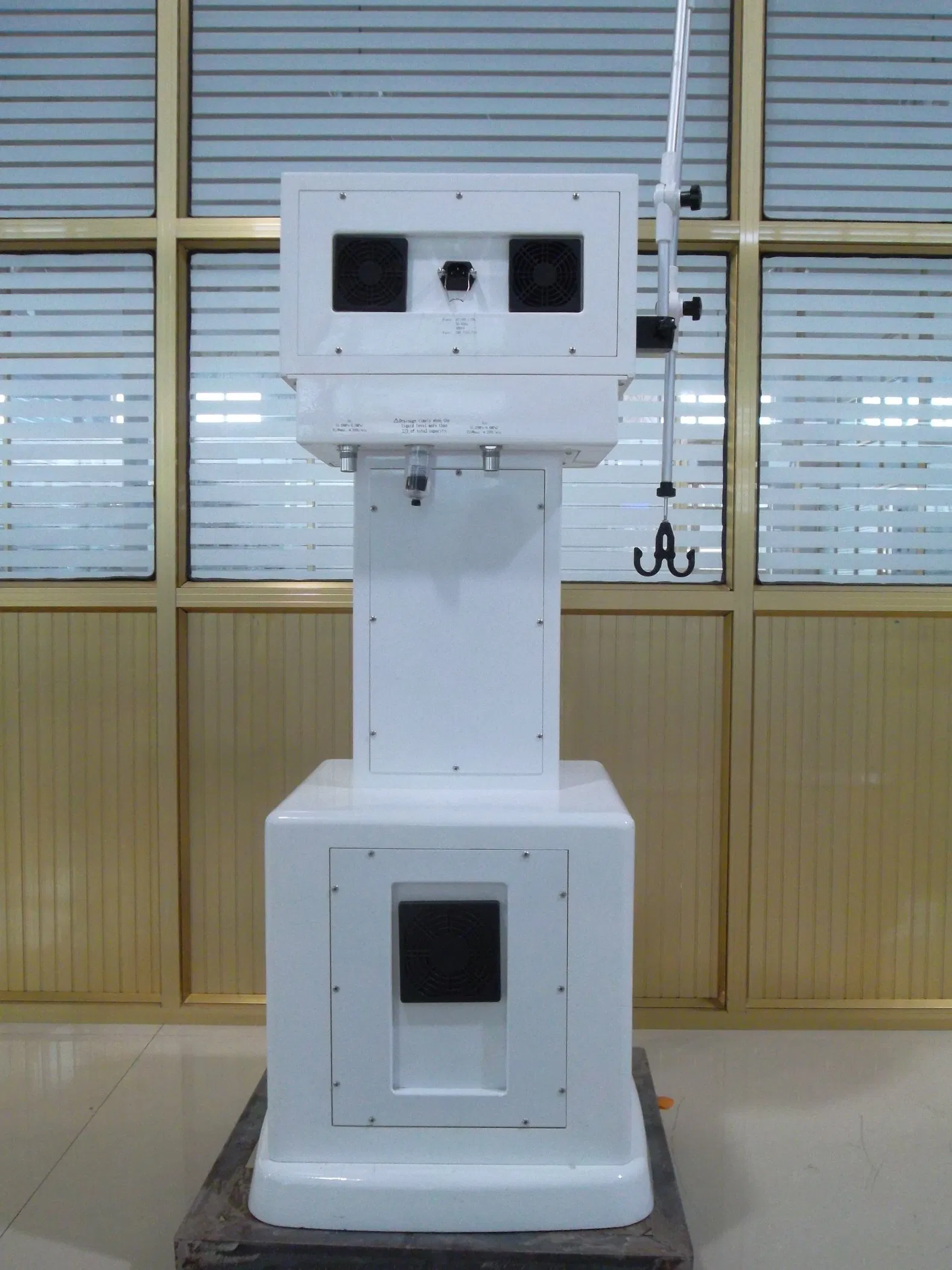

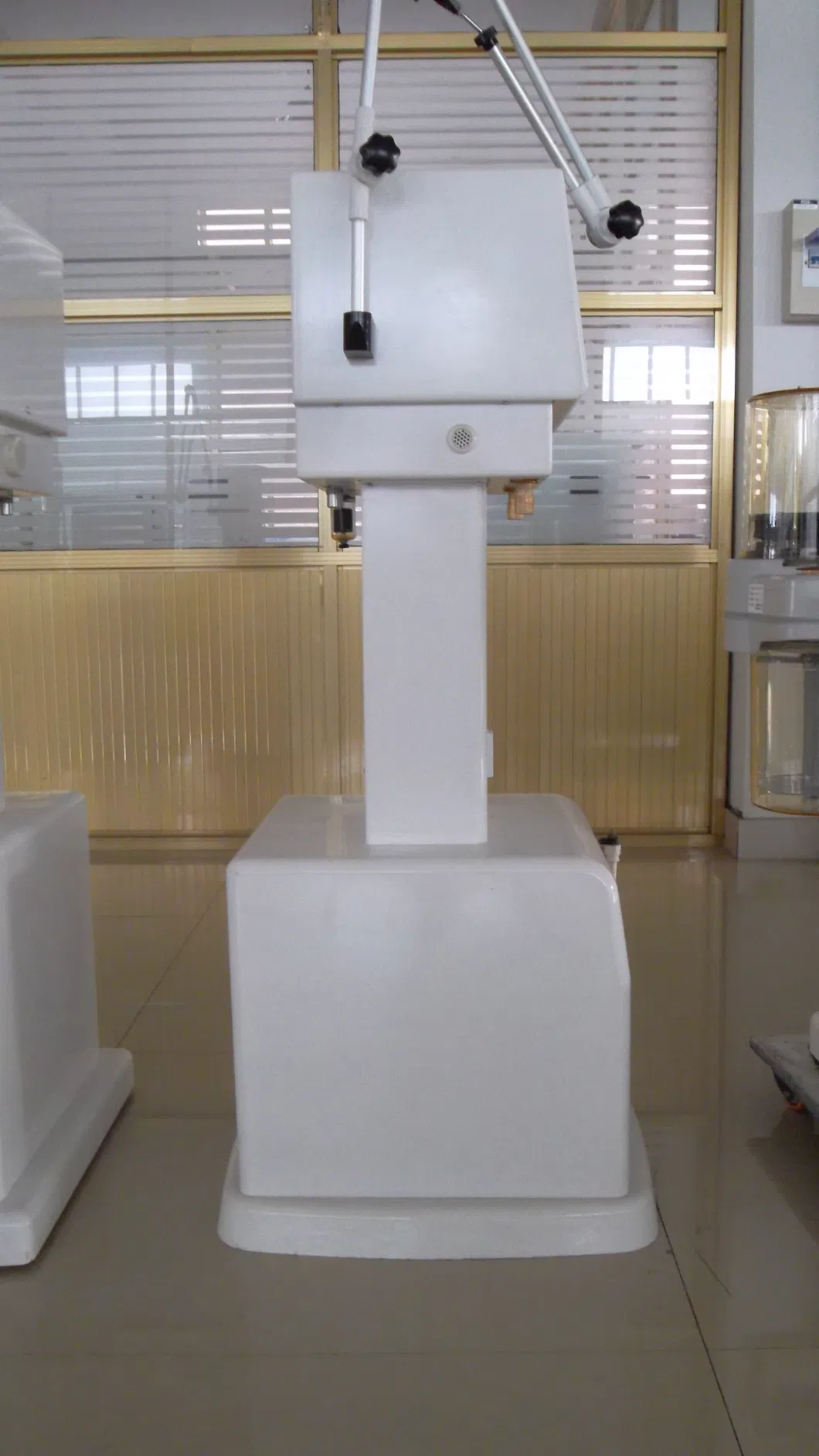

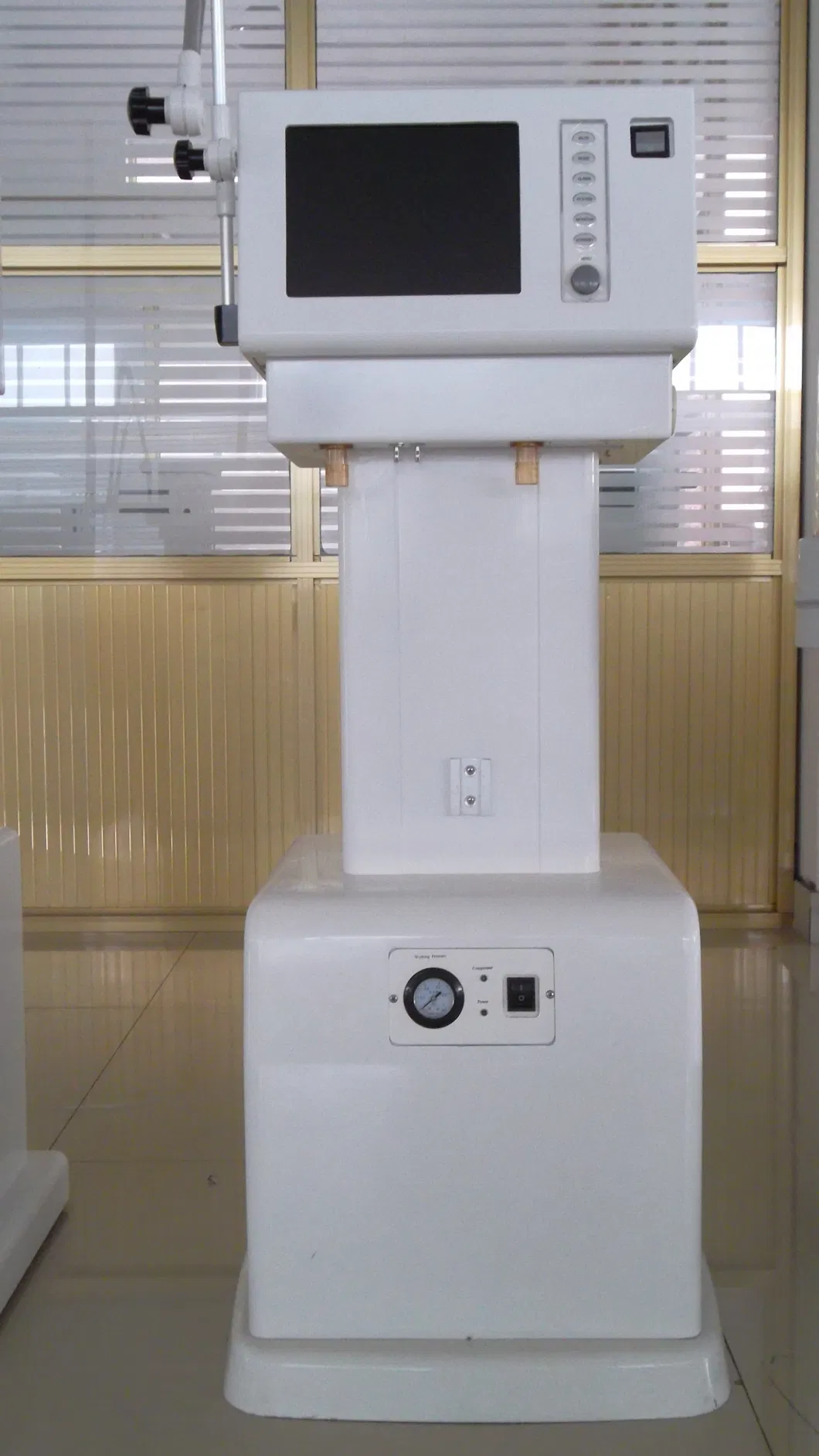

📸 Product Gallery
❓ Frequently Asked Questions
What is your payment term?
We accept T/T, L/C, Western Union, etc.
What is your delivery time?
15-35 working days based on order quantity.
Do you offer origin certificates like Form A or Form E?
Yes, we can apply for these certificates from the government as required.
Can you use our custom LOGO?
YES, we can provide logo customization services.
Which markets do you serve?
Our products are popular in Africa, South America, Russia, the Middle East, Southeast Asia and more than 70 countries worldwide.
Do you supply OEM items?
Yes, we can supply OEM items as we have our own professional R&D team.
