Product Description

✓

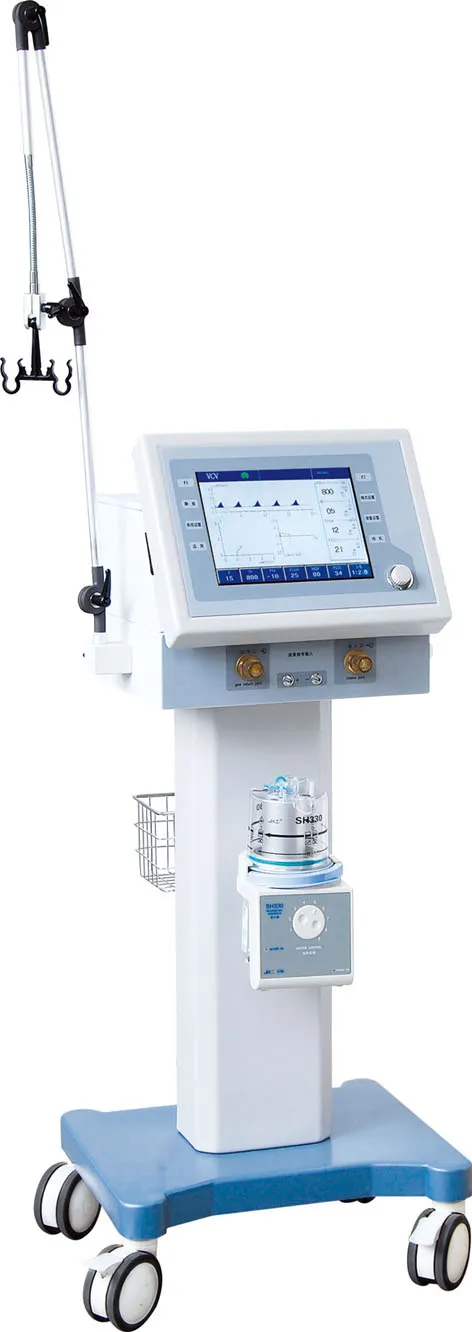

Flow Balancing Ventilation System

Flow Balancing Ventilation System
Ventilation System Detail
★

Key Features & Specifications

●Display: 10.4-inch LCD screen, Machine and screen separation
●Breathing Mode: IPPV, SIPPV, IMV, SIMV, PEEP, Manu, Sigh and so on
●Tidal Volume Adjustment: 0~1500ml
●Ventilation Capacity per Minute: ≥18L
●Ventilator Conformance: ≤30mL/kpa
●Oxygen Concentration: 21%~100%
●Respiratory Rate: 0~99bpm
●SIMV Respiratory: 1bpm~20bpm
●I/E Ratio: 4:1~1:4
●Maximum Safe Pressure: ≤6.0kPa
●(Ptr) Range: -0.8~0.9kPa
●PEEP: 0.1~1.0kPa
●Sigh Volume: 150% of tidal volume
●Peak flow speed: ≤100L/min
●Inspiratory pause: With unusual pause function, convenient and sputum suction
●Alarm system: According to the senior, intermediate priority arrangement
●Others: Metal basket can deposit in attachment
●Option: air compressor
ℹ

Commercial Information

MOQ 1 set
Delivery time 7-10 days after payment
Payment terms T/T
Warranty period 1 year
?

Frequently Asked Questions

Q1: What are the primary breathing modes supported by this system?
A: The system supports multiple modes including IPPV, SIPPV, IMV, SIMV, PEEP, Manu, and Sigh to meet various clinical needs.
Q2: Can the tidal volume be adjusted for different patients?
A: Yes, the tidal volume is adjustable from 0 to 1500ml, making it suitable for a wide range of patient requirements.
Q3: What is the range of oxygen concentration available?
A: The equipment provides a wide oxygen concentration range from 21% to 100%.
Q4: How does the alarm system function?
A: The device features a sophisticated alarm system organized by senior and intermediate priority levels to ensure maximum patient safety.
Q5: Is the display screen integrated into the main machine?
A: It uses a 10.4-inch LCD screen with a separation design between the machine and the screen for flexible viewing and operation.
Q6: Are there any optional components available?
A: Yes, an air compressor is available as an optional addition to the standard ventilation system.
