ICU/ Comprehensive Configurations/ Top Class Ventilator Cwh-3010A Critical Care

Customization:	Available
Type:	Ventilator
Kind:	ICU

Send Inquiry

Product Description

Basic Information

Model NO.

CWH-3010A

Certification

CE, ISO13485

Group

Children / Adult

LCD Display

With LCD Display

Modes

Ippv, Manual (Optional: Double)

Tidal Volume Range

20-2000ml (10ml Optional)

Pressure Range

5-80 CMH2o

Respiration Rate

1-100bpm

HS Code

90189070

Production Capacity

5000PCS/Year

Product Description

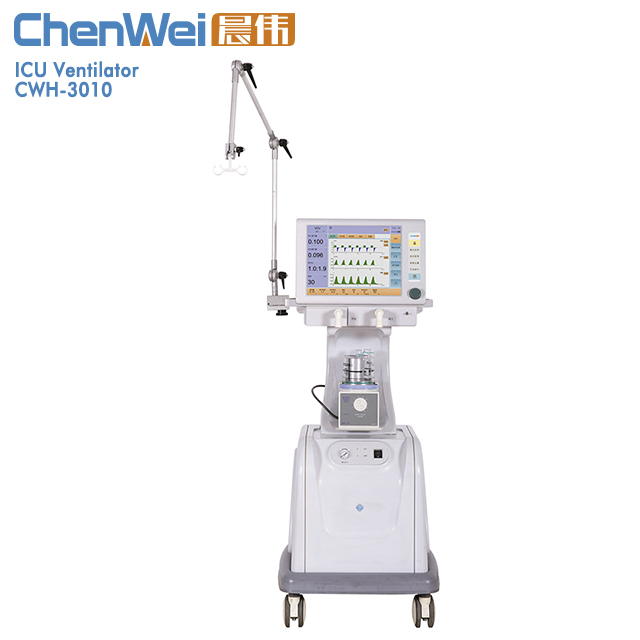

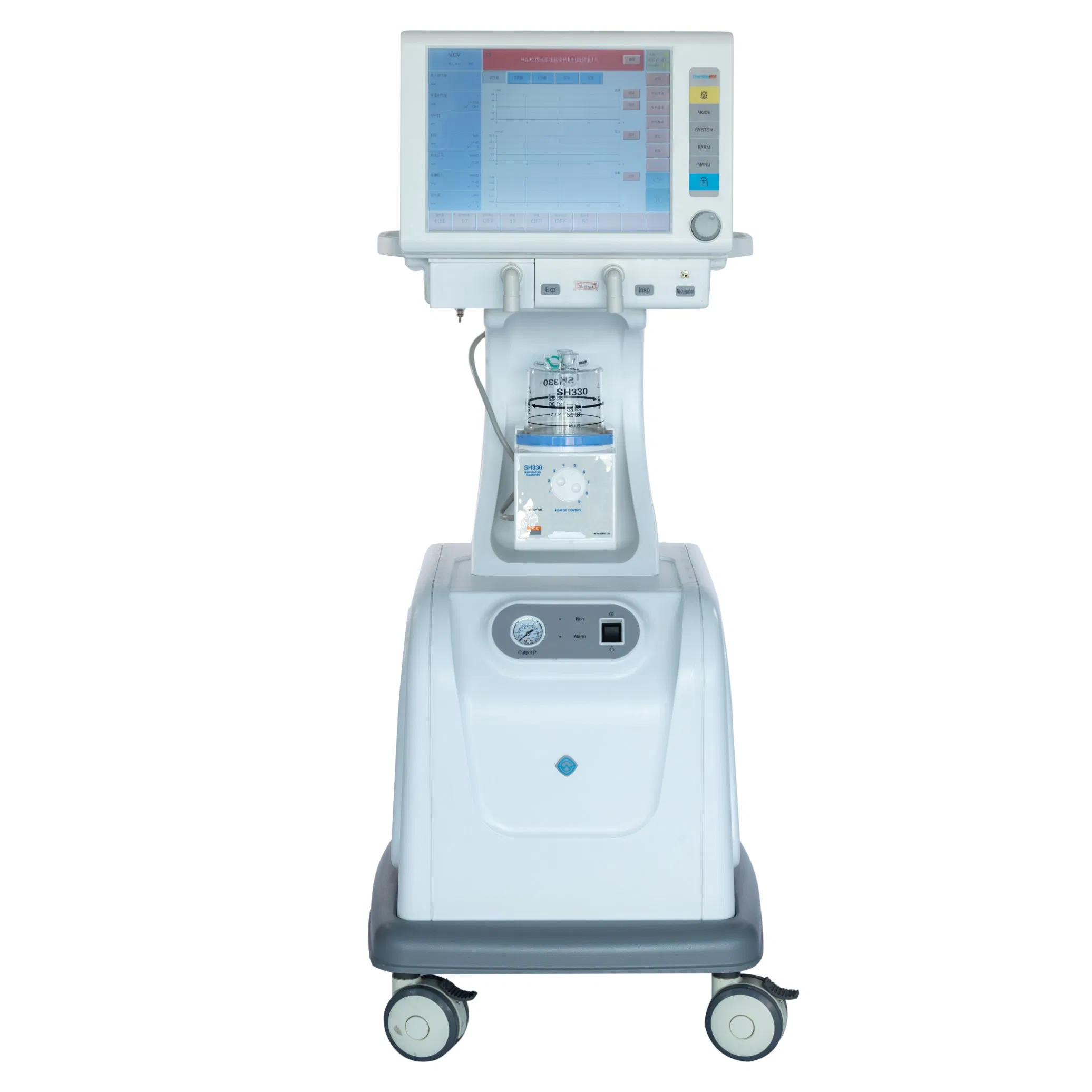

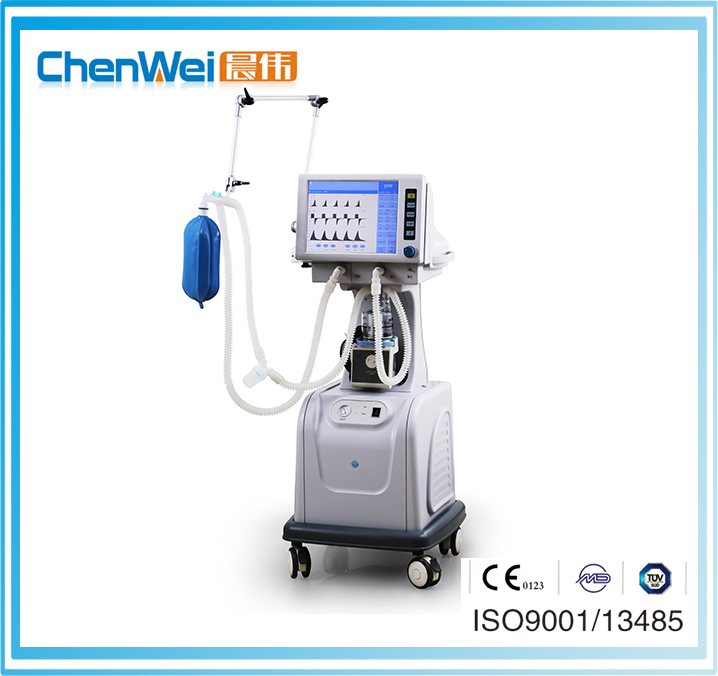

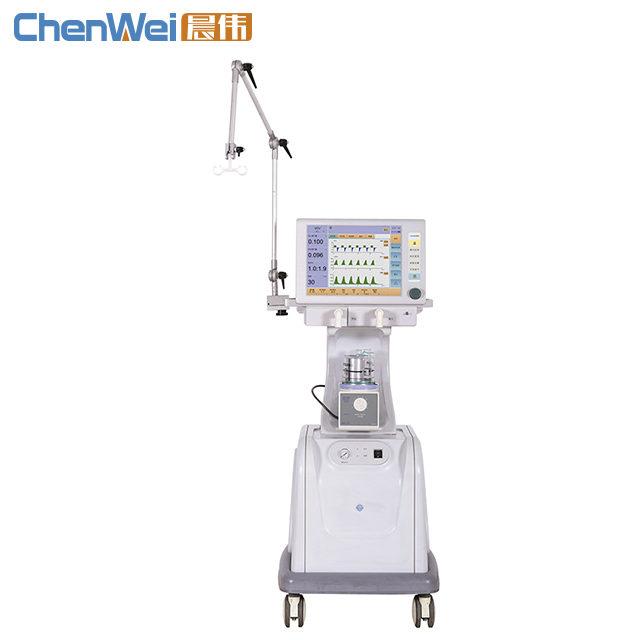

ICU Ventilator (CWH-3010A)

Removable 15inch large touch screen

Day and night mode change

Applied for adult and child

With high-intelligent control system

Humidifier with temperature adjustment

Flow (optional) and pressure trigger

With air compressor (optional)

Main Specifications:

Power: 220V AC ± 10%, 50 to 60Hz ± 2%, built-in battery for backup
Gas source: O² , air
Ventilation mode: IPPV, SIMV, SIGH, SPONT, CPAP, PEEP, S, T, S/T and manual (optional: Bi-level)
Parameter monitoring: Tidal volume, minute volume, frequency, inhaling time, airway pressure, PEEP and O² Concentration
Waveform display: Pressure-time (optional: Flowtime, pressure-volume loop)
Alarm System: No tidal volume, minute volume too high/low, airway pressure too high/low, O² Concentration too high/low, O² or air failure, AC power failure and backup battery too low.

Frequently Asked Questions

What patient groups can the CWH-3010A ventilator be used for?

The CWH-3010A is a versatile ICU ventilator designed for both adult and pediatric patients.

What is the range of tidal volume provided by this device?

The tidal volume range is from 20ml to 2000ml, with an optional 10ml setting available for specific clinical needs.

What ventilation modes are supported?

It supports a wide range of modes including IPPV, SIMV, SIGH, SPONT, CPAP, PEEP, S, T, S/T, and manual ventilation. Bi-level mode is also available as an option.

Does the ventilator have a backup power supply?

Yes, the device operates on 220V AC power and includes a built-in battery for backup to ensure continuous operation during power failures.

What safety alarms are integrated into the system?

It includes alarms for tidal volume, minute volume limits, airway pressure fluctuations, oxygen concentration levels, gas source failure, and low battery alerts.

Is the display screen adjustable for different environments?

Yes, it features a 15-inch large touch screen with a Day and Night mode toggle to adapt to different lighting conditions in the ICU.
