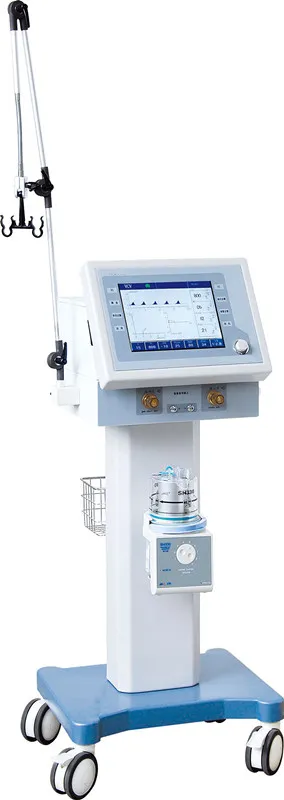

ICU Ventilator AM-900B (Flexible Configurations)
Advanced microprocessor-controlled ICU ventilator, pneumatically driven and electronically controlled, designed for both adult and pediatric respiratory support.
Key Features & Technical Specifications
- Display: 10.4" TFT display screen for comprehensive ventilation parameters.
- Power Source: Built-in backup battery supports operation for at least 4 hours.
- Humidifier: Integrated humidifier with precise temperature adjustment.
- Breathing Modes: A/C, SIPPV(VCV), IPPV(VCV), SIMV, PSIMV, CPAP, PCV, PEEP, SIGN, SPONT, MANUAL.
- Tidal Volume Range: Adjustable from 20 to 1500ml (Display range up to 2000ml).
- Respiration Frequency: 1 ~ 99 bpm; IMV Frequency: 1 ~ 20 bpm.
- I/E Ratio: 4:1 ~ 1:4 flexible adjustment.
- Safety: Maximum Safe Pressure ≤6.0 kPa with Pressure Limited range of 1.0kPa~ 6.0kPa.
- Oxygen Concentration: 21% ~ 100% adjustment capability.
- Trigger Methods: Supports both Pressure and Volume triggering.
Frequently Asked Questions
1. Which patient groups is the AM-900B suitable for?
The AM-900B ICU Ventilator is designed for versatile clinical use and is suitable for both Adult and Pediatric patients.
2. How long does the backup battery last?
The built-in backup battery is designed for reliability, providing at least 4 hours of continuous operation in case of power failure.
3. Does the system include an air compressor?

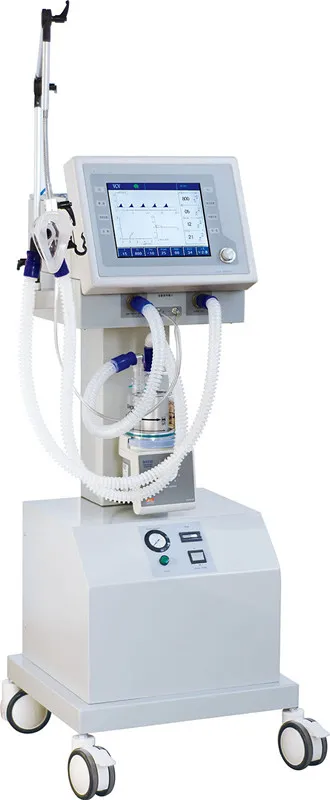

The AM-900B can be configured with or without a medical-grade air compressor depending on the specific facility requirements.
4. What type of display screen does it use?
It features a 10.4" TFT color display screen that clearly shows all vital ventilation parameters and waveforms.
5. What are the available ventilation modes?
The system supports multiple modes including A/C, SIPPV, IPPV, SIMV, PSIMV, CPAP, PCV, PEEP, SIGN, SPONT, and MANUAL modes.
6. What is the adjustable range for Tidal Volume?
The adjustable range for Tidal Volume is 20ml to 1500ml, making it flexible for various respiratory treatment needs.
