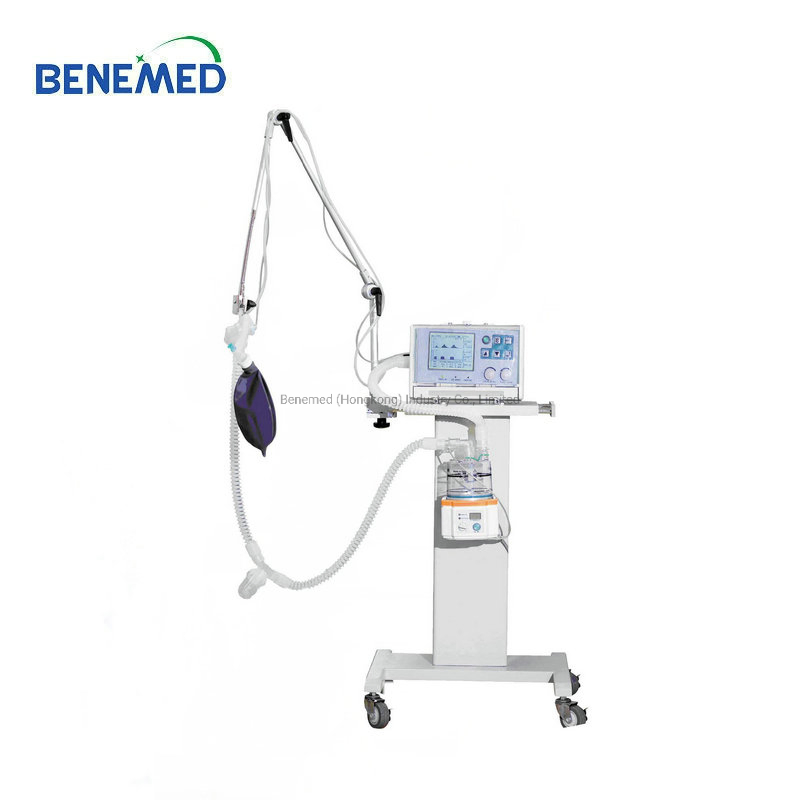

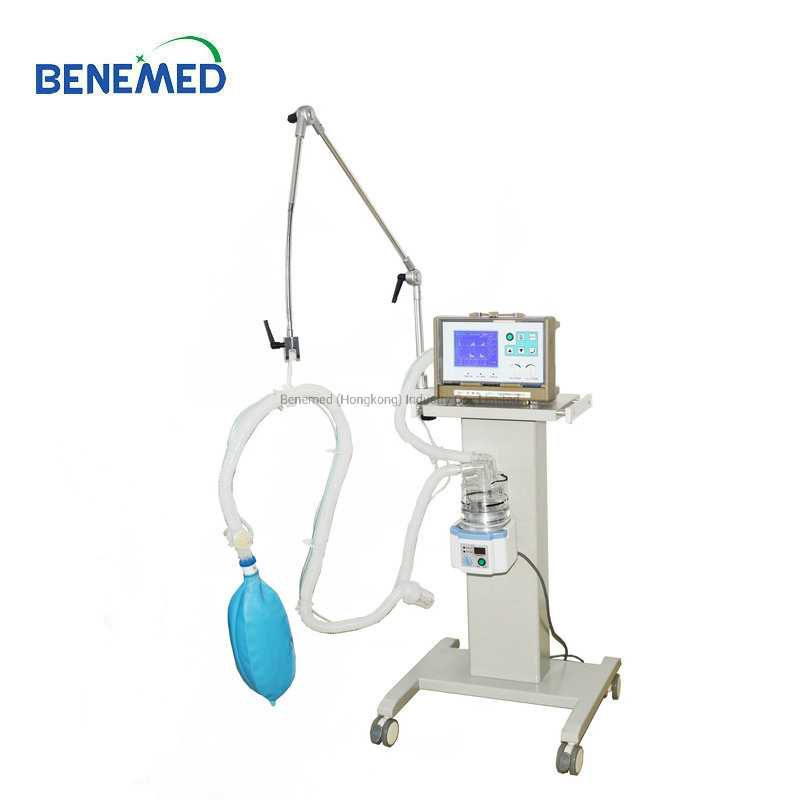

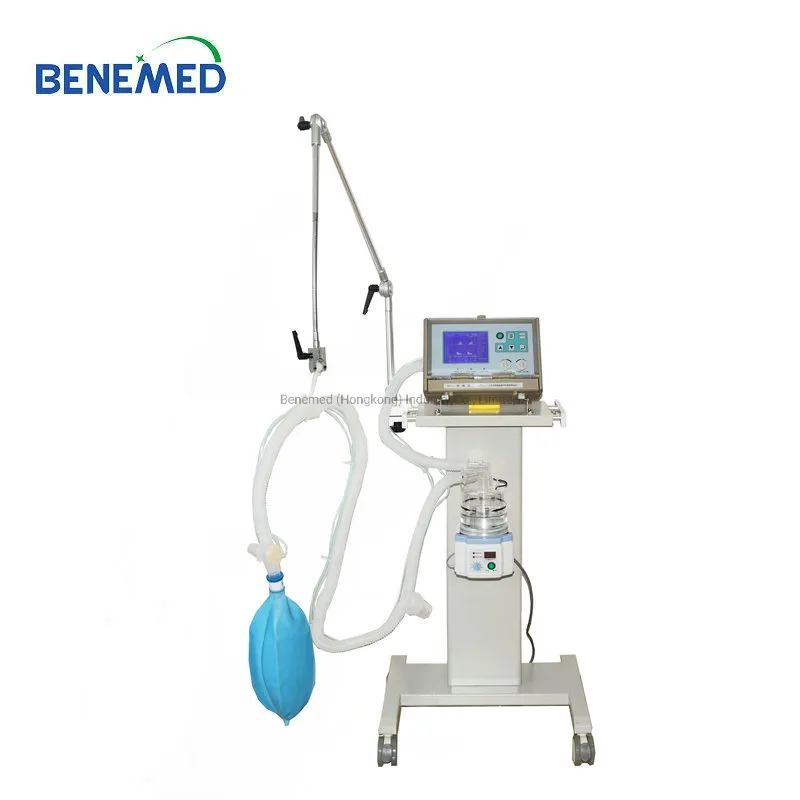

Medical Hospital Clinic Surgery Equipment Critical Care ICU Ventilator Machine

1 / 4

Medical Hospital Clinic Surgery Equipment Critical Care ICU Ventilator Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

TH-1

Certification

CE, ISO13485

Target Group

Middle-aged and Old

Ventilation Modes

Ippv, Sippv, Simv, Spont, Manual

Operation

Knob & Touch Key

Tidal Volume

0-2000ml

Breath Frequency

2-80bpm

PEEP

0-2.0kpa(Optional)

Inspiration Time

0.2-5s

Inspiration Flow

0-120L/Min

Internal Battery

DC12V (Over 4 Hours)

Display

5'' SNT screen

HS Code

9019209000

Origin

China

🏥

Medical Portable ICU Ventilator Machine TH-1

Mode and Display System

Ventilation Modes: IPPV, SIPPV, SIMV, MANUAL
Display: 5-inch SNT screen for clear parameter tracking
Operation: Intuitive Knob operation combined with touch keys

Technical Parameters

Waveforms

Square wave, Deceleration wave

Trigger Sensitivity

-2.0 ~ 2.0 kPa

Pressure Limit

1.0 ~ 5.0 kPa

Oxygen Conc.

45% - 100%

🛡️

Monitoring & Safety Alarms

Monitored Waves: P-t, V-t

Parameters: Tidal volume, MV, Breath frequency, Ppeak, Trigg I, Power status, Oxygen concentration.

Alarm Settings

Tidal Volume: 20 - 2000ml (Upper/Lower limits)
Minute Volume (MV): 2.0 - 60L/min
Breath Frequency: 2 - 120 bpm
Peak Pressure: 0 - 8.0kPa
Oxygen Concentration: 21% - 100%
Safety Features: Apnea alarm (3-12S), Power fault, Oxygen source fault

❓

Frequently Asked Questions

What ventilation modes does the TH-1 ventilator support?

The TH-1 supports multiple modes including IPPV, SIPPV, SIMV, and Manual, making it versatile for various clinical needs.

How long does the internal battery last during transport?

The integrated DC12V battery provides over 4 hours of continuous operation, ensuring safety during patient transport.

What is the tidal volume range for this ICU ventilator?

The tidal volume is adjustable from 0 to 2000 ml, allowing for precise control suitable for adult and elderly patients.

Does the device include an apnea alarm?

Yes, it features a configurable apnea alarm setting ranging from 3 to 12 seconds to ensure patient safety.

What kind of display interface does the TH-1 use?

It is equipped with a 5-inch SNT screen and uses a combination of knob operations and touch keys for efficient parameter management.

Can it monitor respiratory waveforms?

Yes, the machine provides real-time monitoring for P-t (Pressure-time) and V-t (Volume-time) waveforms.
