✨ Ventilator Machine Features

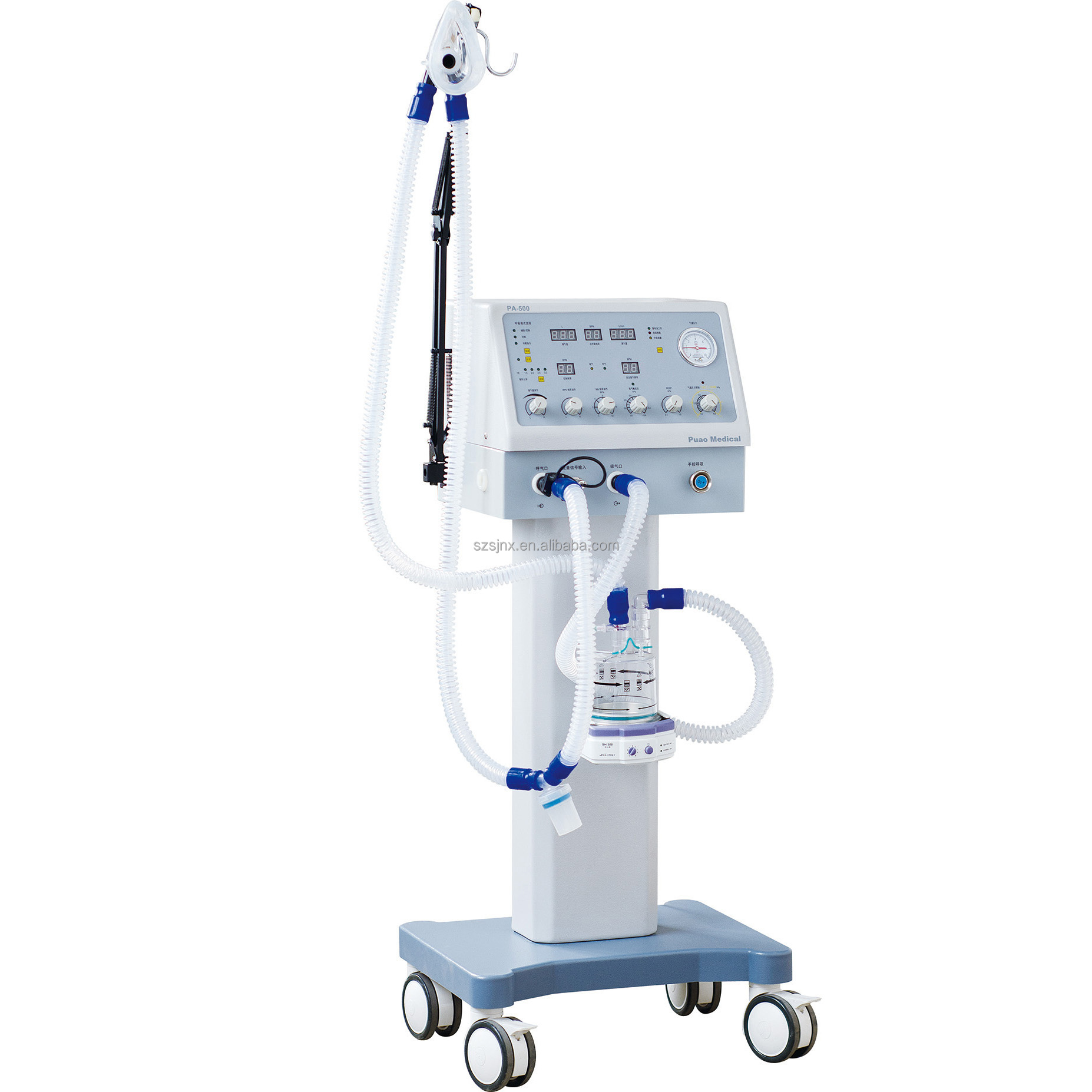

Portable Medical Ventilation Supplies for Providing Respiratory Support. This pneumatically driven, electrically controlled ventilator is designed for emergency clinical resuscitation and respiratory therapy.
✓

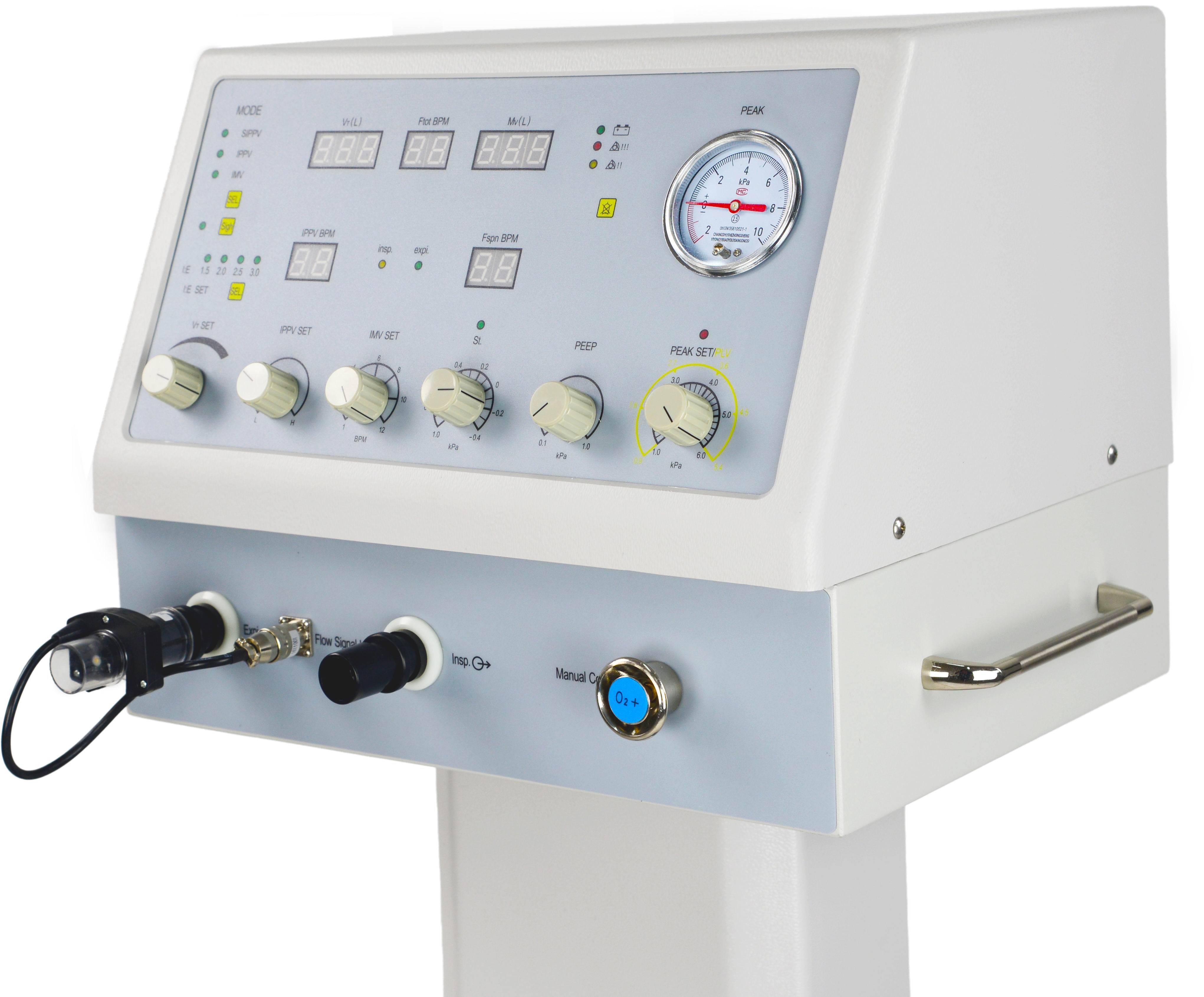

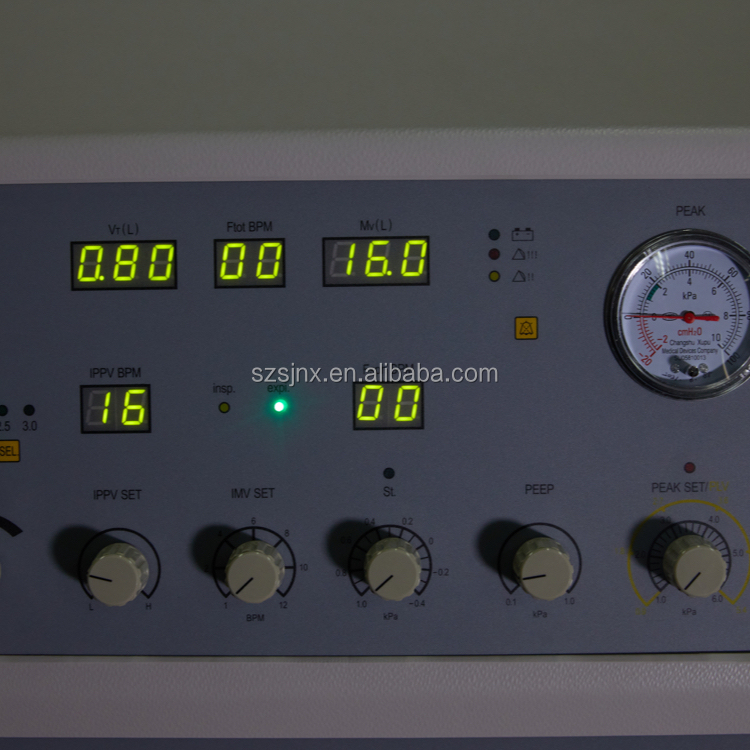

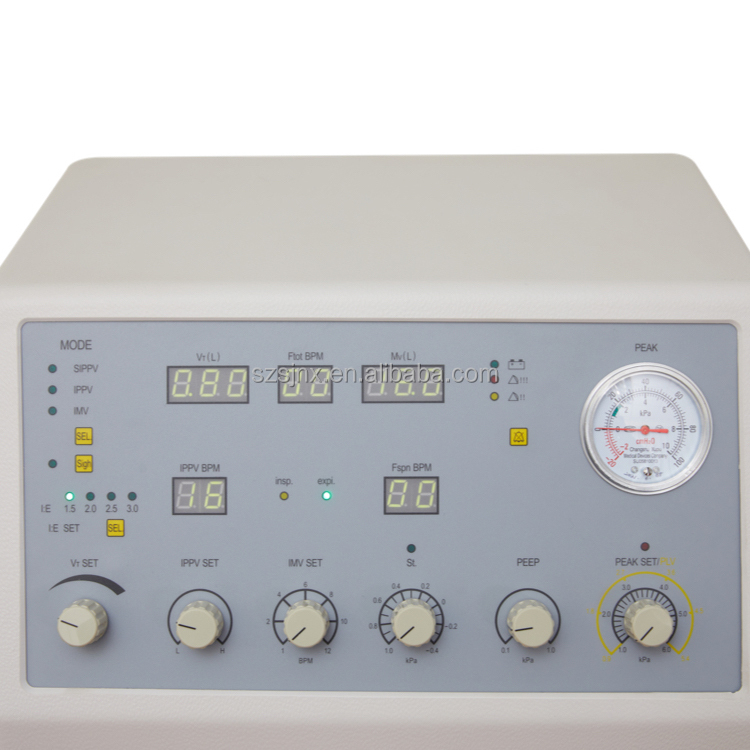

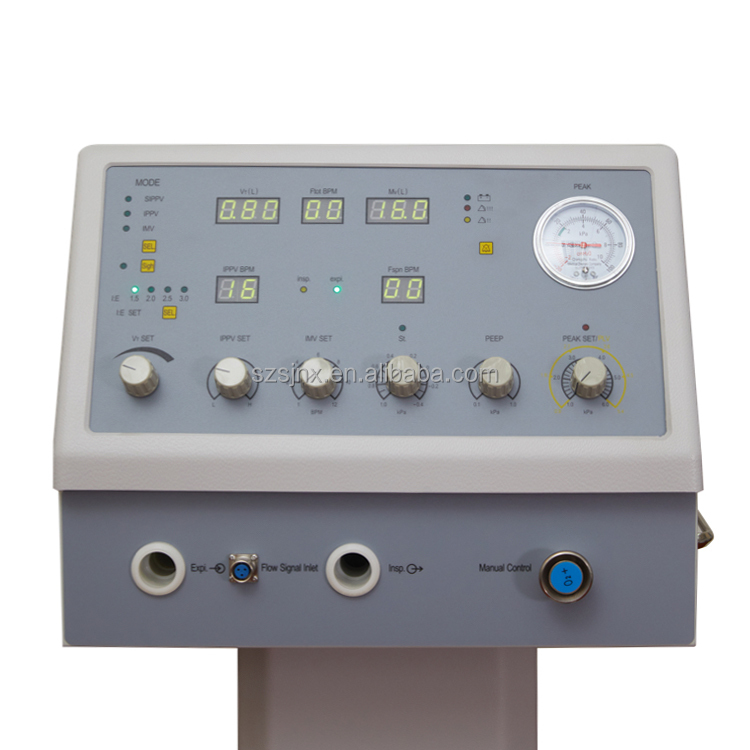

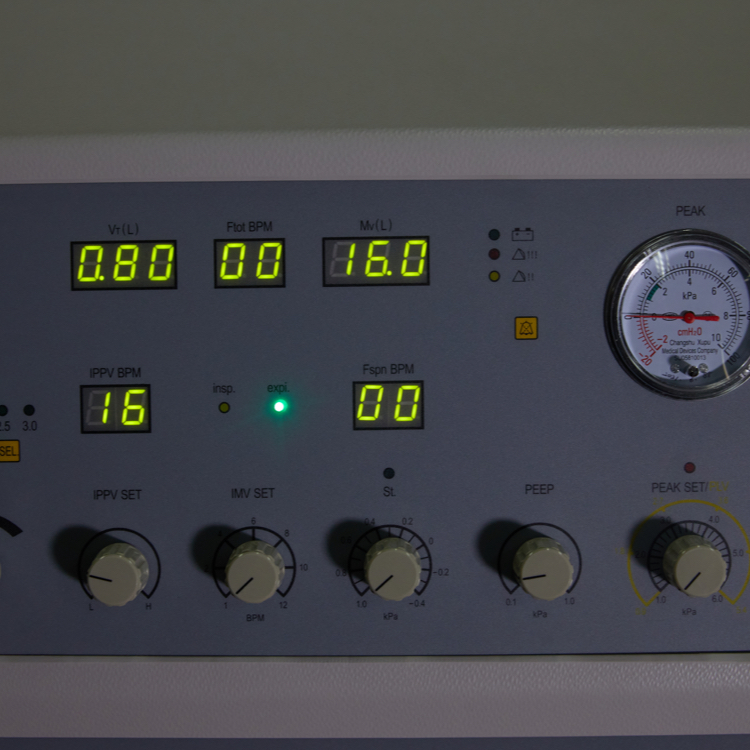

High Visibility Display: Wide angle LED alphanumeric data display with tactile analog parameter controls.
✓
Precision Sensors: Equipped with high precision infrared turbine pressure and flow sensors.
✓
Power Protection: Automatically converts to standby mode during AC power outages.
✓
Safety Design: Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating sensor functions.
✓
Intelligent Alarms: Audible and visual alarms for tidal volume, airway pressure, power failure, and oxygen failure.
✓
Humidifier: 9 Level adjustable humidifier for patient comfort.
⚙ Technical Specifications
| Ventilation Mode |
A/C, IPPV, SIPPV, IMV, SIMV, MANUAL |
| Tidal Volume |
Adjustable range: 50~1500ml (Display range: 0~2000ml) |
| Oxygen Concentration |
40% ~ 100% |
| Respiratory Rate |
6 ~ 60 bpm |
| Minute Volume |
≥ 18L |
| I:E Ratio |
1:1.5 ~ 1:3.0 |
| PEEP |
1 ~ 10 cmH2O |
| Backup Power |
At least 30 minutes (normally 2~4 hours) |

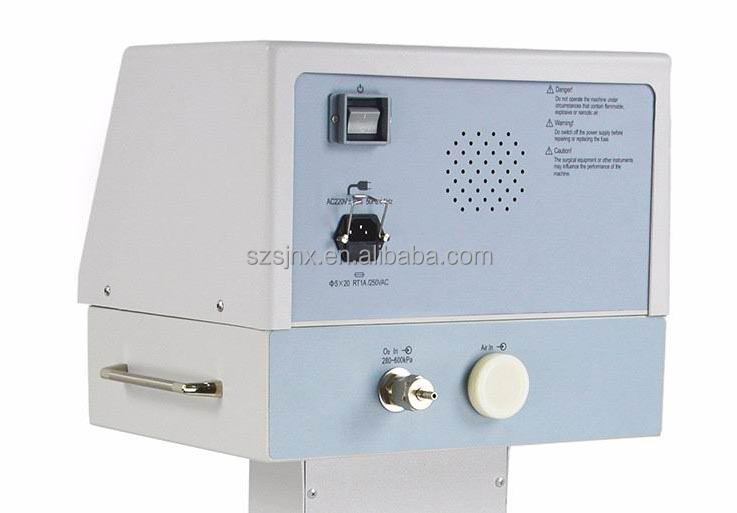

| Gas Supply |
280~600 kPa medical grade oxygen |
📋 Product Parameters
| Properties |
Anatomy Appliances |
| Product Name |
Anaesthetic machine / Ventilator |
| Application |
Home and Hospital Use |
| Warranty |
3 Years |
📦 Packing & Delivery
Package Dimensions: 66 * 52 * 111 CM
Gross Weight: 40 kg | Net Weight: 33 kg

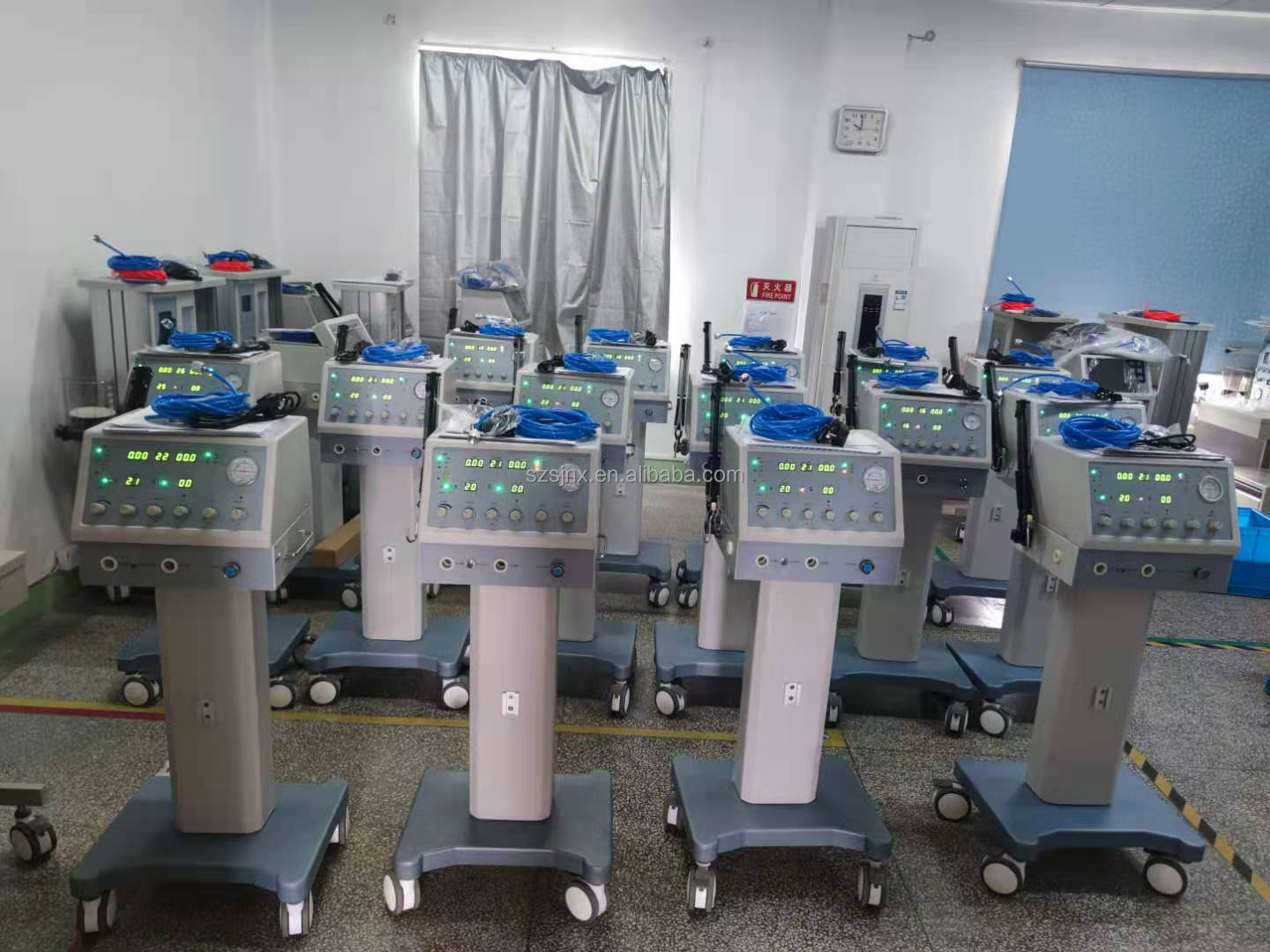

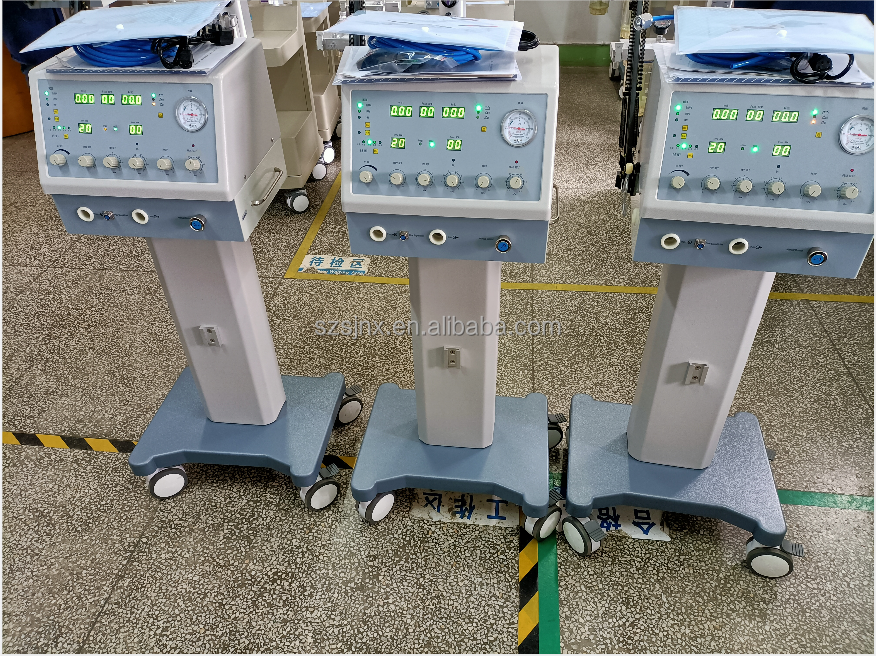

🏭 Manufacturing Excellence
Our enterprise is a high-tech manufacturer integrating design, R&D, production, and sales of Class II medical devices. The facility covers an area of more than 10,000 square meters with a dedicated team of over 280 employees, including specialized design and R&D departments. We focus on medical, therapeutic, and physiotherapy health products. We strictly implement medical device laws and international standards (ISO 13485:2016) to ensure the highest quality products and reliable service.
❓ Frequently Asked Questions
What is the primary use of this ventilator machine?
It is designed for emergency clinical resuscitation and respiratory therapy, suitable for both hospital environments and professional respiratory support.
How long does the battery backup last?
The system includes a back-up power supply that provides at least 30 minutes of operation, typically lasting between 2 to 4 hours under normal conditions.
Does the machine have built-in safety alarms?
Yes, it features both audible and visual alarms for critical parameters including tidal volume, airway pressure, power failure, and oxygen supply failure.
Can the oxygen concentration be adjusted?
Yes, the output oxygen concentration is adjustable within the range of 40% to 100%.
What ventilation modes are available?
The machine supports multiple modes including A/C, IPPV, SIPPV, IMV, SIMV, and MANUAL ventilation to suit various clinical needs.
Is the humidifier included with the device?
Yes, the ventilator is equipped with a 9-level adjustable humidifier to ensure comfortable respiratory support for the patient.
