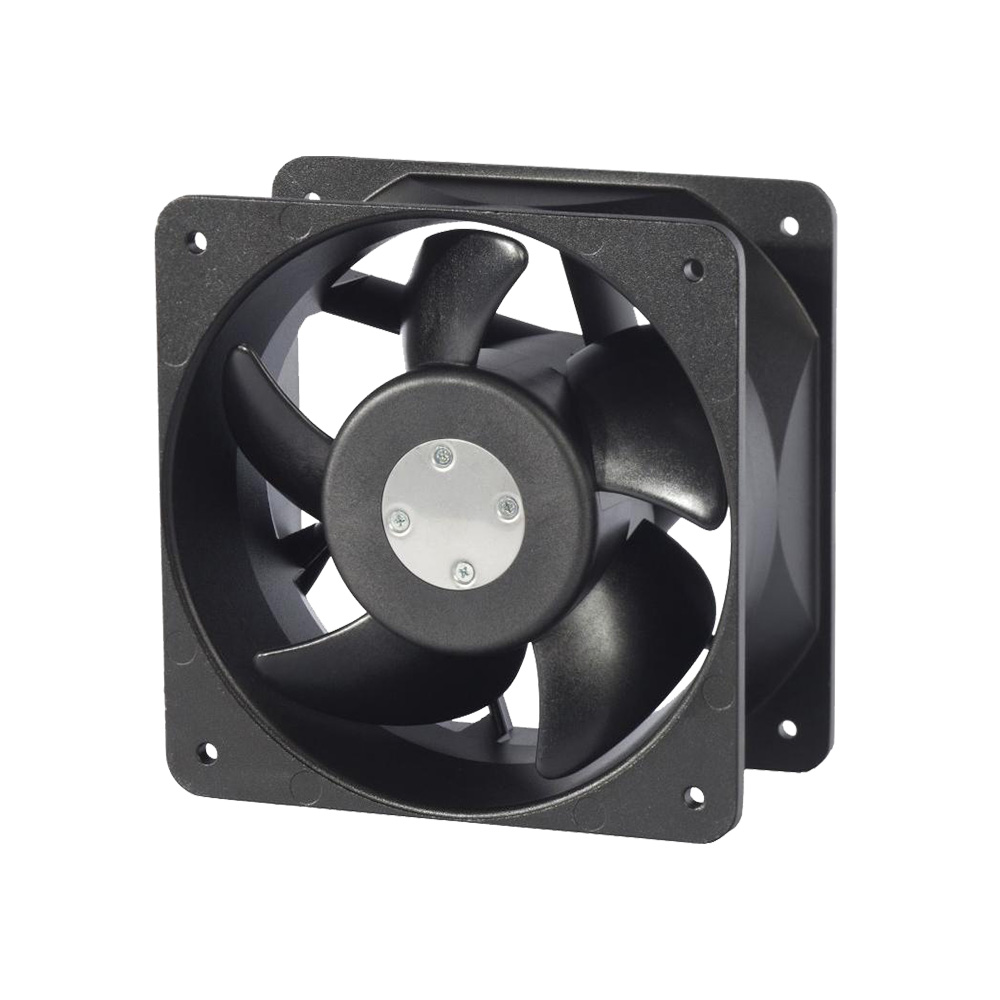

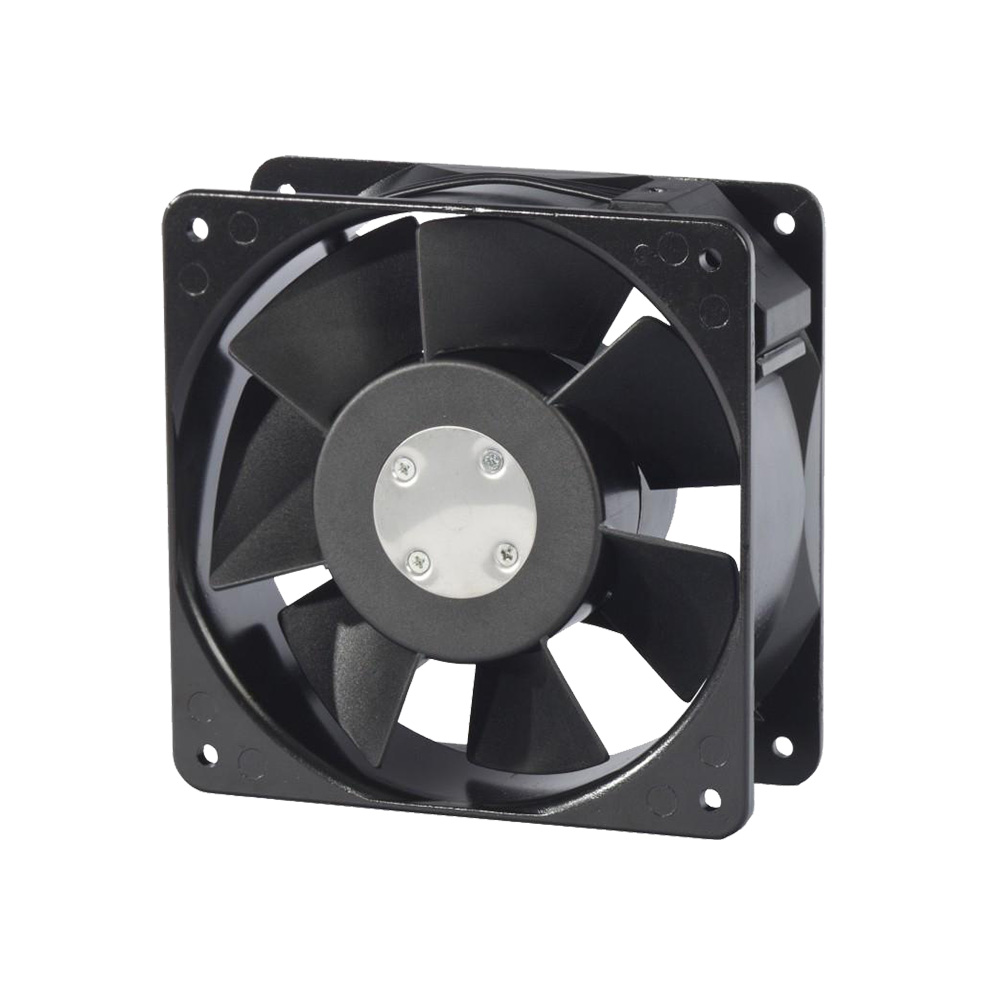

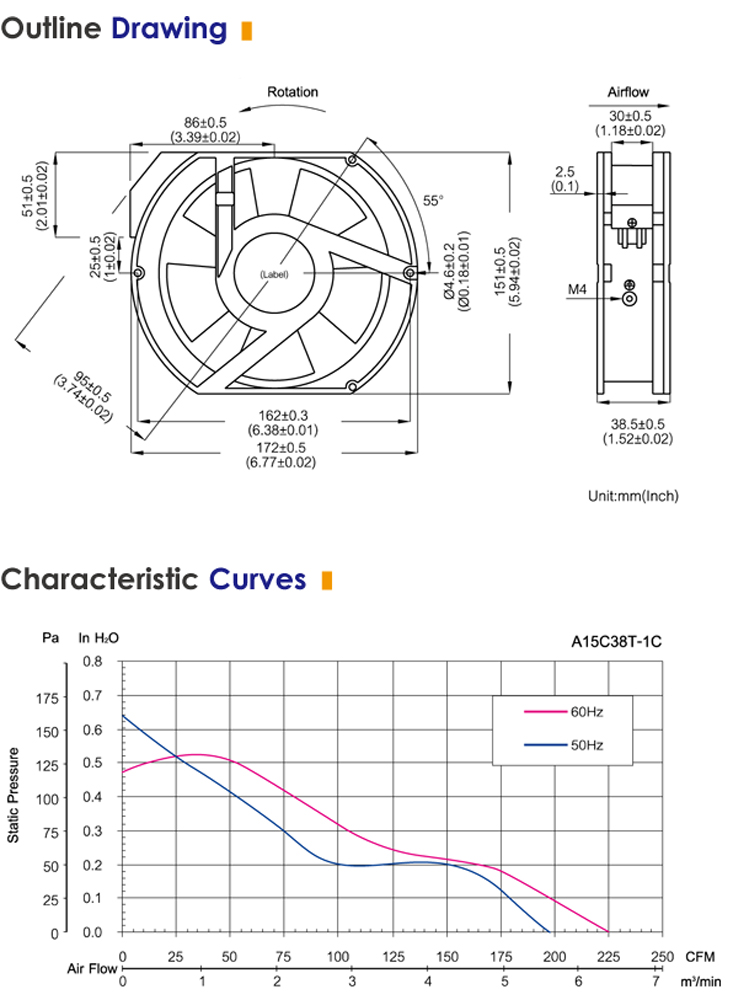

📊 Specification
| Air Flow |
198 ~ 229 CFM |
| Housing |
Die-Cast Aluminum |
| Impeller |
Thermoplastic PBT |
| Motor |
Capacitor Start Motor |
| Bearing |
Ball |

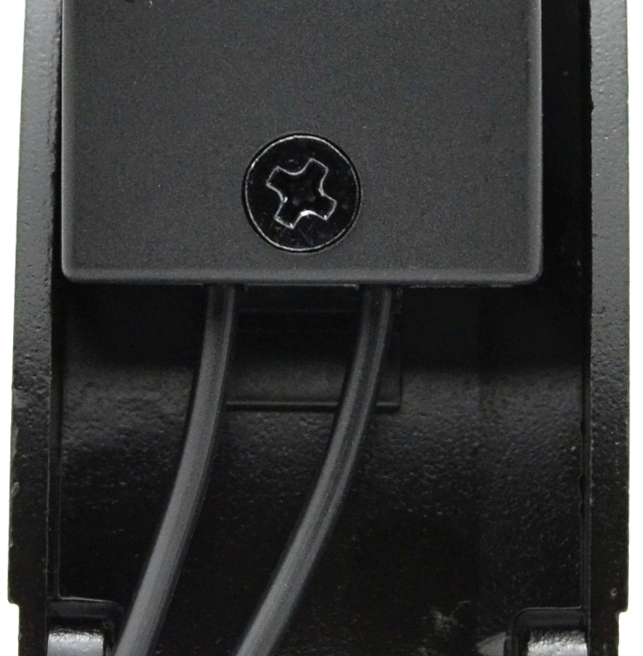

| Termination |
Terminals or Lead Wire |
| Insulation |
Class “B” or “F” |
| Safety |
Thermally Protected (Auto Restart) |
| Operating Temperature |
-20°C to + 80°C |
| Certification |
ce, RoHS, CUL, UL |
📦 Related Products Group A
| Product Name |

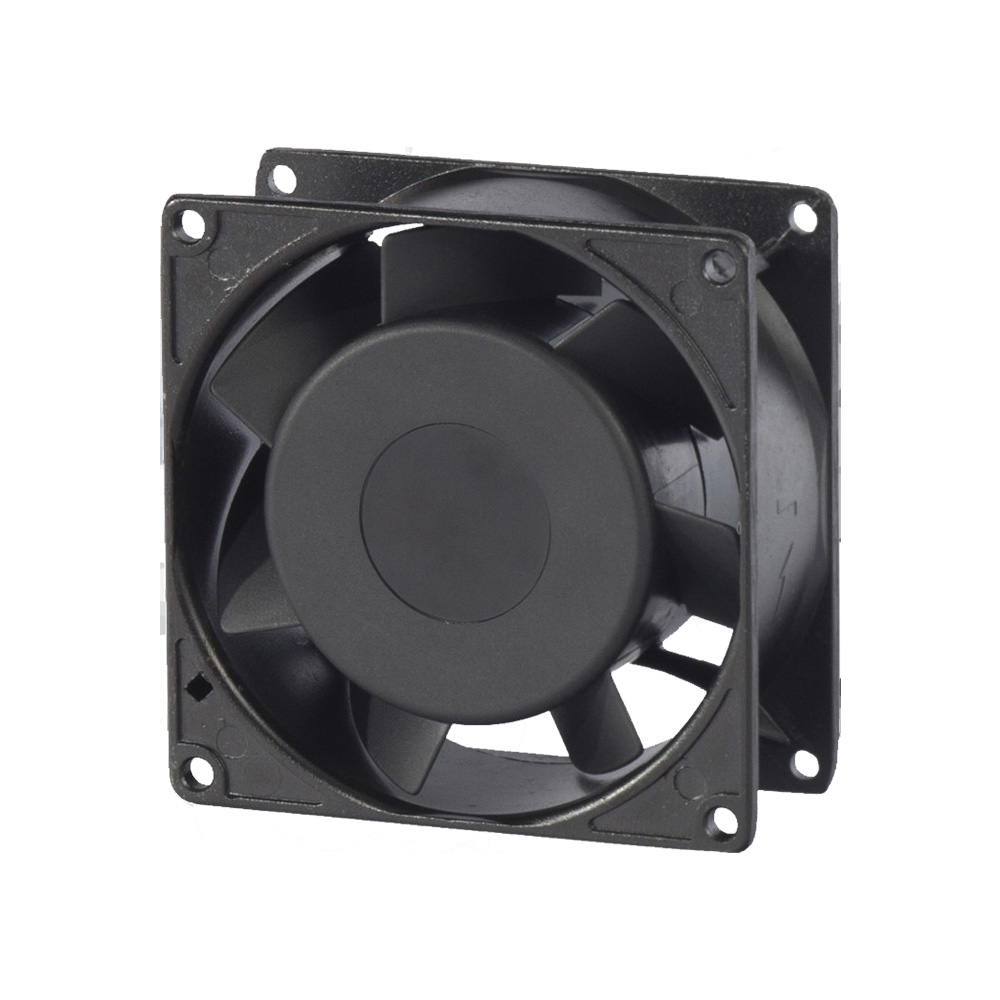

AXIAL FAN A8C25T |
AXIAL FAN A8C38T |
AXIAL FAN A9C25T |
| Air Flow |
18 ~ 22 CFM |
26 ~ 31 CFM |
30 ~ 36 CFM |
| Housing |
Die-Cast Aluminum, Painted Black |
| Impeller |
Thermoplastic PBT, UL94V-0 |
| Motor |
Shaded-Pole Motor |
| Voltage Range |
85VAC to 125VAC (115V) / 185VAC to 245VAC (230V) |
📦 Related Products Group B
| Product Name |
AXIAL FAN A9C38T |

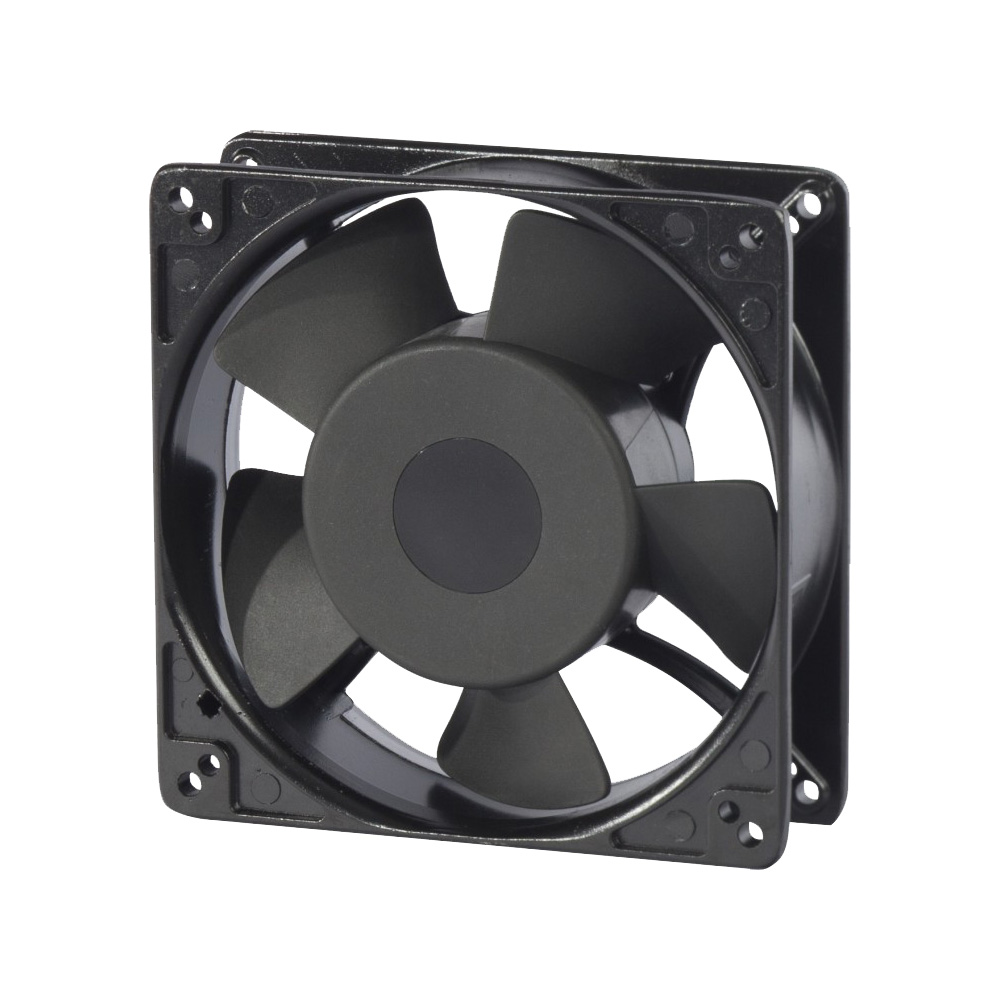

AXIAL FAN A12C25T |
AXIAL FAN A12C38T-1 |
| Air Flow |
42~49 CFM |
61 ~ 72 CFM |
103 ~ 117 CFM |
| Operating Temp |
-10°C to +70°C (Sleeve) / -20°C to +80°C (Ball) |
📦 Related Products Group C
| Product Name |
AXIAL FAN A13C38T |

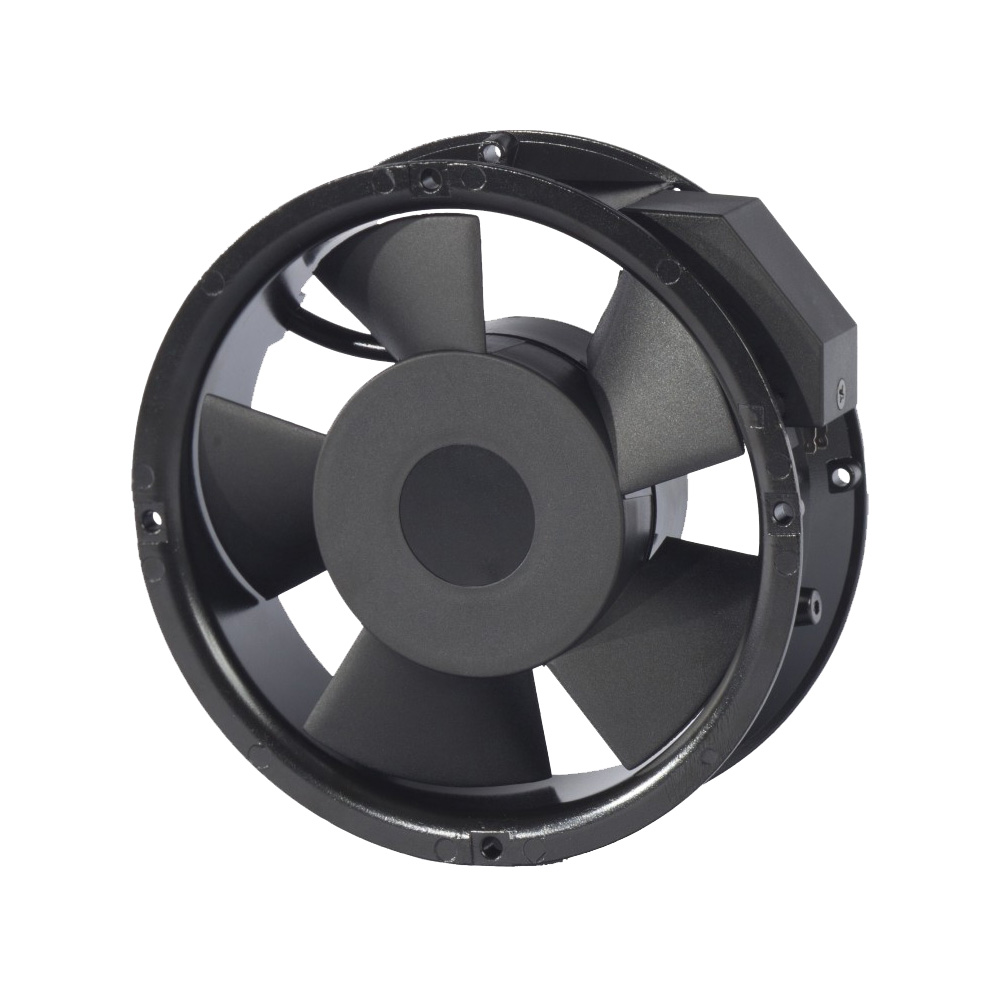

AXIAL FAN A15C38T |
AXIAL FAN A15C51T |
| Air Flow |
107 ~ 123 CFM |
198 ~ 229 CFM |
178 ~ 230 CFM |
| Motor Type |
Shaded-Pole |
Capacitor Start |
Capacitor / Shaded-Pole |
🚀 High Performance Axial Fans
| Product Name |
A16C62T-1CB |
A18C65T |
A17C51T |
| Air Flow |
261 ~ 307 CFM |
342 ~ 394 CFM |
100 ~ 225 CFM |
| Impeller Material |
Flame Retardant Polycarbonate |
Thermoplastic PBT |
| Product Name |

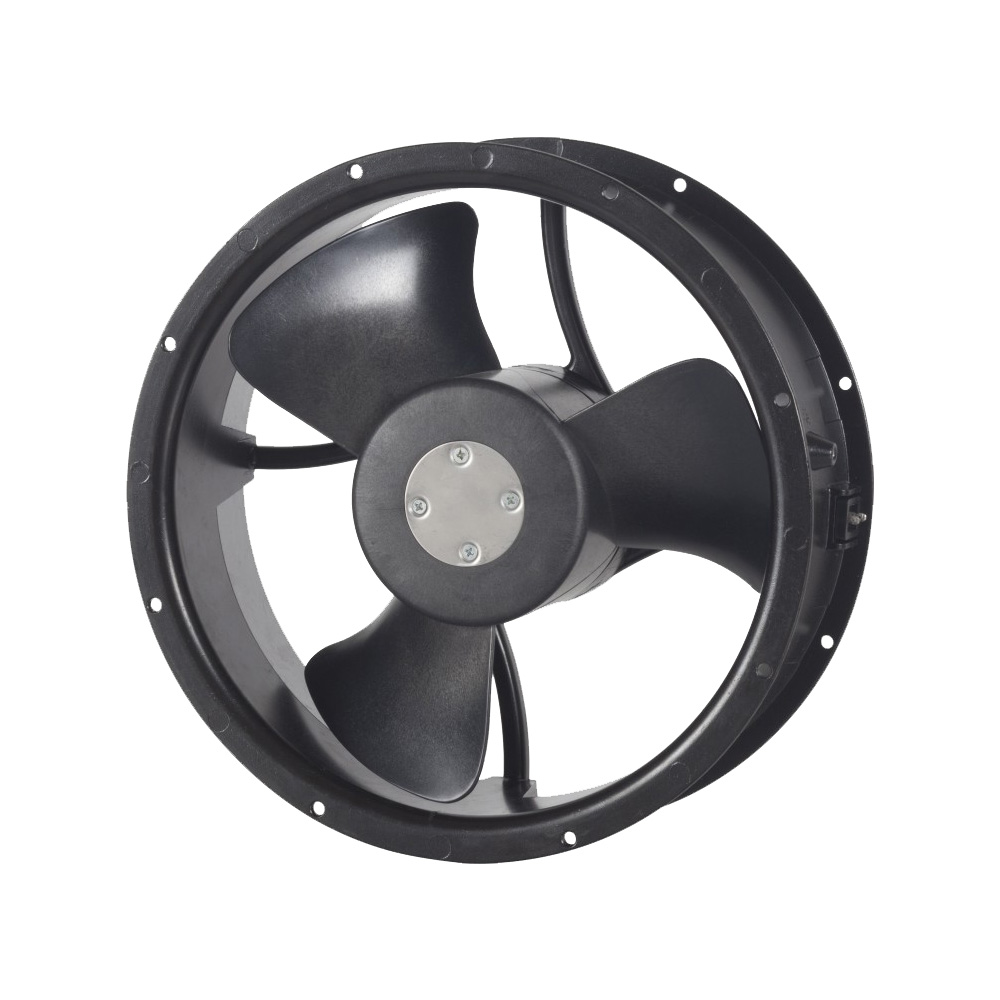

AXIAL FAN A18C90T |
AXIAL FAN A25C89T |
| Air Flow |
376 ~ 434 CFM |
443 ~ 529 CFM |
| Operating Temp |
-20°C to + 80°C |
-30°C to + 80°C |

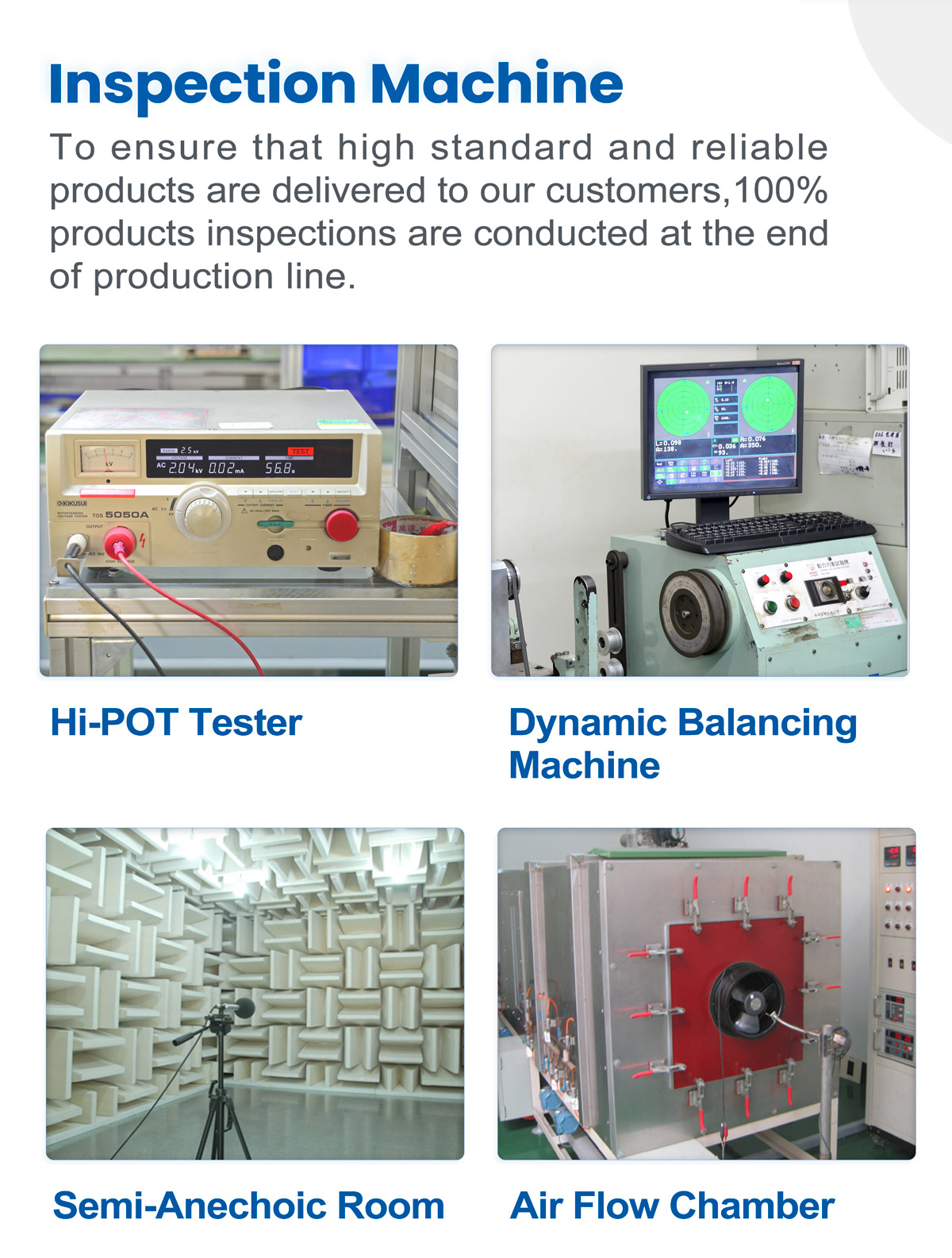

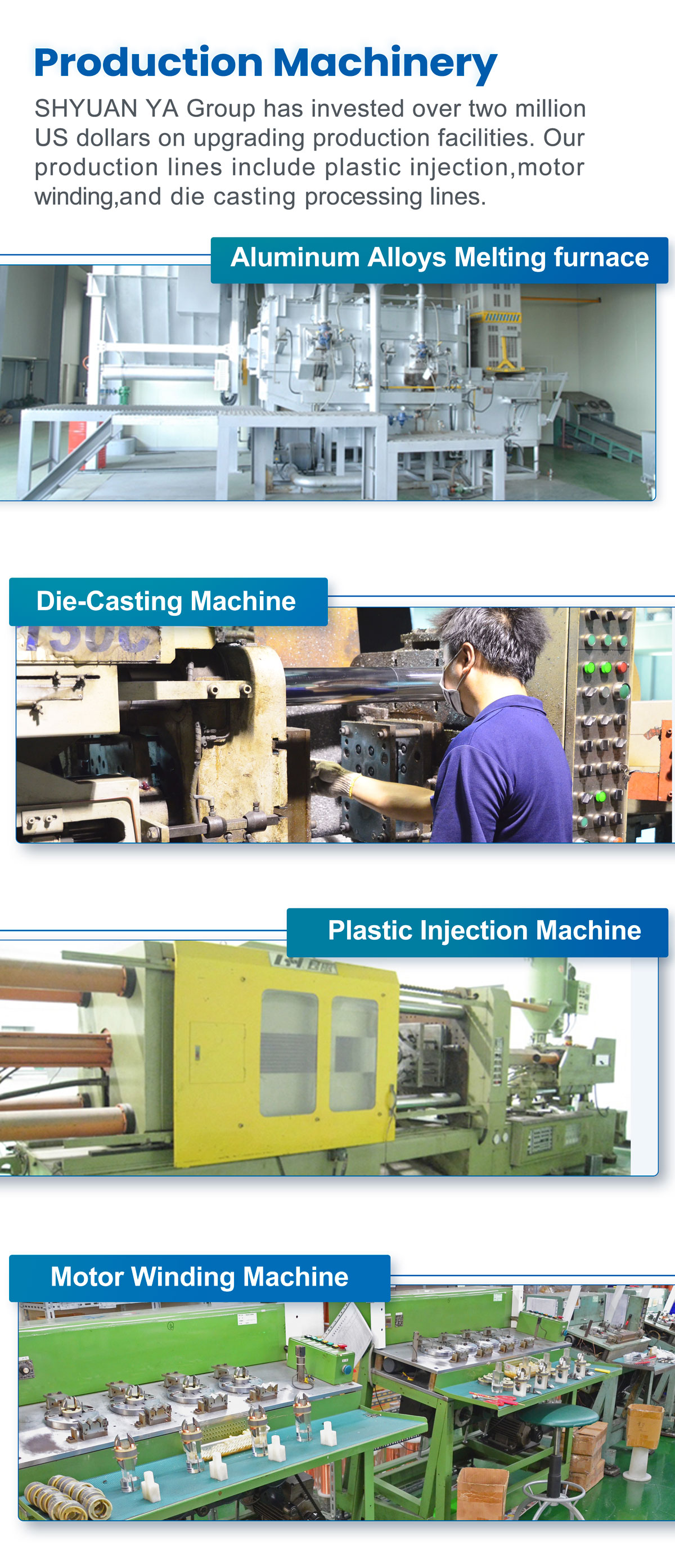

🛡️ Quality & Manufacturing
Frequently Asked Questions
🔹 Q: What information is needed to get a quotation?
A: Generally, information about Size, Air Flow, and Voltage of the required fans is needed in order to select the right fan for you and provide an accurate quotation.
🔹 Q: Can I request samples for testing before placing an order?
A: Yes, we sincerely suggest that customers test samples of the required fans. The true performance of the fans can be fully demonstrated after conducting appropriate testing.
🔹 Q: Are discounts available for the quoted prices?
A: The quoted price is based on annual usage quantity. If your annual usage quantities increase, please provide that information to our sales team, and we will provide a further discount.
🔹 Q: What is the warranty policy for these products?
A: All products come with a 1-year warranty. Every product has a unique production code which allows us to track the production time and quality history.
🔹 Q: Is it possible to print a custom logo on the nameplate and package?
A: Yes, we accept OEM orders and can customize the logo on the nameplate and packaging according to your requirements.
🔹 Q: Do your products have international safety certifications?
A: Yes, our products are certified with ce, RoHS, CUL, and UL to ensure safety and compliance across global markets.
