Model NO.SD-2000B2
MaterialMedical Grade Plastic
FeatureReusable & Multi-functional
CertificationCE, ISO13485
ApplicationAdult, Child
Ventilation ModeVCV, PCV, SIMV, PSV, SIMV+PSV, CPAP
Tidal Volume20-2000ml
Respiratory Rate2-120bpm
I:E Ratio4:1 - 1:8
PEEP0-25 CMH2O
Pressure Limit5-60 CMH2O
Power SupplyAC 100-240V, 50/60Hz
📋 Versatile Medical Ventilator for Critical Care

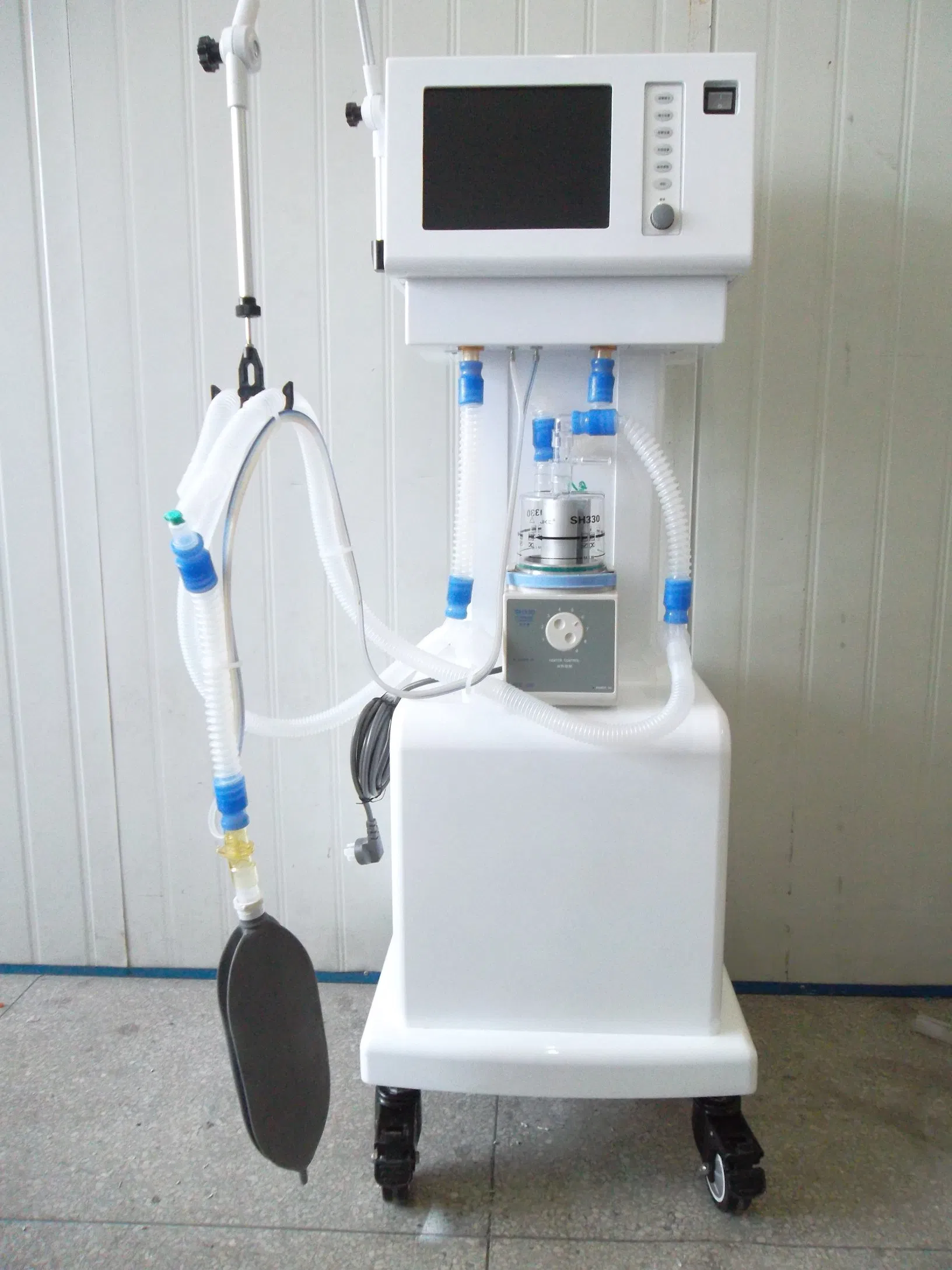

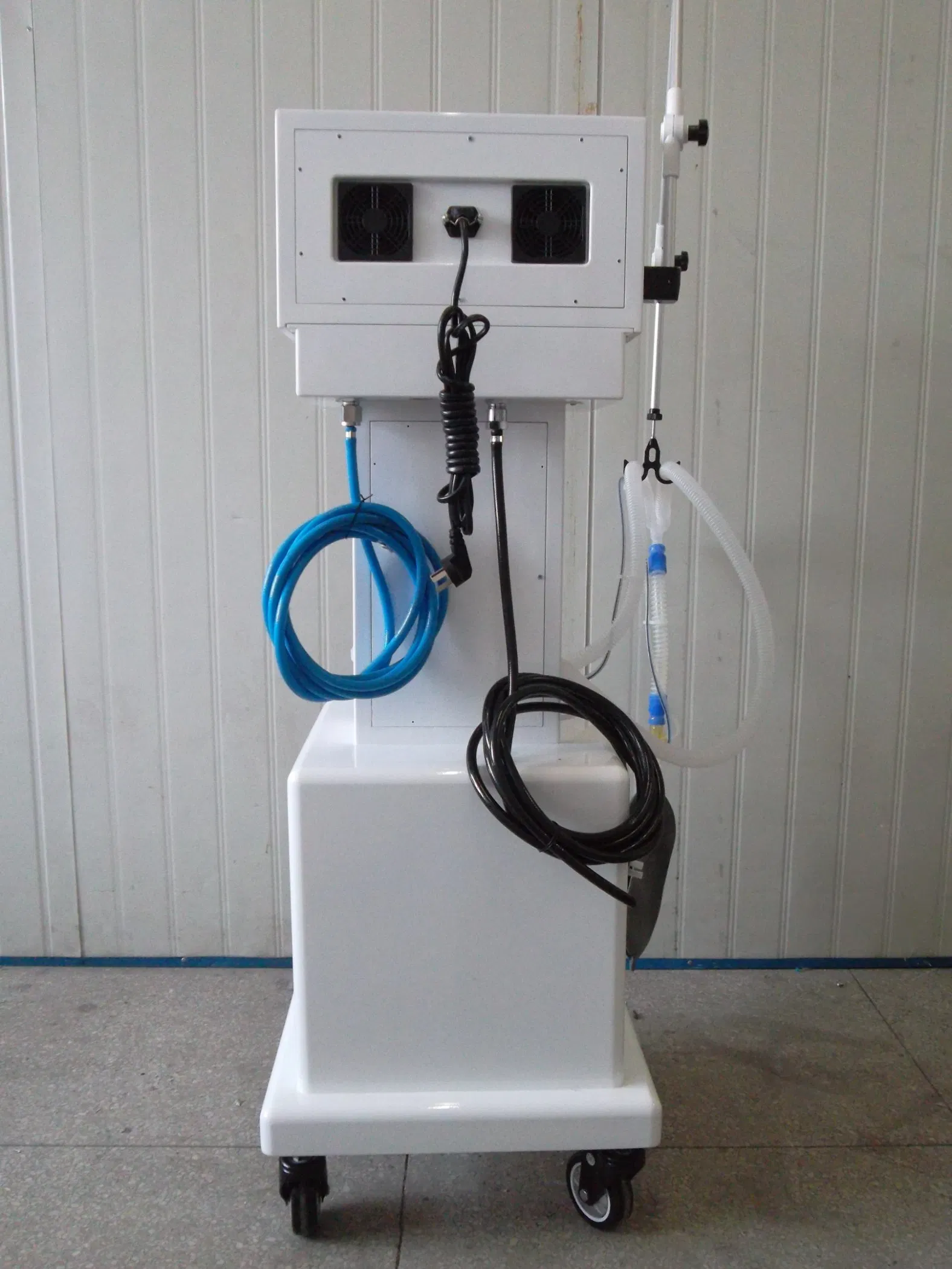

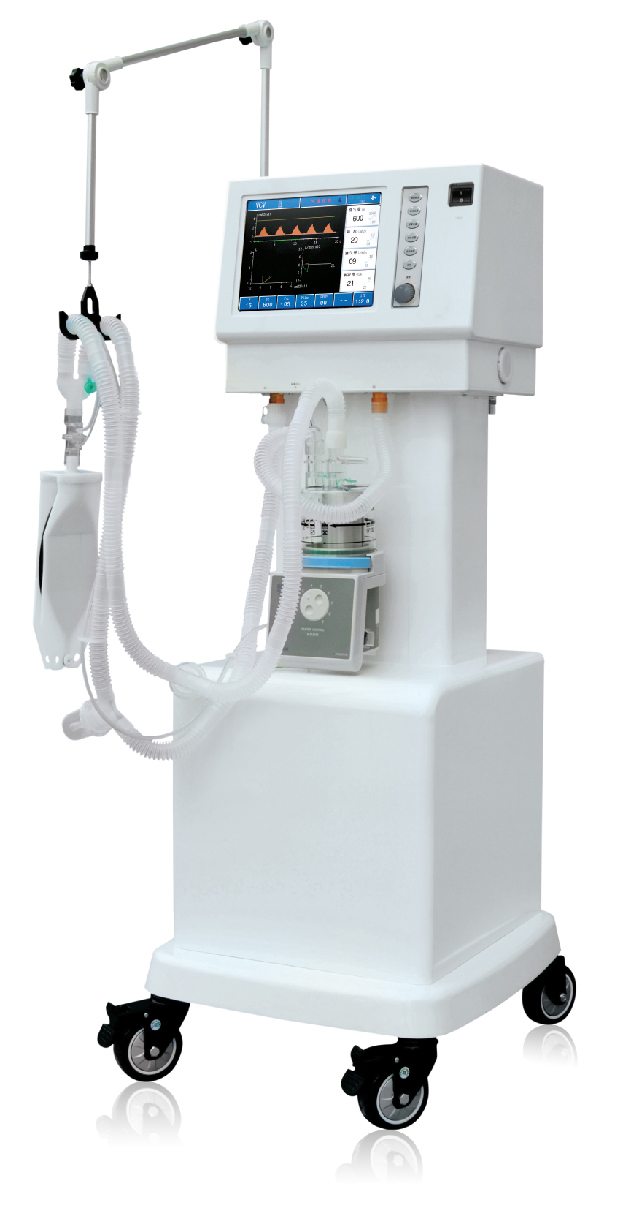

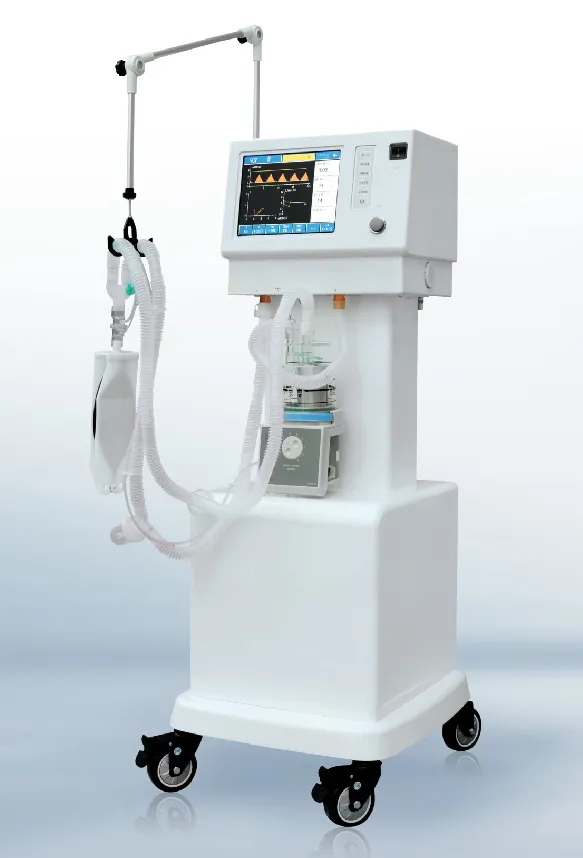

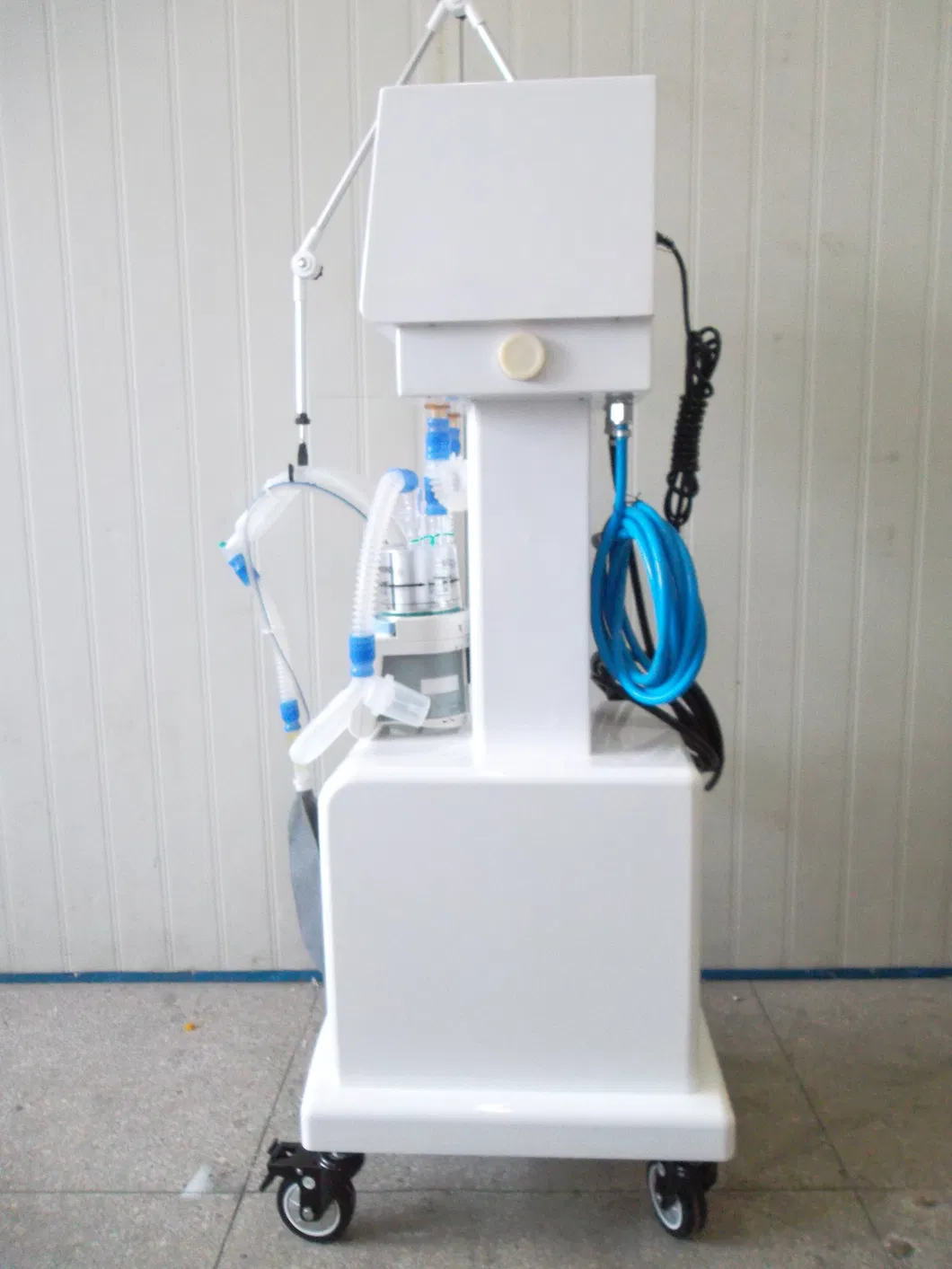

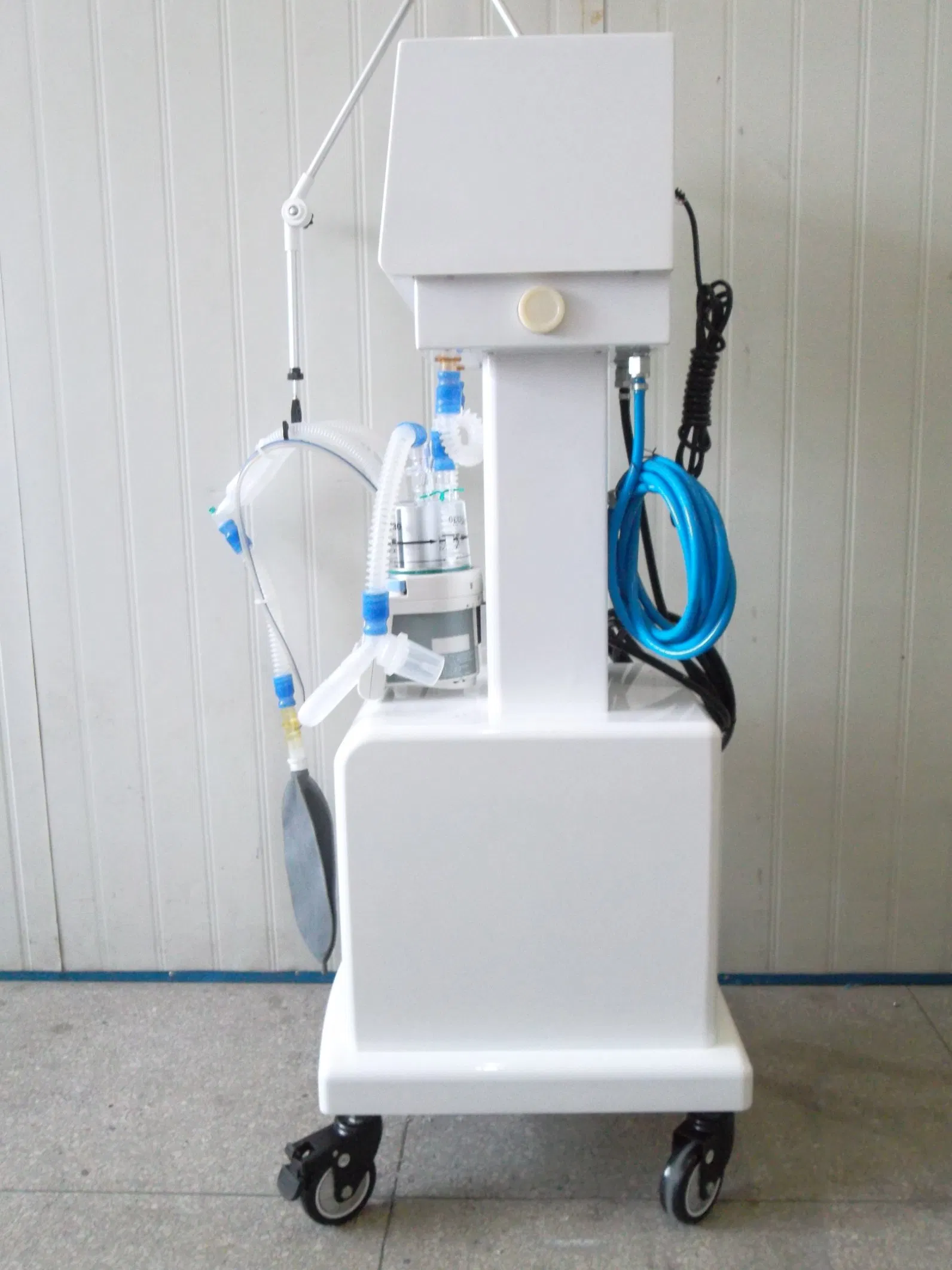

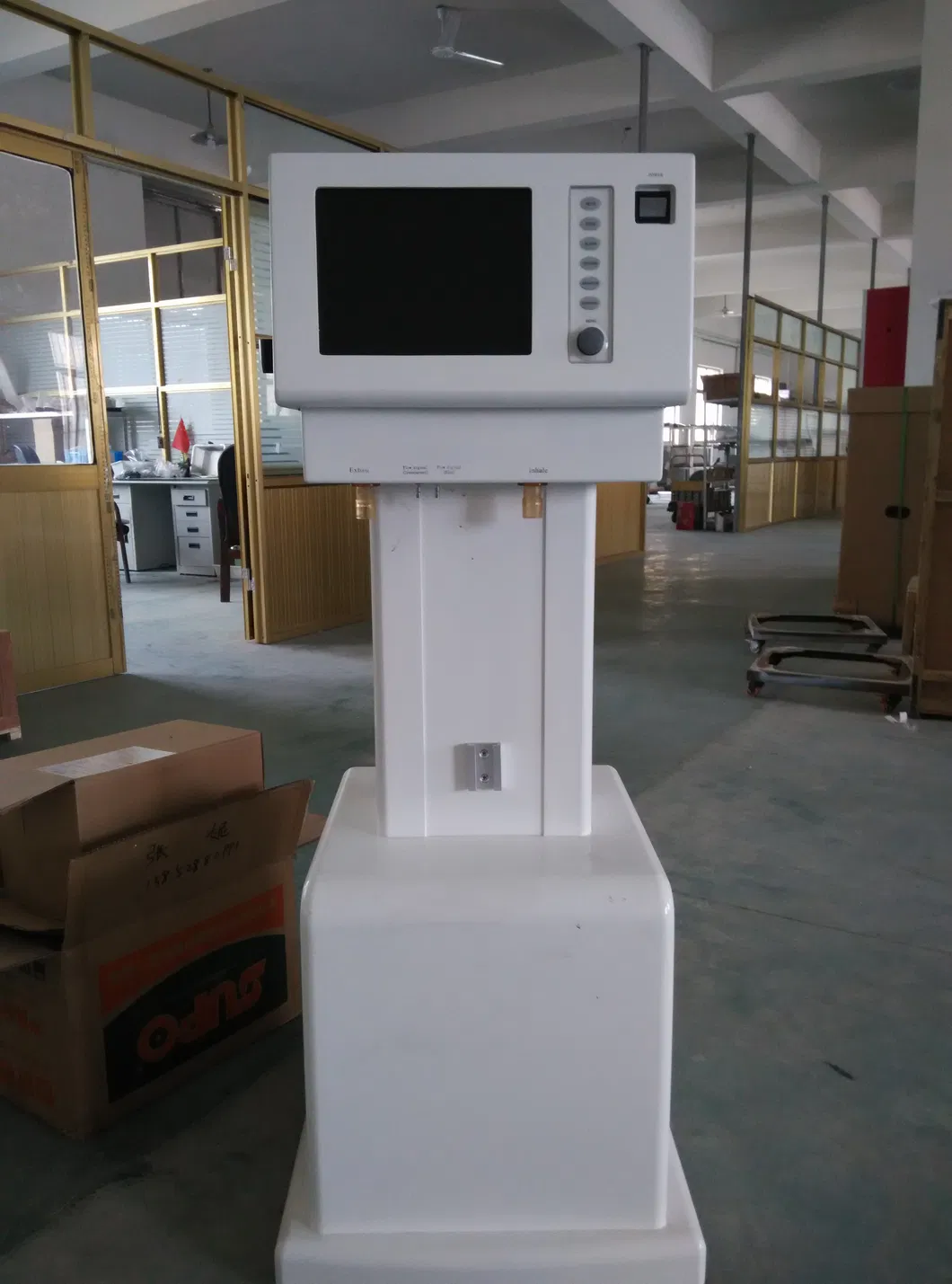

The SD-2000B2 is a high-performance multi-functional ventilator utilizing advanced pneumatic and electronic control microcomputer technology. Equipped with a 10.4" LCD color screen, it provides real-time monitoring of various respiratory parameters. It is ideal for surgical, gynecological, pediatric, and ICU departments.

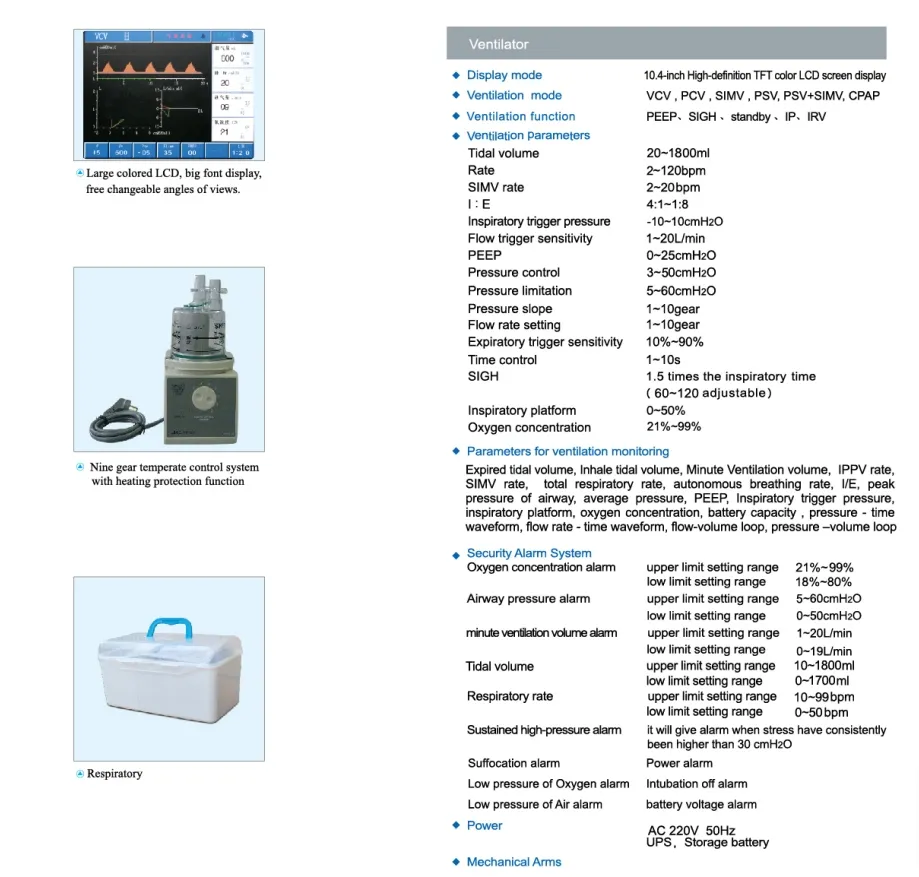

Key Performance Monitoring:
Tidal Volume (VI/VE), Minute Ventilation, Respiratory Rate (IPPV/SIMV), I/E Ratio, Peak Airway Pressure, PEEP, Oxygen Concentration, Battery Capacity, and Waveform Analysis (Pressure-Time, Flow-Volume).
Oxygen Concentration: Upper 21%-99%, Low 15%-80%
Airway Pressure: Upper 1-60 cmH2O, Low 0-50 cmH2O
Ventilation Volume: Upper 1-30L/min, Low 0-20L/min
Tidal Volume: Upper 10-2000ml, Low 0-1800ml
Sustained High Pressure: Triggered after 15s > 25 cmH2O
Power & Battery: Low battery level and power failure alarms
Gas Supply: Shortage of Oxygen or Air supply alarms
Intubation: Automatic intubation off alarm
Frequently Asked Questions
1. What are the accepted payment terms?
We accept T/T (Telegraphic Transfer), L/C (Letter of Credit), Western Union, and other standard international payment methods.
2. What is the typical delivery timeframe?
Standard delivery time ranges from 15 to 35 working days, depending on the specific order quantity.
3. Can you provide Certificate of Origin or Embassy certifications?
Yes, we can apply for FORM A, FORM E, C/O, and other necessary Embassy certifications through the appropriate government channels.
4. Do you support OEM and private labeling?
Yes, we provide full OEM services. With our dedicated R&D team, we can incorporate your logo and meet specific branding requirements.
5. How long does the internal battery last?
The built-in Li-ion battery is designed to support the ventilator for at least 4 to 6 hours in case of power interruptions.
6. Which regions do you ship to?
We offer worldwide delivery. Our medical equipment is currently utilized in over 70 countries across Africa, South America, the Middle East, and Southeast Asia.
