Description
JRJOGGER is a professional medical device used for first-aid, ambulances, emergency situations, and patient transport within hospital environments. It is designed to provide versatile respiratory support for both child and adult patients.
Key Features
✔ Multiple functions with a compact, portable design for transport.
✔ High-quality, accurate, and reliable internal components.
✔ Integrated special self-test function for safety.

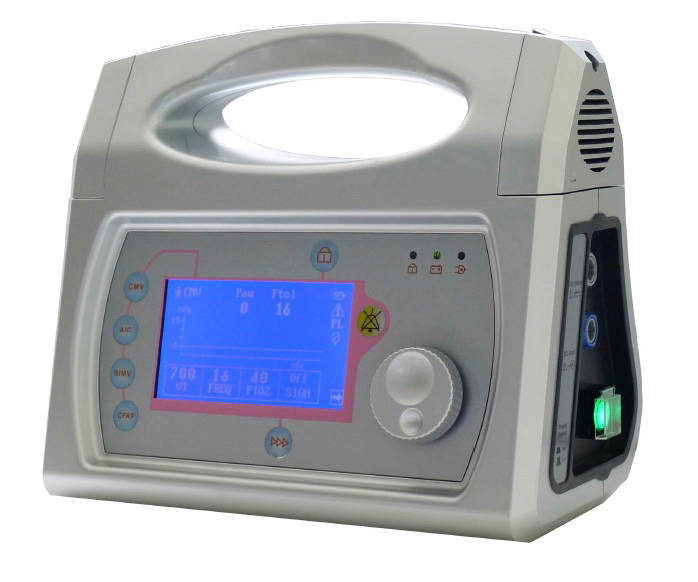

✔ Large LCD screen with intuitive JogDial operation.
✔ Triple power source: AC, DC, and internal rechargeable battery.
Classification & Safety
• Classification: Class I, Type B (protection against electric shock).
• Ingress Protection: IPX4 (protection against harmful ingress of water and particulates).
• Patient Weight: Suitable for patients weighing more than 15kg.
Standard Configuration

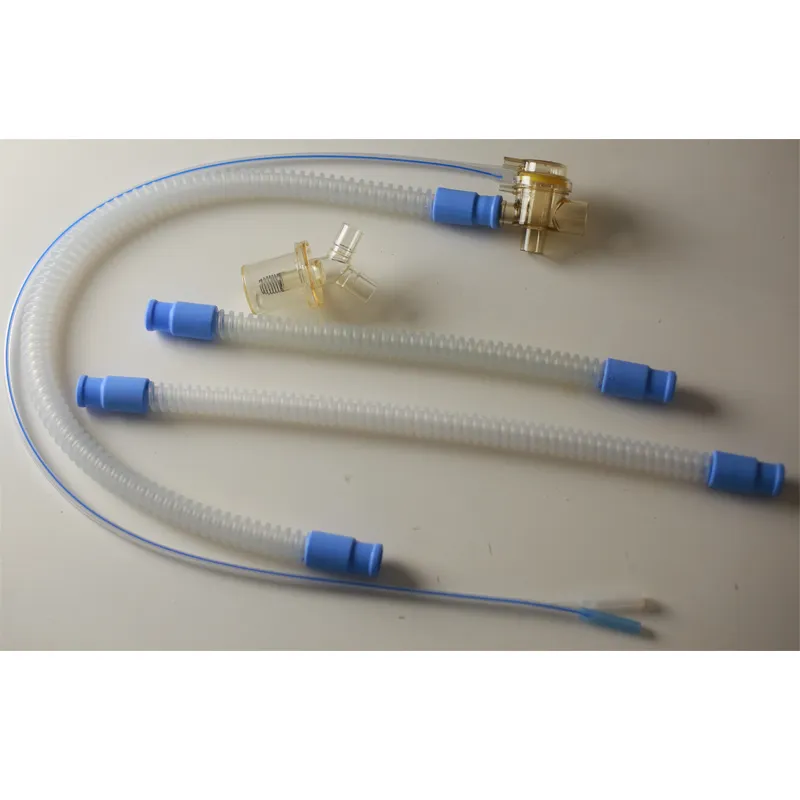

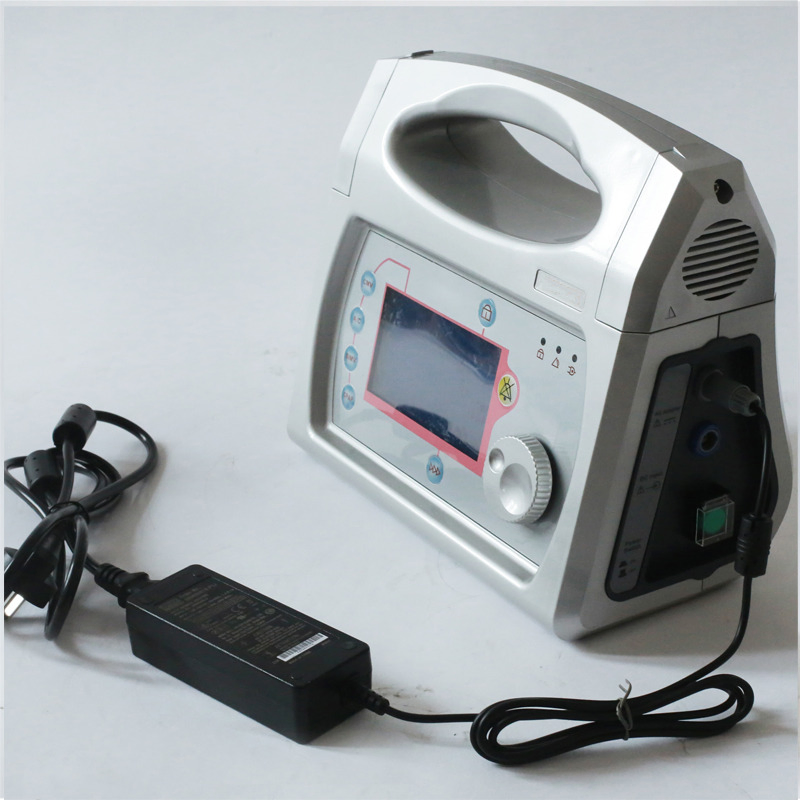

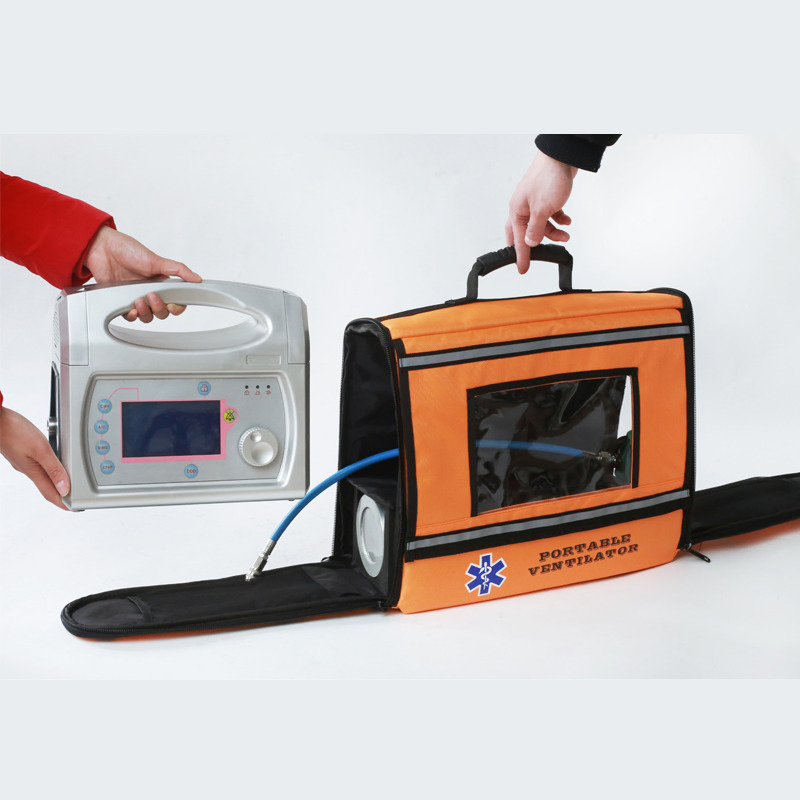

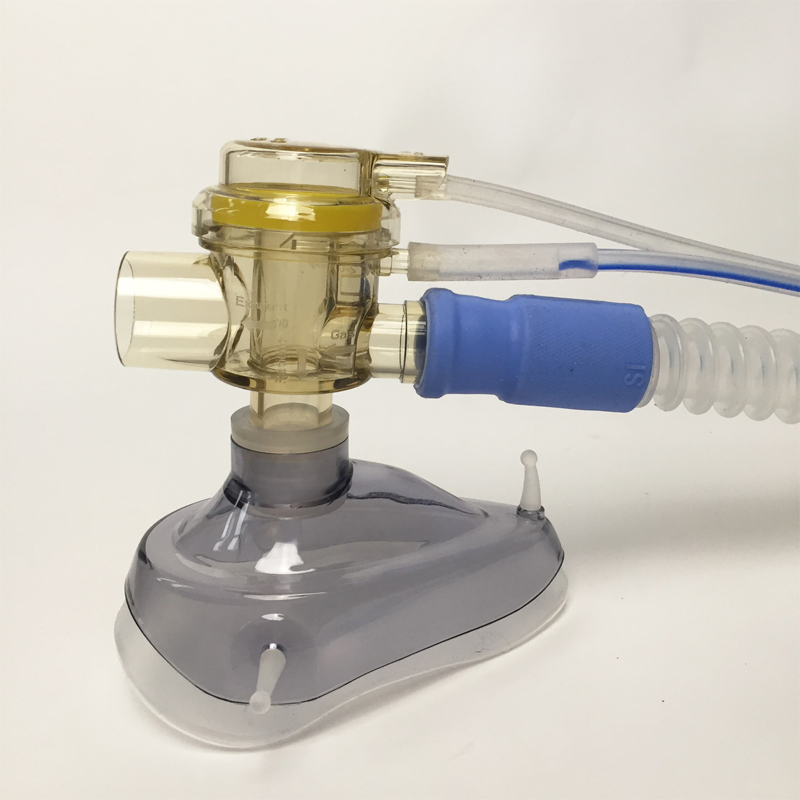

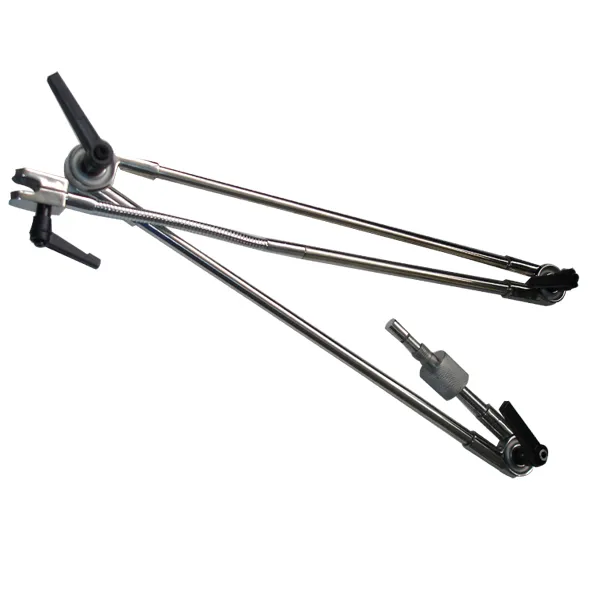

The package includes: Ventilator, pressure-reducing valve, high-pressure oxygen tube, lung simulator, breathing circuit, mask, head band, power adapter, carrying bag, 2L Aluminum oxygen cylinder, oxygen bridge, and hanging rack.
Monitors & Alarms
📊 Monitors: Tidal Volume, O2 Concentration, Sigh, Resp Rate, Trigger, CPAP, Peak Airway Pressure, Wave Form.
🔔 Alarms: High/Low Airway Pressure, High Resp Rate, Low Battery, Low Oxygen Source.
Frequently Asked Questions
Q1: What are the primary applications for the JRJOGGER ventilator?
A1: It is primarily used for first-aid, ambulance services, emergency medical situations, and the transport of patients within hospitals.
Q2: Can this ventilator be used for children?
A2: Yes, the JRJOGGER is designed for both child and adult patients, specifically suitable for those weighing more than 15kg.
Q3: What ventilation modes does the JRJOGGER support?
A3: The device supports CMV, A/C, SIMV, and CPAP ventilation modes.
Q4: What are the power supply options for the device?
A4: It features three types of power sources: AC (100V-240V), DC (12V), and an internal 2200mAh rechargeable Li-battery.
Q5: What is the tidal volume range of this portable ventilator?
A5: The JRJOGGER offers a wide tidal volume range from 50ml up to 2000ml.
Q6: Is the device protected against water and particulates?
A6: Yes, it has an IPX4 rating, which ensures protection against the harmful ingress of water and particulate matter.
