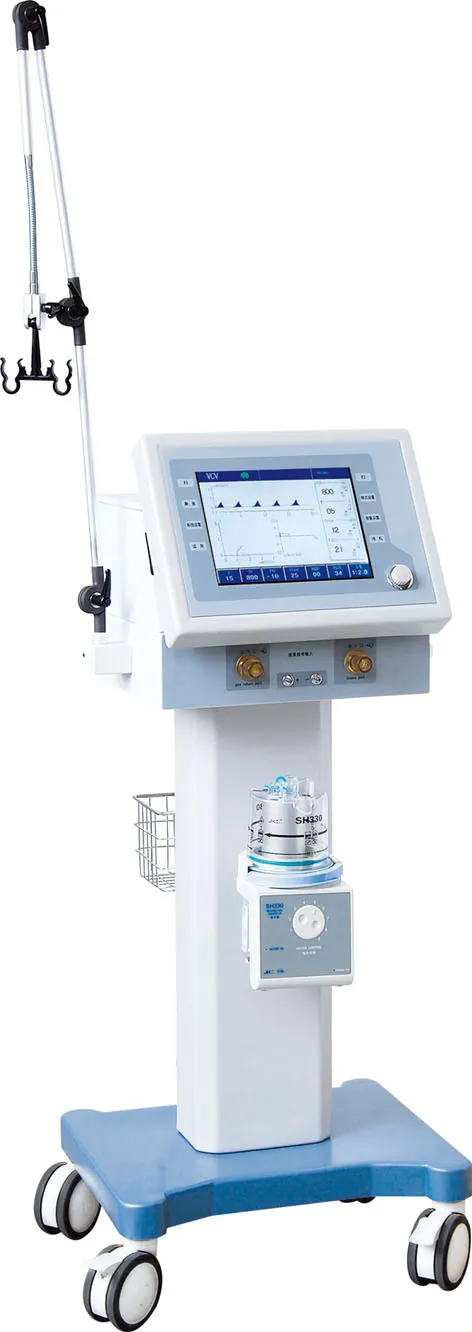

Advanced Method for Controlling a Ventilation System
Technical Features & Specifications
⭐
Display: 10.4-inch LCD screen, Machine and screen separation
⭐
Breathing Mode: IPPV, SIPPV, IMV, SIMV, PEEP, Manu, Sigh and so on
⭐
Tidal Volume Adjustment: 0~1500ml
⭐
Ventilation Capacity: ≥18L per minute
⭐
Ventilator Conformance: ≤30mL/kpa
⭐
Oxygen Concentration: 21%~100%
⭐
Respiratory Rate: 0~99bpm
⭐
SIMV Respiratory: 1bpm~20bpm
⭐
I/E Ratio: 4:1~1:4
⭐
Maximum Safe Pressure: ≤6.0kPa
⭐
(Ptr) Range: -0.8~0.9kPa
⭐
PEEP: 0.1~1.0kPa
⭐
Sigh Volume: 150% of tidal volume
⭐
Peak Flow Speed: ≤100L/min
⭐
Inspiratory Pause: With unusual pause function, convenient for sputum suction
⭐
Alarm System: Senior and intermediate priority arrangement
⭐
Storage: Metal basket for attachment deposition
⭐
Option: Air compressor
Frequently Asked Questions
1. What breathing modes are supported by this ventilation system?
The system supports multiple modes including IPPV, SIPPV, IMV, SIMV, PEEP, Manual, and Sigh, providing comprehensive respiratory support options.
2. Can the screen be moved separately from the main machine?
Yes, the system features a 10.4-inch LCD screen with machine and screen separation for improved visibility and flexible placement.
3. What is the range for Oxygen Concentration adjustment?
The oxygen concentration can be precisely adjusted from 21% up to 100%, catering to various clinical requirements.
4. How does the alarm system prioritize patient safety?
The ventilator is equipped with an alarm system that arranges alerts according to senior and intermediate priority levels to ensure immediate attention to critical issues.
5. Does the system include a feature for sputum suction?
Yes, it includes an inspiratory pause function which is specifically designed to facilitate convenient sputum suctioning.
6. Is an air compressor included with the standard unit?
An air compressor is available as an optional add-on to the main ventilation system depending on your specific facility needs.
