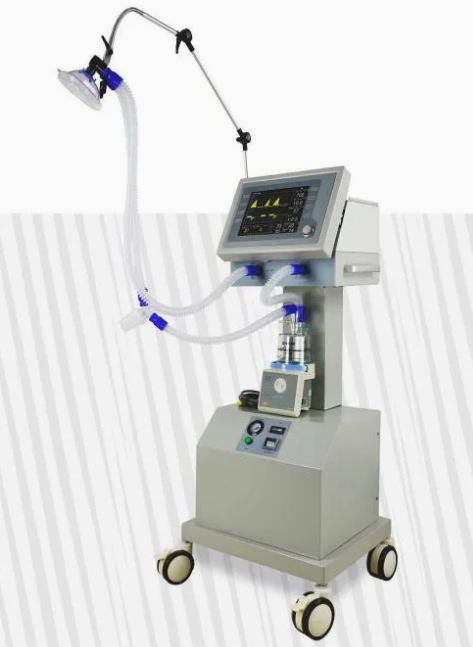

Versatile Ventilation System with Smart Features for Comfort 10.4 Inch High Visibility
Versatile Ventilation System with Smart Features for Comfort 10.4 Inch High Visibility
Versatile Ventilation System with Smart Features for Comfort 10.4 Inch High Visibility
Versatile Ventilation System with Smart Features for Comfort 10.4 Inch High Visibility
Versatile Ventilation System with Smart Features for Comfort 10.4 Inch High Visibility
1 / 5
Versatile Ventilation System with Smart Features for Comfort 10.4 Inch High Visibility
Versatile Ventilation System with Smart Features for Comfort 10.4 Inch High Visibility
Versatile Ventilation System with Smart Features for Comfort 10.4 Inch High Visibility
Versatile Ventilation System with Smart Features for Comfort 10.4 Inch High Visibility
Versatile Ventilation System with Smart Features for Comfort 10.4 Inch High Visibility

Versatile Ventilation System with Smart Features for Comfort 10.4 Inch High Visibility

Customization: Available
Transport Package: Wooden Box
Specification: 33.66X29.21X20 cm
Send Inquiry

Product Description

Technical Specifications
ModelPA-900B (Advanced Model)
Display10.4 inch high visibility color TFT display
Ventilation ModeA/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT MANUAL
Minute Volume≥ 18L
Back-up Power SupplyAt least 4 hours
Tidal VolumeAdjustable: 20-1500ml, Display: 0-2000ml
Respiratory Rate1-99bpm
I:E Ratio4:1 - 1:4
PEEP0-10cmH₂O
SIMV Rate1-20bpm
Inspiratory Pressure Trigger-10 - 10cmH₂O
Trigger Sensitivity (flow)1-10L/m
Inspiratory PlateauAdjustable from 0-50% of inspiratory time
Adjustable Oxygen Concentration21-100%
Gas Supply Requirement280~600 kPa medical grade oxygen and compressed air
Maximum Safe Operating Pressure≤ 6.0kPa
Tidal Volume AlarmUpper: 10~2000ml, Lower: 0~1800ml
Airway Pressure AlarmUpper: 0.1~6kPa, Lower: 0~5kPa
Oxygen Concentration AlarmUpper: 22~100%, Lower: 21~80%

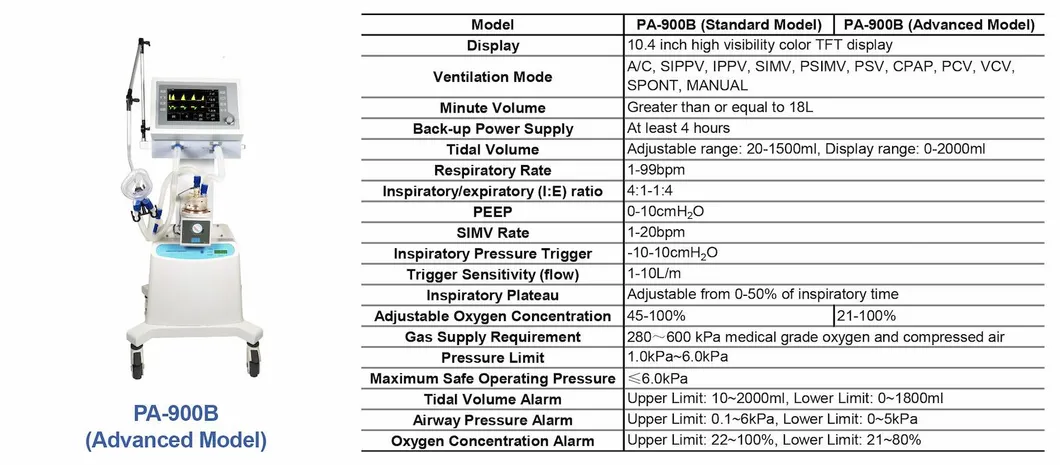

Ventilation System with 10.4 Inch High Visibility Display
Common Features
Operating Modes Pneumatically driven & electronically controlled, closed, semi-closed, and semi-open systems. Suitable for emergency clinical resuscitation and respiratory therapy.
Advanced Display Built-in 10.4 inch color TFT fully adjustable display. Supports simultaneous display of Pressure-Time, Frequency-Time, Pressure-Volume, Frequency-Volume waveforms.
Safety & Alarms Audible and visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, and power failure. Features alarm history query.
Intelligent Monitoring Equipped with infrared turbine flow sensor for stable and reliable gas flow measurement. 9-level adjustable humidifier included.
Backup Power Automatically converts to standby mode during AC power outages to ensure continuous patient support.
Trigger & Sigh Supports both Pressure and Flow triggers. Ability to insert 1-8 sigh breaths in every 100 breaths (≥1.5x tidal volume).
Advanced Model Exclusive: Equipped with a professional medical-grade air compressor tailored for long clinical use with ultra-low noise requirements.

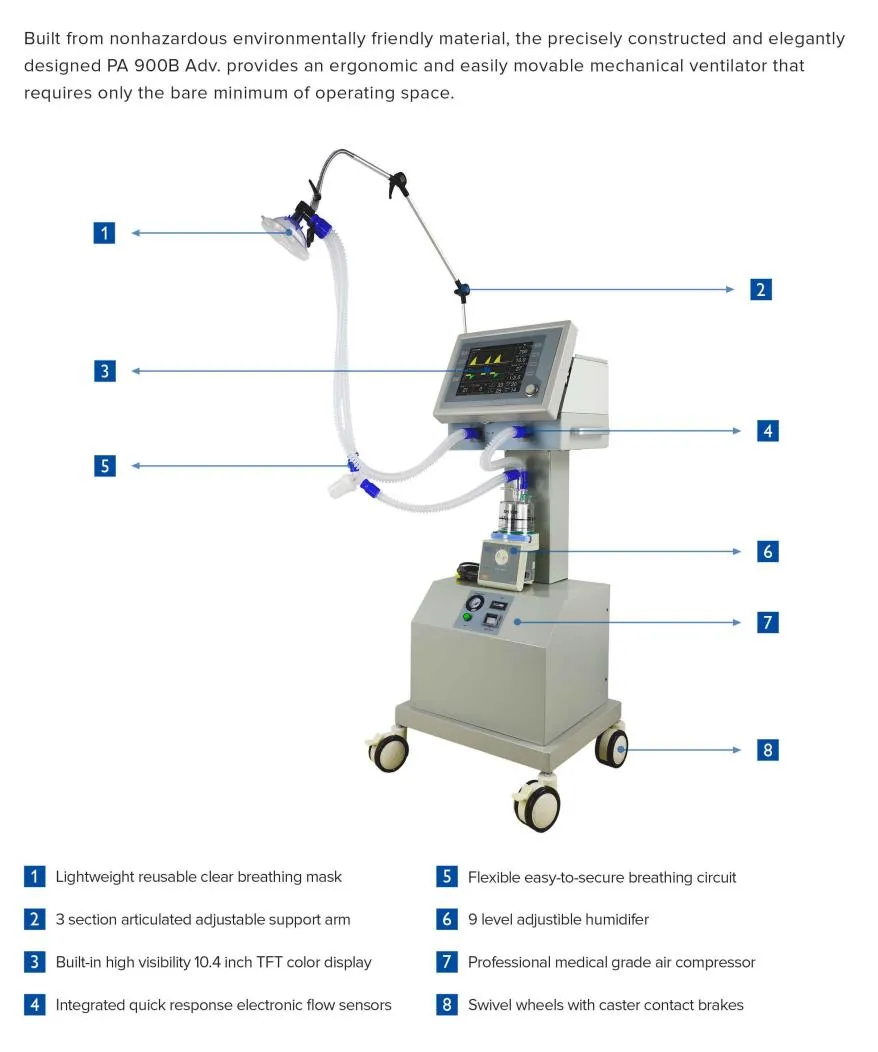

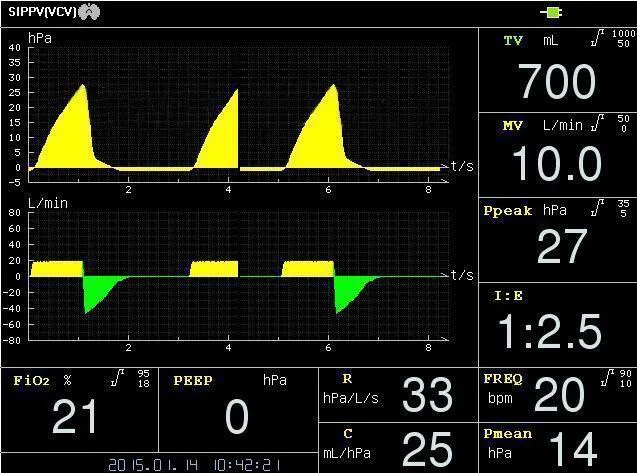

LCD Display and Waveforms

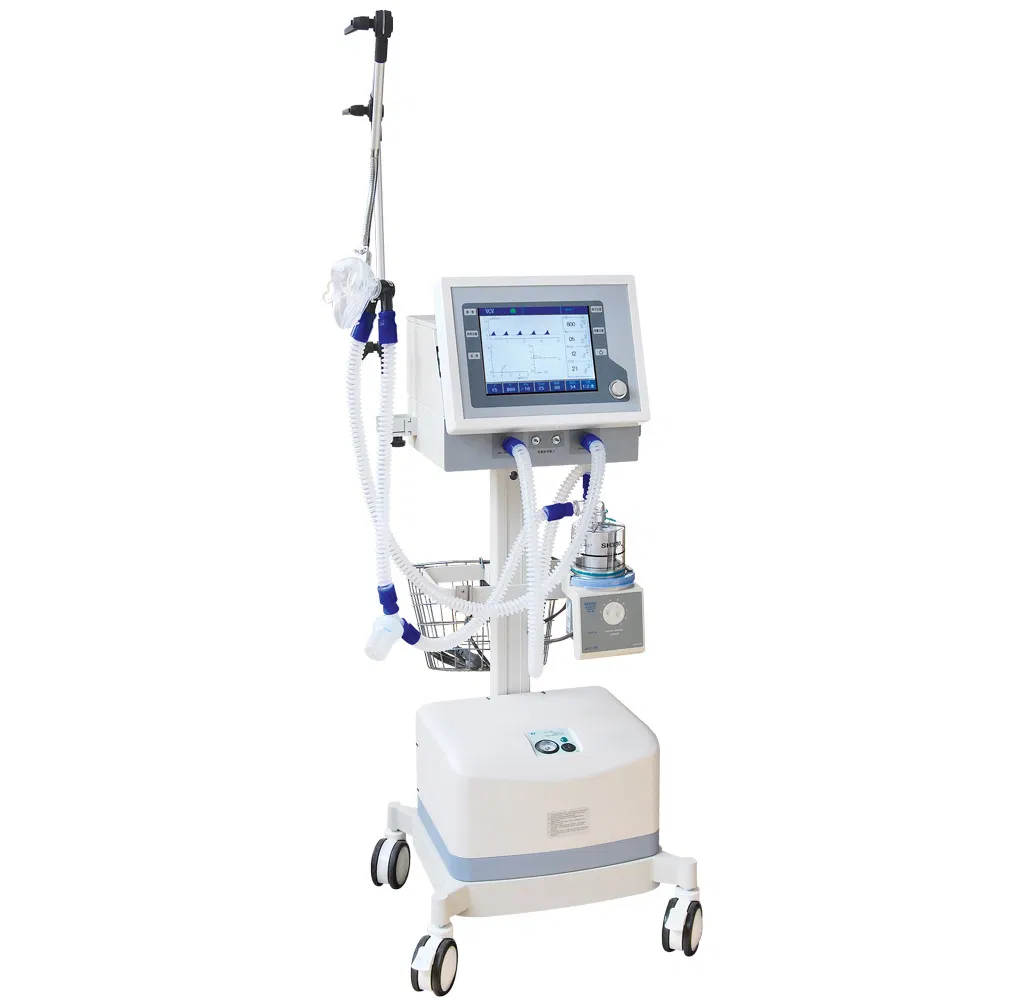

Front View of PA-900B

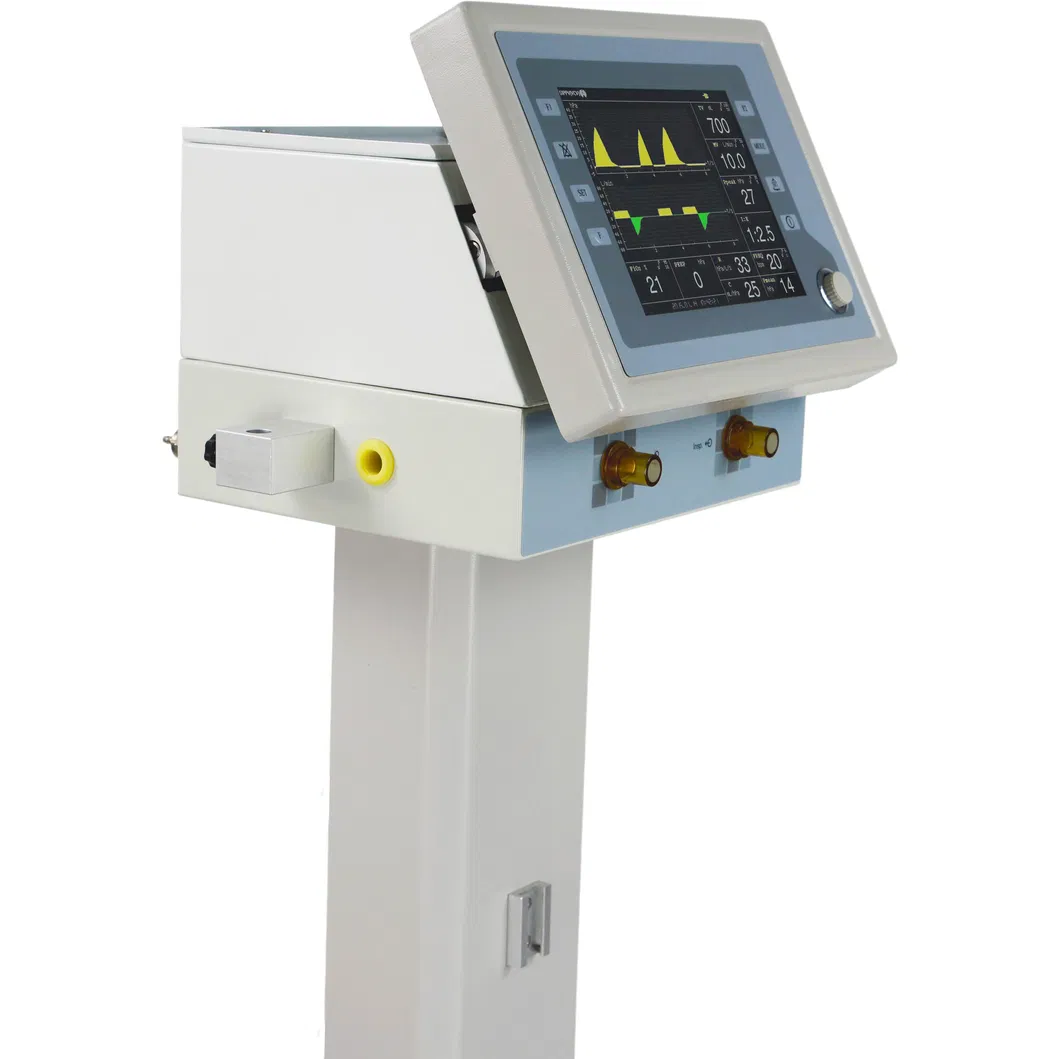

Side View of Device
Air Compressor Specifications
  • Power: 220VAC±10%, 50±1Hz, 700VA
  • Output Gas Pressure: 0.4MPa±20%
  • Continuous Output Flow: ≥ 20L/min
  • Instantaneous Output Flow: ≥ 60L/min
  • Protective grounding against electrical activity.

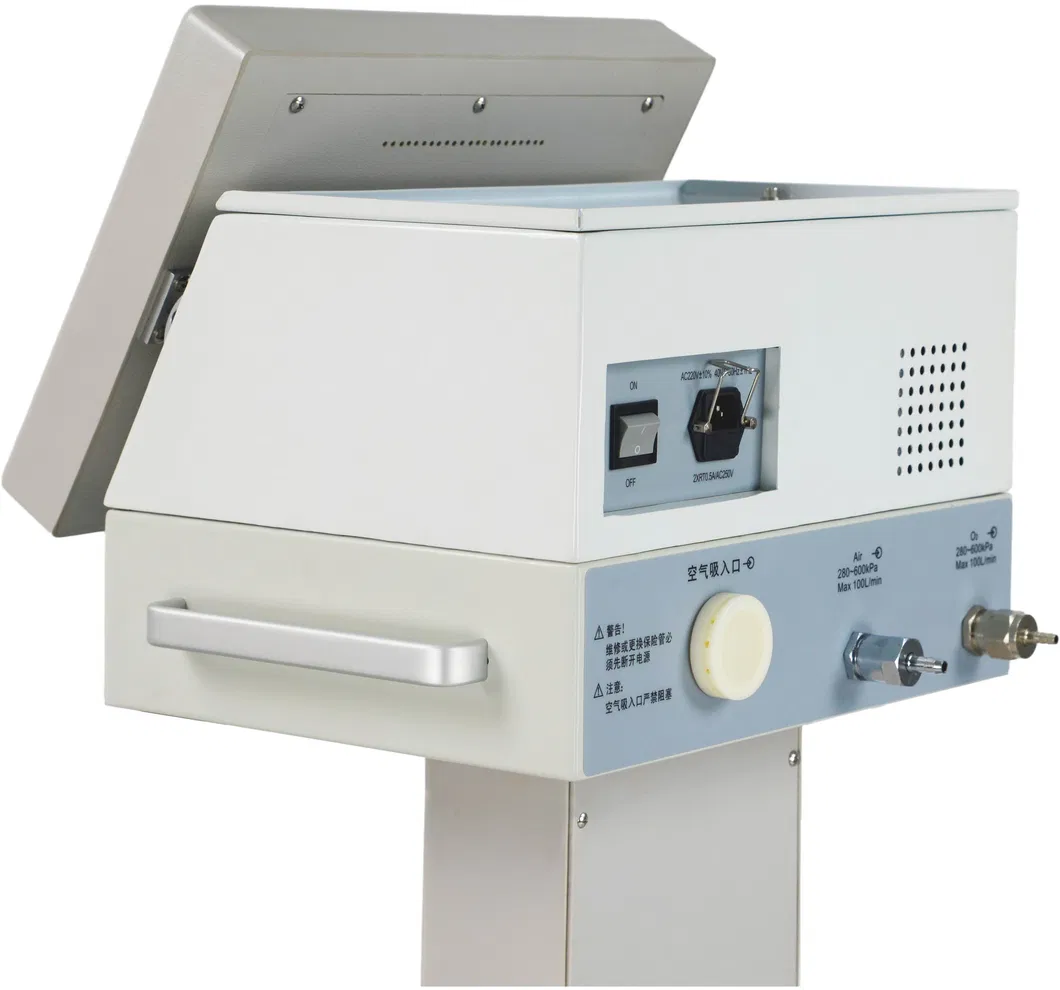

Internal Components

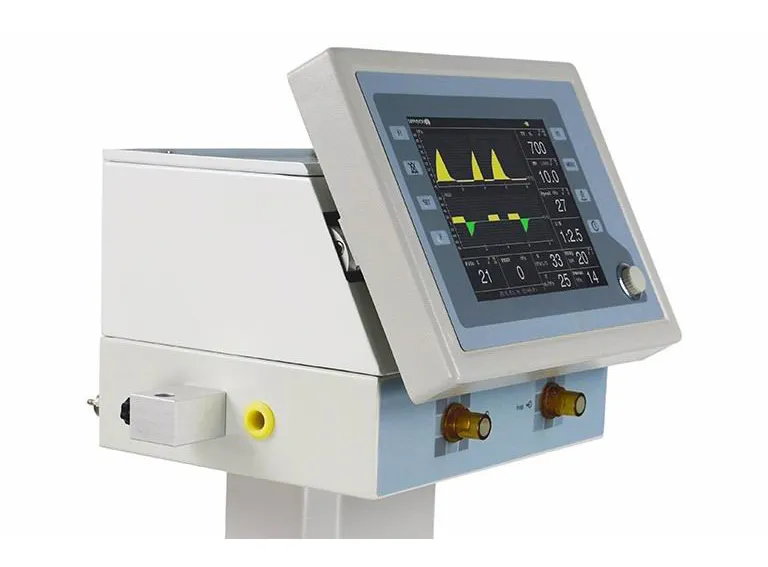

Compressor Unit
Connector Detail

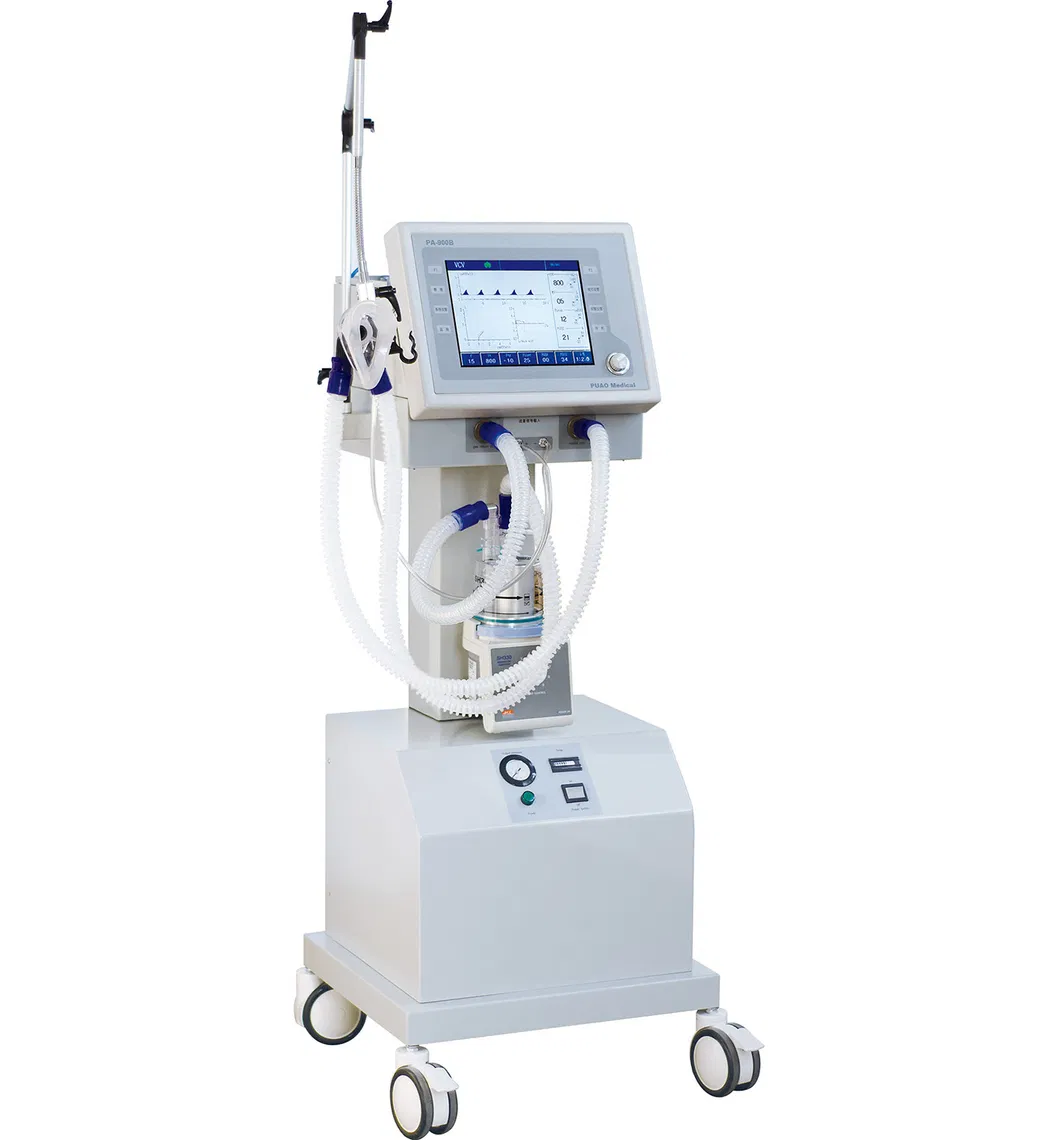

Product Schematic and Parts
Frequently Asked Questions
Q: What ventilation modes are available on the PA-900B? A: The PA-900B supports a wide range of modes including A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT, and MANUAL, making it versatile for various clinical needs.
Q: What is the display size and functionality? A: It features a 10.4-inch high-visibility color TFT display that can be rotated freely. It displays four key waveforms (P-T, F-T, P-V, F-V) simultaneously and includes a screen lock function.
Q: How long does the backup battery last? A: The built-in back-up power supply provides at least 4 hours of operation, ensuring patient safety during power outages.
Q: What is the range for Tidal Volume adjustment? A: The tidal volume is adjustable from 20ml to 1500ml, with a display range of up to 2000ml, accommodating both pediatric and adult patients.
Q: Does this model include an air compressor? A: Yes, the Advanced Model is equipped with a professional medical-grade air compressor specifically designed for low-noise and long-term clinical performance.
Q: What safety alarms are integrated into the system? A: The system includes comprehensive audible and visual alarms for airway pressure, tidal volume, oxygen concentration, asphyxia, intubation disconnection, and power failure.
