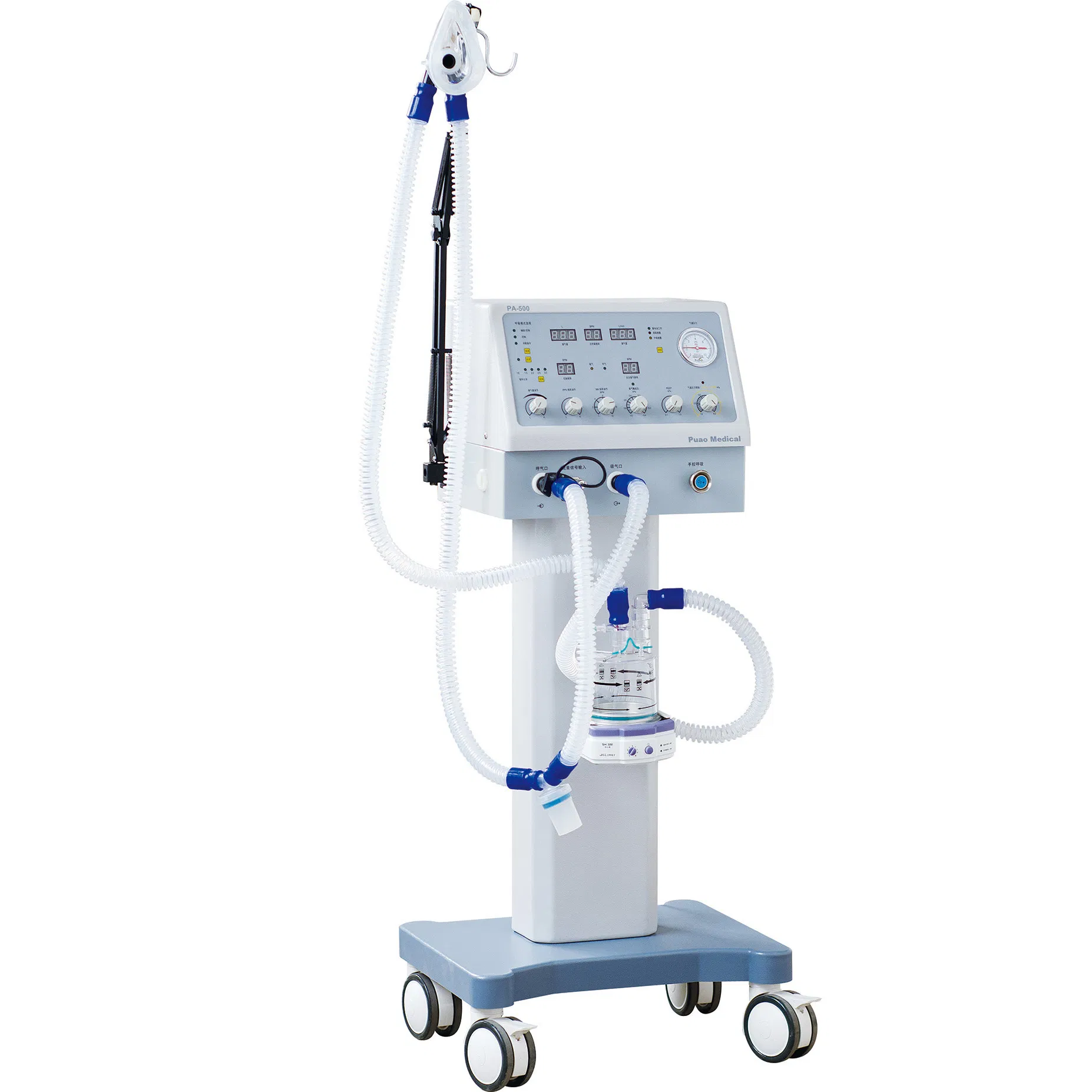

Medical Equipment Manufacturer Wholesale Economical Emergency Hospital Clinic ICU Medical Ventilator
Medical Equipment Manufacturer Wholesale Economical Emergency Hospital Clinic ICU Medical Ventilator
Medical Equipment Manufacturer Wholesale Economical Emergency Hospital Clinic ICU Medical Ventilator
Medical Equipment Manufacturer Wholesale Economical Emergency Hospital Clinic ICU Medical Ventilator
Medical Equipment Manufacturer Wholesale Economical Emergency Hospital Clinic ICU Medical Ventilator
1 / 5
Medical Equipment Manufacturer Wholesale Economical Emergency Hospital Clinic ICU Medical Ventilator
Medical Equipment Manufacturer Wholesale Economical Emergency Hospital Clinic ICU Medical Ventilator
Medical Equipment Manufacturer Wholesale Economical Emergency Hospital Clinic ICU Medical Ventilator
Medical Equipment Manufacturer Wholesale Economical Emergency Hospital Clinic ICU Medical Ventilator
Medical Equipment Manufacturer Wholesale Economical Emergency Hospital Clinic ICU Medical Ventilator

Medical Equipment Manufacturer Wholesale Economical Emergency Hospital Clinic ICU Medical Ventilator

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
PA-500
Display
LED
Ventilation Mode
IPPV, SIPPV, IMV, Manual
Max Minute Volume
≥ 18L
Back-up Power
At least 4 Hours
Tidal Volume
50-1200ml (Adjustable)
Oxygen Conc.
<50%
Respiratory Freq.
6-60bpm
Pressure Limit
1-6kpa
I:E Ratio
1:1.5 - 1:3
PEEP
1-10CMH2o
Origin
China

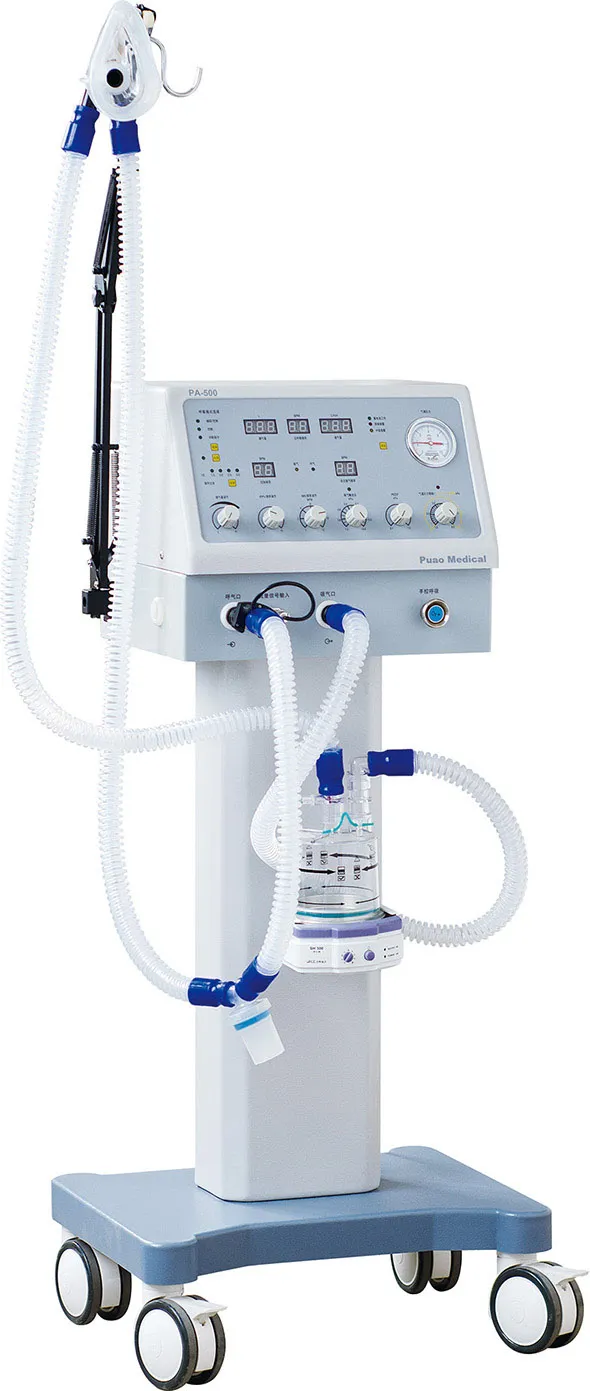

PA-500 Ventilator Machine

Lung Ventilator - Emergency Clinical Resuscitation Device

Key Features & Functional Highlights
✓
Control System: Pneumatically driven electrically controlled ventilator, designed for emergency clinical resuscitation and respiratory therapy.
✓
Advanced Display: High visibility, wide-angle LED alphanumeric data display with tactile analog parameter controls.
✓
Precision Sensors: Equipped with high-precision infrared turbine pressure and flow sensors for accurate monitoring.
✓
Power Safety: Automatically converts to standby mode during AC power outages to ensure continuous support.
✓
Smart Diagnostics: Features automated self-checking during startup and an automatic self-calibrating sensor system.
✓
Alarm System: Visual and audible alarms for tidal volume, airway pressure, power failure, and oxygen failure.

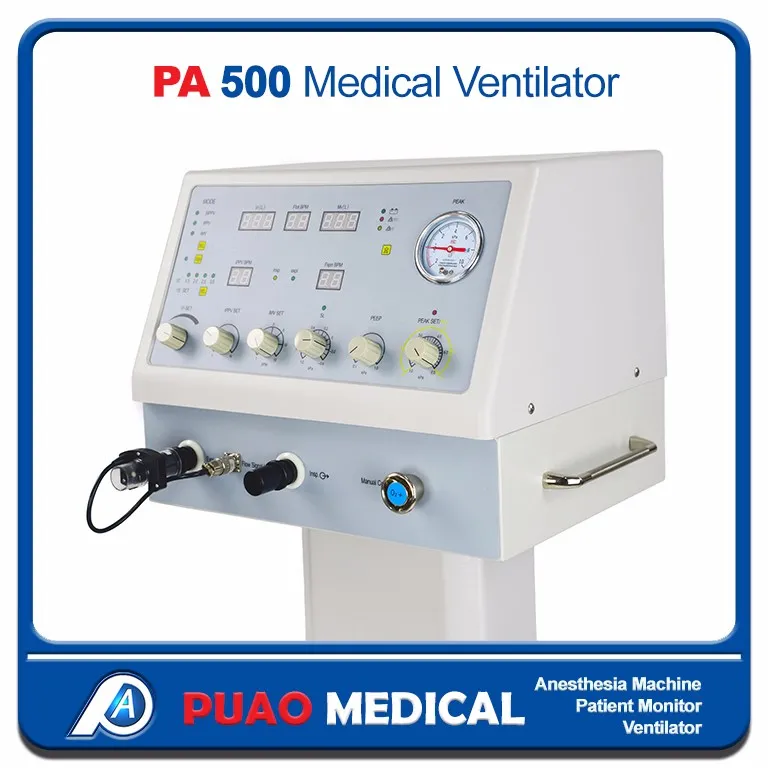

Ventilator Detail View 1

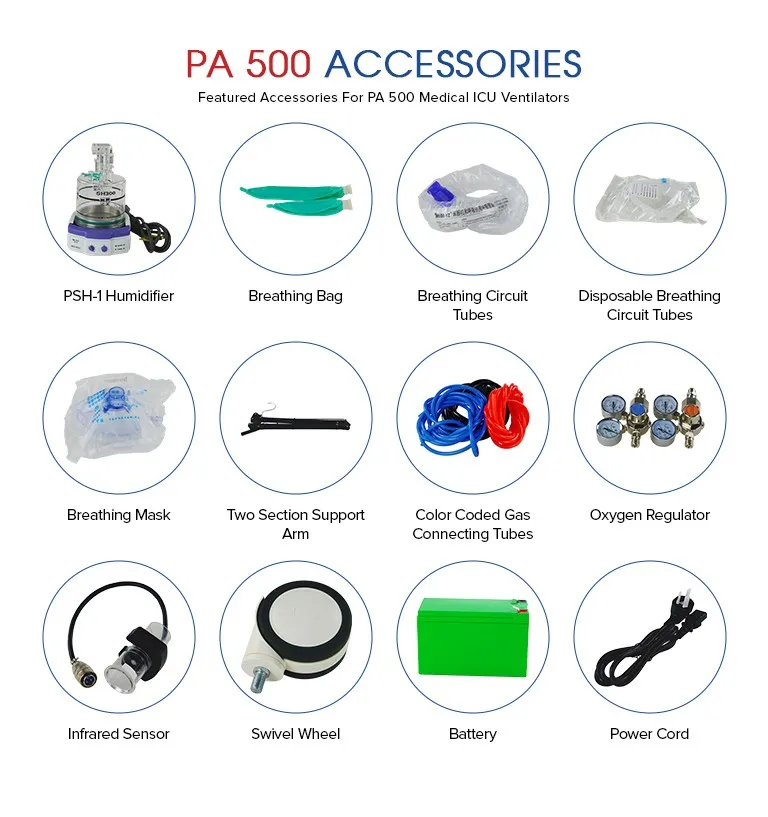

Ventilator Detail View 2
Technical Specifications
Parameter Detail Description
ModelPA-500
Ventilation ModeIPPV, SIPPV, IMV, MANUAL
Tidal VolumeAdjustable range: 50-1200ml
Respiratory Frequency6-60bpm
I:E Ratio1:1.5 - 1:3
PEEP1-10cmH2O
IMV Frequency1-12bpm
Pressure Limit1-6kPa
Max Safe Pressure≤6.0kPa
Inspiratory Trigger-4-10cmH2O
Humidifier9 Level adjustable
SIGH1 sigh breath in every 80 breaths
Gas Requirement0.28~0.6MPa medical grade oxygen
Airway Pressure AlarmUpper: 0.9~5.4kPa, Lower: 0.5kPa

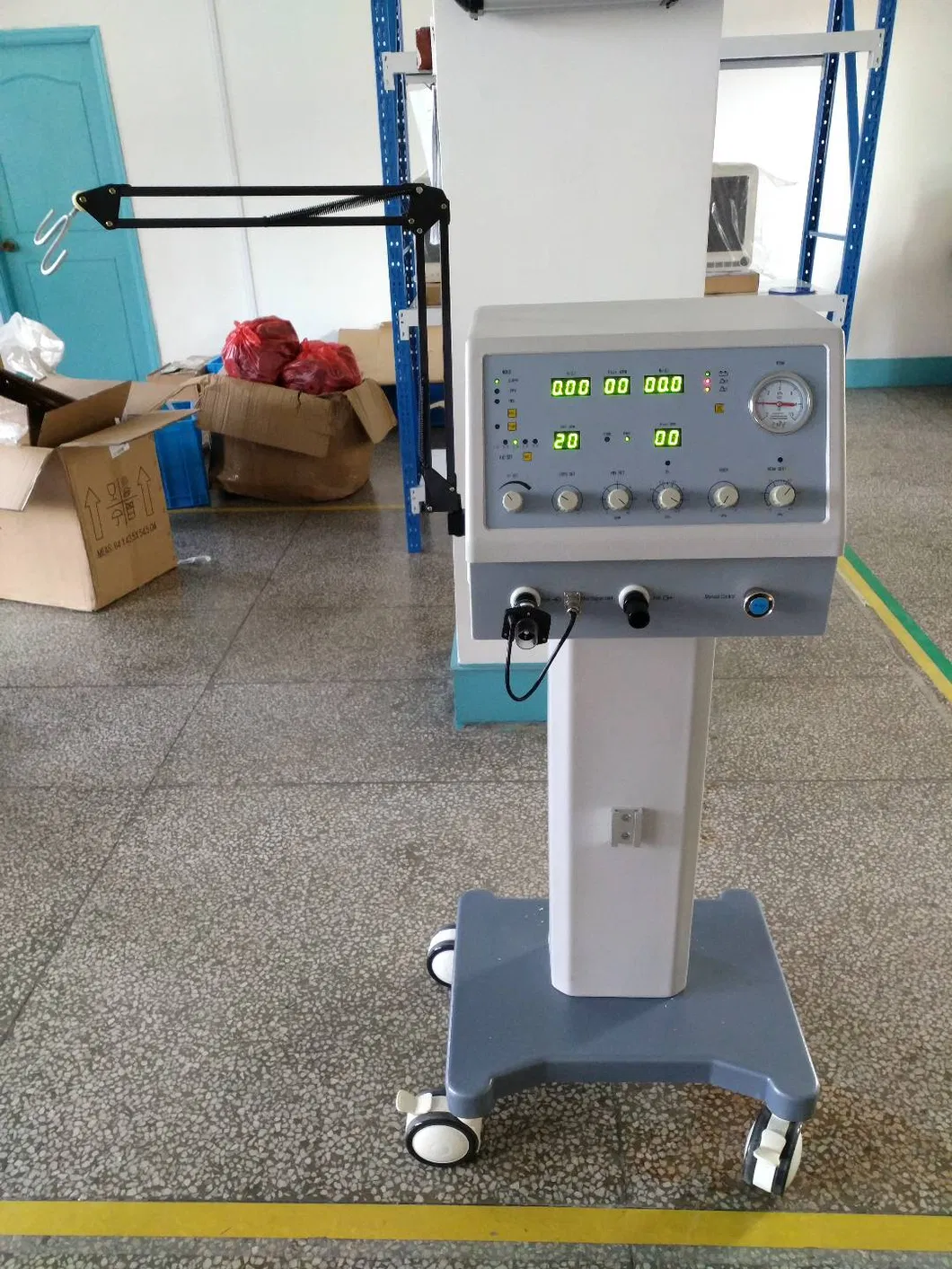

Ventilator Operating Interface
Full Ventilator Setup
Frequently Asked Questions
Q1: What are the primary ventilation modes of the PA-500? The PA-500 supports multiple modes including IPPV (Intermittent Positive Pressure Ventilation), SIPPV, IMV (Intermittent Mandatory Ventilation), and Manual mode.
Q2: How long can the ventilator operate during a power failure? The device is equipped with a back-up power supply that ensures the ventilator can operate for at least 4 hours during AC power outages.
Q3: Is the tidal volume adjustable for different patient needs? Yes, the tidal volume is highly adjustable with a range from 50ml to 1200ml, making it suitable for a wide variety of clinical scenarios.
Q4: What kind of safety alarms does the PA-500 include? It features both audible and visual alarms for tidal volume, airway pressure, power failure, and oxygen supply failure to ensure patient safety.
Q5: Does the ventilator include a humidification system? Yes, the PA-500 comes with an integrated 9-level adjustable humidifier to maintain appropriate moisture levels for the patient's respiratory tract.
Q6: What are the gas supply requirements for this machine? The system requires a medical-grade oxygen supply with a pressure range between 0.28 and 0.6 MPa.
