Overview - Basic Information
📌
Model NO.:
SY-W006-2N
🛡️
Safety Pressure:
≤ 6 Kpa
🐾
Product Name:
Veterinary Anesthesia Ventilator
🔄
Breath Frequency:
1 ~ 90bpm
📊
I:E Ratio:
4:1 ~ 1:6
💨
Tidal Volume:
50ml - 1600ml
🧪
Gas Supply:
O2, or Medical Air
📦
Transport Package:
Carton Box
🌍
Origin:
China
🏭
Capacity:
200 Set/Month
Product Description

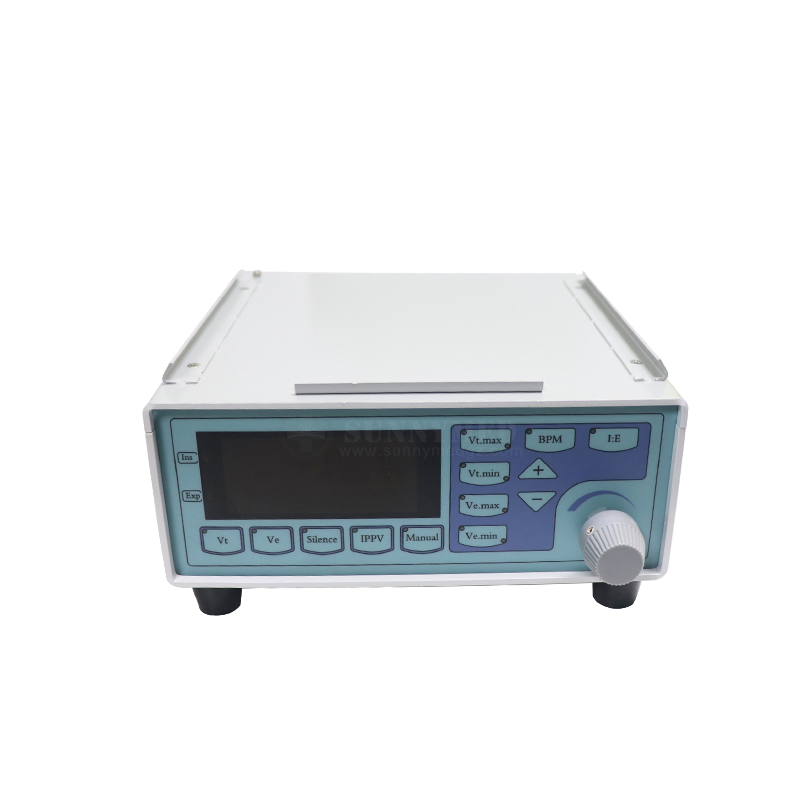

SY-W006-2N animal anesthesia machine veterinary pet ventilator
The Ventilator is a newly developed portable unit, suitable for respiratory management of full anesthetic conditions.
It is light, small, and movable, specifically designed for patients of more than 10 kg.
It can work together with anesthetic ventilation systems and perform tightly closed, semi-tightly closed, and semi-open respiratory management.
Technical Specifications
| Driven mode | Pneumatically driven electronically controlled |

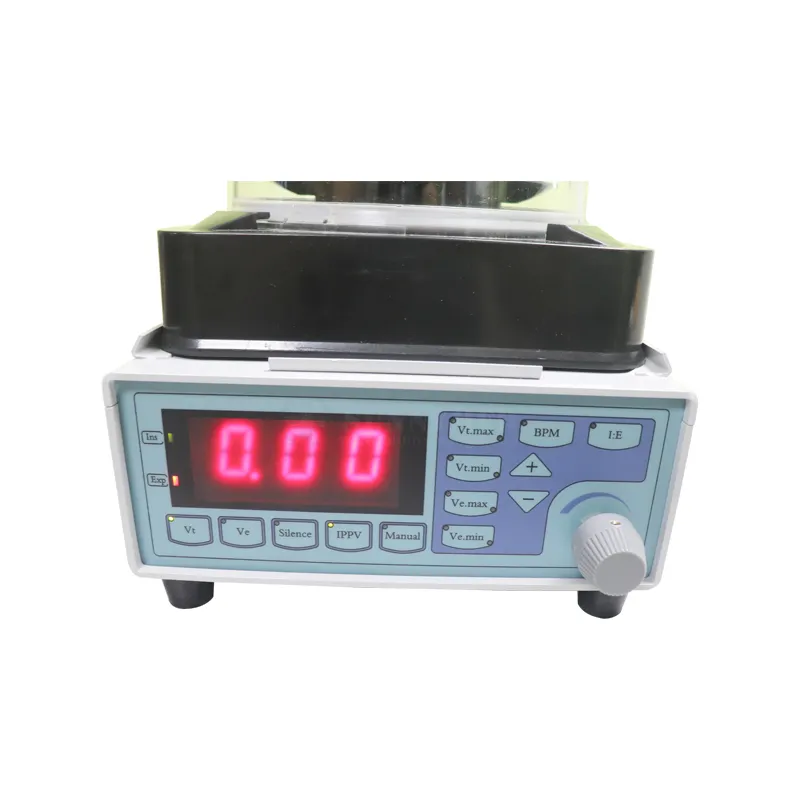

| Display | High light LED display |
| Ventilation Volume | 50 ~ 1600ml |
| Breath frequency | 1 ~ 90BPM |
| I:E ratio | 4:1 ~ 1:6 |
| Monitor parameter | Tidal volume, Breath frequency, MV, Airway pressure |
| Alarm | MV high/low alarm, TV high/low alarm |

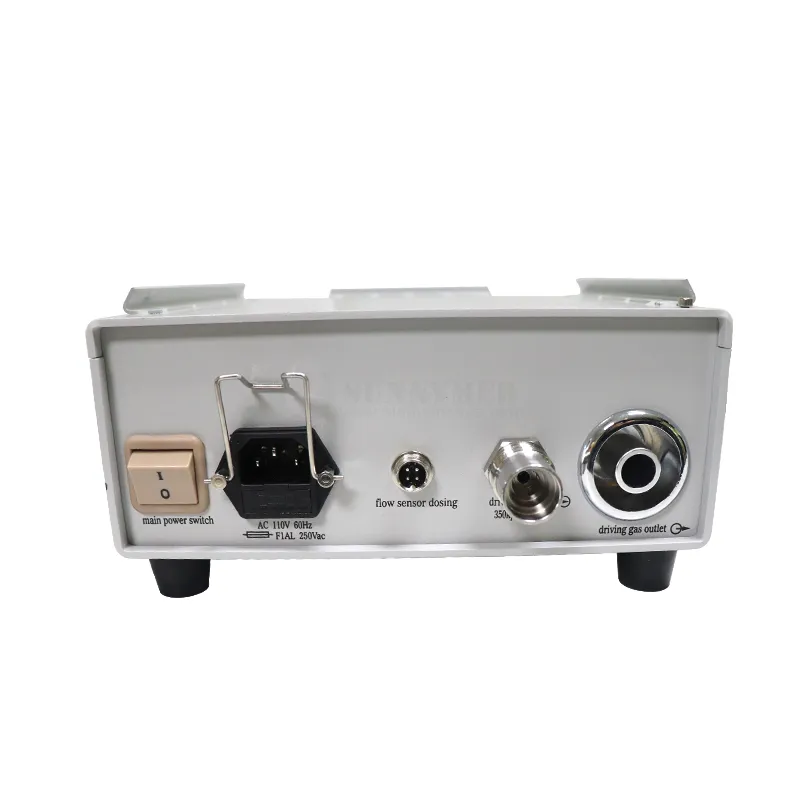

| Gas supply | O2 or Air (0.25~0.65Mpa) |
| Physical specification | Packing size: 33 x 27 x 41 cm | Gross weight: 8.0kgs |
| Environments | Temp: -9~+35°C | Humidity: 20%~60% | Pressure: 700~1060hPa |

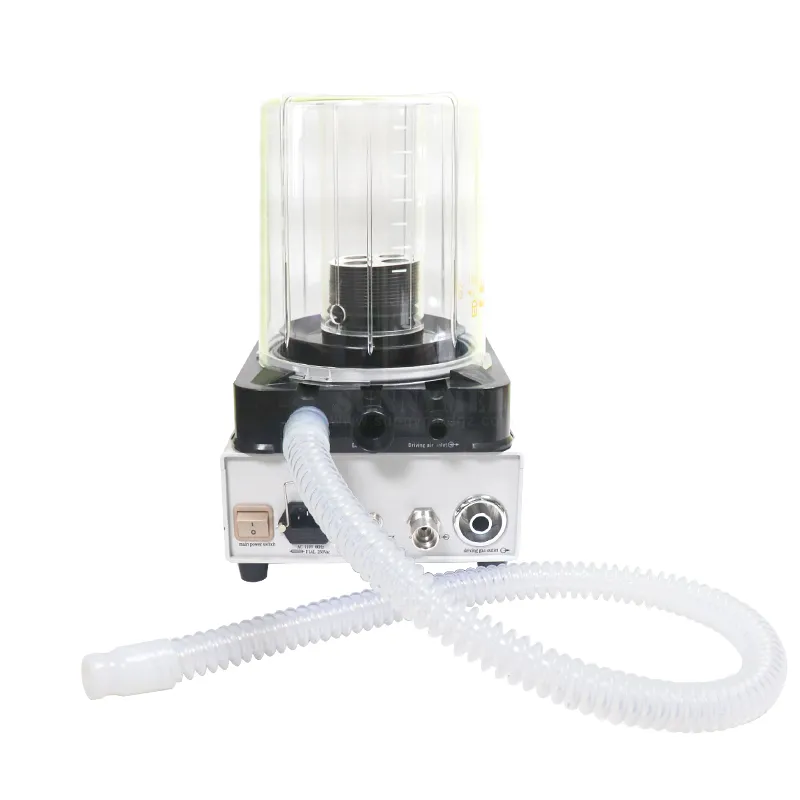

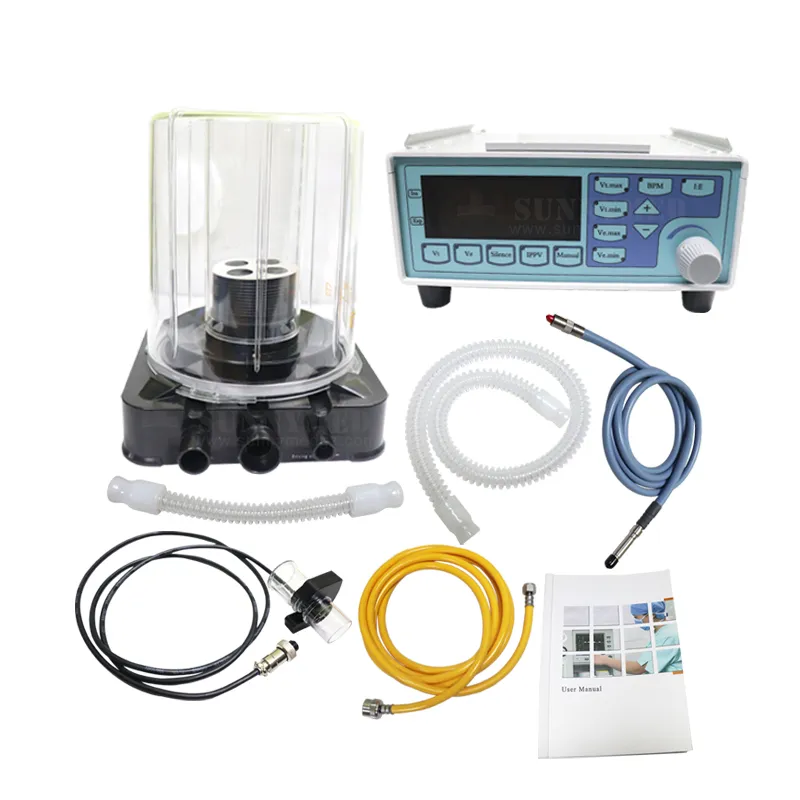

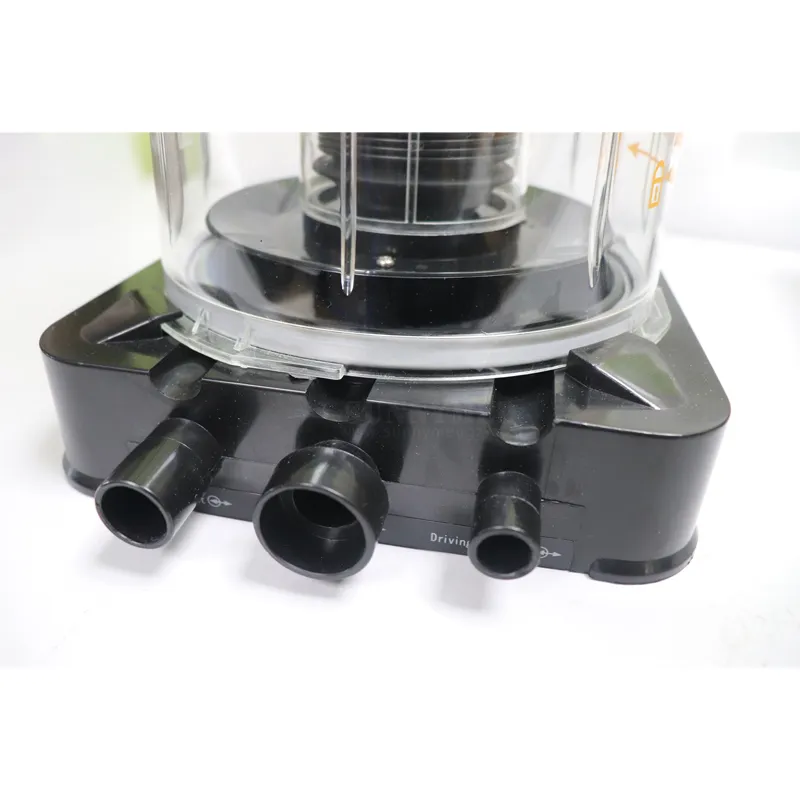

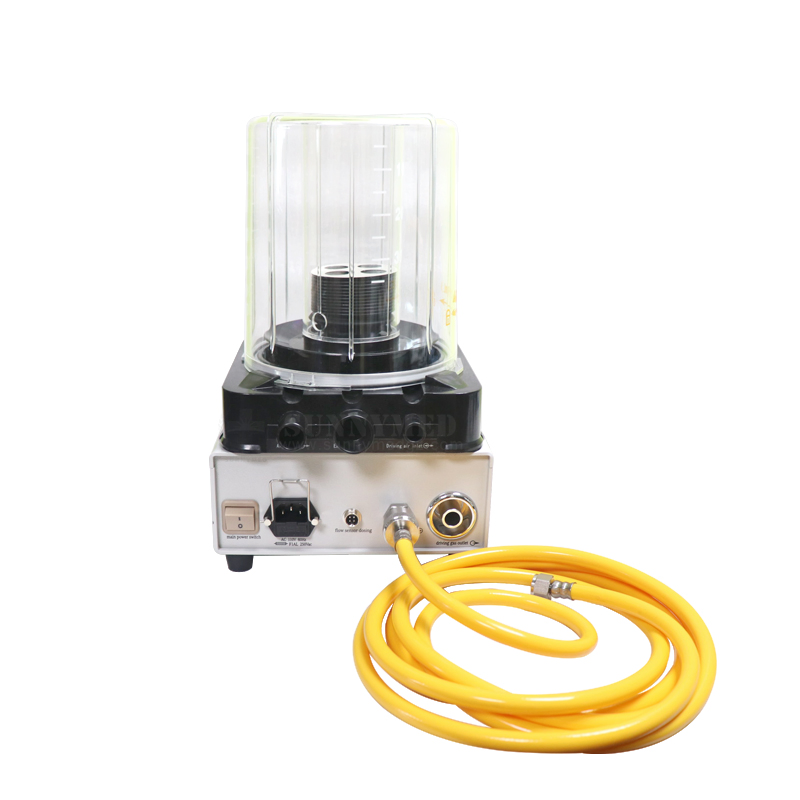

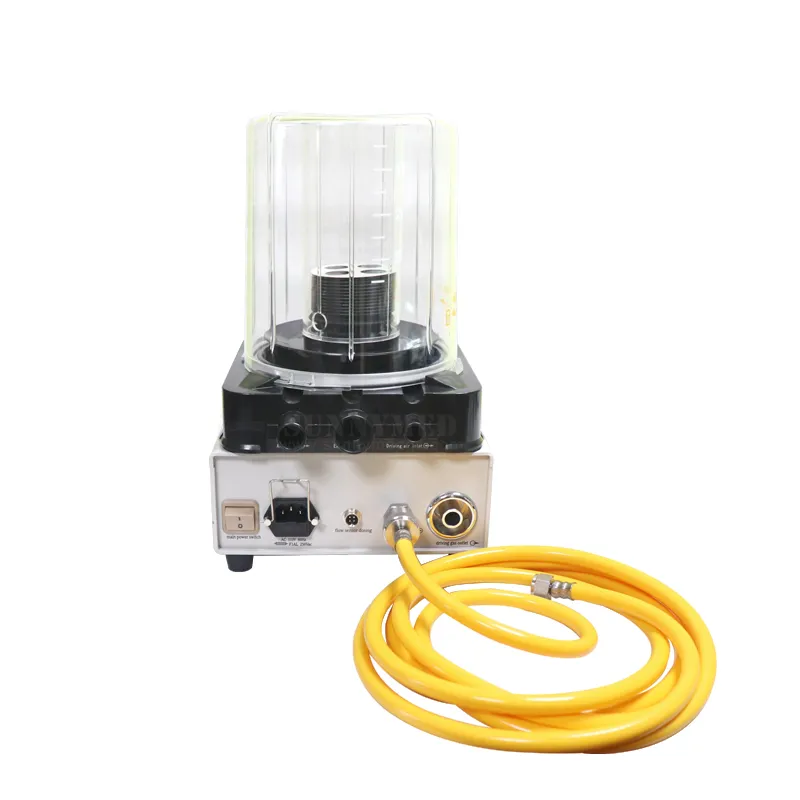

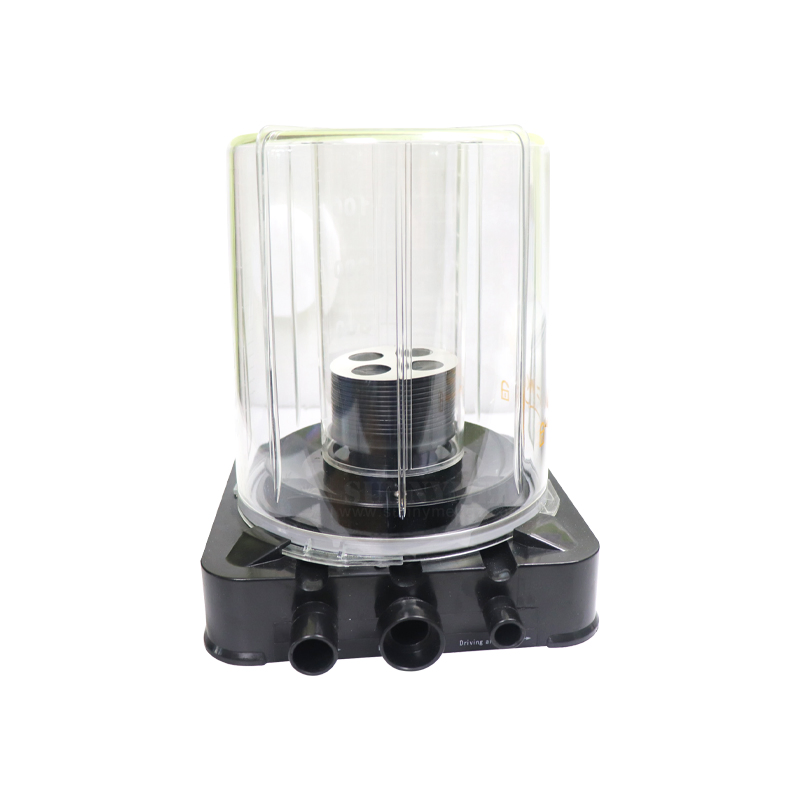

Detailed Photos
Manufacturing and Quality
Frequently Asked Questions
What is the tidal volume range for this veterinary ventilator?
The SY-W006-2N provides a wide tidal volume range from 50ml to 1600ml, making it versatile for various animal sizes.
What weight of animals is this machine suitable for?
This unit is specifically designed for patients weighing more than 10 kg.
Which gas supplies are compatible with the device?
It can be powered by either Oxygen (O2) or Medical Air with a supply pressure between 0.25 and 0.65 Mpa.
What safety alarms are integrated into the system?
The system includes multiple safety alarms, including high and low Minute Volume (MV) alarms and high and low Tidal Volume (TV) alarms.
Can this ventilator work with existing anesthesia systems?
Yes, it is designed to work together with anesthetic ventilation systems and supports tightly closed, semi-tightly closed, and semi-open respiratory management.
Is the display clear for surgical environments?
The device features a high-light LED display, ensuring all monitoring parameters like breath frequency and airway pressure are easily readable.
