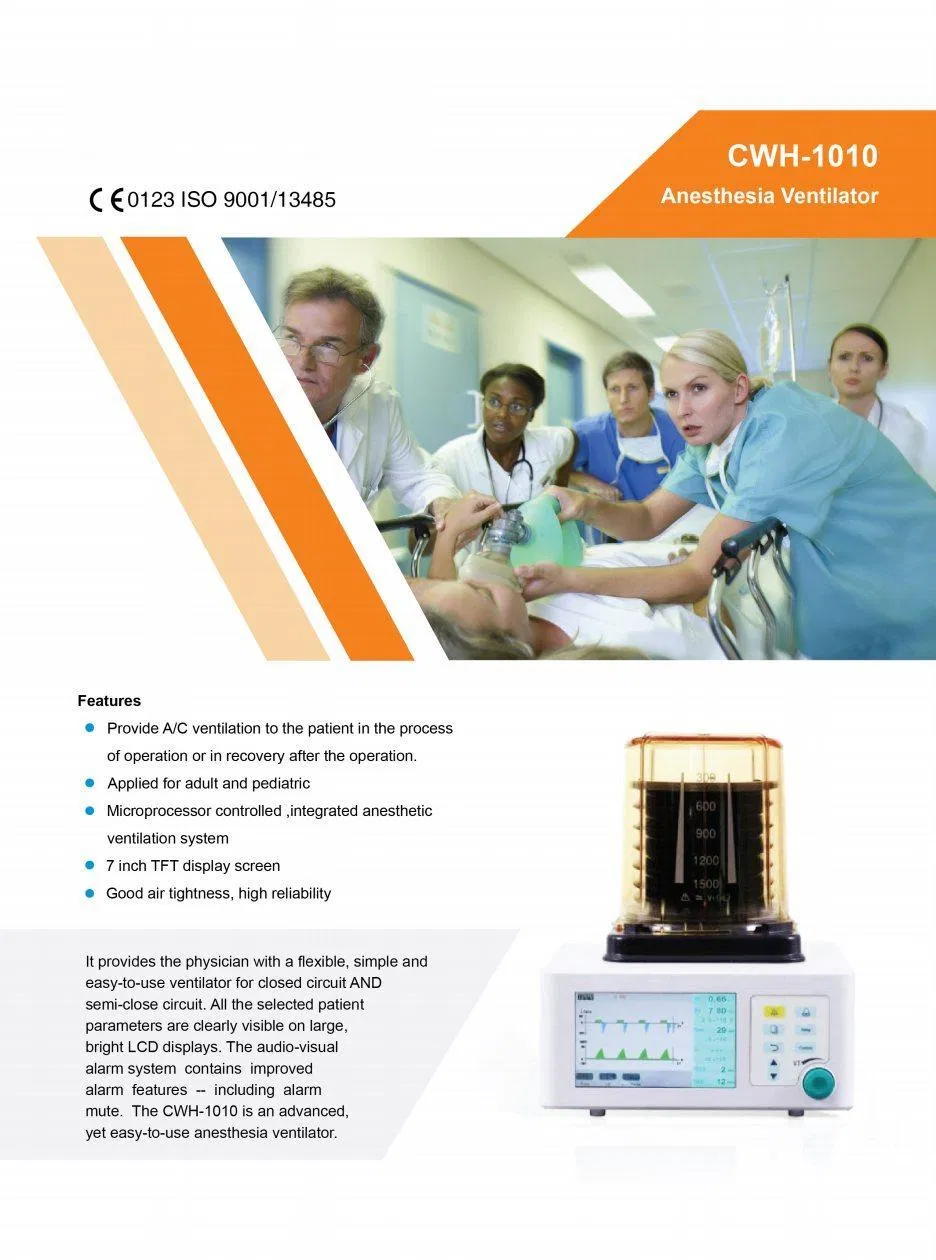

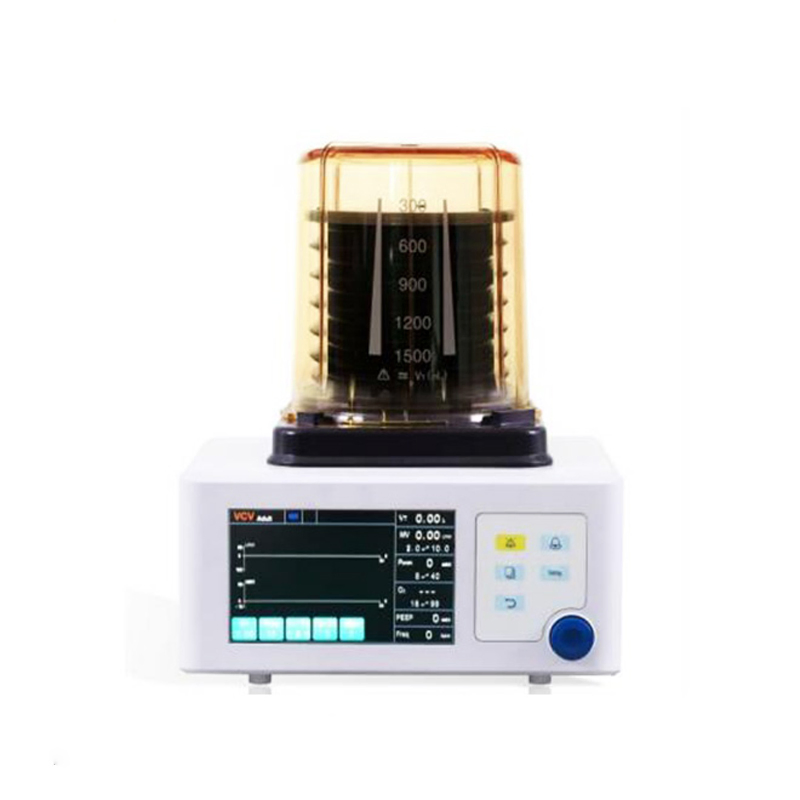

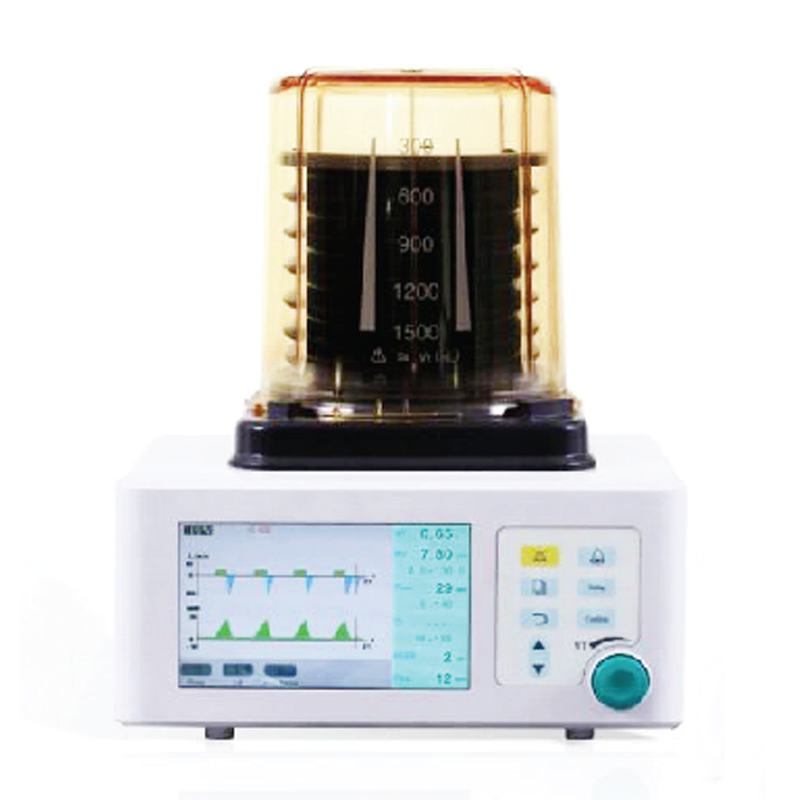

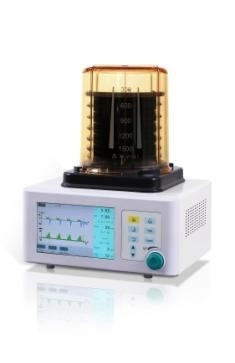

CWH-1010 Anesthesia Ventilator
Main Specifications:
✔ Electronically controlled, pneumatic driven
✔ Patient spectrum: pediatric to bariatric
✔ Ventilation mode: IPPV, SIMV, MANUAL(BAG)
✔ Tidal volume: Adjustment range 0-1500ml
✔ I:E ratio: 4:1-1:8
✔ Frequency: 1-100bpm
Monitoring Parameters:
VT, MV, BPM, Paw, FiO2, PEEP, Respiratory Frequency, I:E ratio, Ppeak

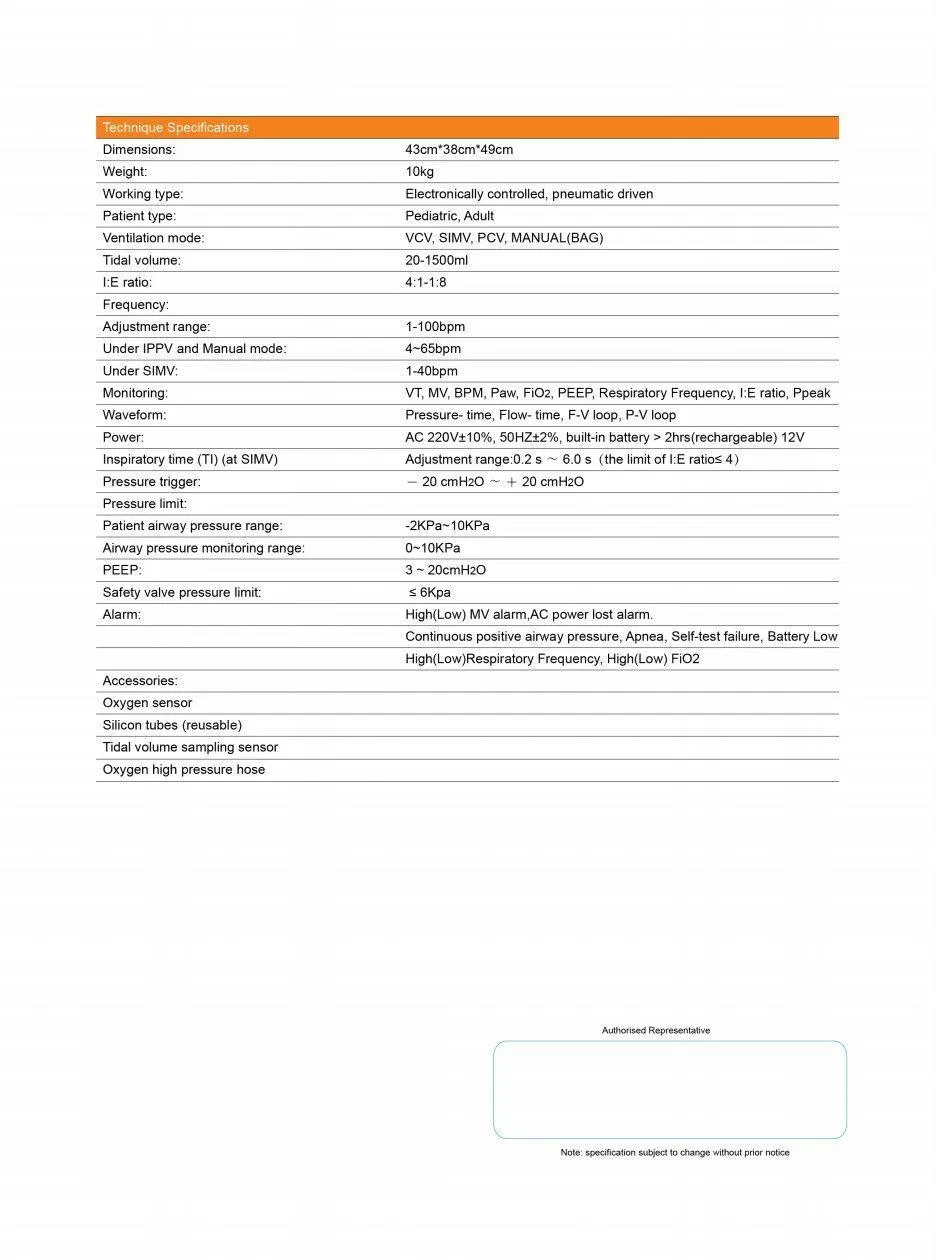

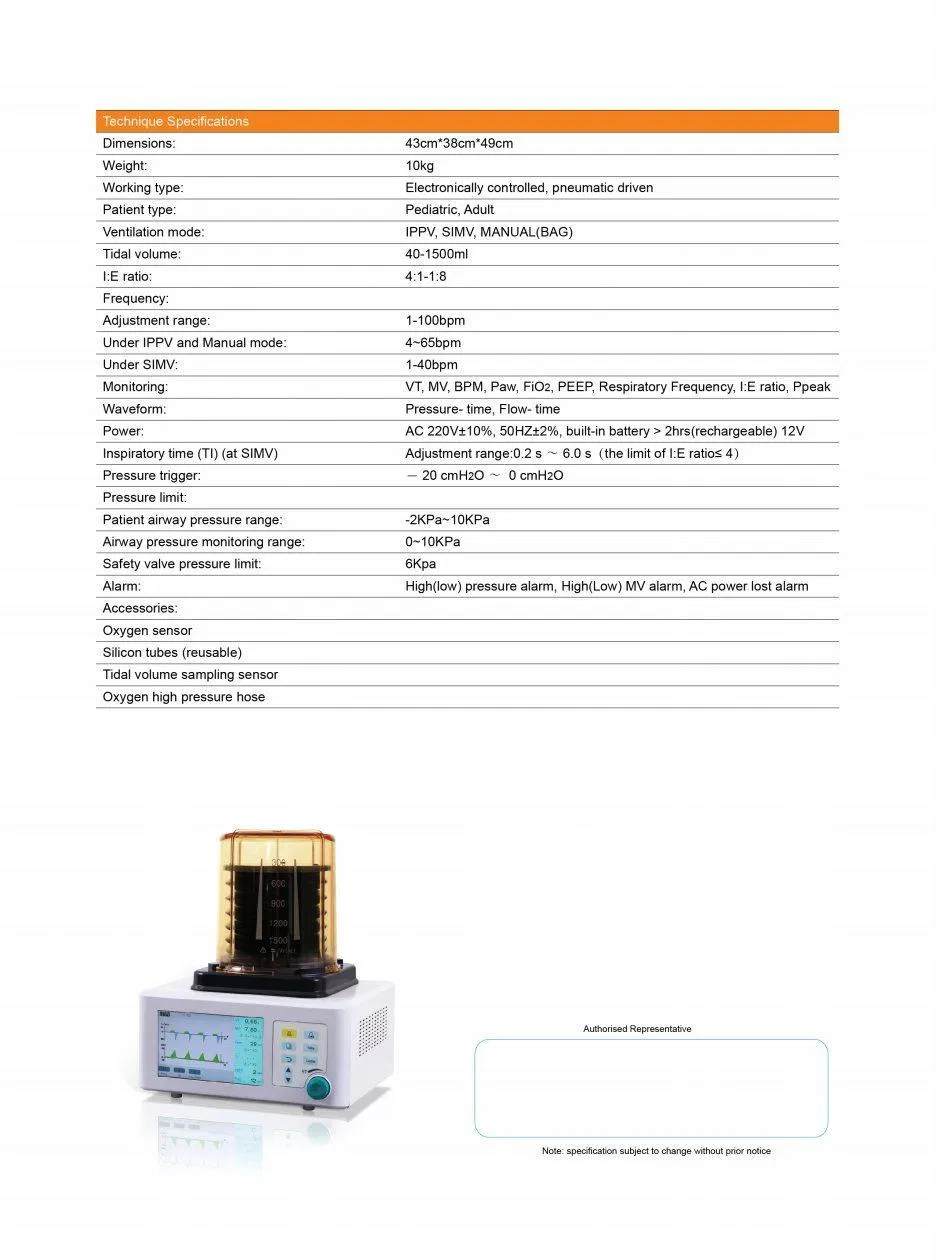

Technical Data:
- • Waveform: Pressure-time, Flow-time
- • Power: AC 220V ± 10%, 50Hz ± 2%, built-in battery > 2hrs (rechargeable) 12V
- • Inspiratory time (TI) (at SIMV): 0.2 s - 6.0 s
- • Pressure trigger: -20 cmH2O ~ + 20 cmH2O
- • Pressure limit: Patient airway pressure range -2KPa ~ 10KPa
- • Alarm: High/low pressure, High/low MV, AC power loss
Frequently Asked Questions
What types of animals can the CWH-1010 be used for?
The CWH-1010 is designed for a wide range of animals, including cats, dogs, sheep, and horses, covering a patient spectrum from pediatric to bariatric sizes.
What ventilation modes does this equipment support?
This ventilator supports three primary modes: IPPV (Intermittent Positive Pressure Ventilation), SIMV (Synchronized Intermittent Mandatory Ventilation), and MANUAL (Bag) mode.
Does the machine operate during power failures?
Yes, the CWH-1010 includes a built-in rechargeable 12V battery that provides over 2 hours of operation in case of AC power loss.
What is the adjustable range for Tidal Volume?
The tidal volume can be adjusted within a wide range of 0ml to 1500ml, making it suitable for different animal sizes.
What safety monitoring features are included?
The device monitors several critical parameters including VT, MV, BPM, Paw, FiO2, PEEP, and Ppeak. It also features alarms for high/low pressure, high/low MV, and power loss.

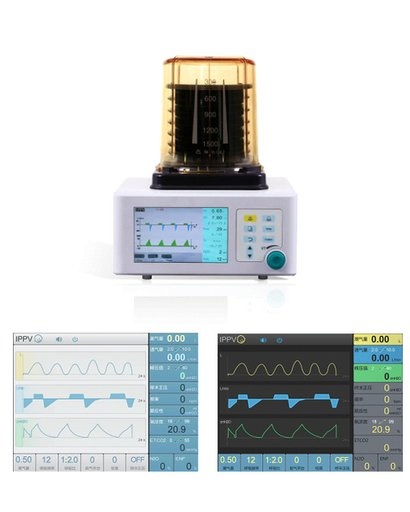

What waveforms are displayed on the monitor?
The ventilator provides real-time monitoring of Pressure-time and Flow-time waveforms for precise respiratory management.
