CE Anesthesia Ventilator for Vet Anesthesia Machine with Factory Price Anesthesia Breathing Machine
CE Anesthesia Ventilator for Vet Anesthesia Machine with Factory Price Anesthesia Breathing Machine
CE Anesthesia Ventilator for Vet Anesthesia Machine with Factory Price Anesthesia Breathing Machine
CE Anesthesia Ventilator for Vet Anesthesia Machine with Factory Price Anesthesia Breathing Machine
CE Anesthesia Ventilator for Vet Anesthesia Machine with Factory Price Anesthesia Breathing Machine
1 / 5
CE Anesthesia Ventilator for Vet Anesthesia Machine with Factory Price Anesthesia Breathing Machine
CE Anesthesia Ventilator for Vet Anesthesia Machine with Factory Price Anesthesia Breathing Machine
CE Anesthesia Ventilator for Vet Anesthesia Machine with Factory Price Anesthesia Breathing Machine
CE Anesthesia Ventilator for Vet Anesthesia Machine with Factory Price Anesthesia Breathing Machine
CE Anesthesia Ventilator for Vet Anesthesia Machine with Factory Price Anesthesia Breathing Machine

CE Anesthesia Ventilator for Vet Anesthesia Machine with Factory Price Anesthesia Breathing Machine

Customization: Available
Type: Veterinary Anesthesia Breathing Machine
Syringe: Veterinary Anesthesia Breathing Machine
Send Inquiry

Product Description

Basic Information

Model NO.
LTV-V60
Product Type
Veterinary Anesthesia Breathing Machine
Breathing Pattern
Manual Mode
Control Method
Veterinary Anesthesia Breathing Machine
Application
Veterinary Anesthesia Ventilator
Transport Package
Standard Export Pack
Specification
Standard
Production Capacity
1000 units/Month

Product Description

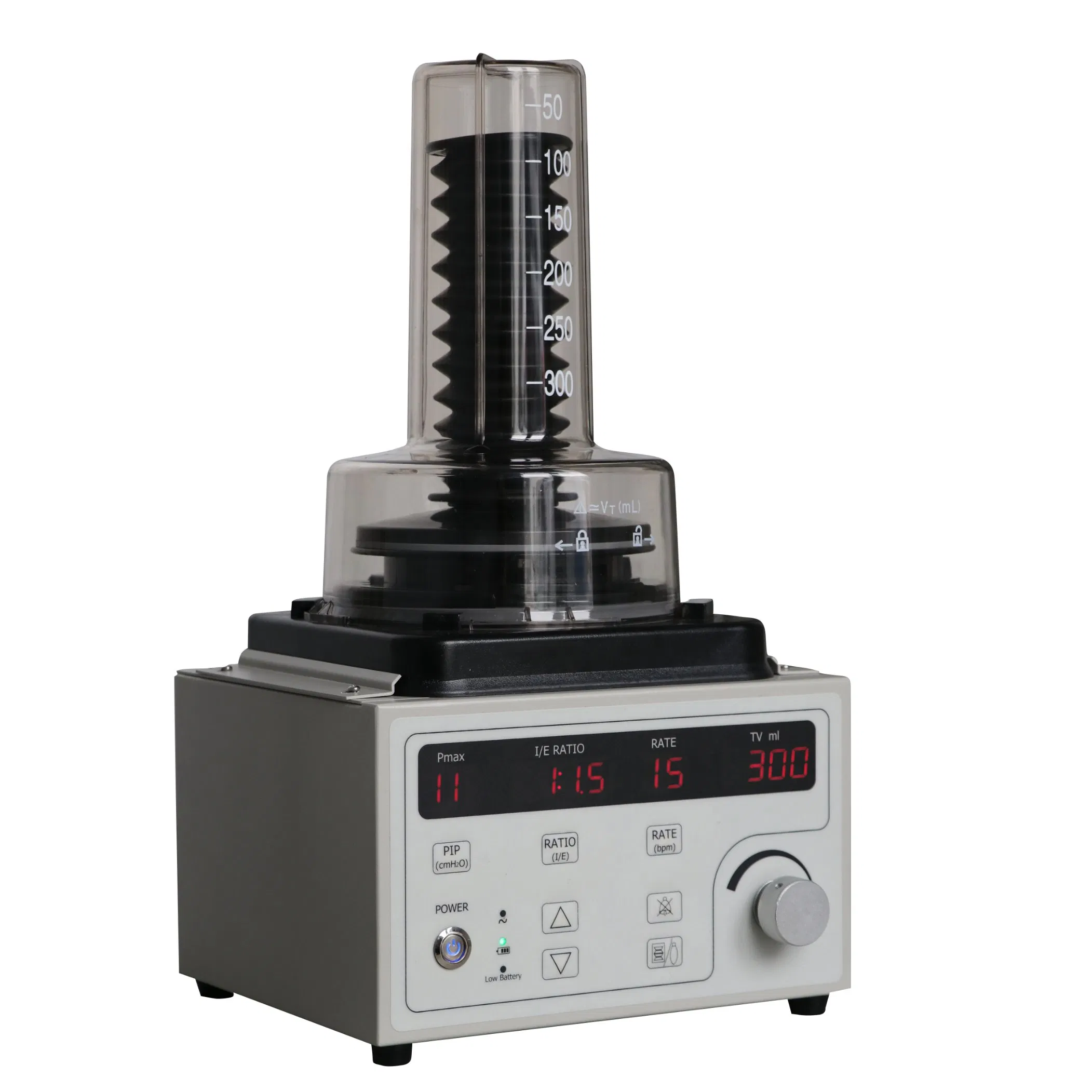

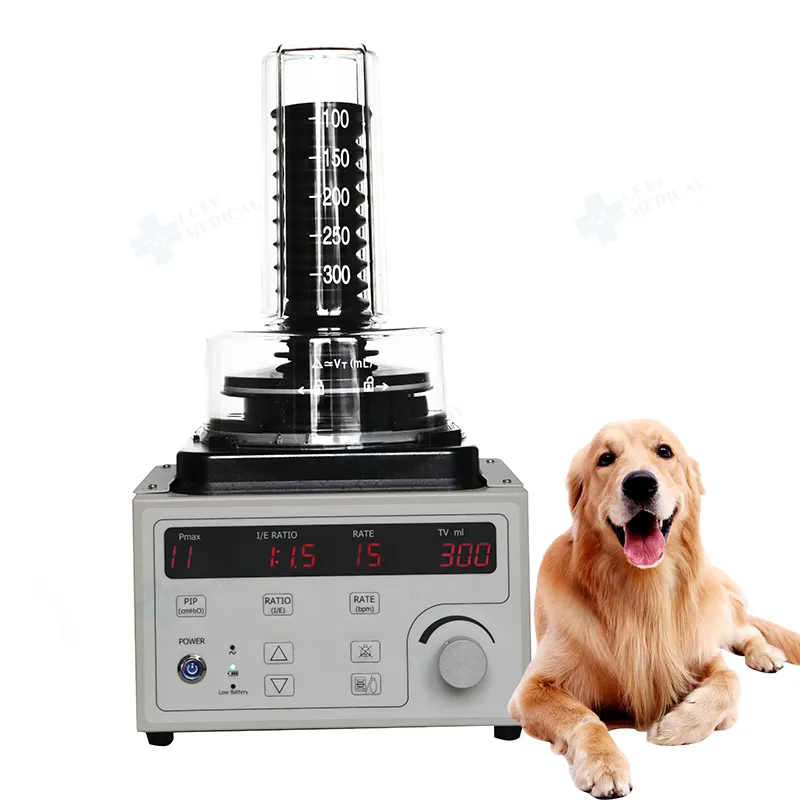

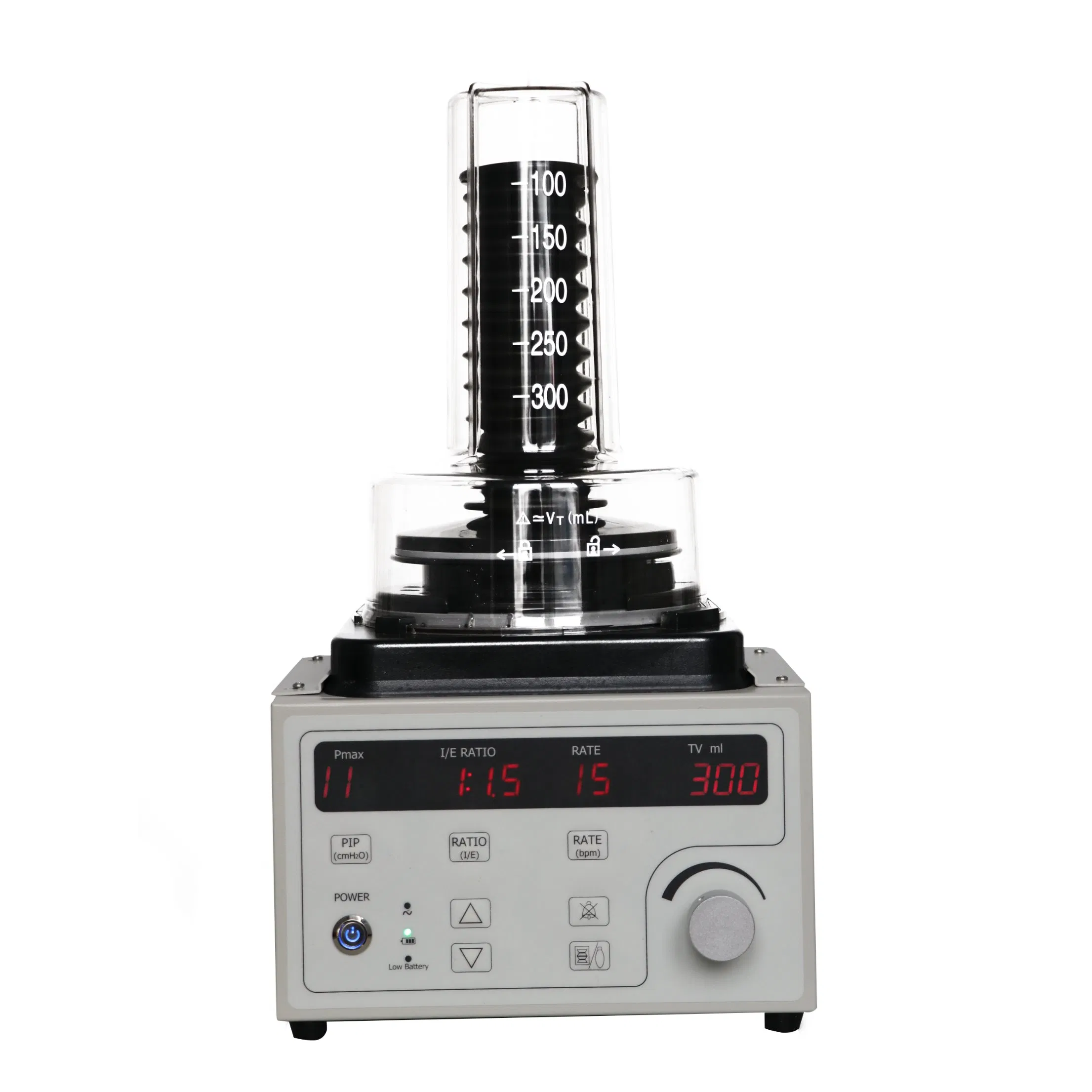

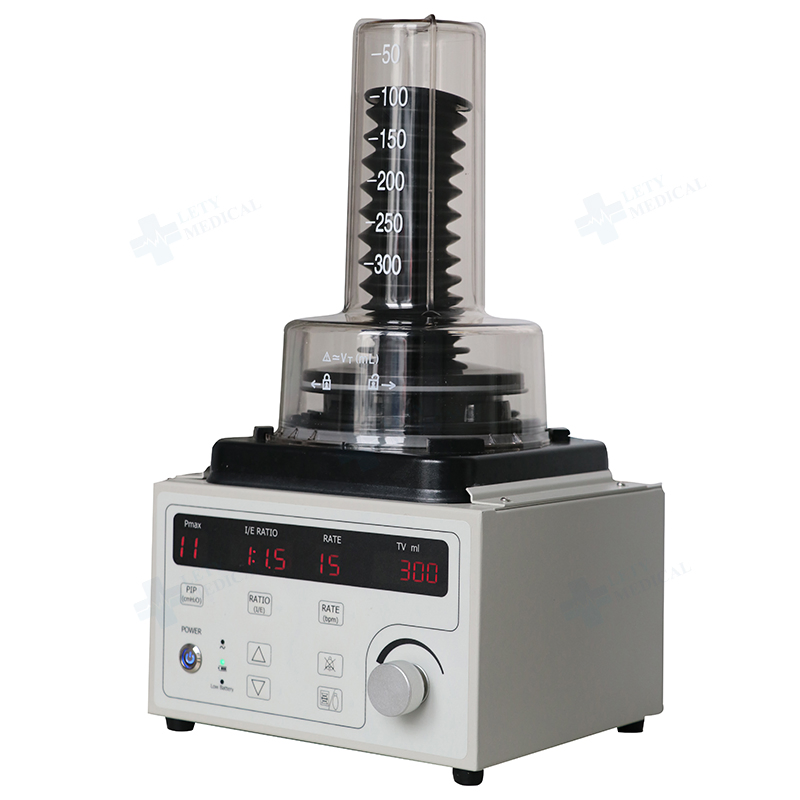

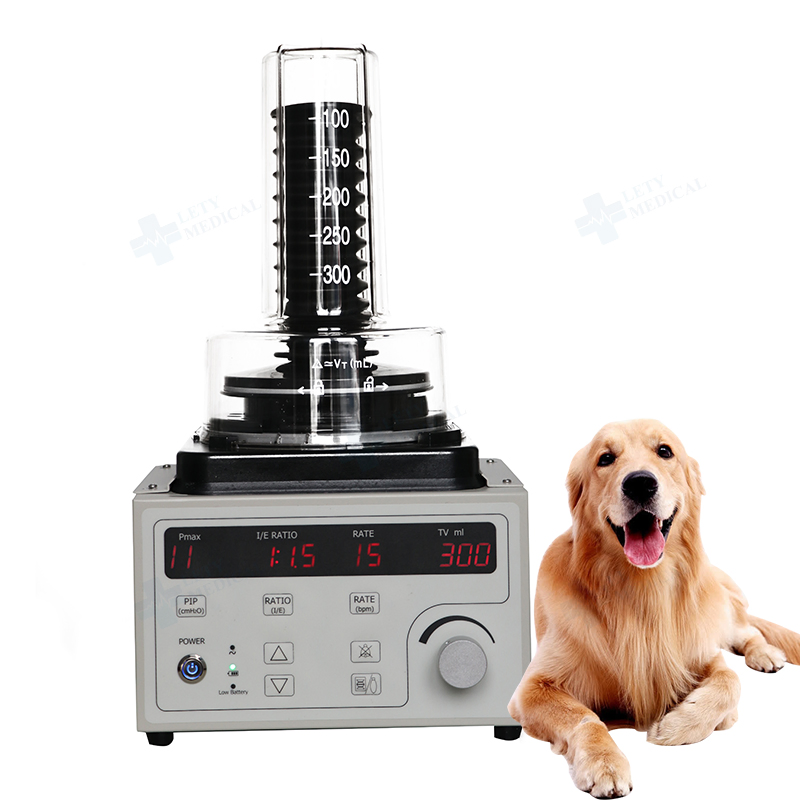

CE Anesthesia Ventilator for Vet Anesthesia Machine Model: LTV-V60 Anesthesia Ventilator

Key Features

  • Suitable for a wide range of anesthesia for adult and pediatric patients.
  • Built-in backup battery providing emergency power supply for up to 2 hours.
  • PIP setting range of 5-60cmH2O, suitable for various surgical operations.
  • IPPV breathing mode achieves automatic breathing for patient comfort.
  • Equipped with both adult and child bellows.
  • High-precision gas source pipeline ensures zero leakage.
  • LED digital display for monitoring essential parameters.
  • Key-press interface for easy and simple operation.
  • Compatible with different brands of anesthesia machines.

Technical Specifications

Ventilation Mode: IPPV, Manual
Drive Mode: Pneumatically driven and electrically controlled
Display: LED digital display
Bellows: Adult (300-2000ML), Pediatric (0-300ML)
Monitoring: Tidal volume, breathing rate, I:E ratio, Peak airway pressure
Tidal Volume (TV): 50-1600ml
Breathing Rate: 4~60bpm
I:E Ratio: 1:1~1:4 adjustable
Upper Airway Pressure: 2~6kpa
Lower Airway Pressure: 0.6~2kpa
Alarms: Battery low, Power failure, Airway pressure high/low, Alarm Silence
Other Functions: Manual/Auto Switch, PIP sets (5-60cmH2O)

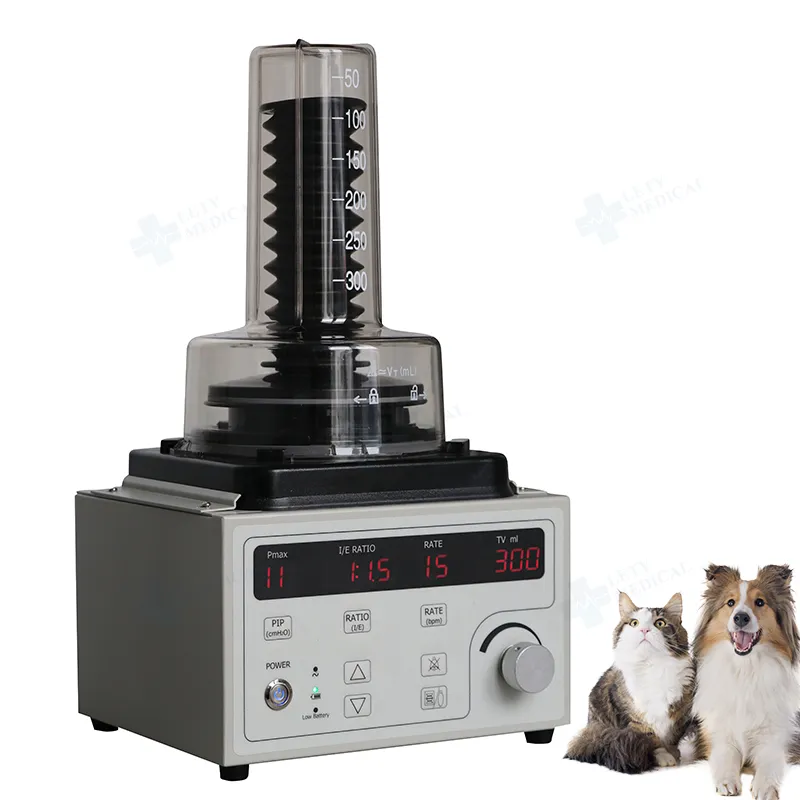

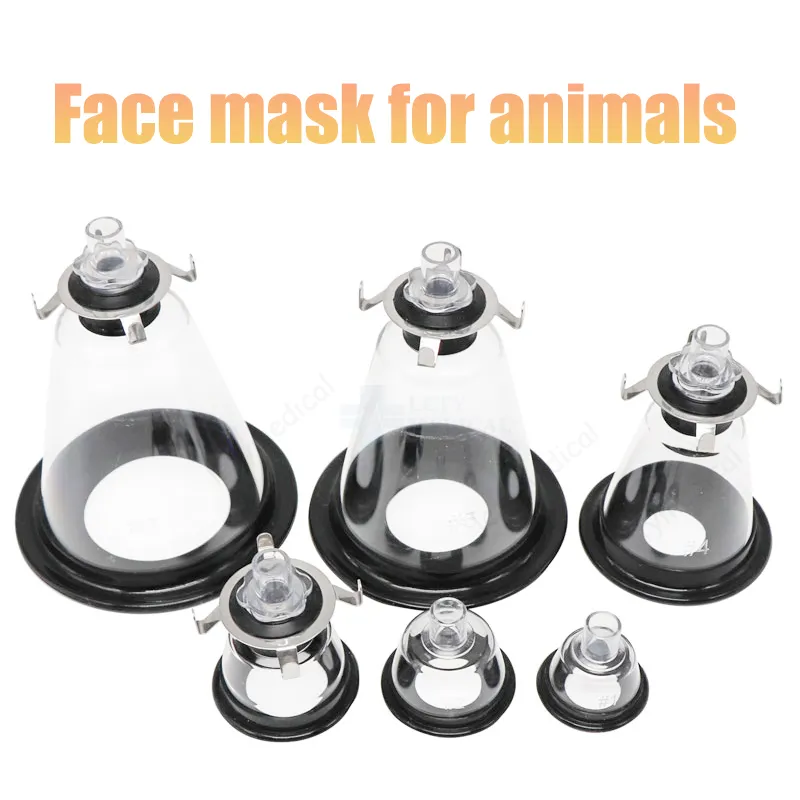

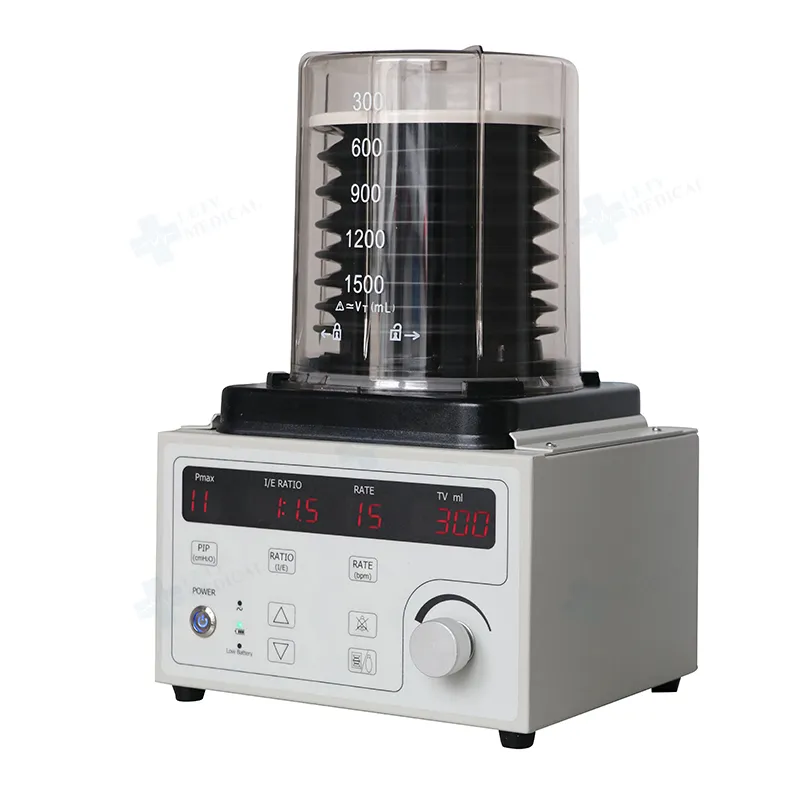

Machine Detail 1 Machine Detail 2 Machine Detail 3 Machine Detail 4
Technical Dimensions

Frequently Asked Questions

Q1: What ventilation modes does the LTV-V60 support?
A: The LTV-V60 supports both IPPV (Intermittent Positive Pressure Ventilation) and Manual ventilation modes.
Q2: Can this machine be used for both small and large animals?
A: Yes, it comes with interchangeable bellows: a pediatric version (0-300ML) and an adult version (300-2000ML) to accommodate different sizes.
Q3: How long does the battery last in case of a power failure?
A: The built-in backup battery provides up to 2 hours of emergency power supply.
Q4: Is the LTV-V60 compatible with other anesthesia machines?
A: Yes, it is designed to be compatible with various different brands of anesthesia machines.
Q5: What safety monitoring features are included?
A: It monitors tidal volume, breathing rate, I:E ratio, and peak airway pressure. It also includes alarms for low battery, power failure, and high/low airway pressure.
Q6: Is the operation interface user-friendly?
A: Yes, it features an LED digital display and a simple key-press interface for easy parameter adjustment.
