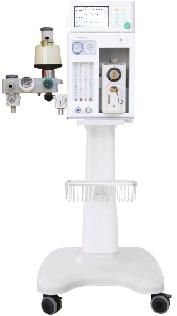

Cwm-101A Portable Anesthesia Machine and Cwh-1010 Anesthesia Ventilator - CE Approved

1 / 5

Cwm-101A Portable Anesthesia Machine and Cwh-1010 Anesthesia Ventilator - CE Approved

Customization:	Available
Type:	Anaesthesia Machine
Kind:	Anesthesia Machine

Send Inquiry

Product Description

Basic Info.

Model NO.

CWM-101A+CWH-1010

Certification

ISO13485

Group

Adult Children

LCD Display

Without LCD Display

Drive

Gas Driven

Gas Source

Oxygen, N2o

Weight

10kg

Screen

7 Inch TFT Display

Transport Package

Standard Export Packing

Specification

50*46*32

Origin

China

HS Code

90189070

Production Capacity

5000PCS/Year

Product Description

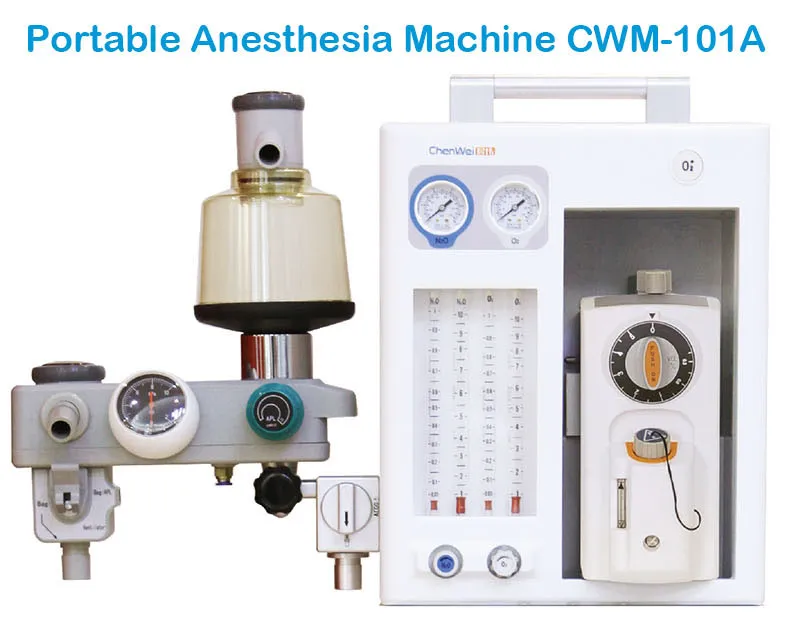

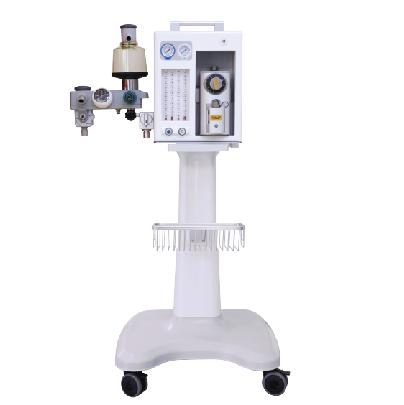

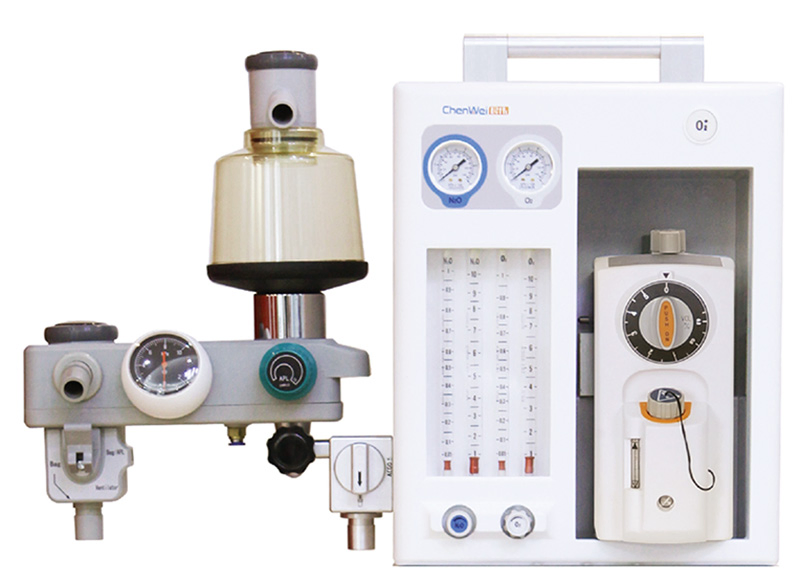

CWM-101A Portable Anesthesia Machine

Extraordinary Performance Points

Portable design, easy to operate, saving operating room space.

Molded production with light weight and anti-rust advantages.

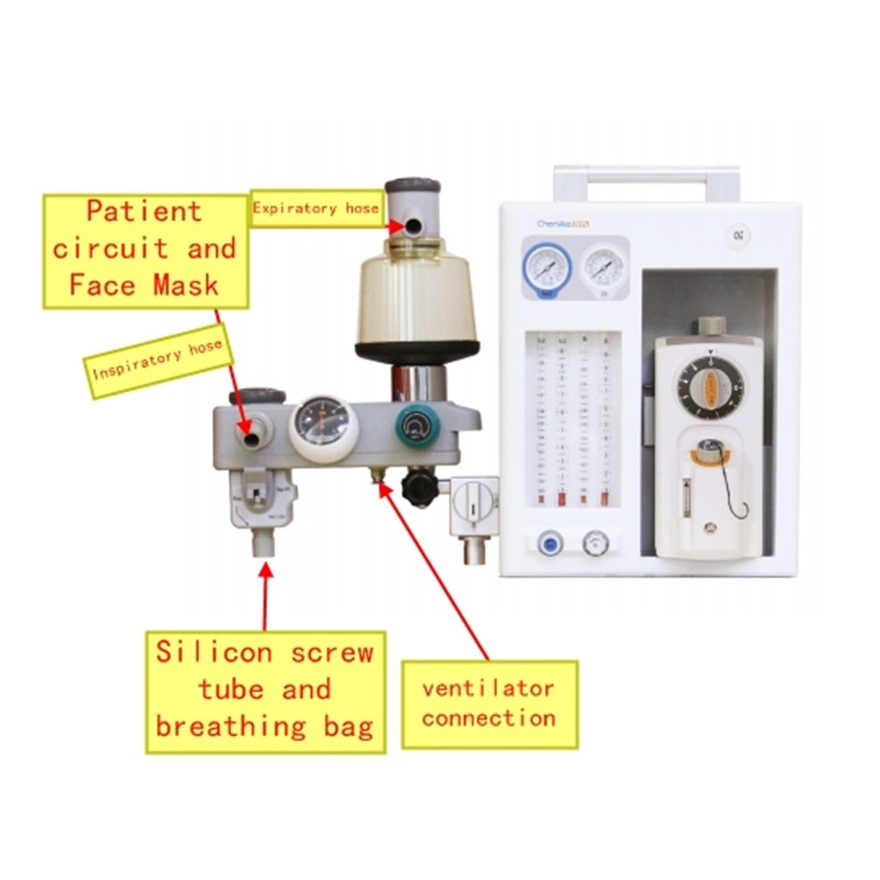

Integrated breathing circuit design for simple operation and clear equipment status.

Equipped with a 0.8L CO2 absorber.

APL valve design allows pressure limit settings under manual control.

4-tube O2 and N2O flow meter, supporting low flow anesthesia.

High-precision vaporizer with flow, pressure, and temperature compensation.

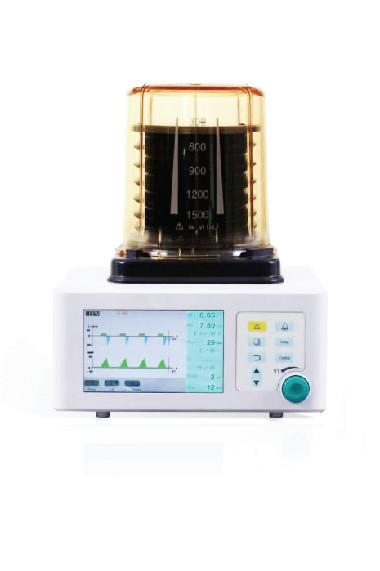

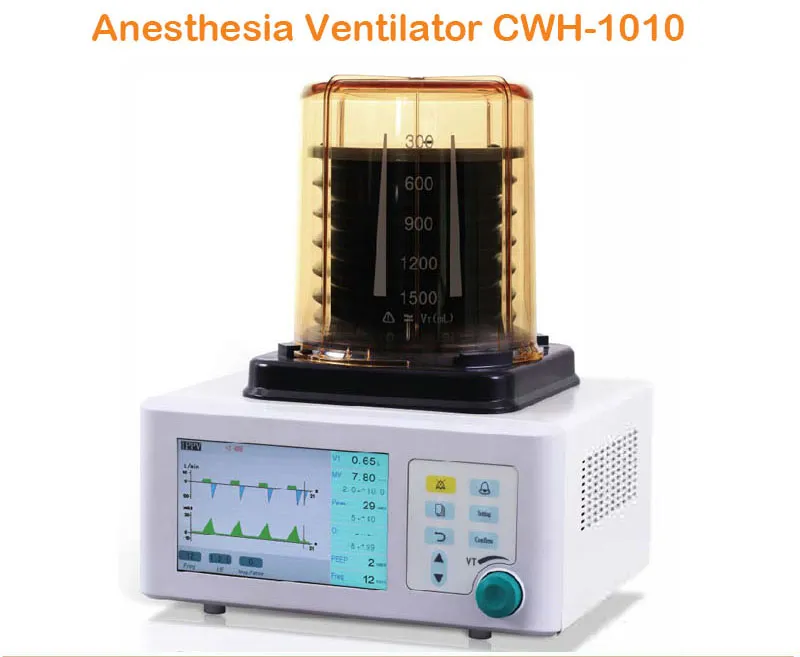

CWH-1010 Anesthesia Ventilator

Key Features

Provides A/C ventilation during operation or recovery.

Applied for adult and pediatric patients.

Microprocessor controlled, integrated anesthetic ventilation system.

7-inch TFT display screen for clear monitoring.

Technical Specifications

Physical Specifications
Dimensions	504632
Weight	22kg
Casters	Front wheels with lock
Pipeline Supply
Gas configuration	O2, N2O
Pipeline input range	280-600Kpa
System Standards
Hypoxic guard system	N2O cut-off valve, O2 concentration >25%
APL valve	<6kPa
O2 Flush	25-75L/min
Vaporizer	1 unit (Isoflurane/Enflurane/Sevoflurane/Halothane)

Ventilator Performance
Patient type	Pediatric, Adult
Ventilation mode	IPPV, SIMV, MANUAL (BAG)
Tidal Volume	40-1500mL
I:E ratio	4:1 - 1:8
Frequency	1 - 100bpm
Monitoring	VT, MV, BPM, Paw, FiO2, PEEP, I:E ratio, Ppeak
Waveform	Pressure-time, Flow-time
Power	AC 220V, built-in battery > 2hrs

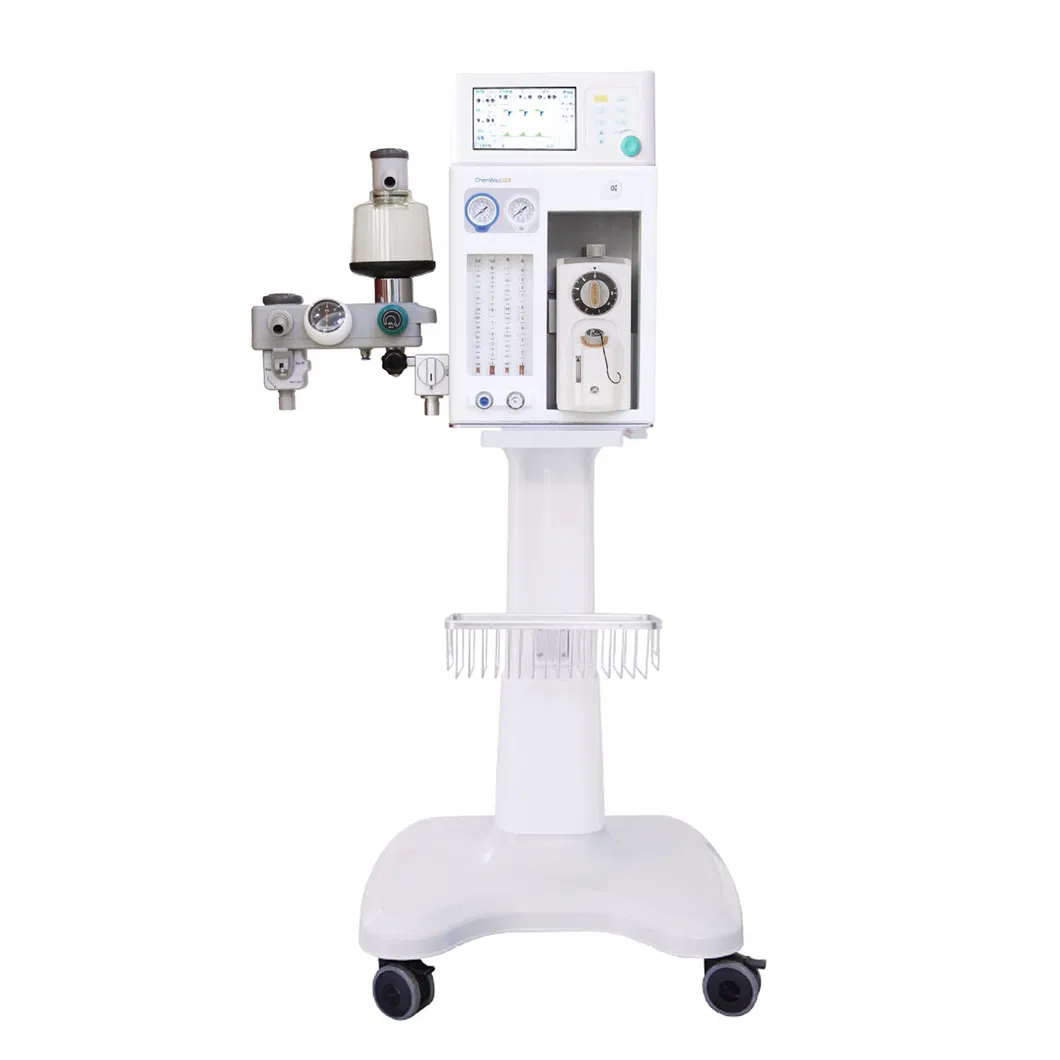

Product Gallery & Quality

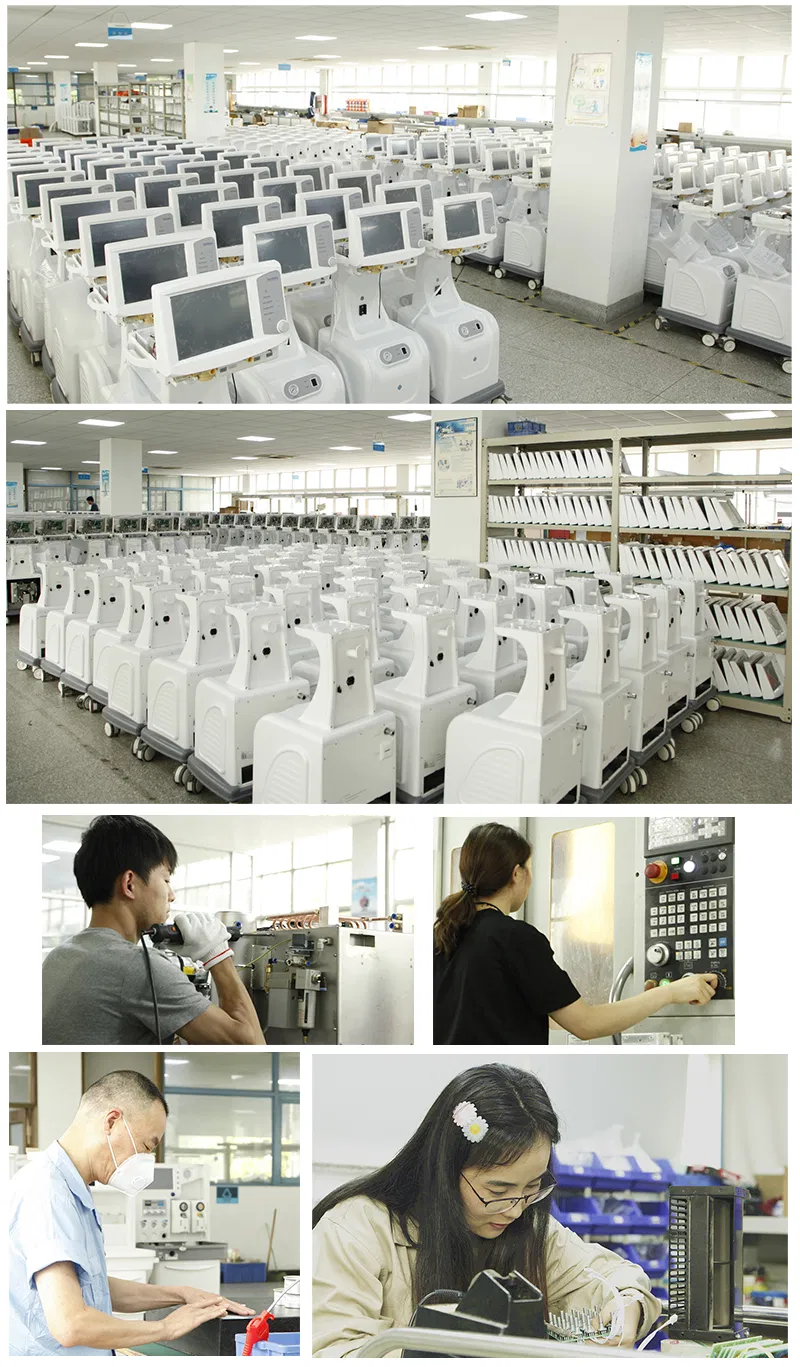

Manufacturing Excellence

The manufacturer is a leading specialist in Ventilator & Anesthesia Systems for operating rooms and ICUs with over 30 years of experience.

Over 10,000 square meters industrial park.
Over 50,000 units installed in more than 120 countries globally.
Significant contribution to international medical aid projects.

Frequently Asked Questions

Q1: Can this anesthesia machine be used for both adults and children?

Yes, the system is designed for both adult and pediatric patients, with an adjustable tidal volume range of 40-1500mL to accommodate different patient needs.

Q2: What gas sources are compatible with the CWM-101A?

The machine is compatible with Oxygen (O2) and Nitrous Oxide (N2O) gas sources, featuring a 4-tube flow meter for precise control.

Q3: Does the ventilator include a backup power supply?

Yes, the CWH-1010 ventilator features a built-in rechargeable battery that provides more than 2 hours of operation in case of AC power loss.

Q4: What safety features are integrated into the system?

The system includes a hypoxic guard system (N2O cut-off if O2 is low), an APL safety valve, and multiple alarms for high/low pressure, volume, and power failure.

Q5: Is the design suitable for small operating rooms?

Absolutely. The CWM-101A features a portable and compact design specifically created to save space in operating rooms without compromising performance.

Q6: What parameters are monitored on the 7-inch TFT screen?

The screen displays vital ventilation parameters including Tidal Volume (VT), Minute Volume (MV), Breaths Per Minute (BPM), Airway Pressure (Paw), FiO2, PEEP, and real-time waveforms.
