Energy-Efficient Swf Mixed Flow Ventilator for Eco-Friendly Buildings

1 / 5

Energy-Efficient Swf Mixed Flow Ventilator for Eco-Friendly Buildings

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:SWF Series

Type:Axial-Centrifugal Mixed Fan

Mounting:Wall / Duct / Vertical

Certification:RoHS, ISO, CE, CCC

Power:18 - 45000 W

Air Volume:800 - 80000 CMH

Voltage:220V/380V/400V/440V

Noise Level:< 75 dB(a)

Blade Design:Twisted Cone-Shaped

Warranty:3 Years

Product Overview

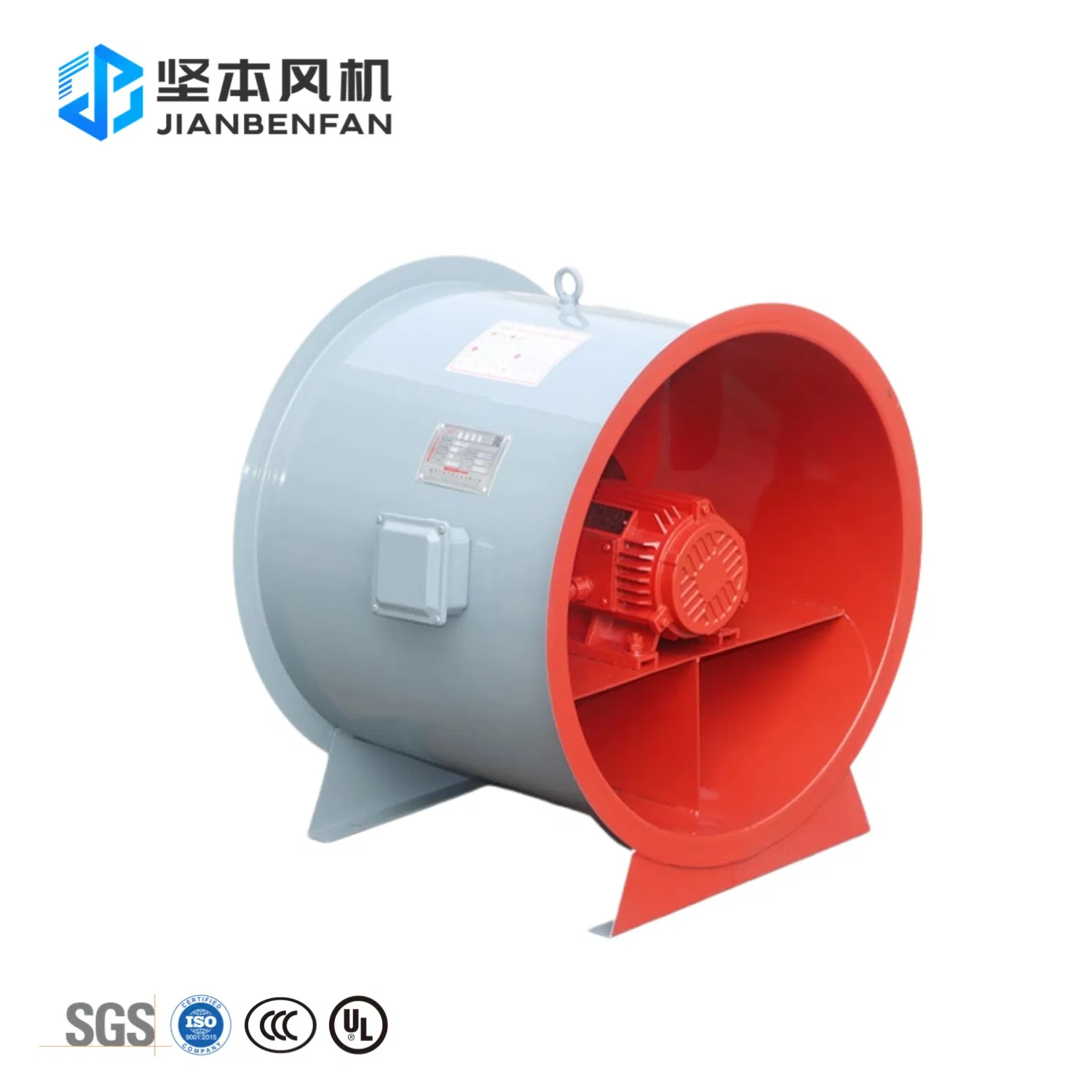

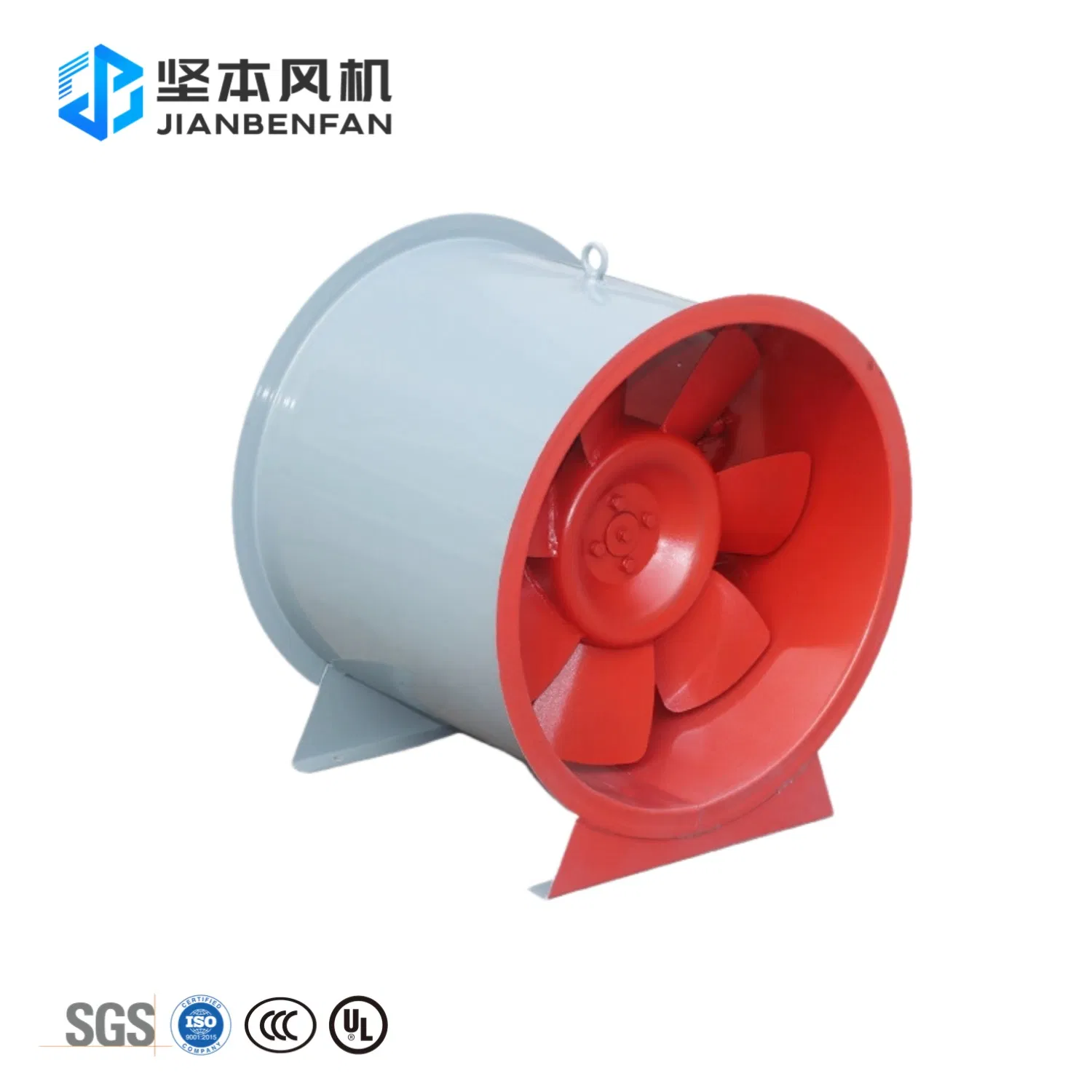

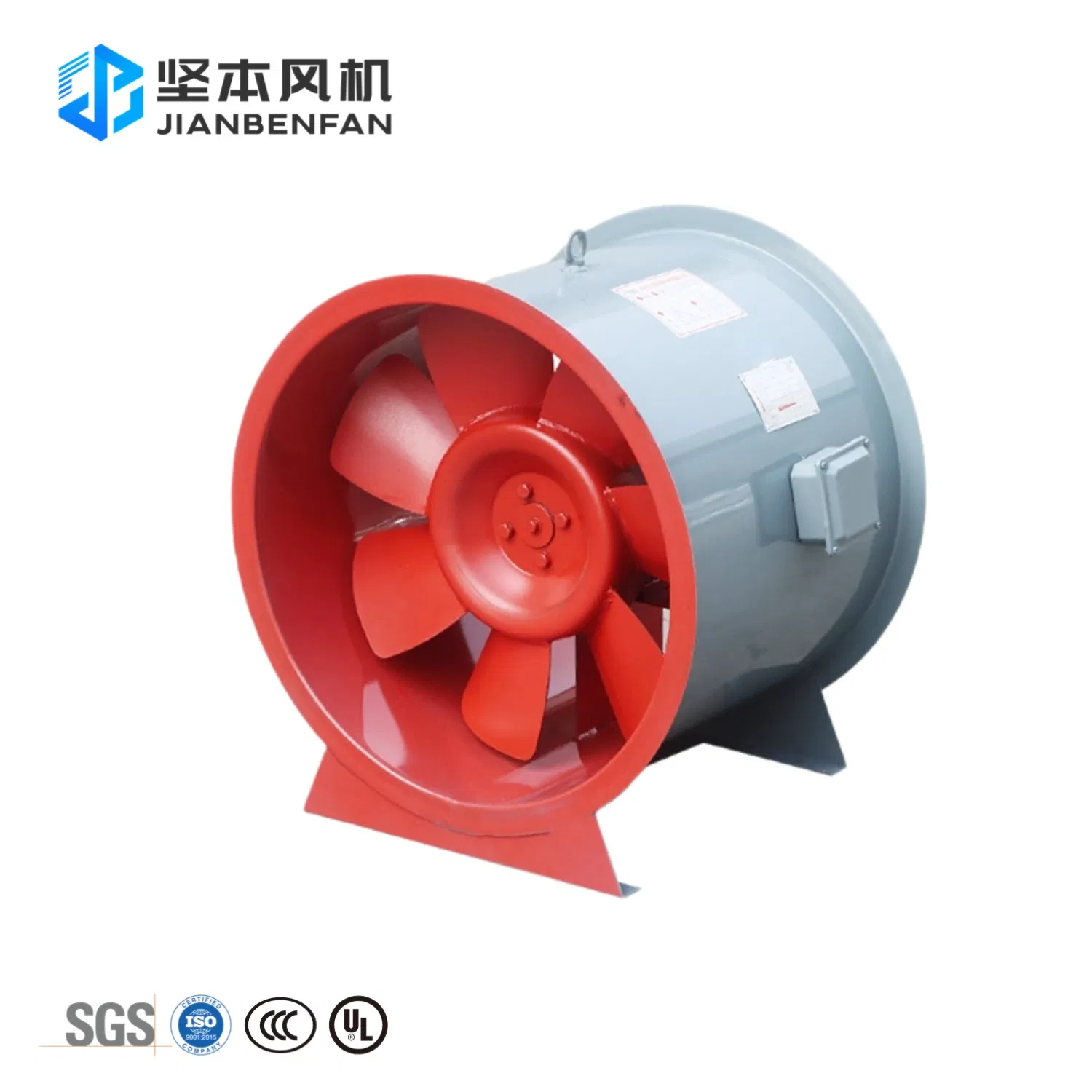

SWF Series: High-Efficiency Mixed-Flow Ventilation Fan

The SWF fan features a unique conical hub and twisted blades. As air enters, it is deflected diagonally, increasing the pressure through both centrifugal force and axial acceleration. This "hybrid" design allows the fan to overcome high resistance in long ducting systems while maintaining a much smaller footprint than traditional centrifugal units.

Superior Pressure Performance: Engineered to provide higher static pressure than standard axial fans, ideal for complex ductwork and filters.
Aerodynamic Impeller: Blades designed with advanced fluid dynamics (CFD) for smooth airflow and high mechanical efficiency.
Ultra-Low Noise: Optimized internal path and lower rotational turbulence ensure significantly quieter operation.
Compact Inline Design: Linear structure allows direct pipeline installation, saving mechanical room space.
Robust Construction: High-strength galvanized or cold-rolled steel with corrosion-resistant powder coating.

Technical Parameters

Model (NO.)	Power (kW-P)	Speed (r/min)	Volume (m³/h)	Total pressure (Pa)	Noise (dB)
2.5	0.75-2 / 0.18-4	2900 / 1450	2664-1532 / 1362-743	358-634 / 96-166	72 / 64
3	2.2-2 / 0.25-4	2900 / 1450	4652-3212 / 2312-1606	512-883 / 121-236	73 / 66
4	4-2 / 0.37-4	2900 / 1450	7228-5242 / 4512-2765	654-1248 / 128-285	78 / 71
6	7.5-2 / 1.5-4	2900 / 1450	19230-15210 / 11625-7560	836-1365 / 165-382	85 / 79
8	15-4 / 4-6	1450 / 960	37350-28564 / 25467-16269	809-1305 / 193-516	90 / 82
10	18.5-4 / 7.5-6	1450 / 960	51821-40528 / 44054-29902	792-1378 / 288-496	93 / 86

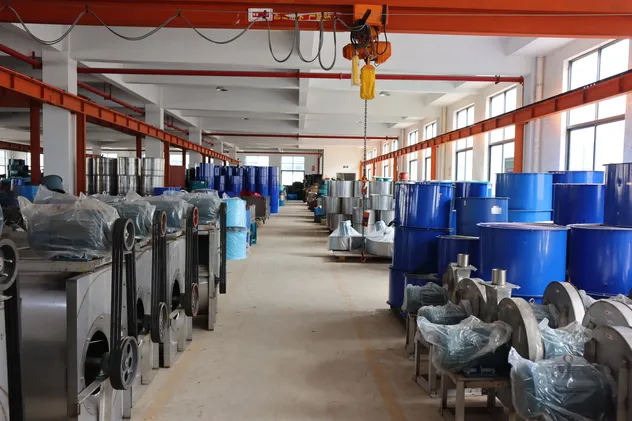

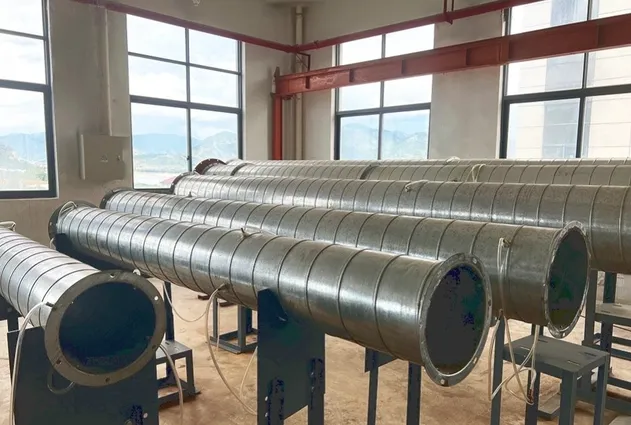

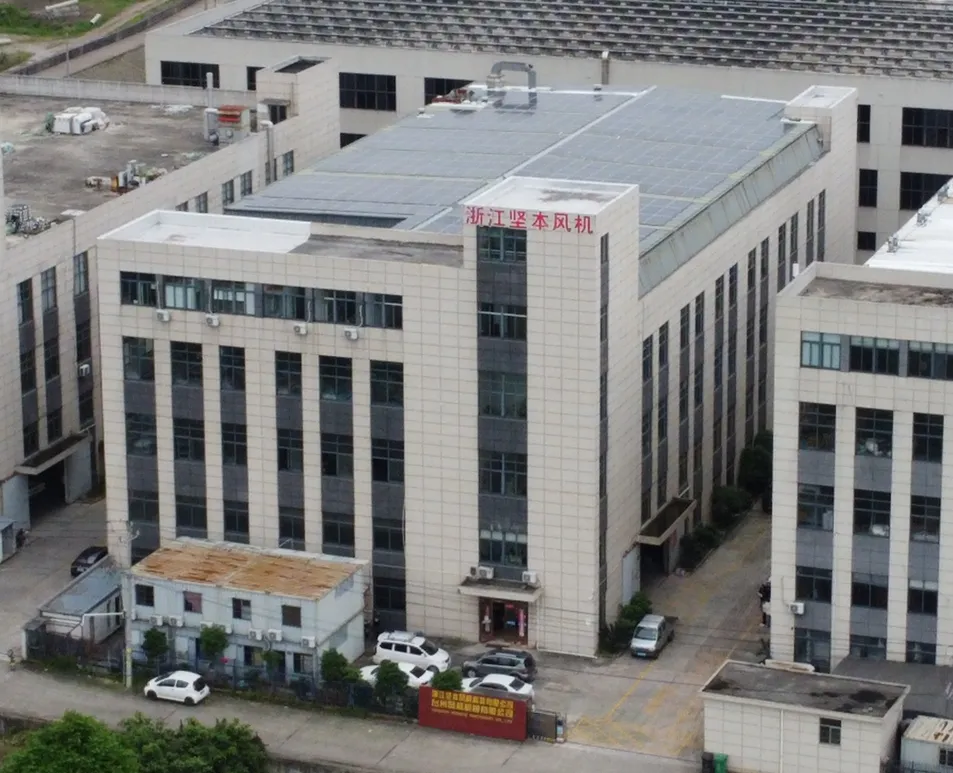

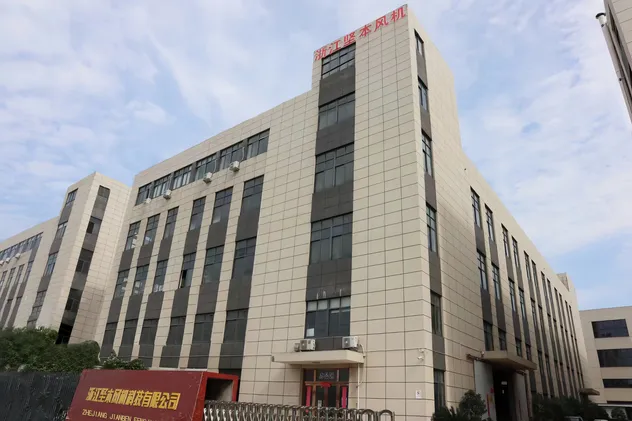

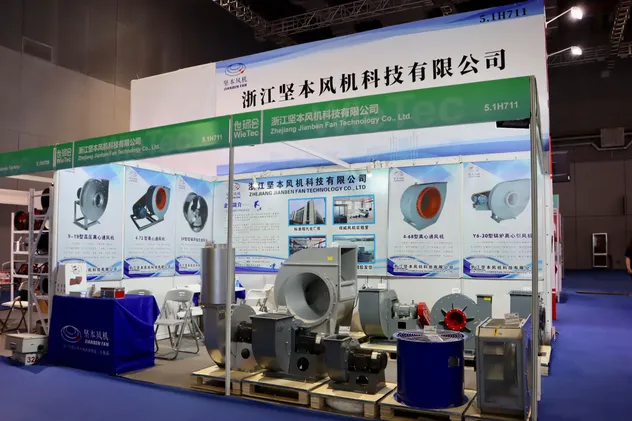

Factory & Production Display

Expertise in Fan Engineering: With over 20 years of industry experience, our facility focuses on the research, development, and manufacturing of high-performance industrial fans.

Advanced Testing: We maintain a specialized R&D center and testing laboratory to ensure all units meet ISO9001 quality standards.

Certifications & Services

◈ OEM & ODM Capabilities

Our dedicated R&D team provides custom designs tailored to specific industrial requirements, ensuring frequently updated technology and flexible manufacturing.

◈ Professional Support

Using advanced selection software, our engineers ensure accurate fan selection to avoid resource waste and optimize airflow for your working conditions.

Packaging & Logistics

Frequently Asked Questions

Q: Are you a professional fan manufacturer?

A: Yes, we are a dedicated manufacturer specializing in high-performance fan production for over 20 years.

Q: Do you maintain stock for quick delivery?

A: We maintain a sufficient inventory for all standard product models. For non-standard or customized orders, we work diligently to meet your required delivery timeline.

Q: How do you guarantee the quality of the fans?

A: Our products are built with solid materials and exquisite designs. We prioritize providing value that exceeds the commodity price, ensuring durability and efficiency in every unit.

Q: What information is required to receive an accurate quote?

A: Please provide the fan type, performance parameters (air volume, pressure), required size, order quantity, and any specific packaging or transportation requirements.

Q: Can you help with custom fan selection?

A: Absolutely. Our engineering team utilizes professional software to select the most appropriate fan solutions based on your actual working conditions and technical needs.

Q: What mounting options are available for the SWF series?

A: The SWF series supports versatile installation types, including horizontal, vertical, or wall-mounted configurations, making it adaptable to various facility layouts.
