Factory Price Medical Breathing Transport Device Emergency Breathing Ventilator

1 / 5

Factory Price Medical Breathing Transport Device Emergency Breathing Ventilator

Customization:	Available
Transport Package:	in Carton
Trademark:	Healicom

Send Inquiry

Product Description

Basic Specifications

Model No. HV-T50

Origin China

HS Code 9018909090

Product Description

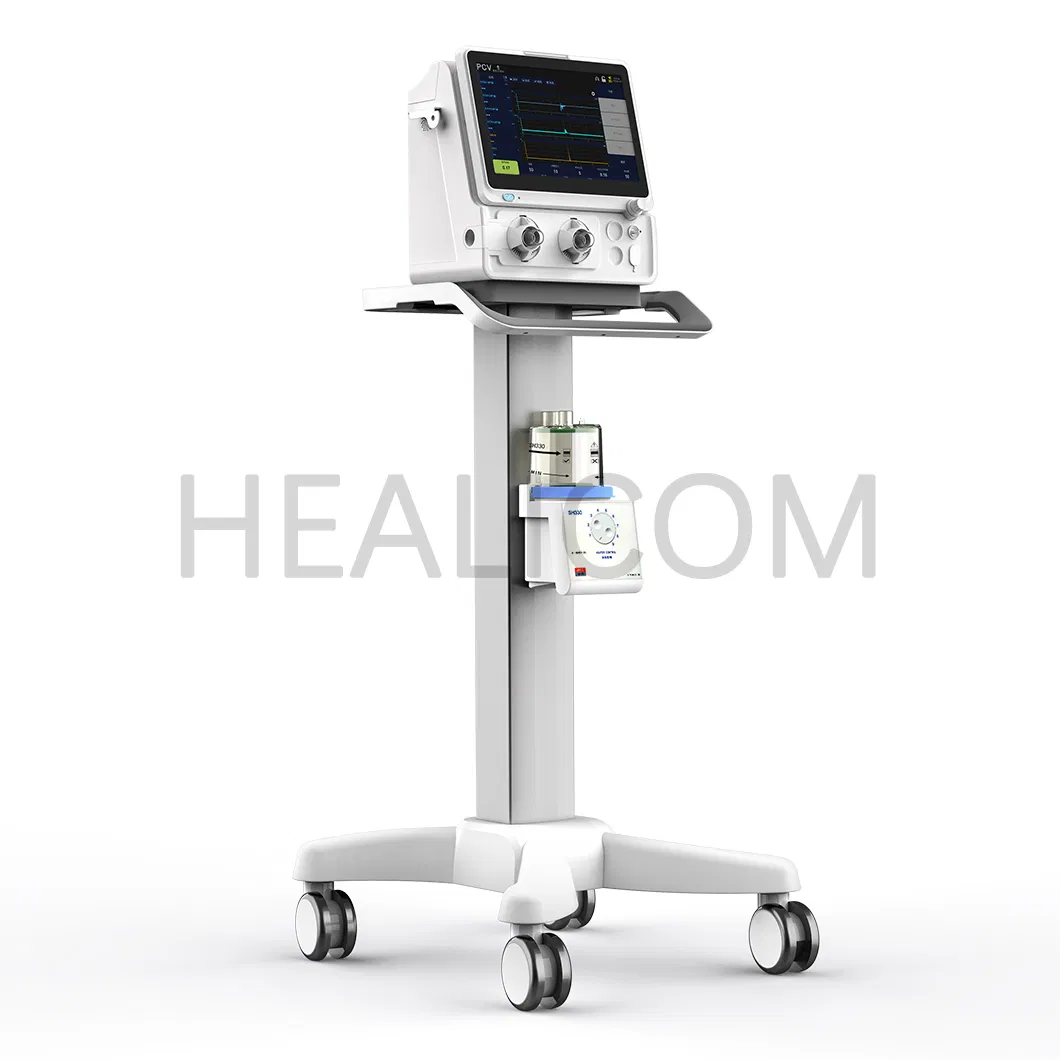

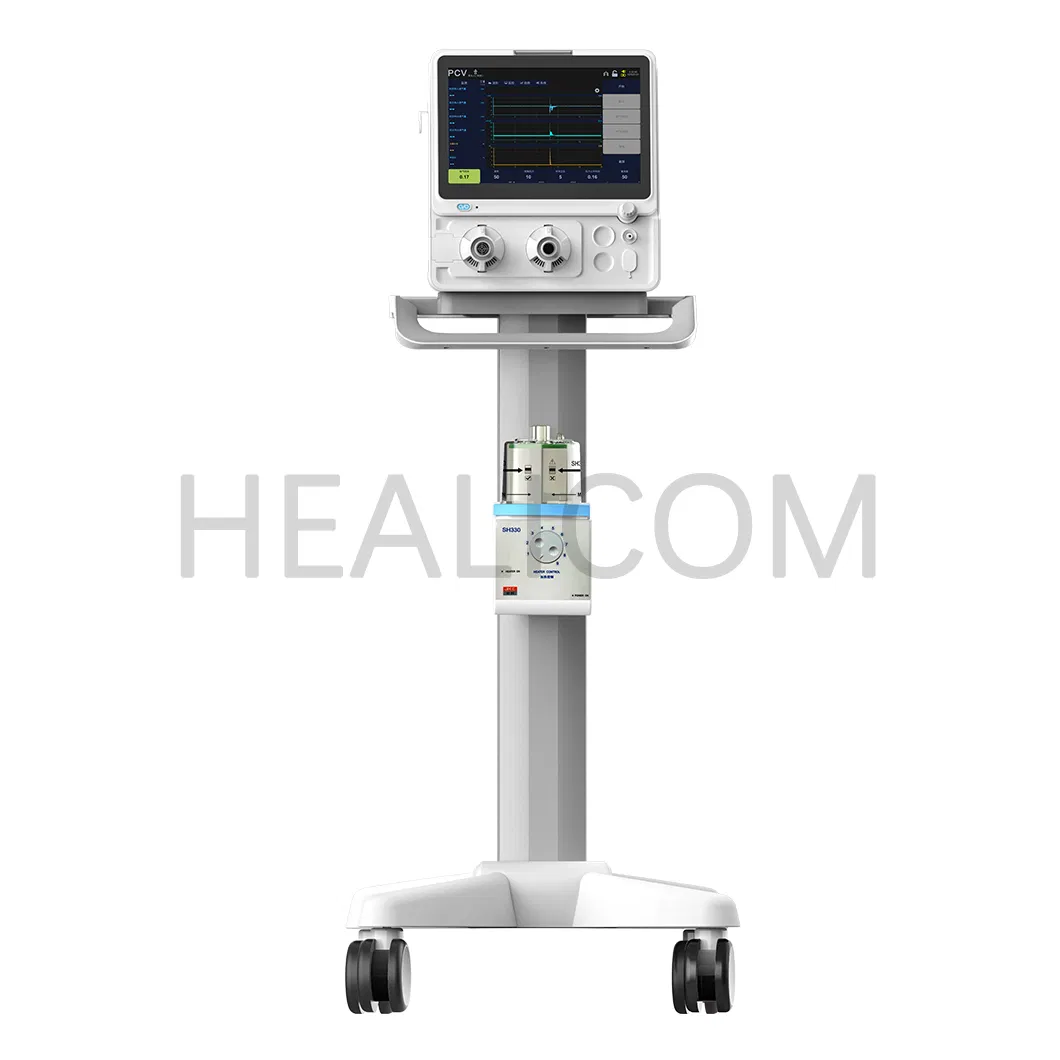

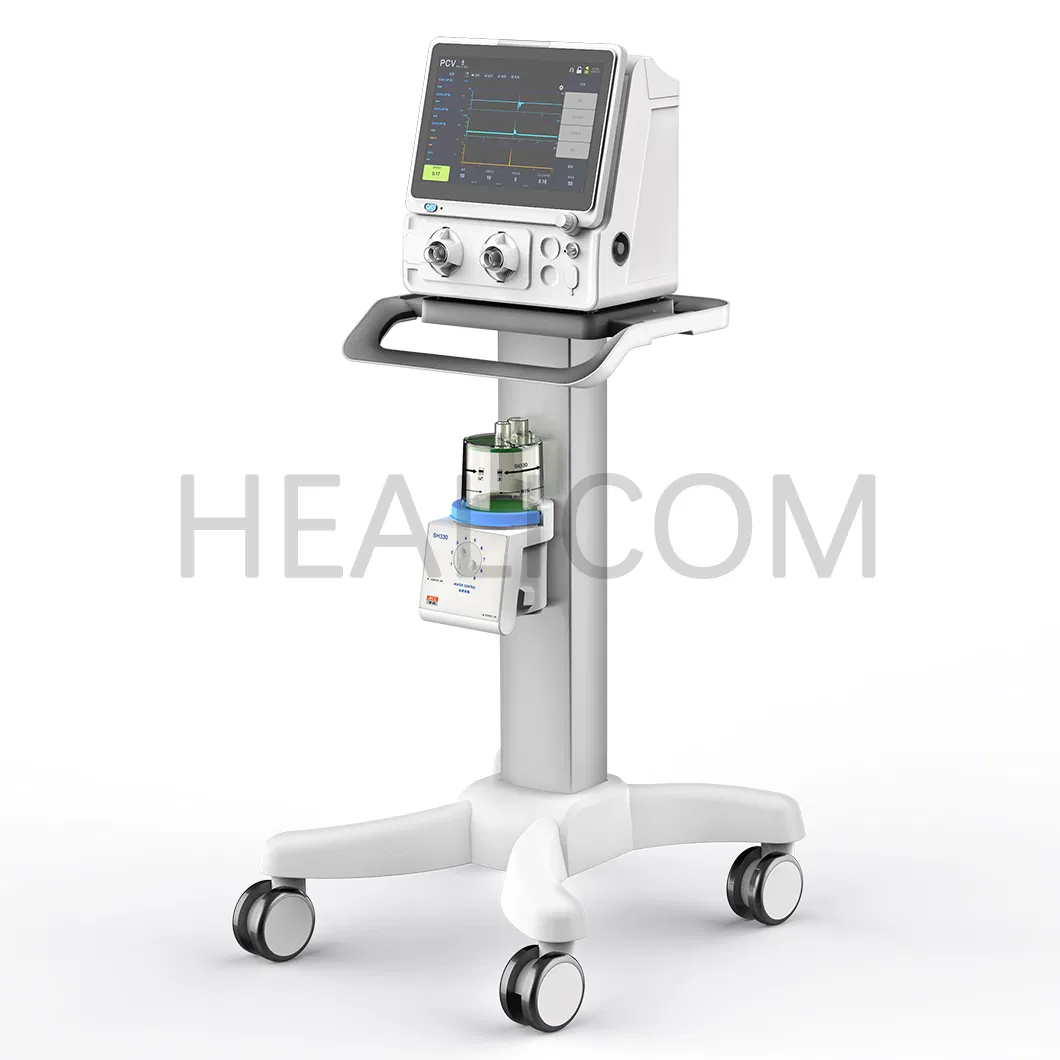

Hospital Equipment Medical Surgical HV-T50 ICU Ventilator

Key Features

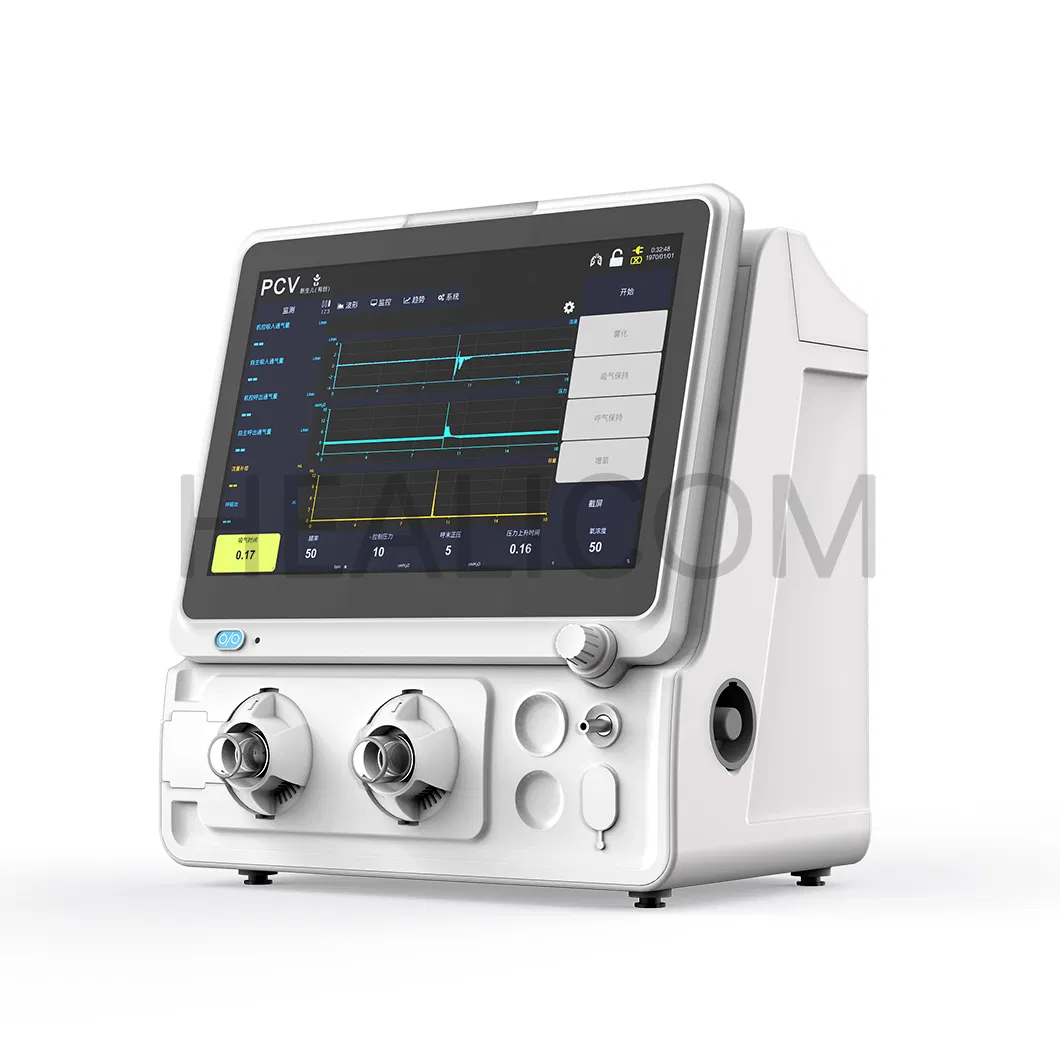

12.1 inch touch screen with desirable color schemes for clear visualization.
The simplest interface boots a precise control and convenient operation.
High performance turbine with precise control technology provides accurate flow output.
Multi-mode ventilation function (VCV, SIMV, SIMV/PSV, PSV, PCV, APNEA, CPAP, BIPAP, Manual, SIGH).
Applied with both Invasive ventilation and Non-invasive ventilation.
Integrated self-testing and calibration function for maximum safety.
Comprehensive monitoring and alarm functions with flashing indicators (Priority and secondary alarms).
Supports Assistant Nebulization treatment and High flow oxygen Therapy Auxiliary suction (Optional).

Technical Specifications

Physical Specifications
Dimensions	455514CM
Weight	10.5Kg (Main unit)
Screen	12.1 inch touch screen, Colour LCD
Display Graphics	Waveforms of P-T, F-T, V-T; Loops: P-V, F-V, F-P
Ventilator Parameters
Tidal Volume Range	20-2000ml
Pressure Range	5-80 cmH2O
Respiration Rate Range	1-100bpm (1-40bpm under SIMV)
Oxygen Concentration	21%-100%
PEEP Range	0-40cmH2O (Electronic control)
Battery & Power
Run-time	Typical 180 mins+
Pipeline Input Range	280-600KPa (O2)

Workshop & Gallery

Frequently Asked Questions

Q1: What are the main ventilation modes supported by the HV-T50?

The HV-T50 supports a wide range of modes including VCV, SIMV, SIMV/PSV, PSV, PCV, APNEA, CPAP, BIPAP, Manual, and SIGH to meet diverse ICU requirements.

Q2: Can this ventilator be used for non-invasive treatment?

Yes, the device is designed for both Invasive and Non-invasive ventilation applications.

Q3: How long can the device operate on battery power?

The typical battery run-time for the HV-T50 is over 180 minutes, ensuring safety during patient transport or power failures.

Q4: What is the tidal volume range of this ICU ventilator?

The tidal volume range is highly adjustable from 20ml to 2000ml, making it suitable for a wide range of patient needs.

Q5: Does the HV-T50 feature a touch screen?

Yes, it features a 12.1-inch color LCD touch screen that provides an intuitive interface for precise control and convenient operation.

Q6: Are there built-in alarm systems for safety?

Absolutely. It includes comprehensive monitoring and alarm functions for tidal volume, MV, Paw, FiO2 limitations, and power failure with flashing indicators.
