Transport Portable Emergency Hospital Surgical ICU Noninvasive Invasive Ventilator

Customization:	Available
Type:	Portable Ventilator
Temperature:	-18~50℃

Send Inquiry

Product Description

Ambulance Portable Ventilator

Professional Emergency & Transport Ventilation Solution

Main Purpose

Emergency medical situations.
Safe patient transport.
Suitable for patients weighing more than 5 kg.

Main Features

Practical function and convenient operation for rapid response.
High-quality components ensuring extreme reliability.
Complete alarm functions for patient safety.
Instantaneous automatic overpressure relief.

Technical Specifications

Model NO.	BM-V101
Tidal Volume	0-1500ml
Respiratory Control Mode	CMV
Respiratory Rate	5bpm-40bpm
Ventilation Flow Rate	0->20L/Min
I/E Ratio	1:2
FiO2	Air Mix or No Air Mix
Battery Life	>8 hours
Gas Source	Medical Oxygen of 280~600kpa
Power Supply	AC 100-240V, 50/60Hz, 30VA
Internal Battery	Li-ion Battery 12V/2200mAh
Atmospheric Pressure	70kpa ~110kpa
Relative Humidity	≤95% (No Condensation)
Origin	China

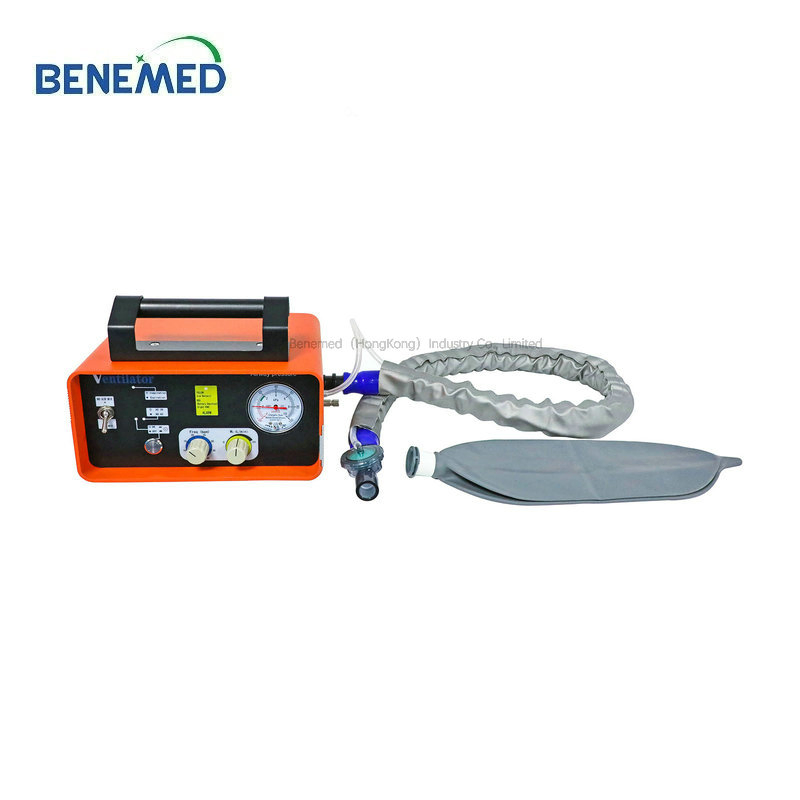

Standard Configuration

Main Unit & Mask
Active Exhalation Valve
Respiratory Pipeline
Exhalation Control Sampling Tube
Oxygen Tube & Oxygen Regulator

Safety Measures

Low Voltage: Medium priority alarm.
Battery Depletion: High priority alarm.
High Airway Pressure: Issues alarm when pressure > 5.5kPa.
Pressure Relief: Automatic protection when pressure exceeds limits.

Frequently Asked Questions

Q1: What is the primary use of the BM-V101 portable ventilator? A: It is designed specifically for emergency situations and patient transport, providing reliable ventilation support in mobile environments.

Q2: How long does the internal battery last? A: The device is equipped with a high-capacity Li-ion battery that provides more than 8 hours of continuous operation.

Q3: Is this ventilator suitable for children? A: Yes, it is suitable for any patient weighing more than 5 kg, covering a wide range of pediatric and adult needs.

Q4: What are the integrated safety alarms? A: The ventilator includes alarms for low voltage, battery depletion, and high airway pressure (above 5.5kPa), ensuring constant monitoring of patient safety.

Q5: What gas source is required for operation? A: It requires medical oxygen with a pressure range between 280kPa and 600kPa.

Q6: Can it be used in extreme temperatures? A: Yes, the device is designed to work in temperatures ranging from -18ºC to 50ºC, making it ideal for harsh emergency environments.
