Multi-Certification
CE, FDA, ISO13485
⚖️
Ultra Lightweight
1.8 Kg Net Weight
📱
Smart Display
5.6" Color LCD
🚀
Portable Design
Emergency Transport Ready
Basic Information
Certification
CE, FDA, ISO13485
Patient Group
Adult & Pediatric
LCD Display
5.6 inch Color Display
Transport Package
1 Piece in Carton

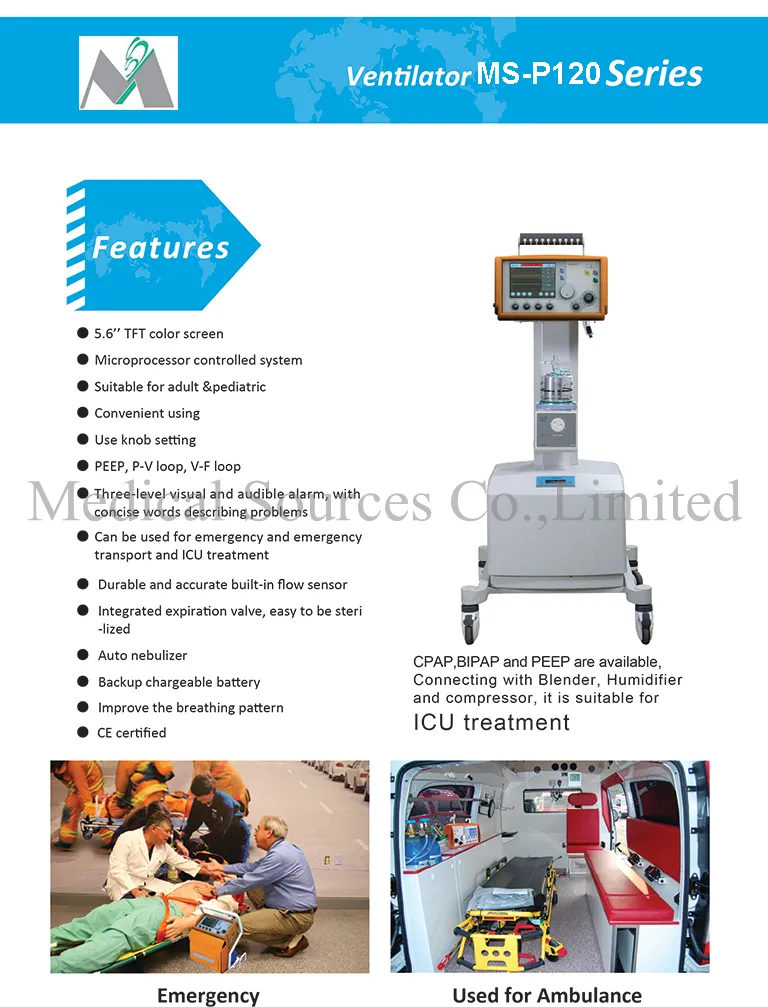

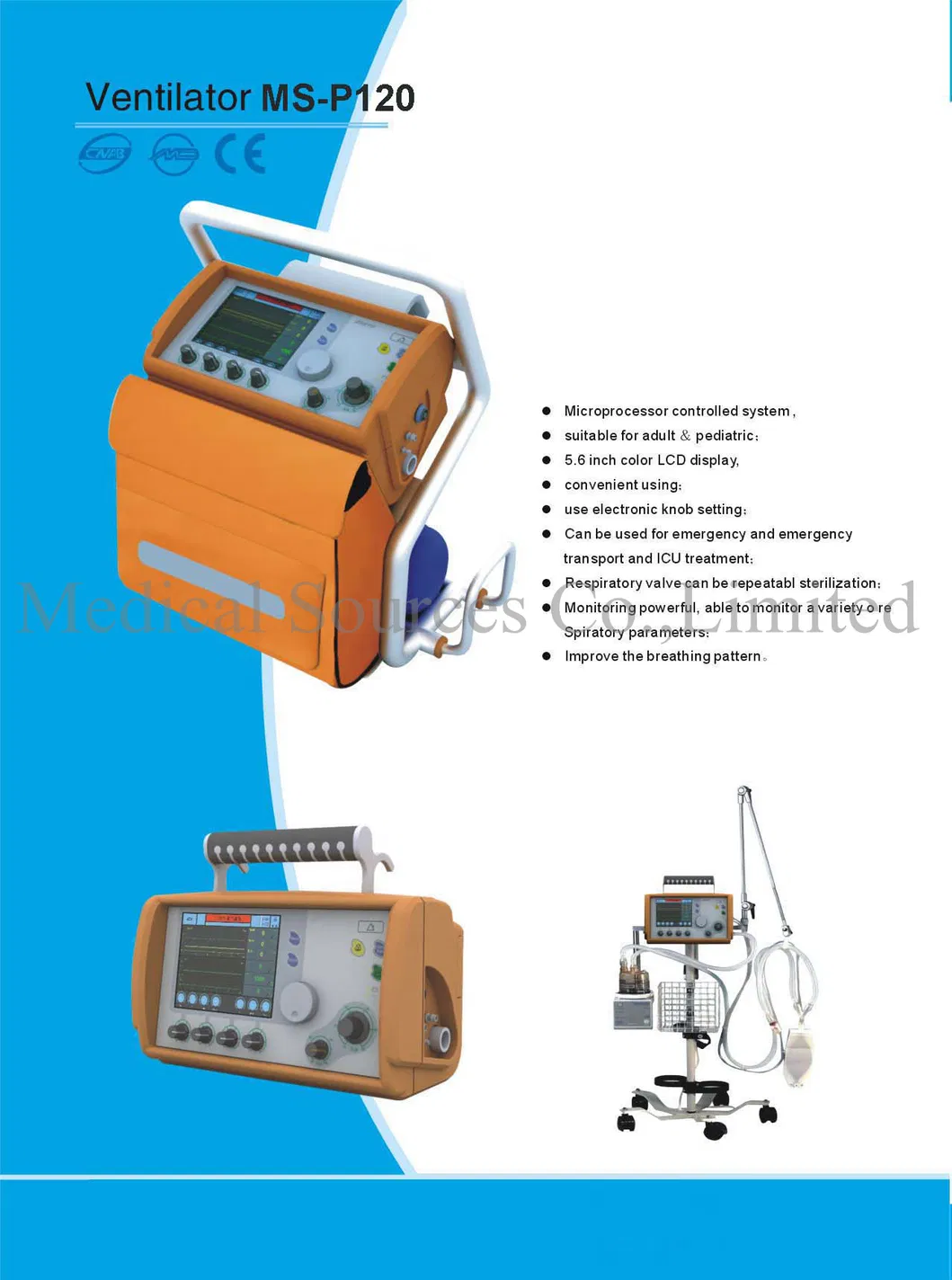

Product Description & Features

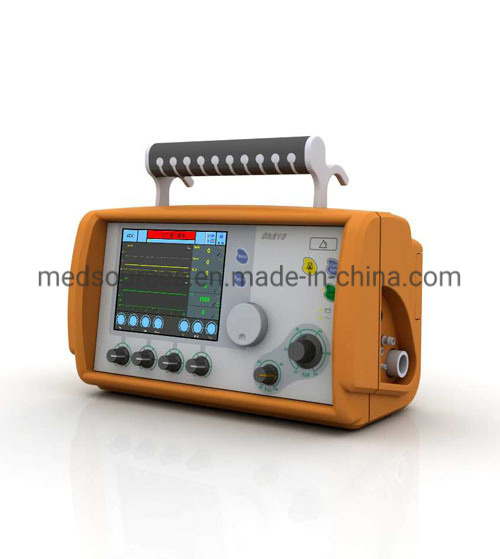

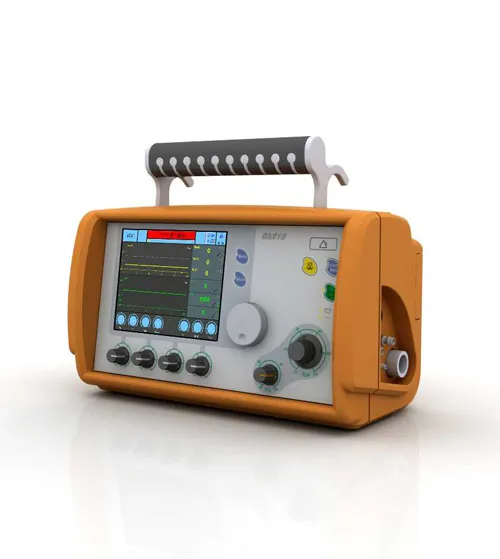

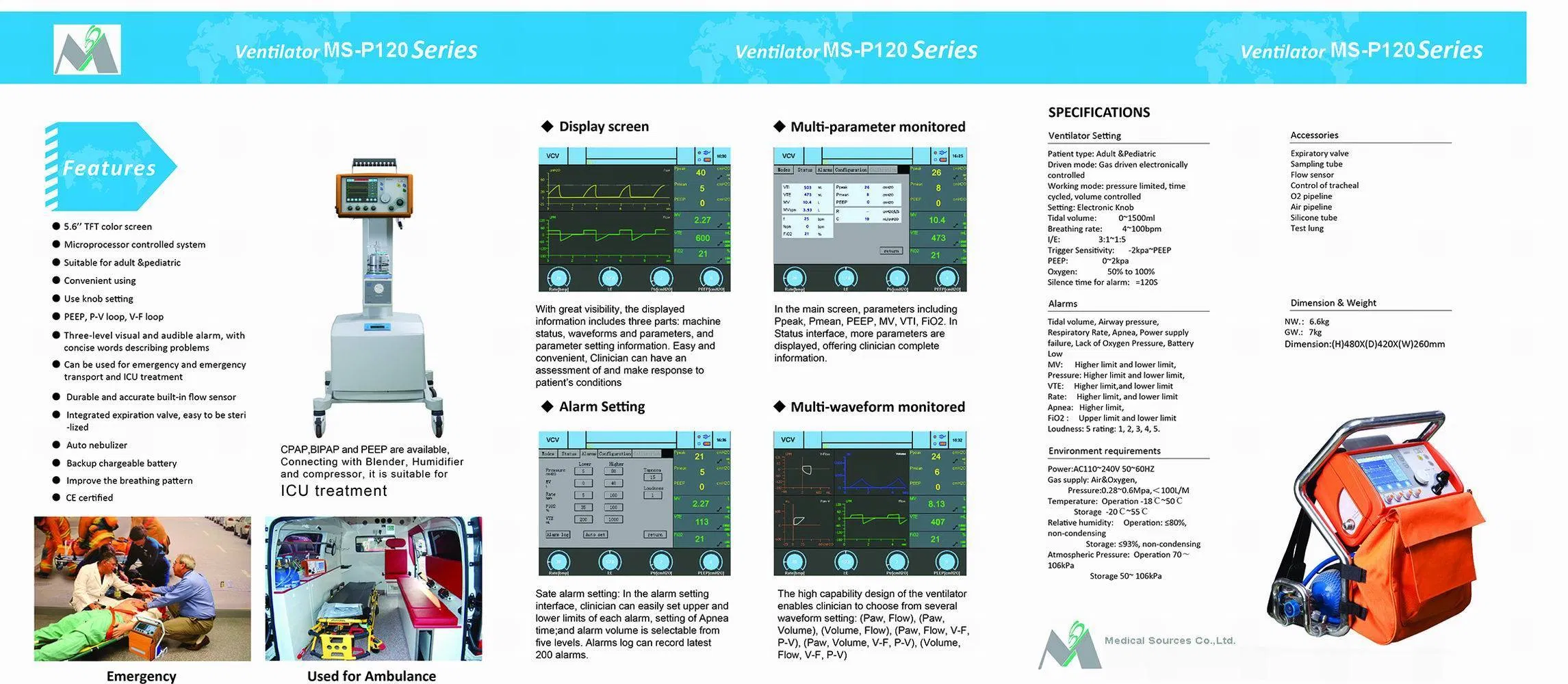

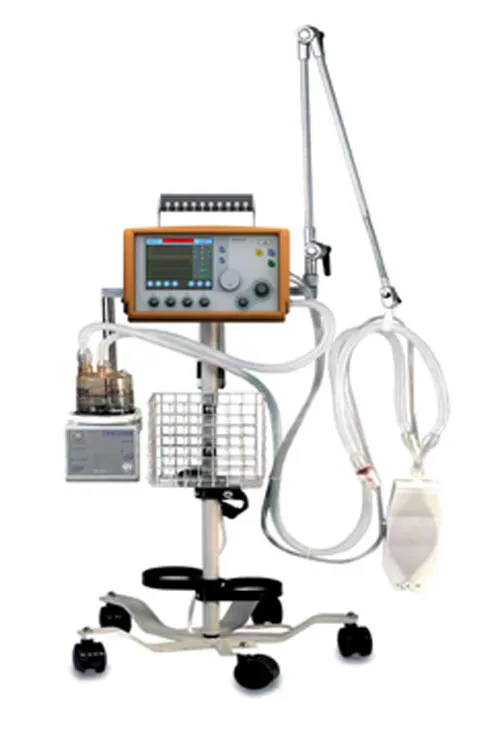

The MS-P120 is a microprocessor controlled system designed for both adult and pediatric patients. Its compact design makes it ideal for emergency transport, ICU treatment, and various clinical scenarios.
- Advanced Control: Microprocessor controlled system with electronic knob settings.
- Display: High-definition 5.6 inch color LCD for clear parameter monitoring.
- Versatile Use: Suitable for emergency, emergency transport, and ICU environments.
- Hygiene: Respiratory valve can be repeatedly sterilized.
- Powerful Monitoring: Capable of monitoring a wide variety of respiratory parameters and improving breathing patterns.

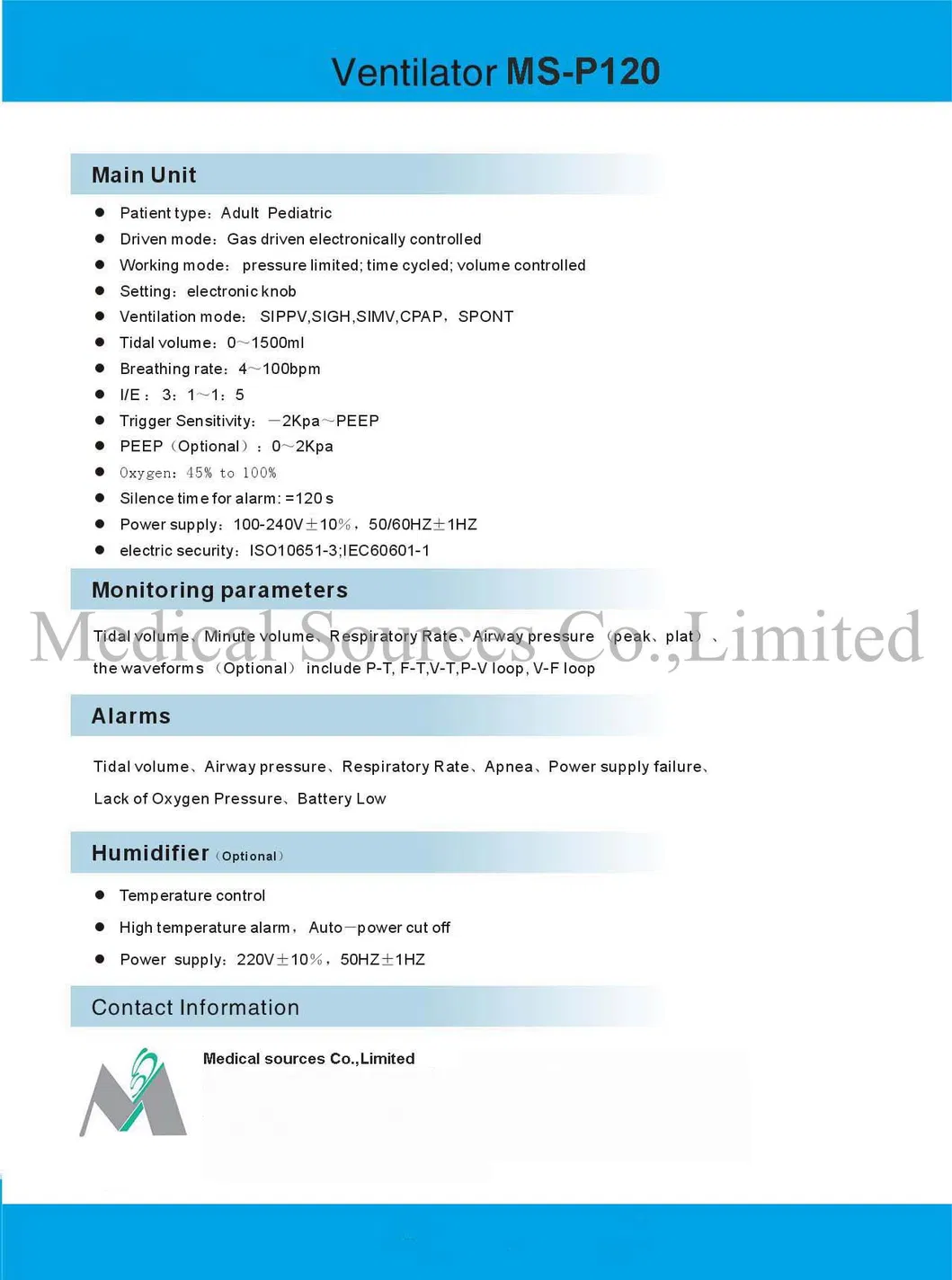

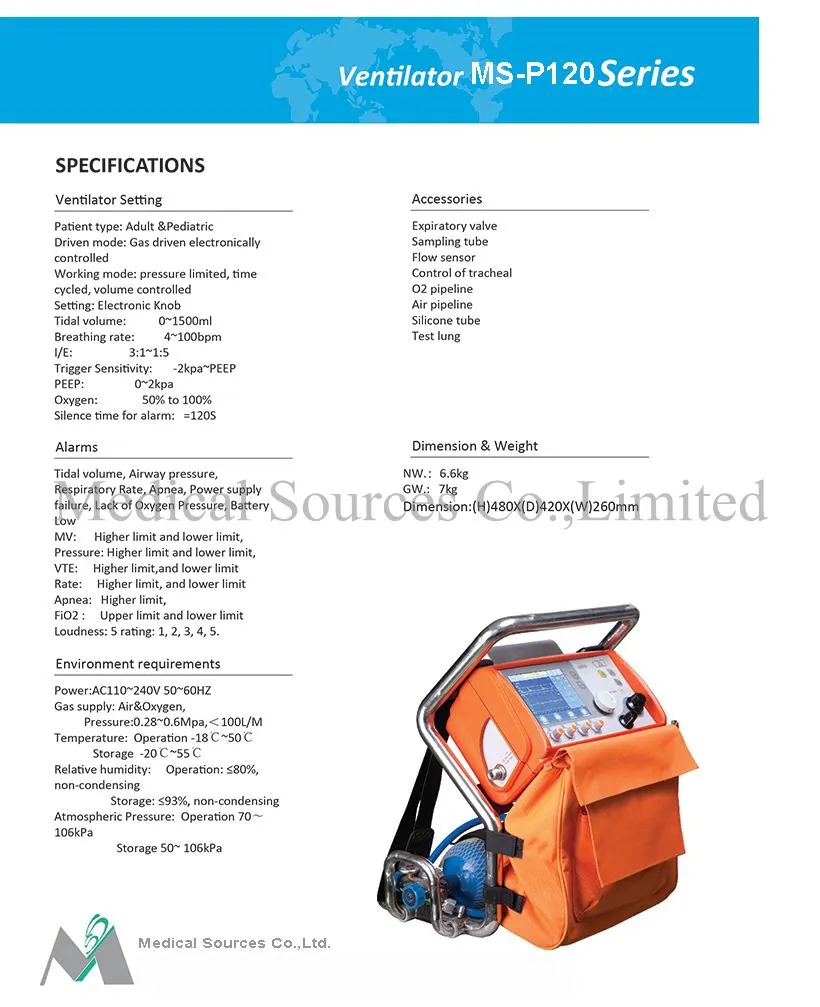

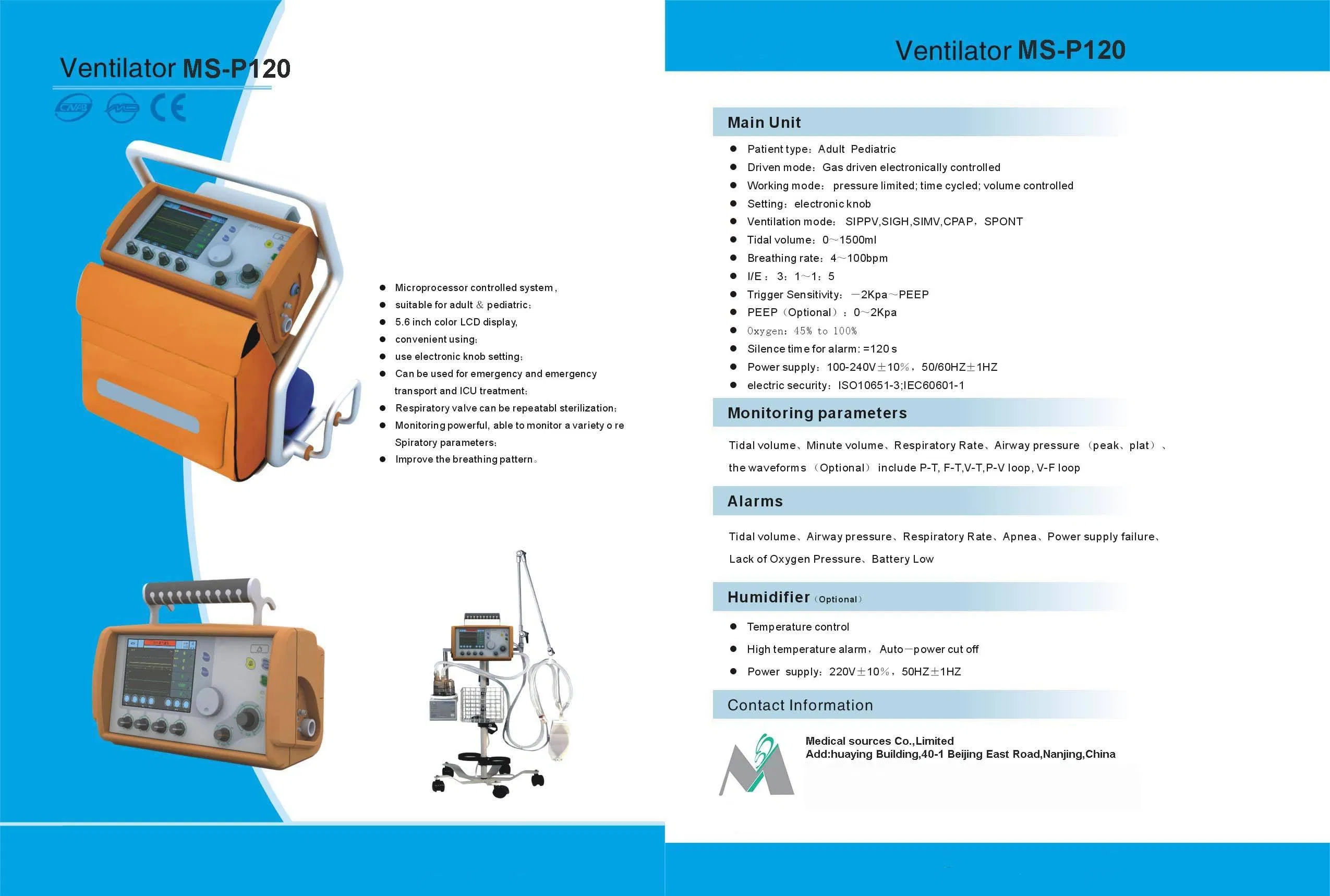

Technical Specifications
Main Unit Parameters
Driven Mode
Gas Driven electronically controlled
Working Mode
Pressure Limited; Time Cycled; Volume controlled
Ventilation Mode
SIPPV, SIGH, SIMV, CPAP, SPONT
Oxygen Concentration
45% to 100%
Power Supply
100-240V ±10%, 50/60Hz
Monitoring & Alarms
Monitoring
Tidal Volume, Minute Volume, Respiratory Rate, Airway Pressure (Peak, Flat)

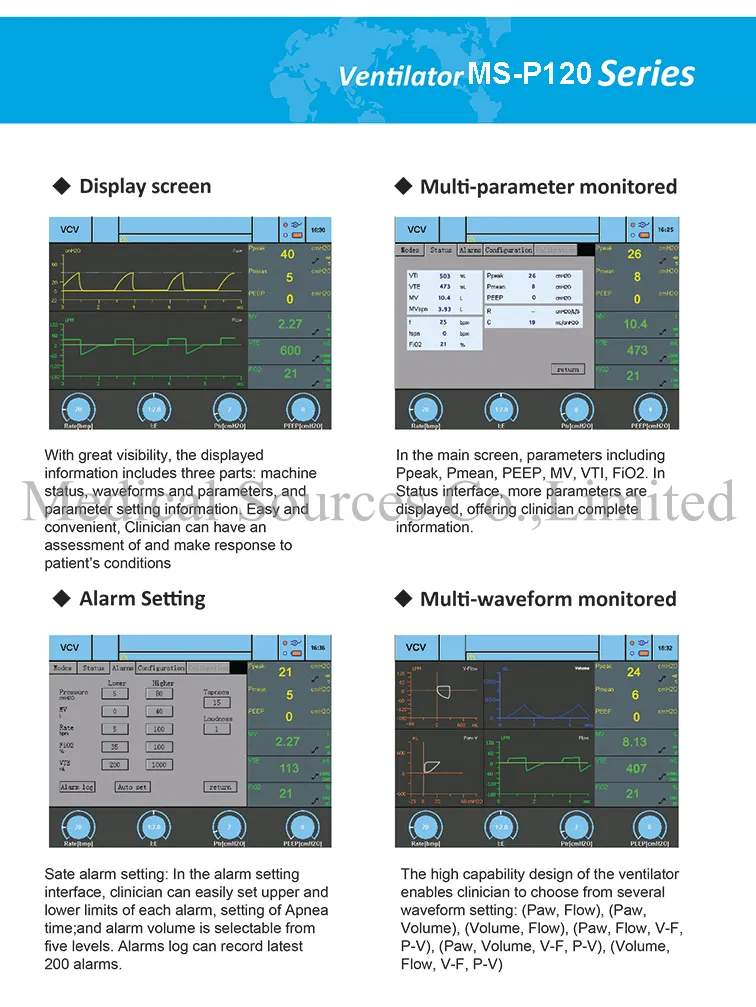

Waveforms
P-T, F-T, V-T, P-V loop, V-F loop (Optional)
Alarms
Tidal Volume, Airway pressure, Respiratory Rate, Apnea, Power Failure, Lack of Oxygen, Battery Low
Frequently Asked Questions (FAQ)
Q1: Is the MS-P120 suitable for pediatric use?
Yes, the device is designed to be compatible with both adult and pediatric patients.
Q2: How portable is this ventilator?

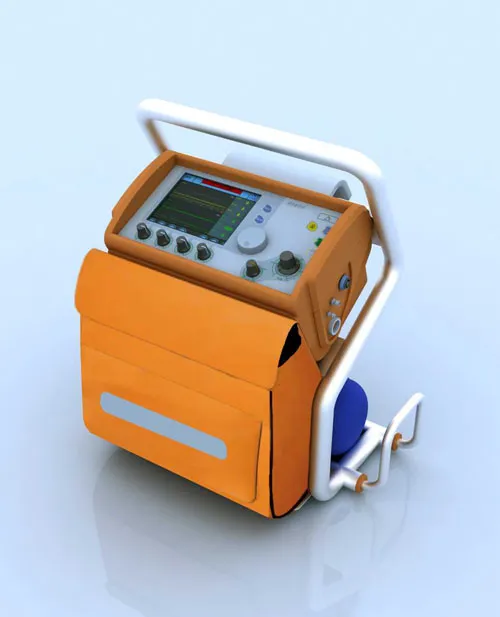

The MS-P120 is extremely portable, weighing only 1.8 Kg, making it perfect for emergency transport and ambulance use.
Q3: What type of display does it have?
It features a 5.6-inch color LCD display that provides clear visibility of respiratory parameters and waveforms.
Q4: Does the system include an alarm for safety?
Yes, it includes multiple alarms for tidal volume, airway pressure, apnea, power failure, lack of oxygen pressure, and low battery.
Q5: What are the primary ventilation modes available?
The supported modes include SIPPV, SIGH, SIMV, CPAP, and SPONT.
Q6: Can the respiratory valve be reused?
Yes, the respiratory valve is designed to be repeatedly sterilized for safe and multi-use applications.
