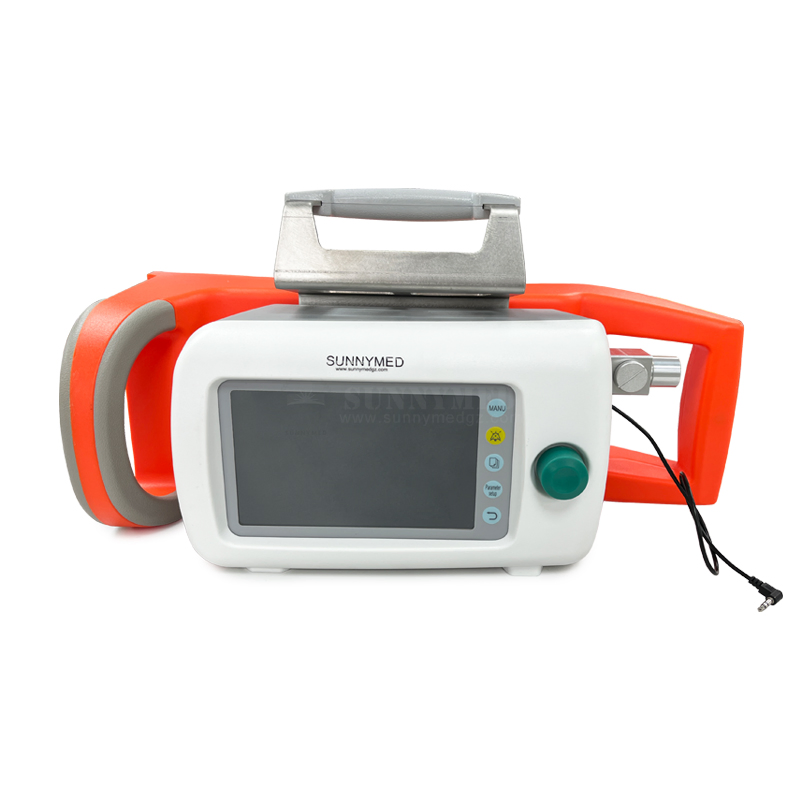

Sy-E001A Moveable Emergency Respiratory Device Transport Ventilator

1 / 5

Sy-E001A Moveable Emergency Respiratory Device Transport Ventilator

Customization:	Available
Certification:	CE
Product Name:	Transport Emergency Ventilator

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

SY-E001A

Display

7 Inch LCD

Drive

Gas Driven

Gas Source

Pure Air or Oxygen

Operating

Electronically Controlled

Application

Applied for Child and Adult

Ventilation Mode

VCV, SIMV, A/C, SIGH, MANUAL, CPAP, PCV

Tidal Volume

20-2000ml

I:E Ratio

4:1-1:8

Origin

China

Production Capacity

100 Set/Month

SY-E001A Moveable Emergency Respiratory Device Transport Ventilator

📋

Technical Specifications

Basic Features
Operating Panel	English (Standard)
Display	7 inch LCD
Drive	Gas Driven
Gas source	Pure air or Oxygen
Operating	Electronically controlled
Application	Applied for child and adult (Weight > 5kg)
Main Specifications
Ventilation Mode	VCV, SIMV, A/C, SIGH, MANUAL, CPAP, PCV (OPTIONAL), PSV(OPTIONAL)
Tidal Volume	20-2000ml
I:E Ratio	4:1-1:8
Rate	4- 100/min, 1 - 40/min under SIMV
FiO2	40%- 100%
Pressure trigger sensitivity	-20- 0 cmH2O, PEEP 0 - 20 cmH2O
Monitoring Parameters	Tidal volume, Minute volume, Breathing rate, Airway Pressure
Alarms	No VT, MV too high/low, Airway pressure too high/low, AC power off, back-up battery too low
Unit Information
Power	Battery, AC Power 220V/50Hz
Car charger	12V
Battery	≥6 hours
Net Weight	Main Body < 4 KG

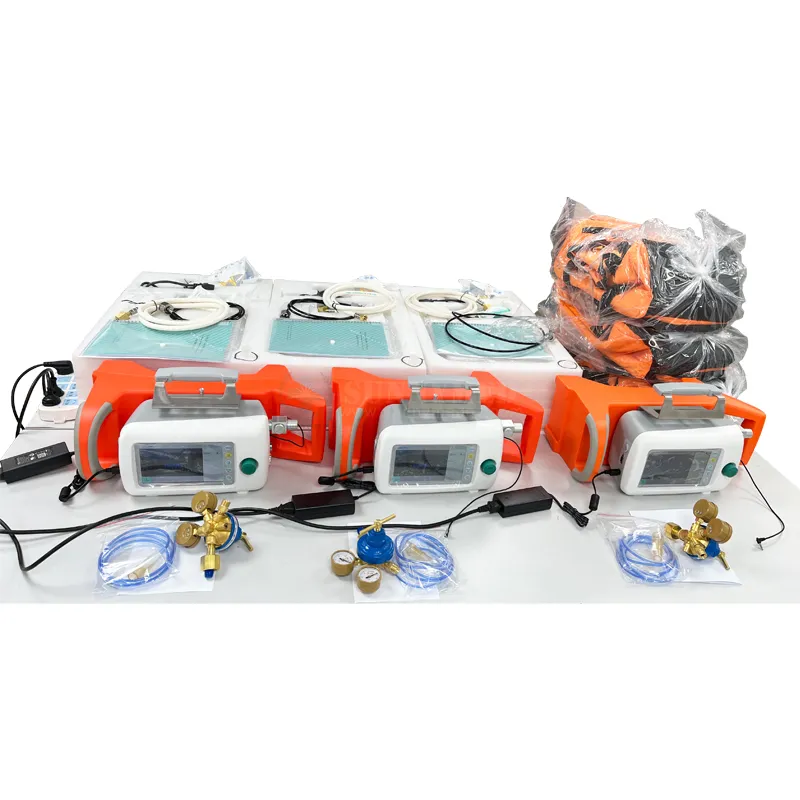

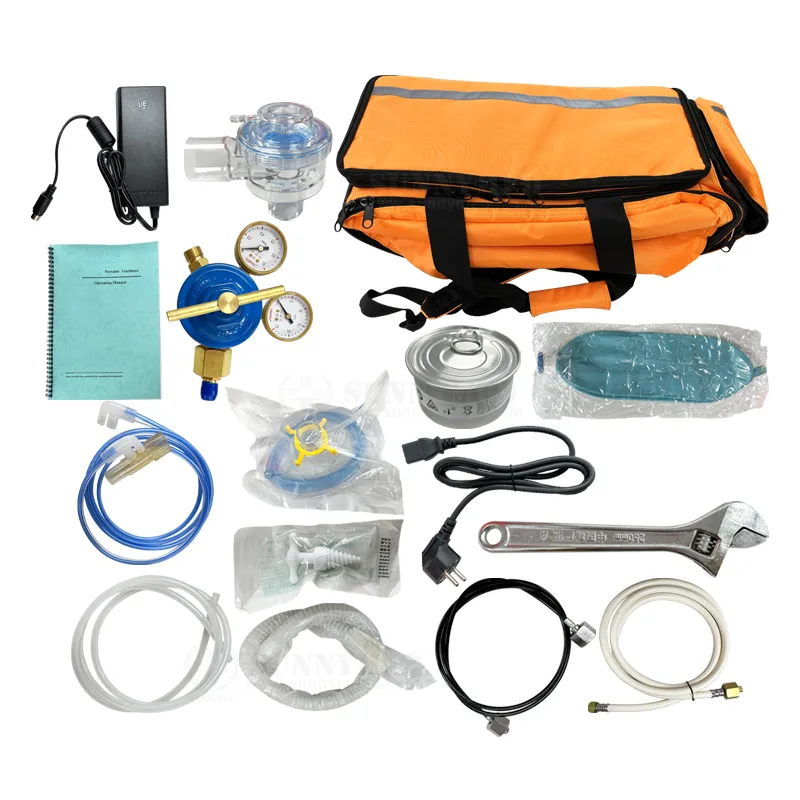

Accessory Set: Main body 1 Unit, Oxygen cylinder 3L1 Unit, Silicon mask/circuit for medical use1 Piece, Other essential accessories.

📸

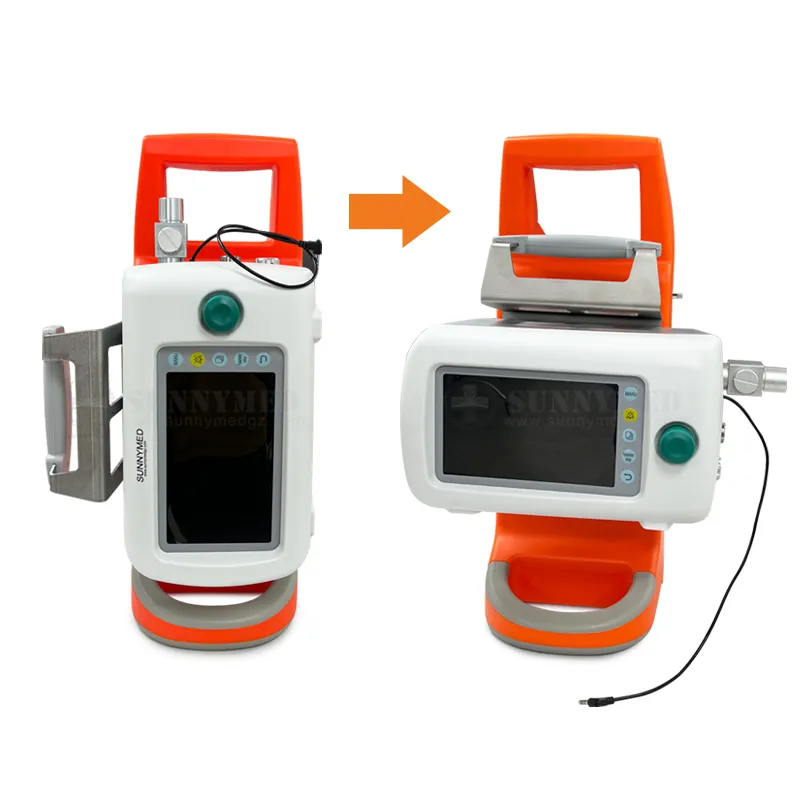

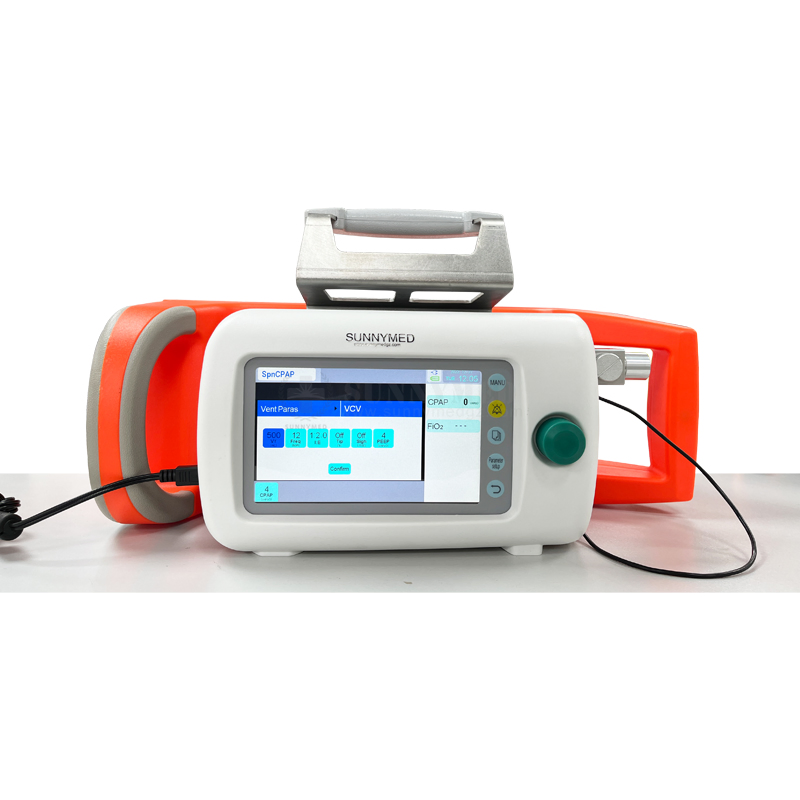

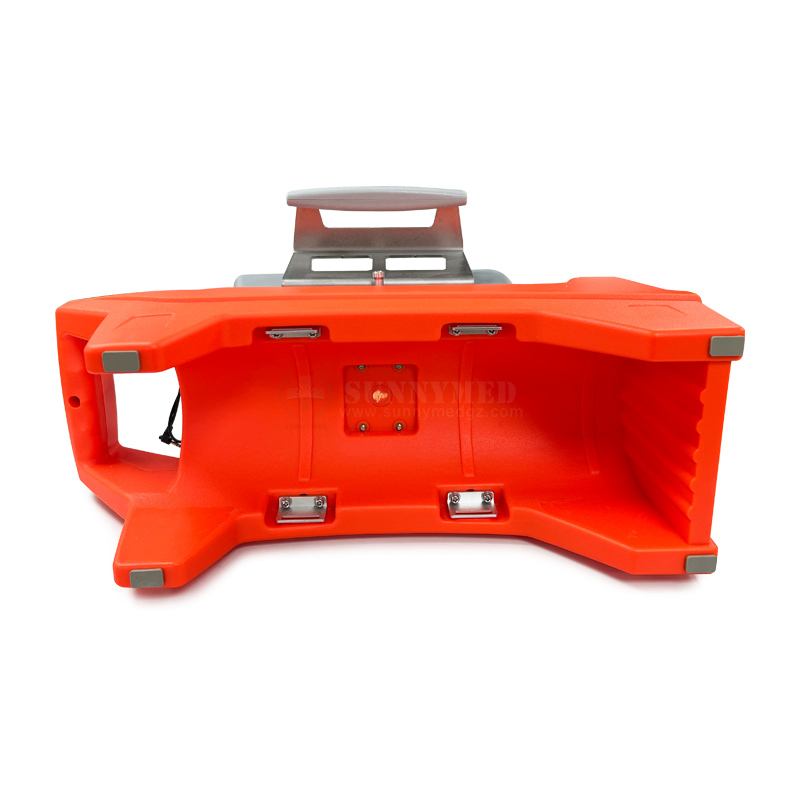

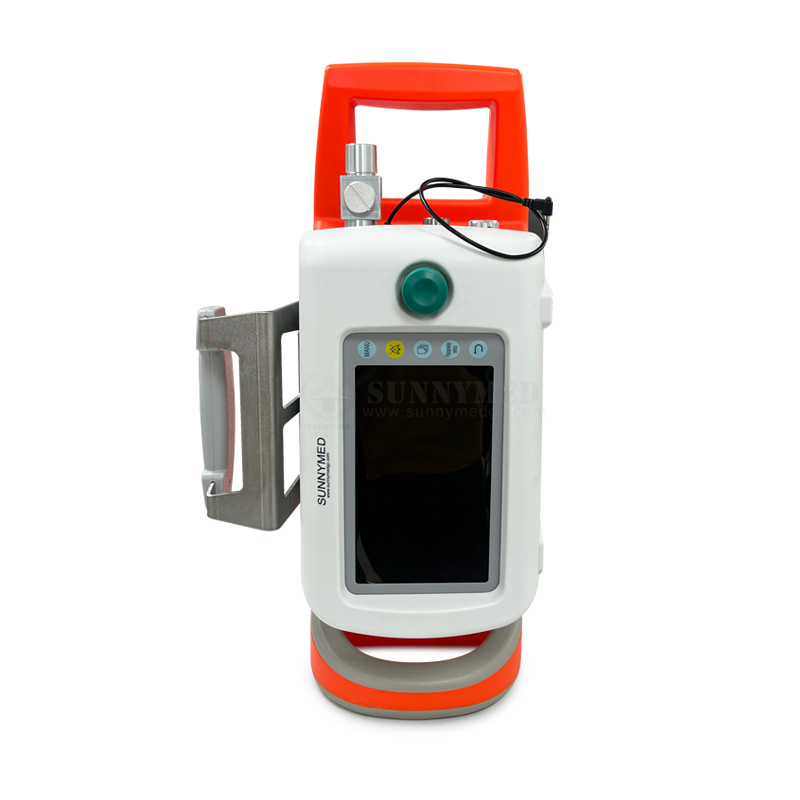

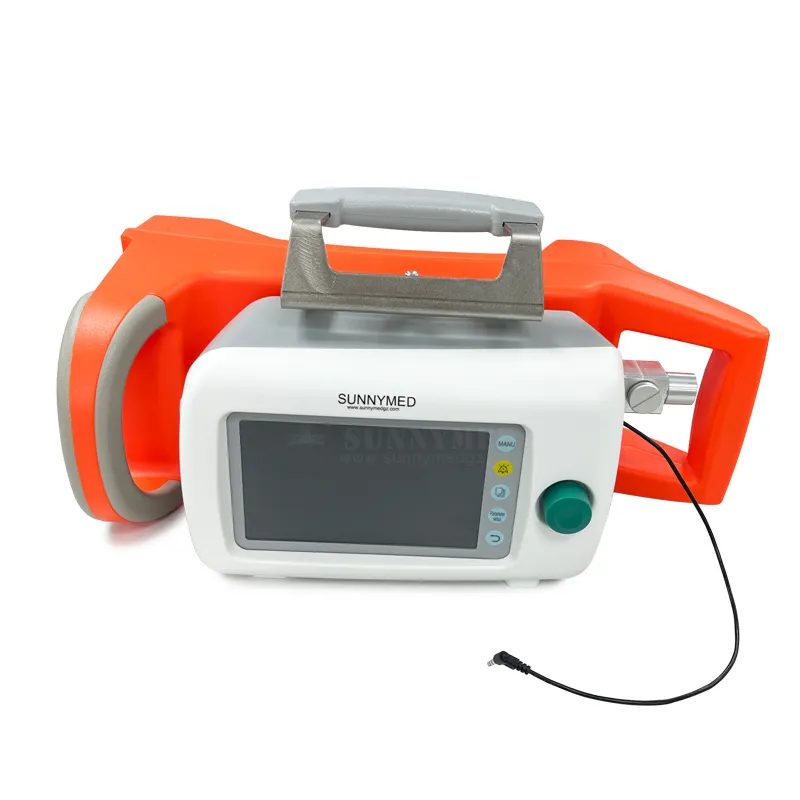

Detailed Photos

🏭

Production Environment

❓

Frequently Asked Questions

1. What is the tidal volume range for this ventilator?

The SY-E001A supports a wide tidal volume range from 20ml up to 2000ml, making it suitable for both children and adults.

2. Can it be used in an ambulance or during transport?

Yes, it is specifically designed as a moveable emergency transport ventilator with a lightweight body (under 4kg) and a 12V car charger compatibility.

3. How long does the internal battery last?

The device is equipped with a battery that provides at least 6 hours of continuous operation when fully charged.

4. What ventilation modes does the device support?

It supports multiple modes including VCV, SIMV, A/C, SIGH, MANUAL, and CPAP. PCV and PSV are available as optional modes.

5. Does the device include monitoring and alarms?

Yes, it monitors Tidal Volume, Minute Volume, Breathing Rate, and Airway Pressure. It also features alarms for power failure, low battery, and pressure abnormalities.

6. What is the standard gas source required?

The SY-E001A can operate using pure air or oxygen as the primary gas source.
