Quality Medical Precise Apnea Monitoring Pediatric Neonatal ICU Ventilator

Customization:	Available
Type:	Pediatrics
Transport Package:	Standard Export Carton Packing

i

Overview - Basic Information

Model NO.HV-V7

SpecificationCE, ISO

HS Code9018909090

★

Product Description

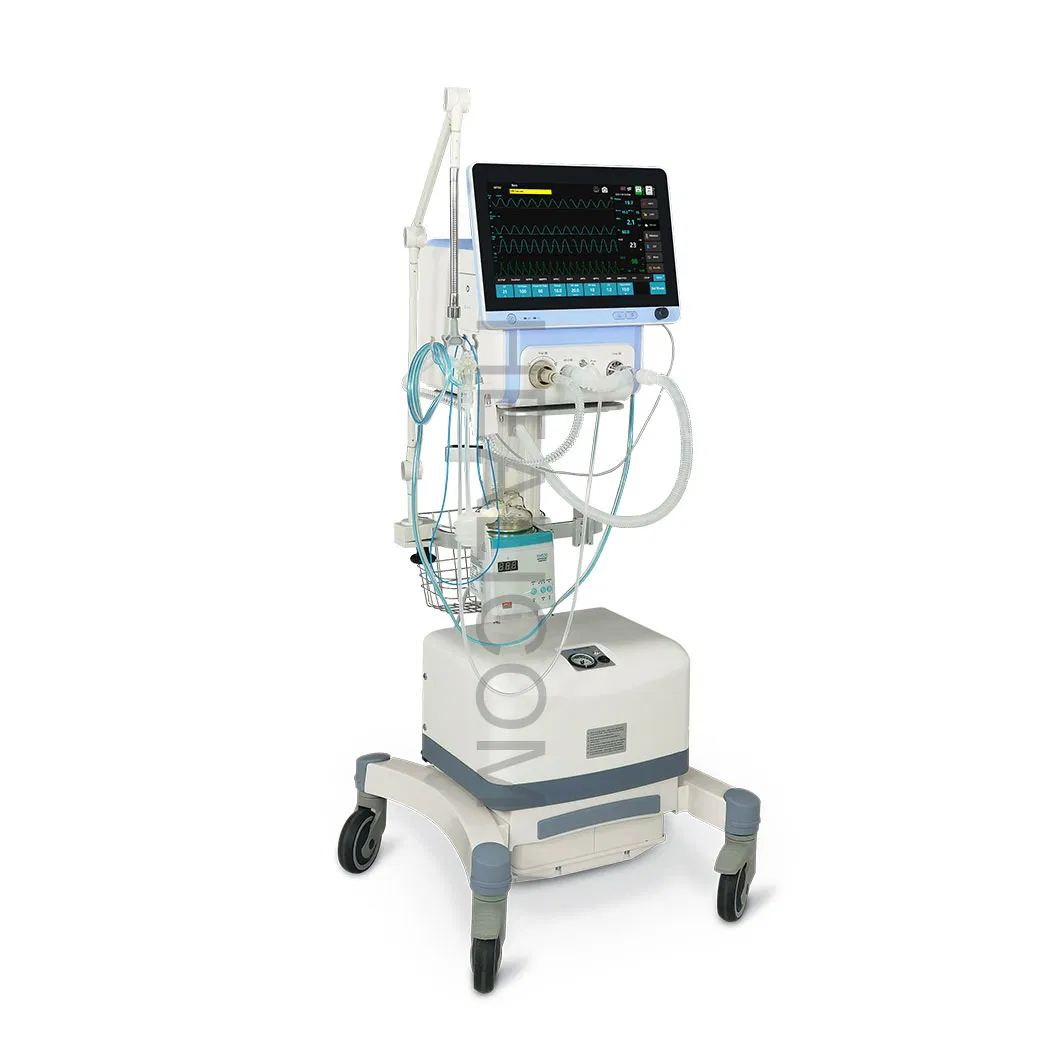

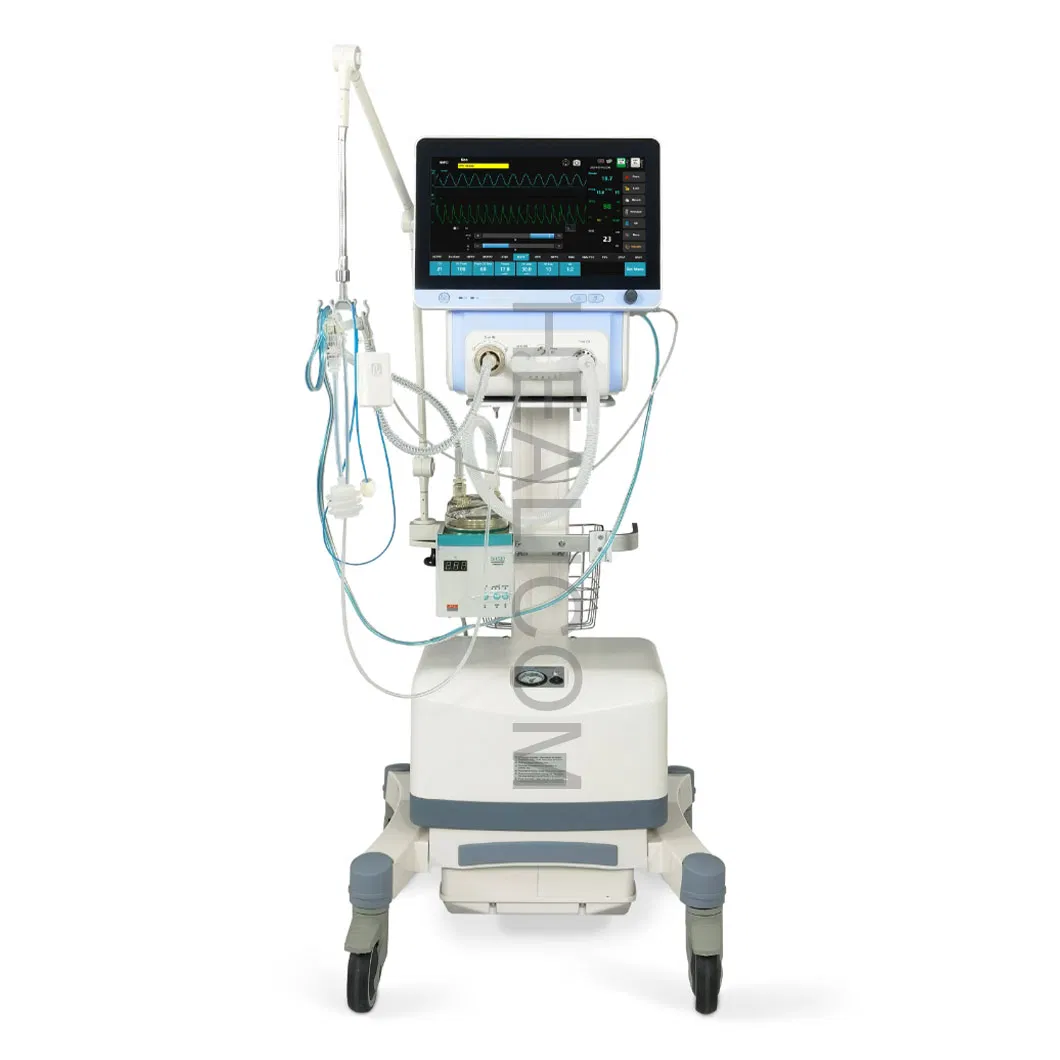

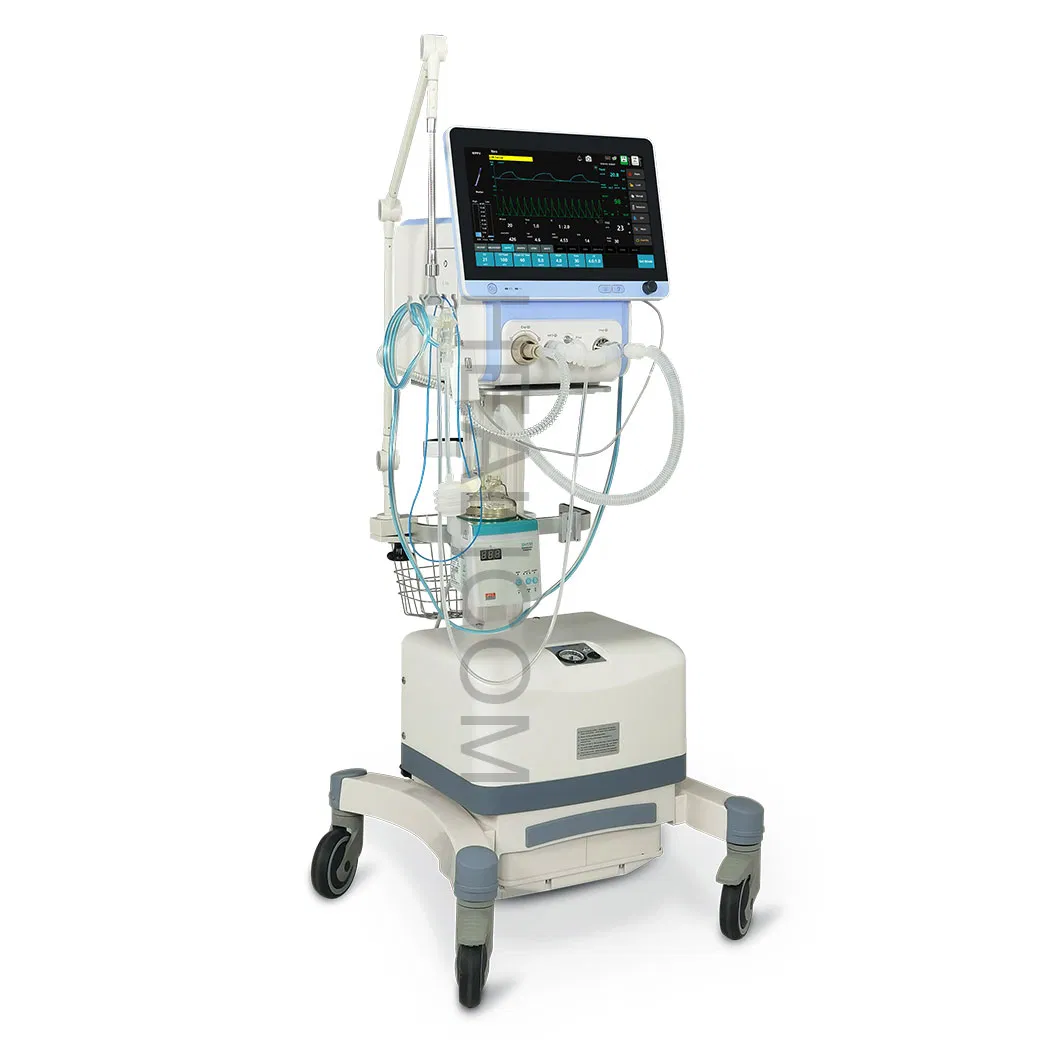

HV-V7 HFO 15.6 inch Neonatal High Frequency Ventilator

HV-V7 is a pneumatic and electronically controlled therapeutic ventilator. It adopts a high-frequency system that combines volume control and pressure control. It integrates High-flow Oxygen Therapy (HFNC), Non-invasive Ventilation (NIV), Invasive Ventilation (IV), Manual Ventilation (M), Constant Frequency Ventilation (CV), and High Frequency Oscillatory Ventilation (HFOV). This 5-in-1 functionality is suitable for premature infants, newborns, and children of all ages.

□

Intuitive Interface & Monitoring

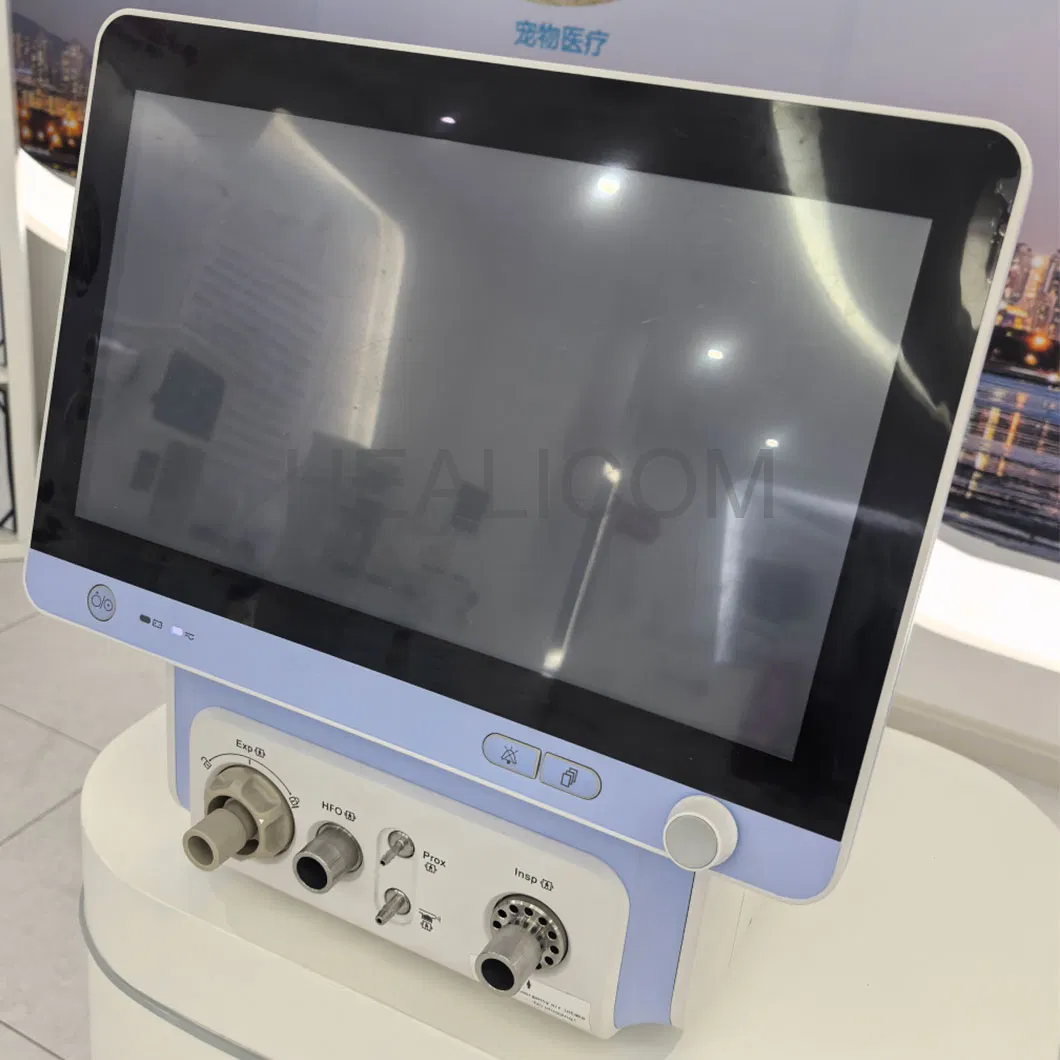

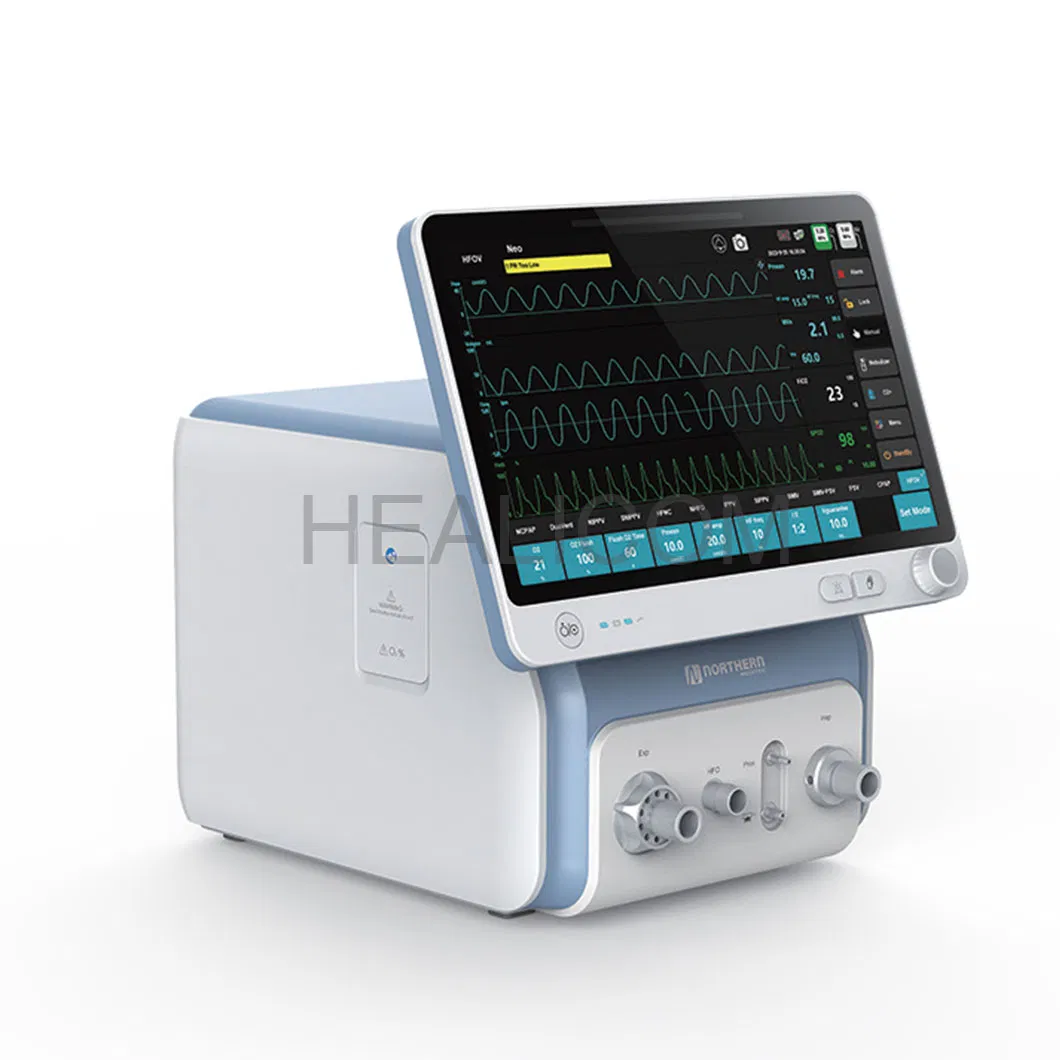

15.6 inch Intuitive Touch Screen Display: Precise capacitive touch technology with a one-step routine operation menu.

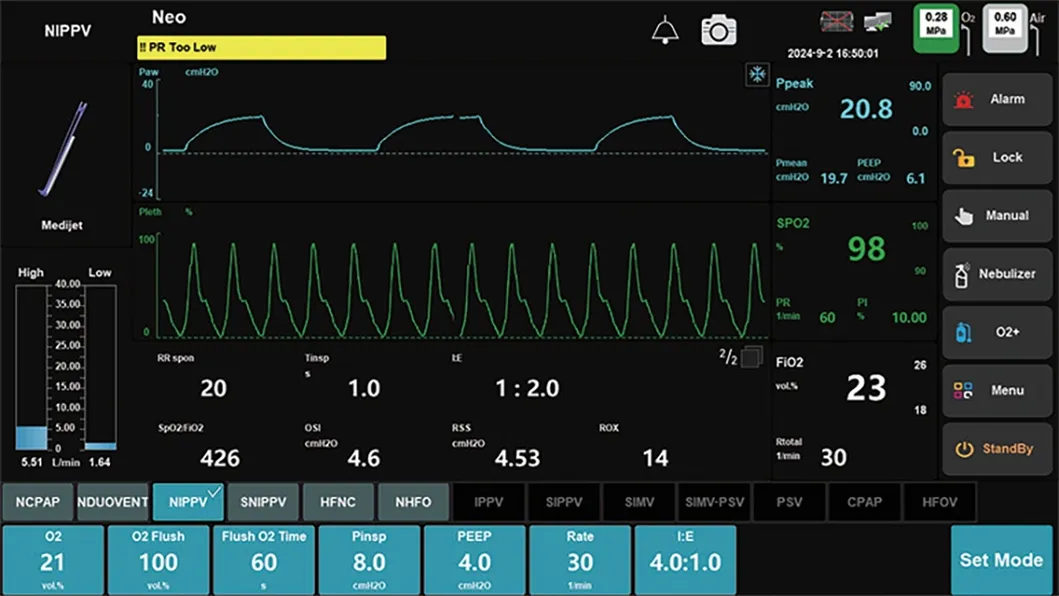

Extensive Monitoring: Includes Oxygenation parameters (OSI, SpO2/FiO2) and Leak Monitoring (Leak%) for confident clinical decisions.

✔

Core Features

Real-time pressure waveform and high-precision FiO2 detection.
Built-in air and oxygen mixer for stable concentration.
Precise apnea monitoring with automatic wake-up function.
Scientific data collection (up to 60 hours of data review).
Stable low-noise air compressor for quiet environments.
Built-in lithium battery (up to 240 minutes power supply).
External abdominal respiration sensor for real-time baby monitoring.

Best-in-Class Developmental Care

Patient Safety: Reduced risk of volutrauma in HFO with Volume Guarantee (VG). Minimal contamination risk via the HFO pulse generation.

Mobility: Compact size allows for hospital transport from delivery room to NICU.

⚙

Technical Specifications

Setting Range of Ventilator Parameters
Tinsp	0.10~15.00s	Apnea Pinsp	2.0-25.0cmH2O
Rate	1~200bmp	Amplitude (Delta P)	1.0~150.0cmH2O
PEEP	1.0~30.0cmH2O	Thigh	0.10~30.00s
CPAP	1.0~30.0cmH2O	HF Freq	2-20Hz
MAP	1.0~50.0cmH2O	O2	21~100%

Physical Dimensions		Display Screen
Weight	≤21.5Kg	Type	TFT LCD Color Touch
Dimension	398x425x437mm	Size	15.6 inch
Noise	46dB	Resolution	1366×768 pixels

🏭

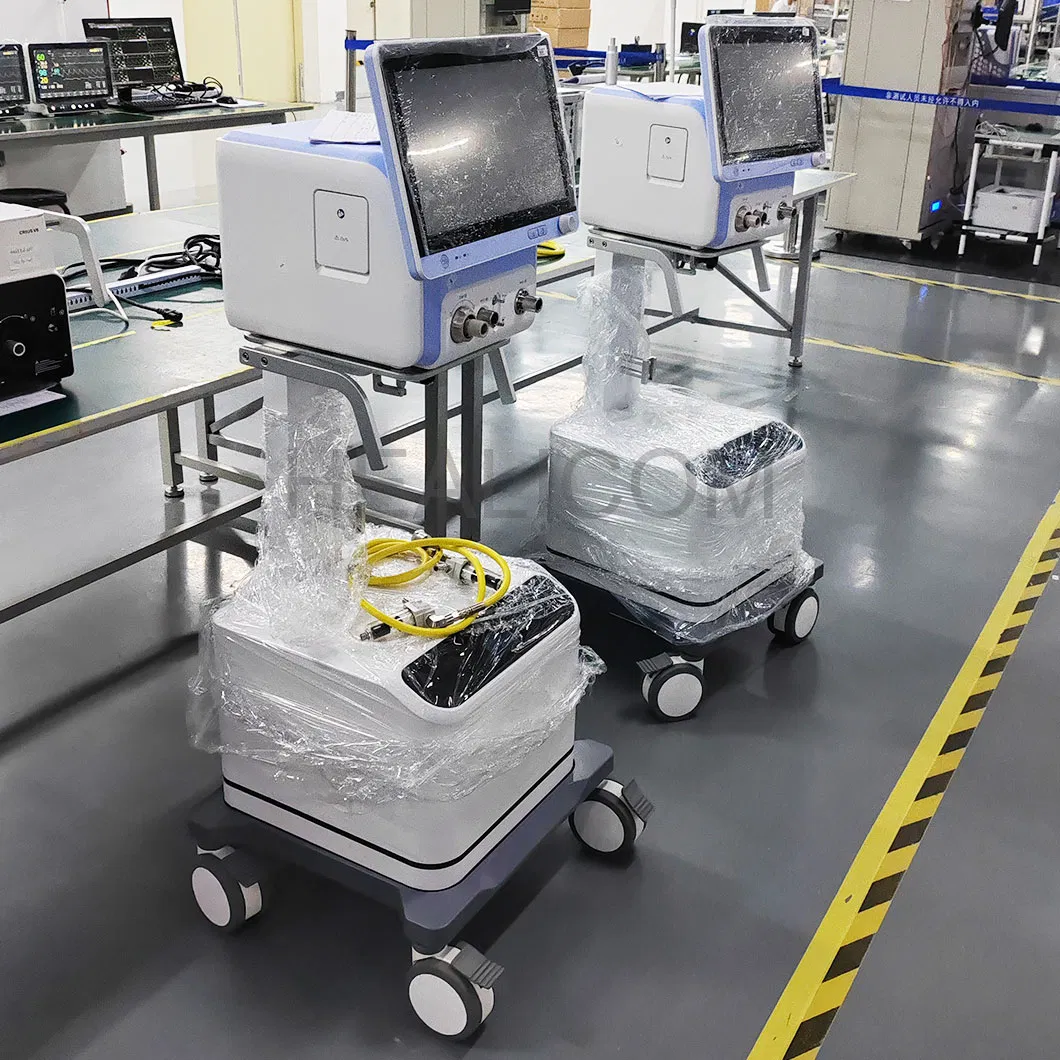

Production & Quality Control

?

FAQ

1. What about the price level of your equipment?

We are confident that our prices are competitive compared with those at the same quality level, having served this field for more than 20 years. We adhere to the principle of providing top-quality products with competitive prices across global markets.

2. Why do prices vary between different suppliers for similar models?

While appearance or model numbers may look similar, price differences often stem from the materials used and the level of quality control. Products with cheaper materials and less stringent testing are relatively less expensive but may lack performance stability.

3. What is the typical delivery time?

Standard delivery is approximately 15 days after order confirmation, as products are produced according to specific requirements. Small or sample orders may be delivered faster if stock is available.

4. What quality assurance and warranty do you provide?

We offer a one-year warranty starting from the time of shipment. For minor issues, we provide free spare parts for replacement. For serious problems, we offer full replacements free of charge.

5. What are the accepted payment terms?

We accept T/T, Credit Card, L/C, Western Union, PayPal, and MoneyGram for convenient global transactions.

6. Is the HV-V7 ventilator suitable for premature infants?

Yes, the HV-V7 is specifically designed for premature infants, newborns, and children of all ages, integrating specialized modes like HFOV to support the most delicate patients.
