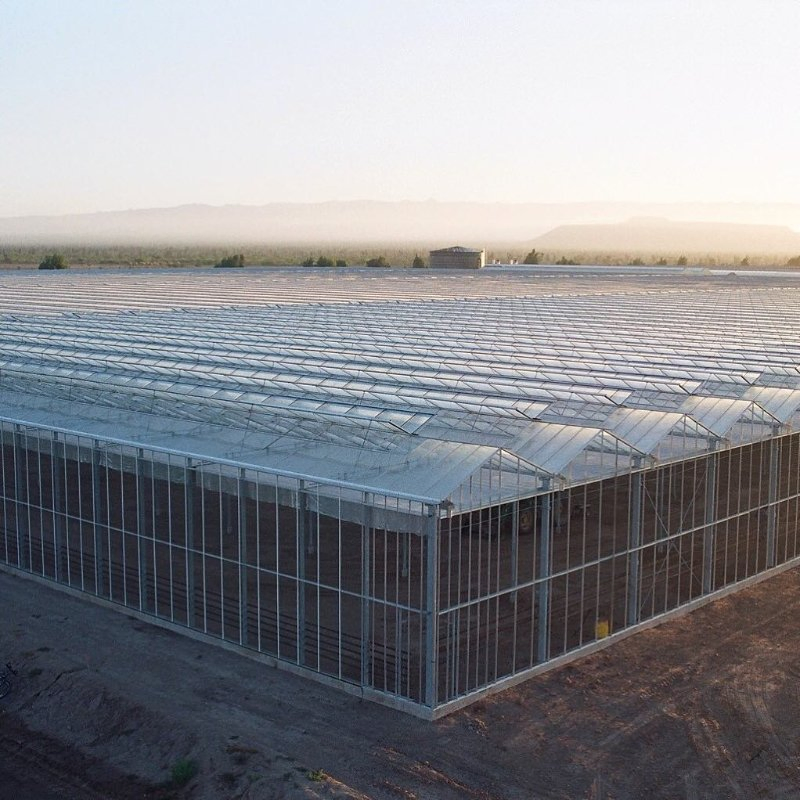

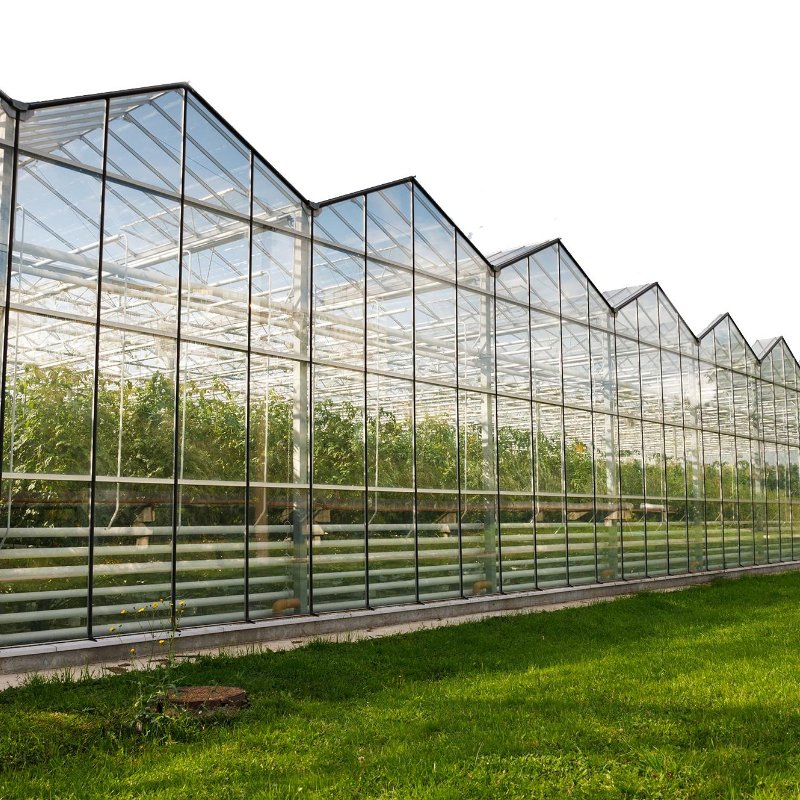

Advanced Agricultural Glass Green House with Automated Control System

Still deciding? Get samples of $ !
Request Sample

Product Description

📊
Basic Information
Product Name
Venlo Style Glass Greenhouse
Cover Material
Glass
Main Frame
Hot-Dipped Galvanized Tube
Glass Sheet
Double Layer Hollow Glass 5+6A+5mm
Light Transmittance
>90%
Span
9.6/10.8/12m or Customized
Gutter Height
4/6/8m/Customized
Application
Planting Vegetables and Flowers
🌱
Product Description

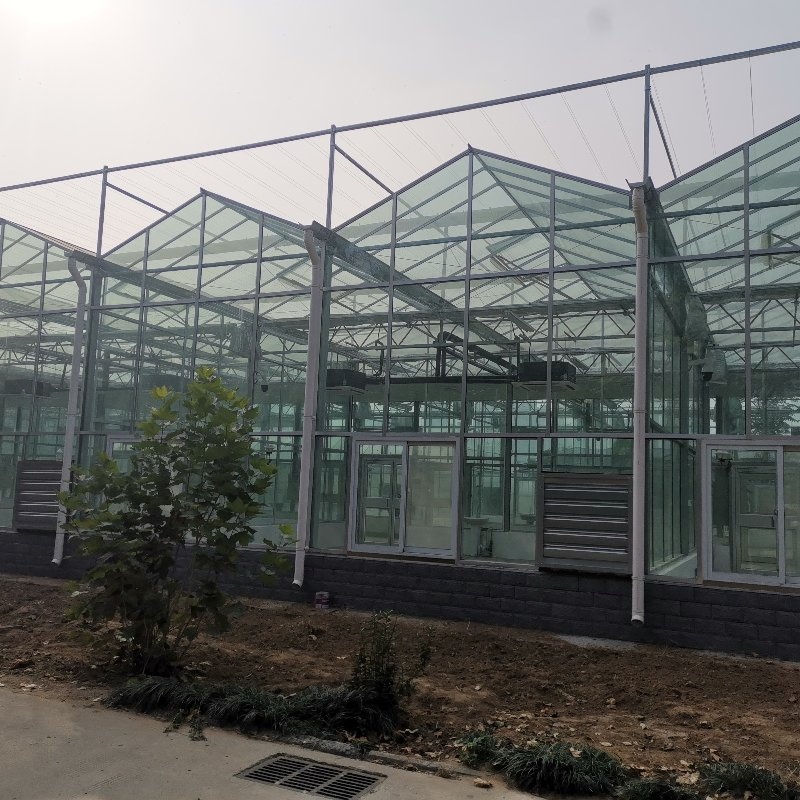

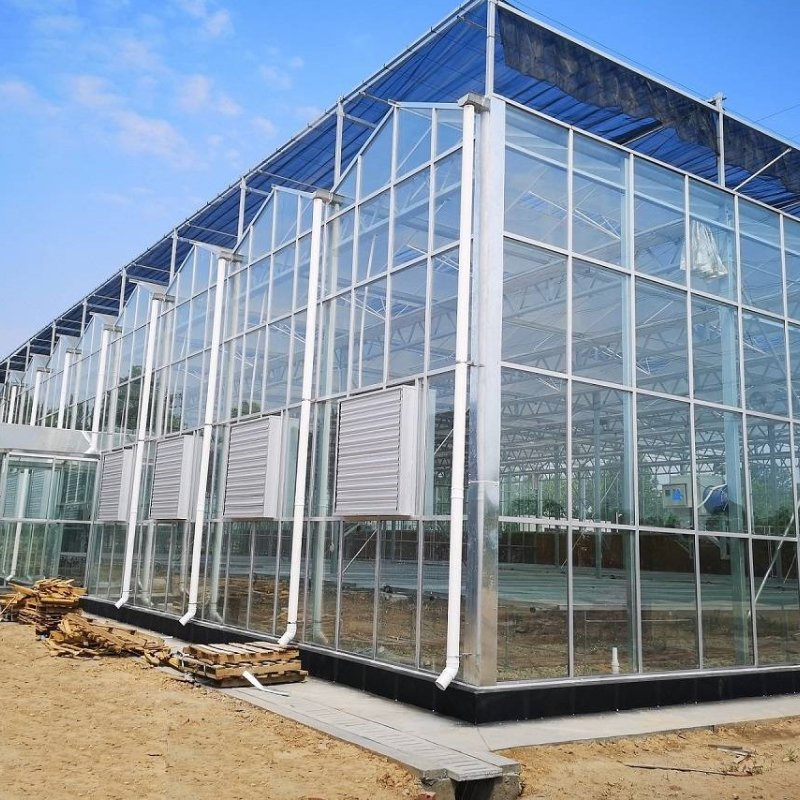

Glass greenhouse refers to a greenhouse with glass as lighting material. As a form with the longest service life, it is suitable for use in various regions and various climatic conditions. Models include vegetable, flower, seedling, ecological, scientific research, and smart glass greenhouses.

Complete Farming Solution: Designed for high-yield vegetable production in a controlled environment. The greenhouse ensures optimal growing conditions for tomatoes, cucumbers, peppers, and more through advanced climate control, providing the perfect amount of light, heat, and moisture.
Glass Greenhouse View

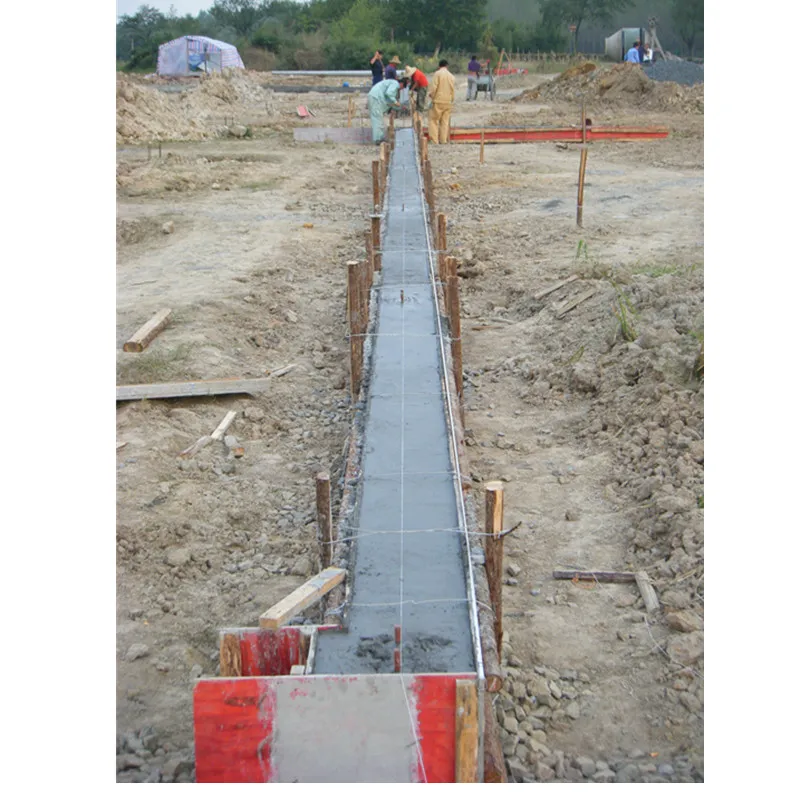

Greenhouse Construction
Construction Characteristics

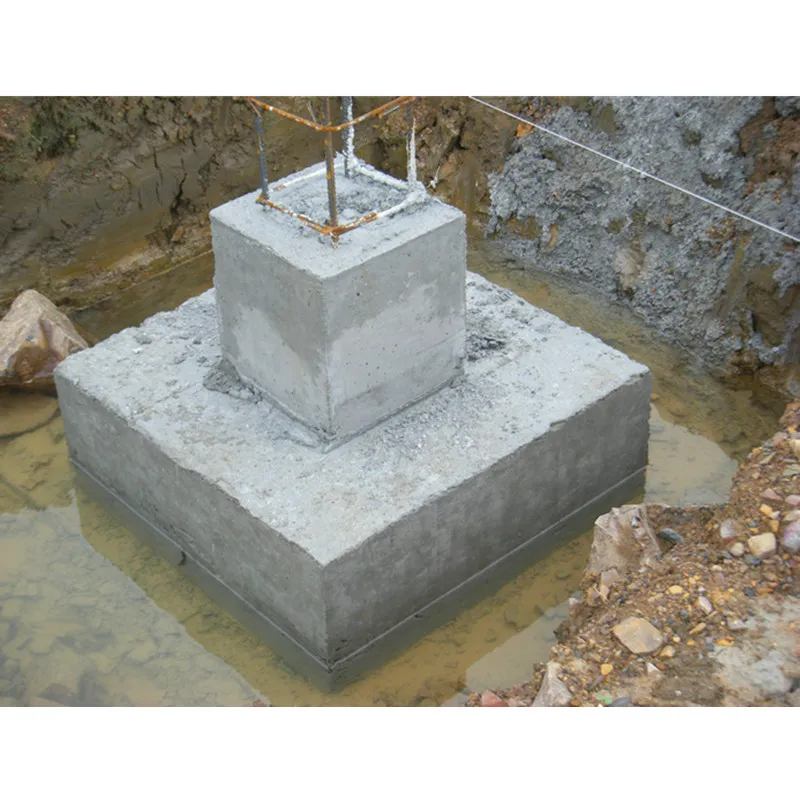

Foundation: Independent foundation (Reinforced concrete) or Strip foundation (Masonry structure with reinforced concrete ring beams).

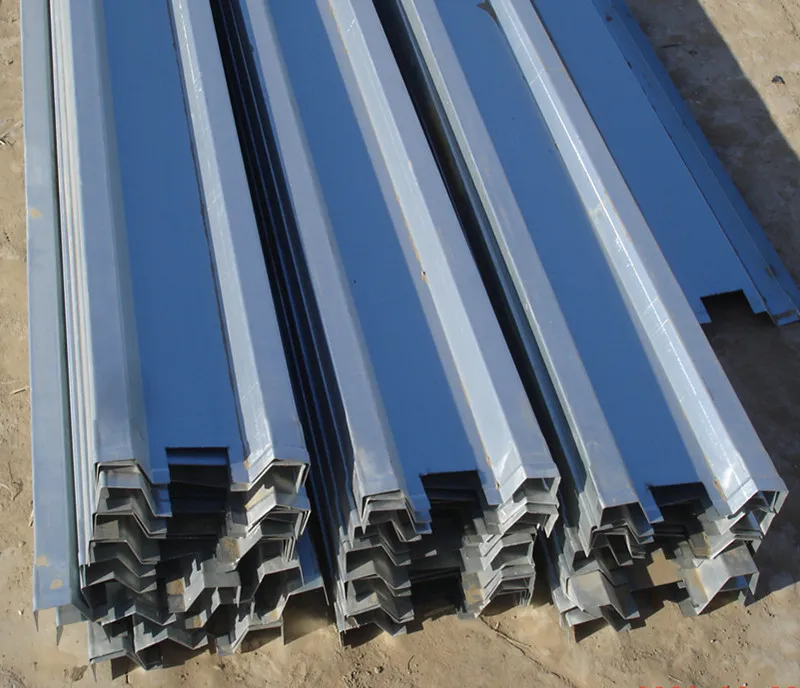

Structure: Corrugated light steel structure with small roofs and multiple drainage grooves. Main components use hot-dip galvanized steel for maximum durability.

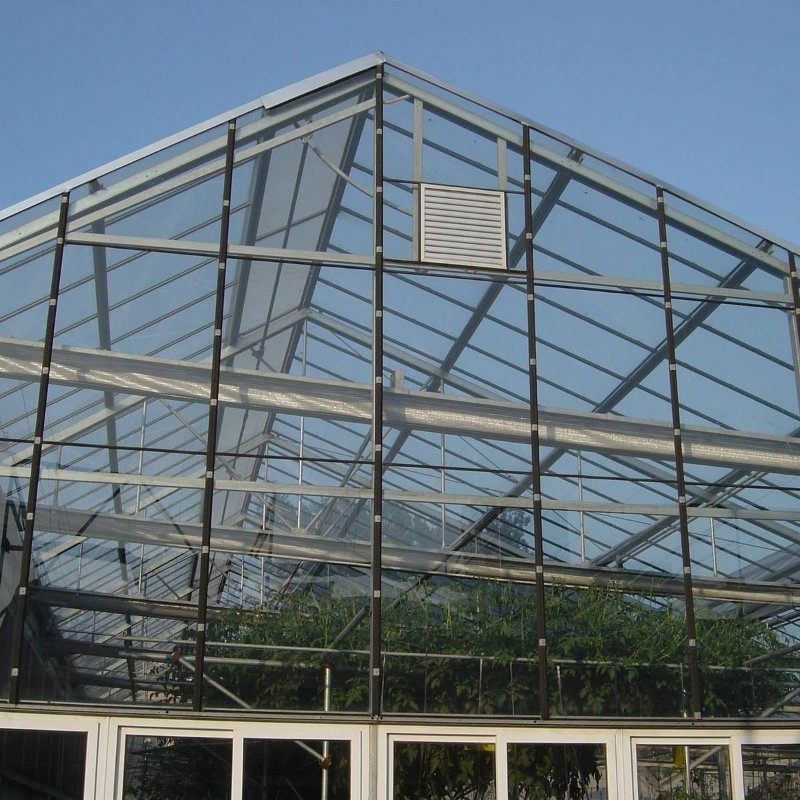

Advanced Agricultural Glass House
Greenhouse Detail
Greenhouse Structure
⚙️
Advanced Greenhouse Systems

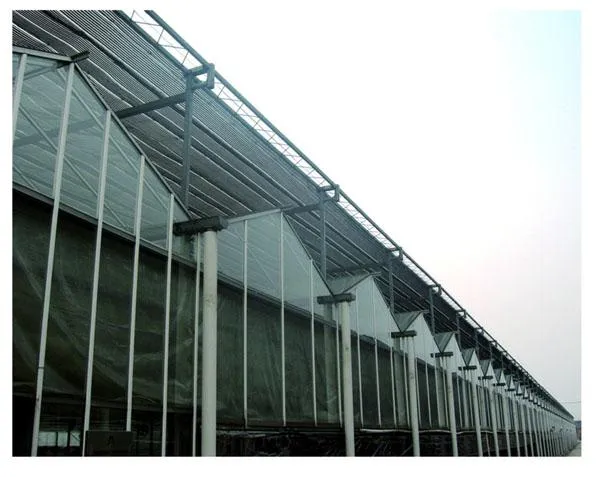

Dew Drainage

Dew Drainage System: Below the gutter, a hot-dip galvanized sheet dew-receiving tank is set to collect condensed water from the top of the greenhouse.

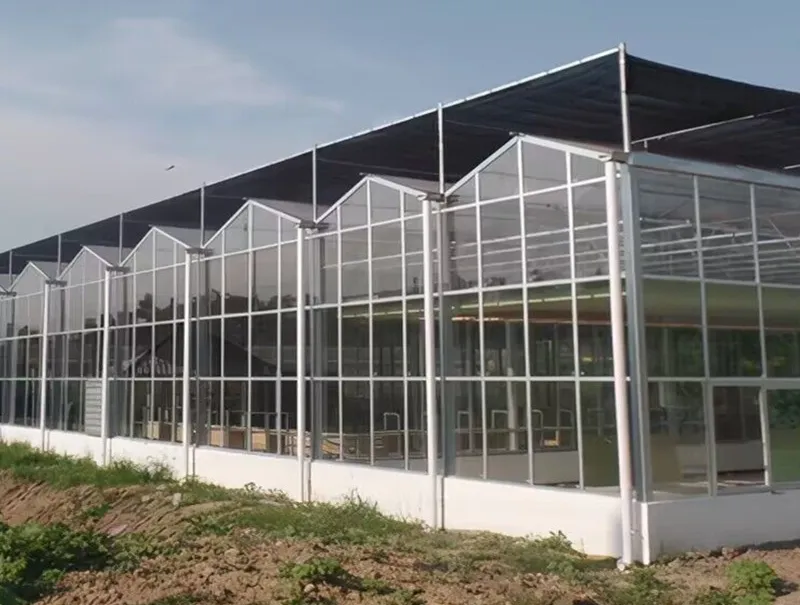

Outside Sunshade System: Adjusts light levels to improve the ecological environment. In summer, it blocks strong sunlight to protect crops from burning.

Sunshade System

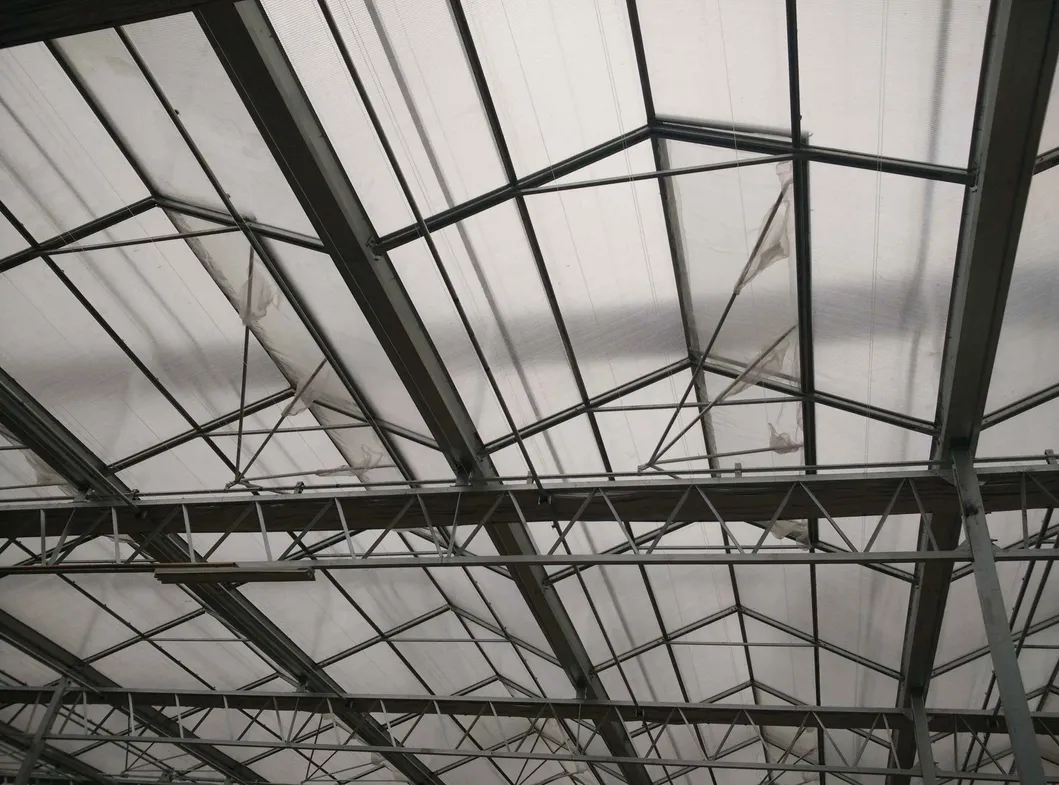

Roof Window

Electric Roof Window: Serrated skylights facilitate air circulation and adjust temperature and humidity efficiently.

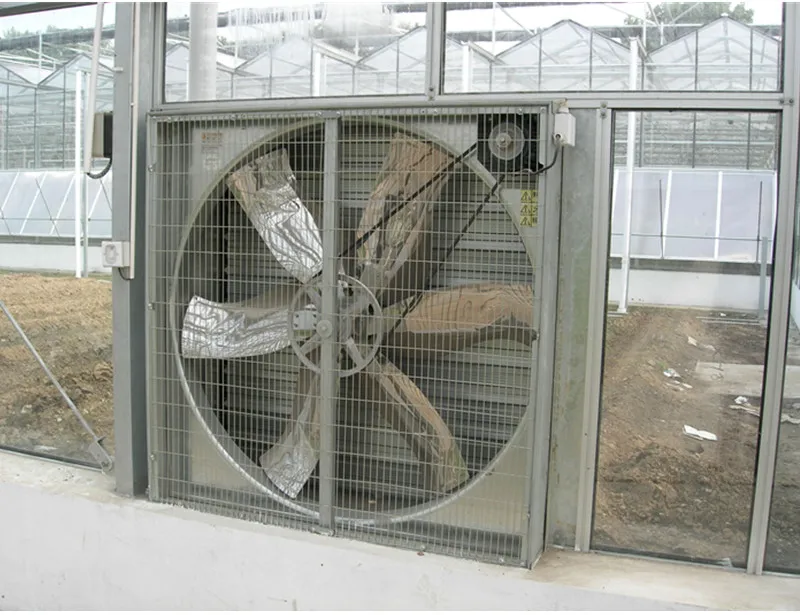

Forced Cooling System: Utilizes a wet curtain and fan system. It is the most effective way to reduce greenhouse temperature, capable of reaching a 10ºC reduction.

Cooling Fan

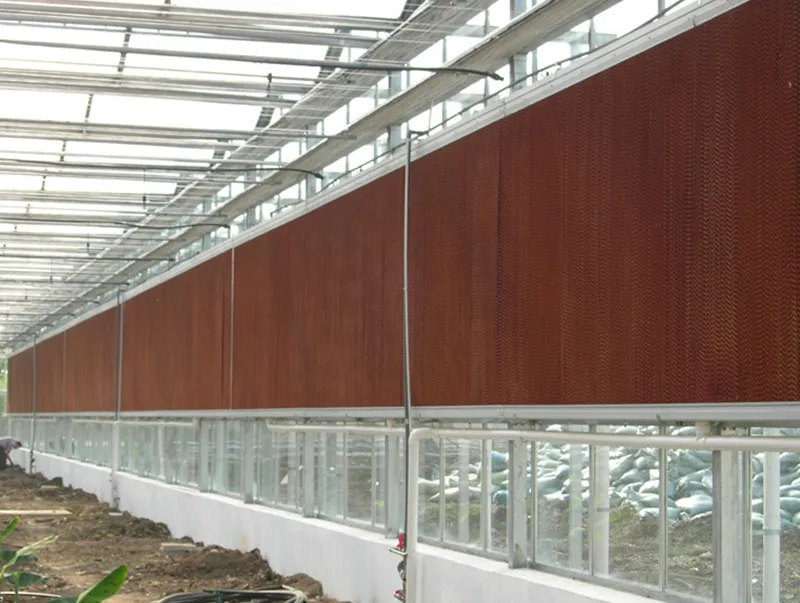

Wet Curtain
Power Distribution Parameters
NO. System Component Power Distribution Power (KW)
1Inner and outer sunshade motors380v 50Hz0.75
2Top sunroof motor380v 50Hz0.55
3Cooling Fan380v 50Hz1.1
4Wet curtain water pump380v 50Hz0.75
5Everted side window motor380v 50Hz0.75
🖼️
Applications & Integration

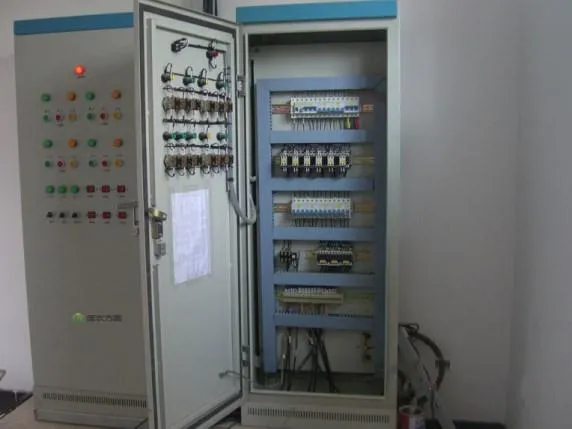

Control Box

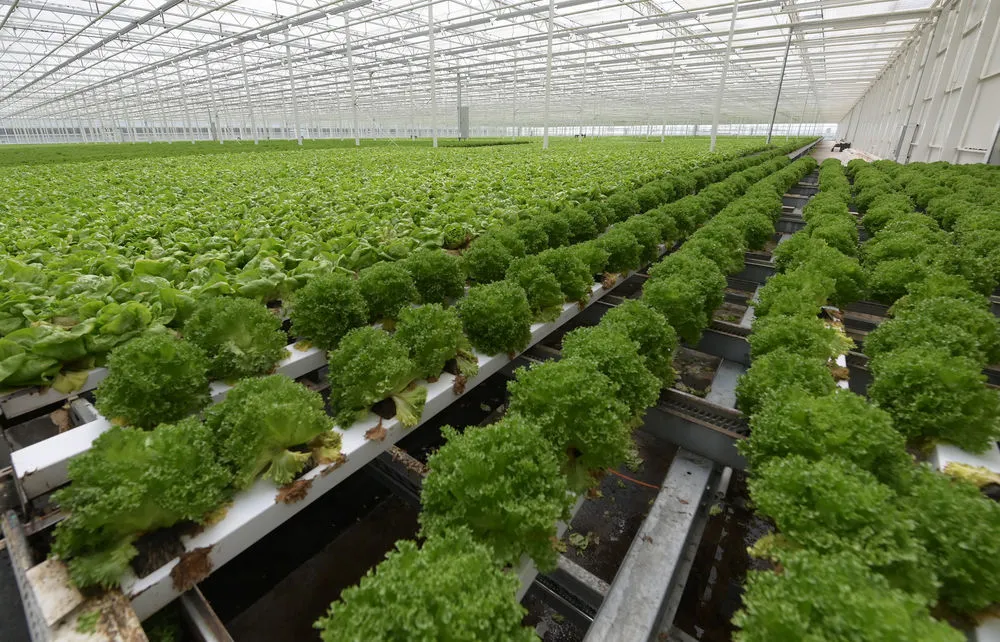

Hydroponics System

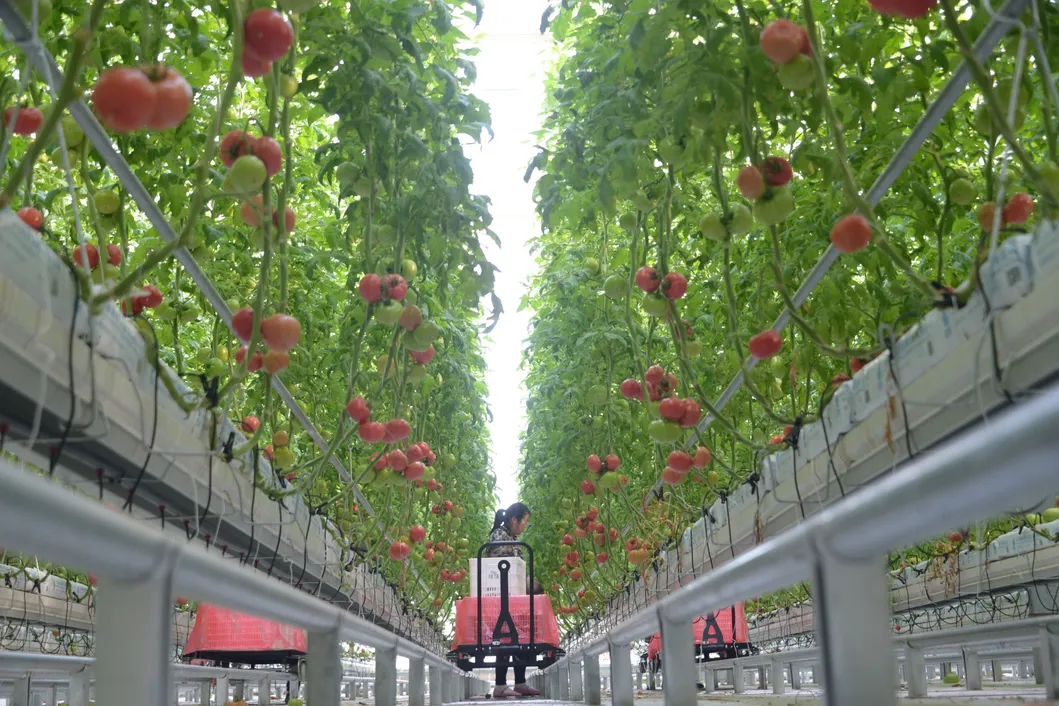

Irrigation System 1

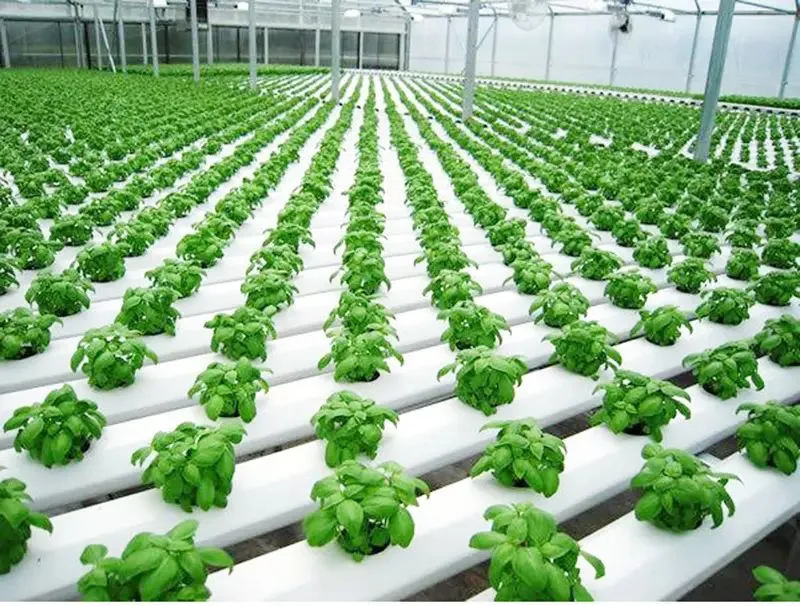

Irrigation System 2

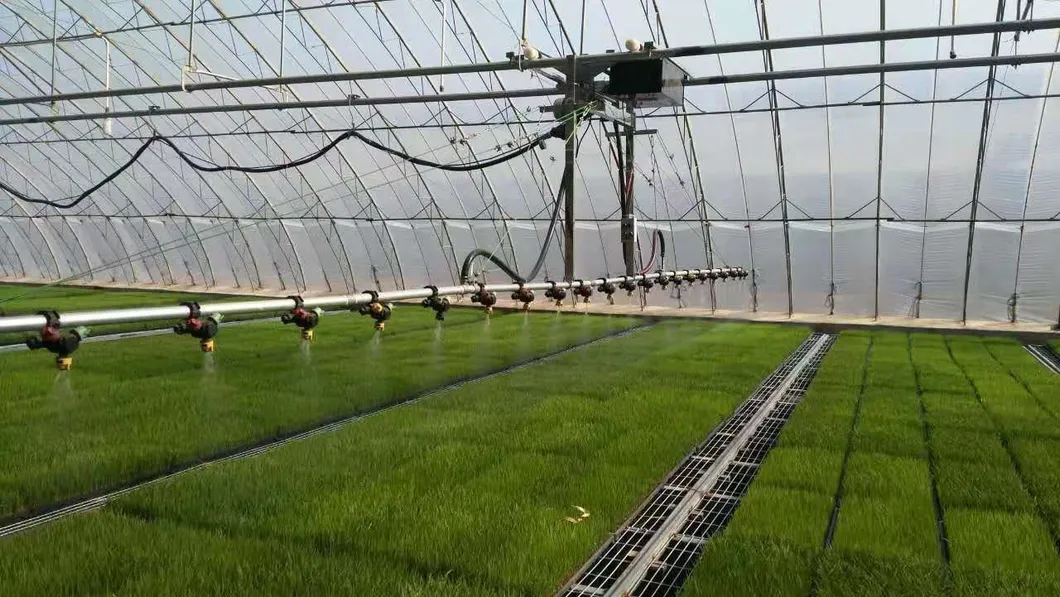

Sprinkling System
Main Products
Why Choose Us

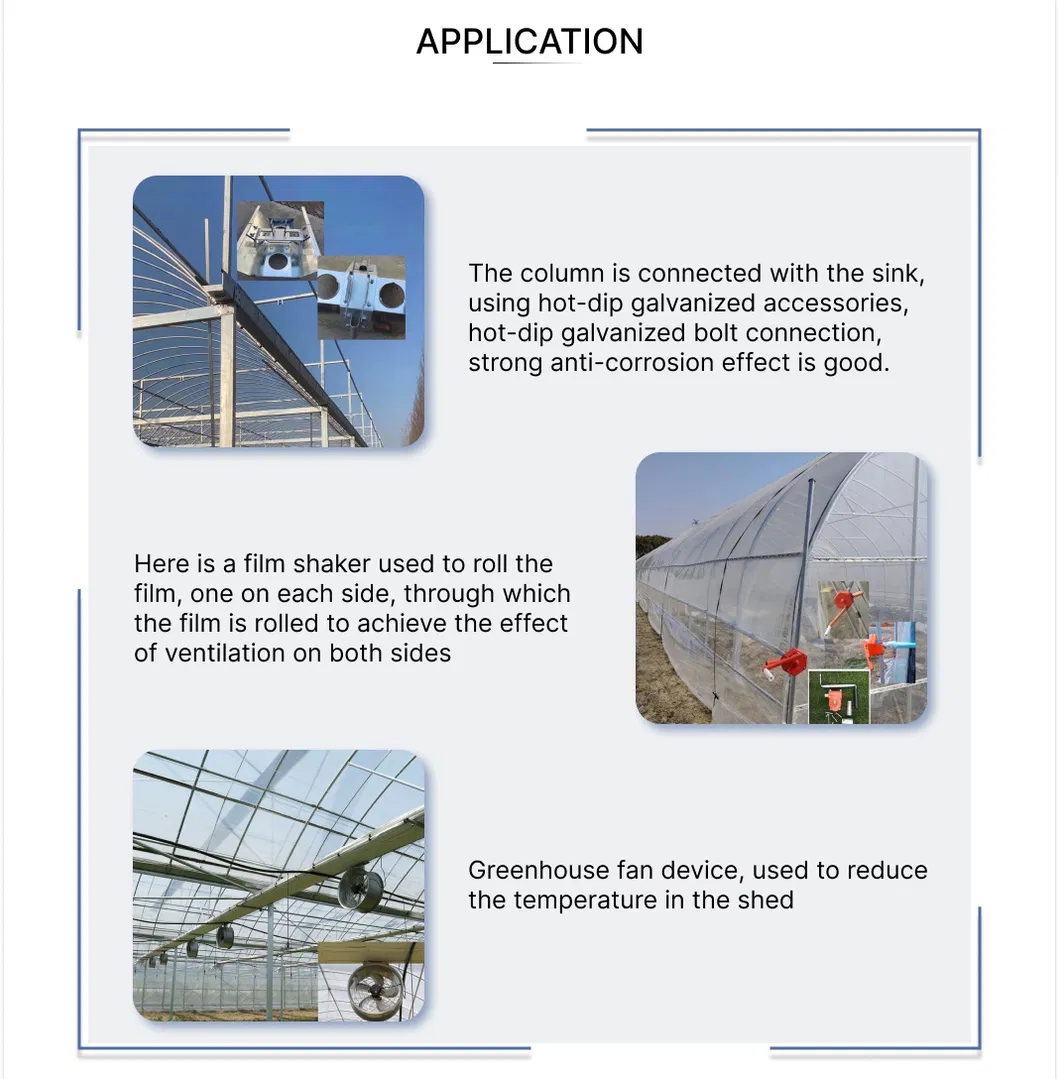

Application Scenarios
🏢
Industry Expertise

Specializing in the production of greenhouse and greenhouse components since 2005. Products are widely used in agricultural planting, scientific research, and leisure entertainment. With a reputation for quality, 90% of products are exported globally, serving end-users and distributors worldwide.

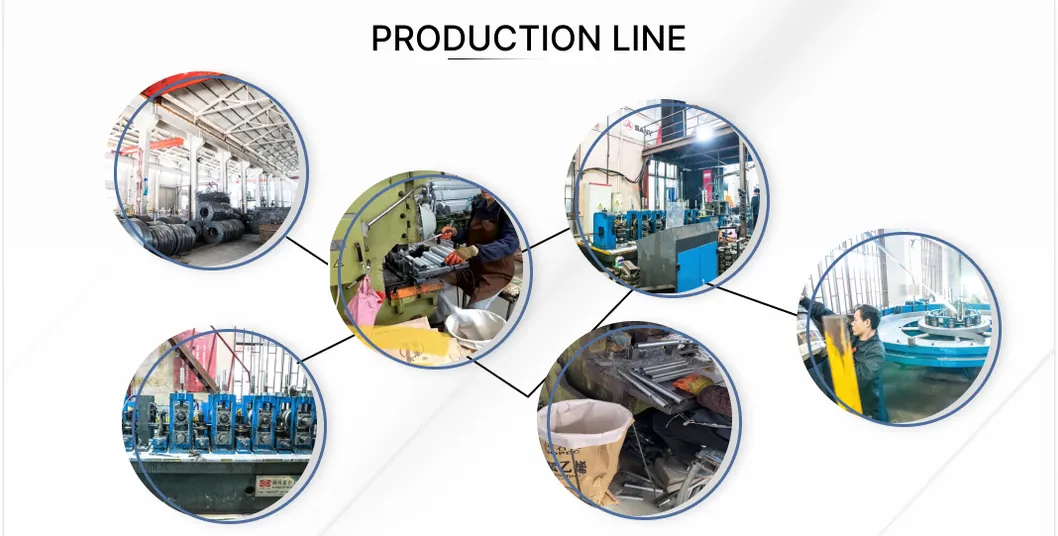

Factory Showcase

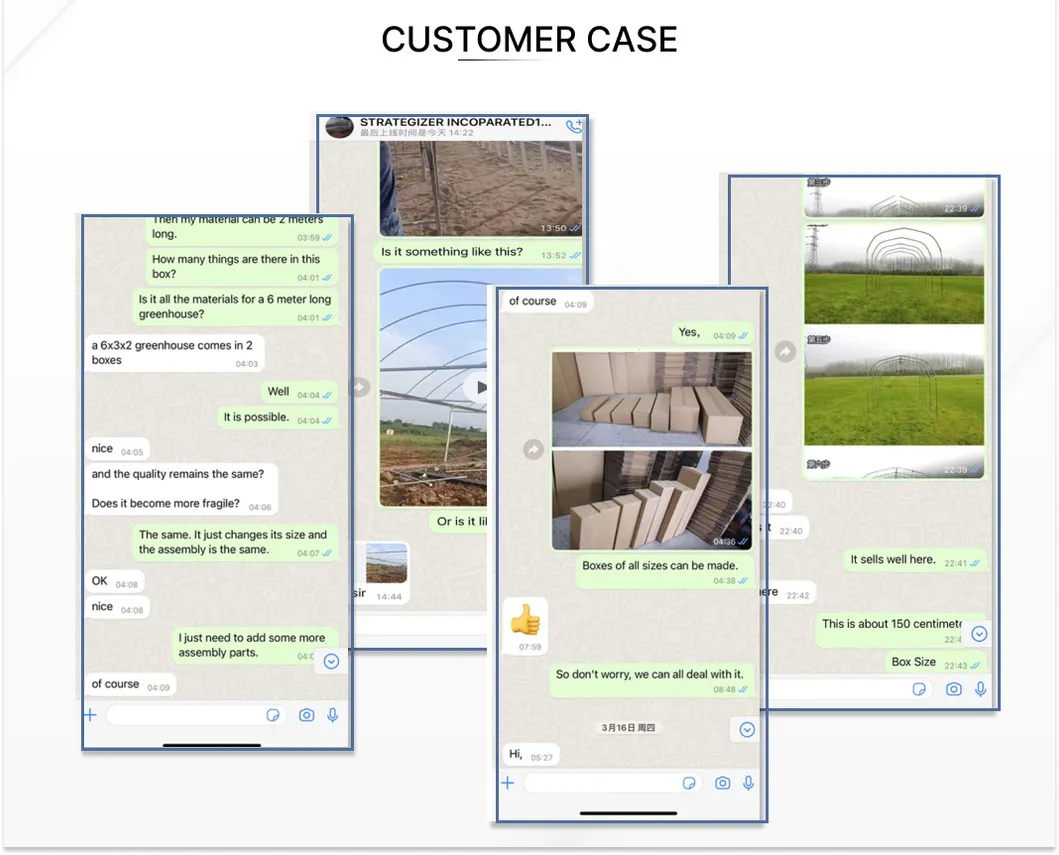

Quality Control
Frequently Asked Questions
What is the light transmittance of the glass greenhouse?
The greenhouse uses 5mm tempered glass or hollow glass, providing a light transmittance rate of over 90%, which does not decay over time.
How does the greenhouse handle extreme summer heat?
It utilizes a dual approach: an external sunshade system to block direct sunlight and a forced cooling system (wet curtain and fans) that can reduce temperatures by up to 10ºC.
Is the structure resistant to corrosion?
Yes, the entire skeleton is made from hot-dipped galvanized steel pipes and plates, ensuring high strength and strong corrosion resistance for a long service life.
What crops are suitable for this Venlo-style greenhouse?
It is ideal for high-yield vegetable production (like tomatoes, cucumbers, and peppers), flower cultivation, and seedling nurseries.
Are customization options available for the dimensions?
Absolutely. Spans can be 9.6m, 10.8m, or 12m, and gutter heights can range from 4m to 8m, all of which can be customized to meet specific agricultural needs.
How is the drainage system designed?

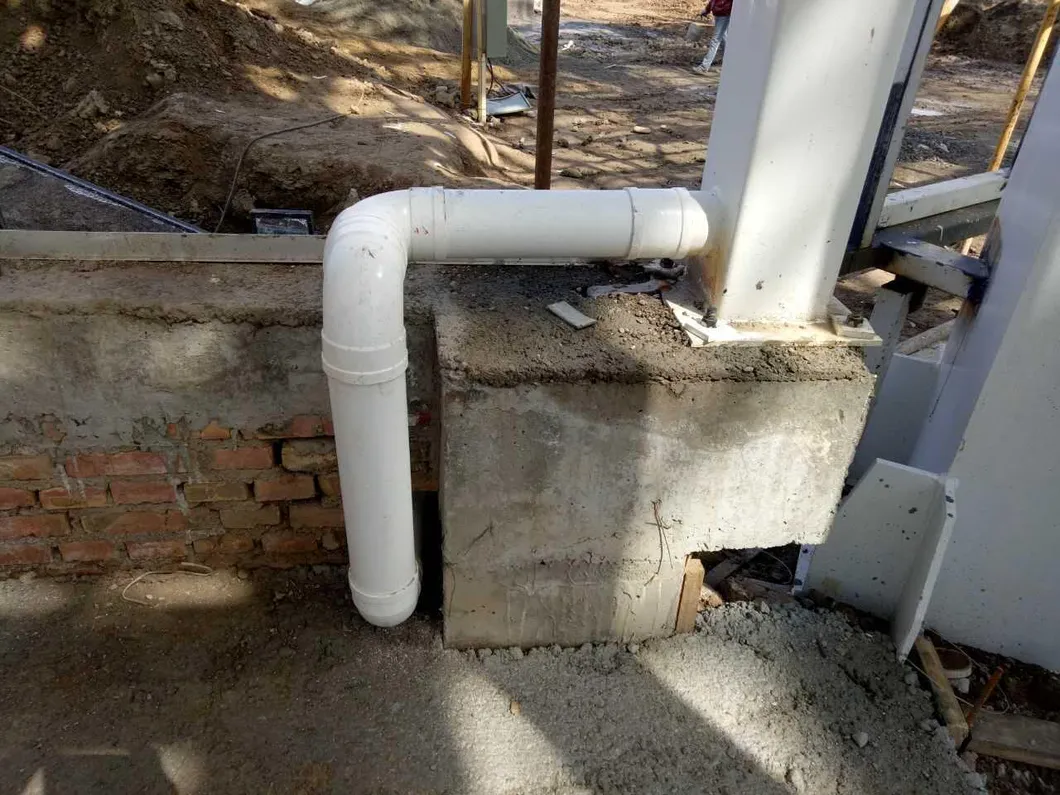

The roof features a slope of 2.5‰ with rain troughs. It uses an indoor drainage form where PVC pipes lead water through columns into underground drainage official networks.
