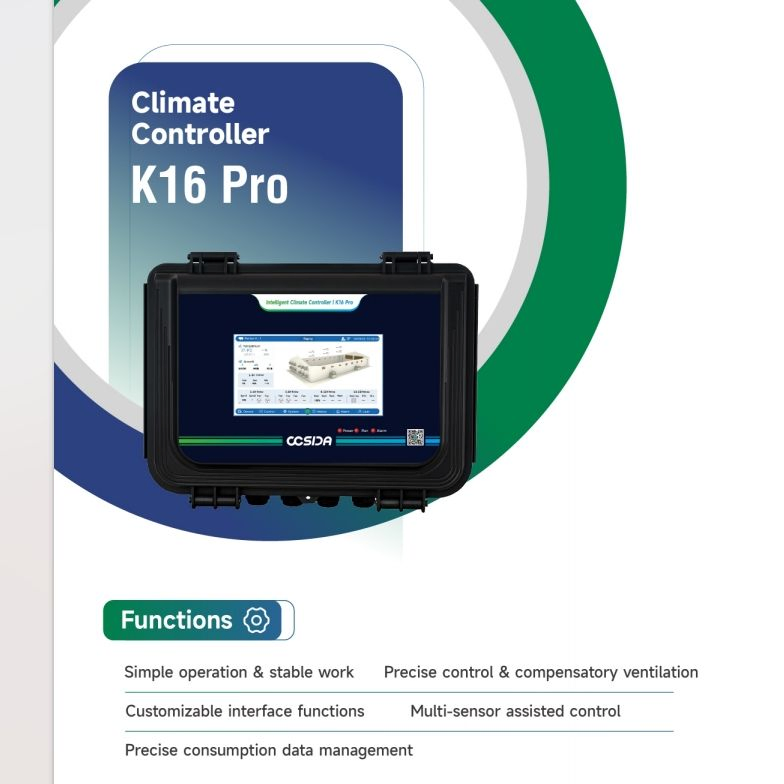

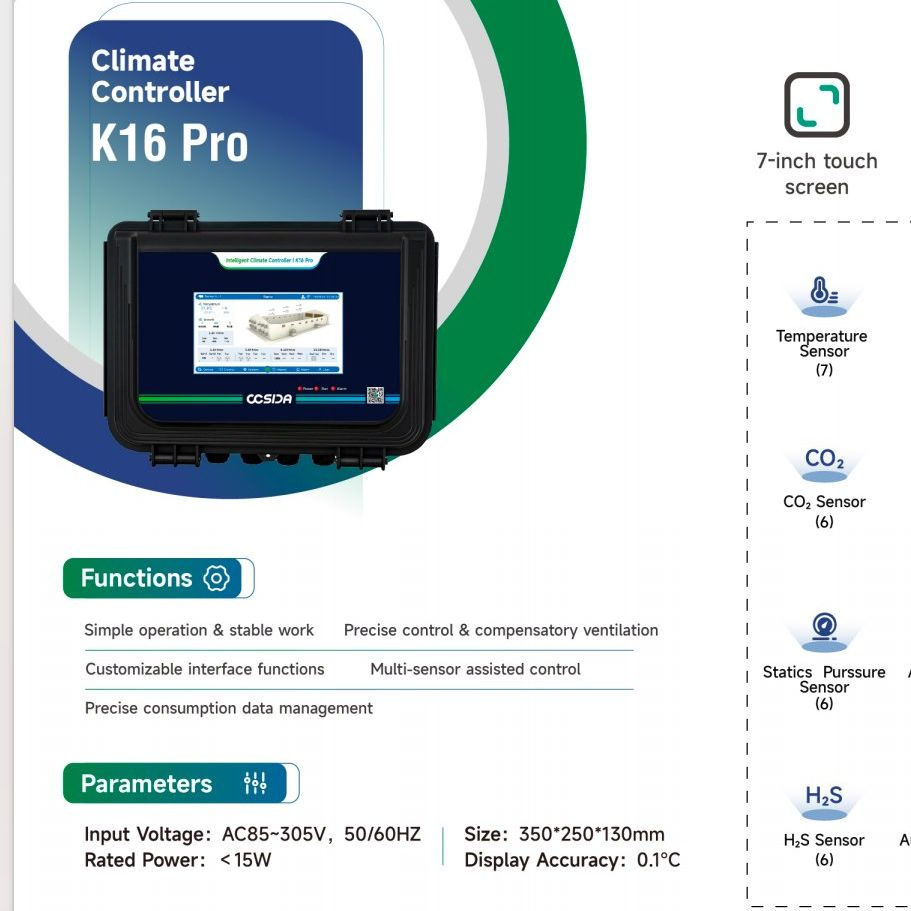

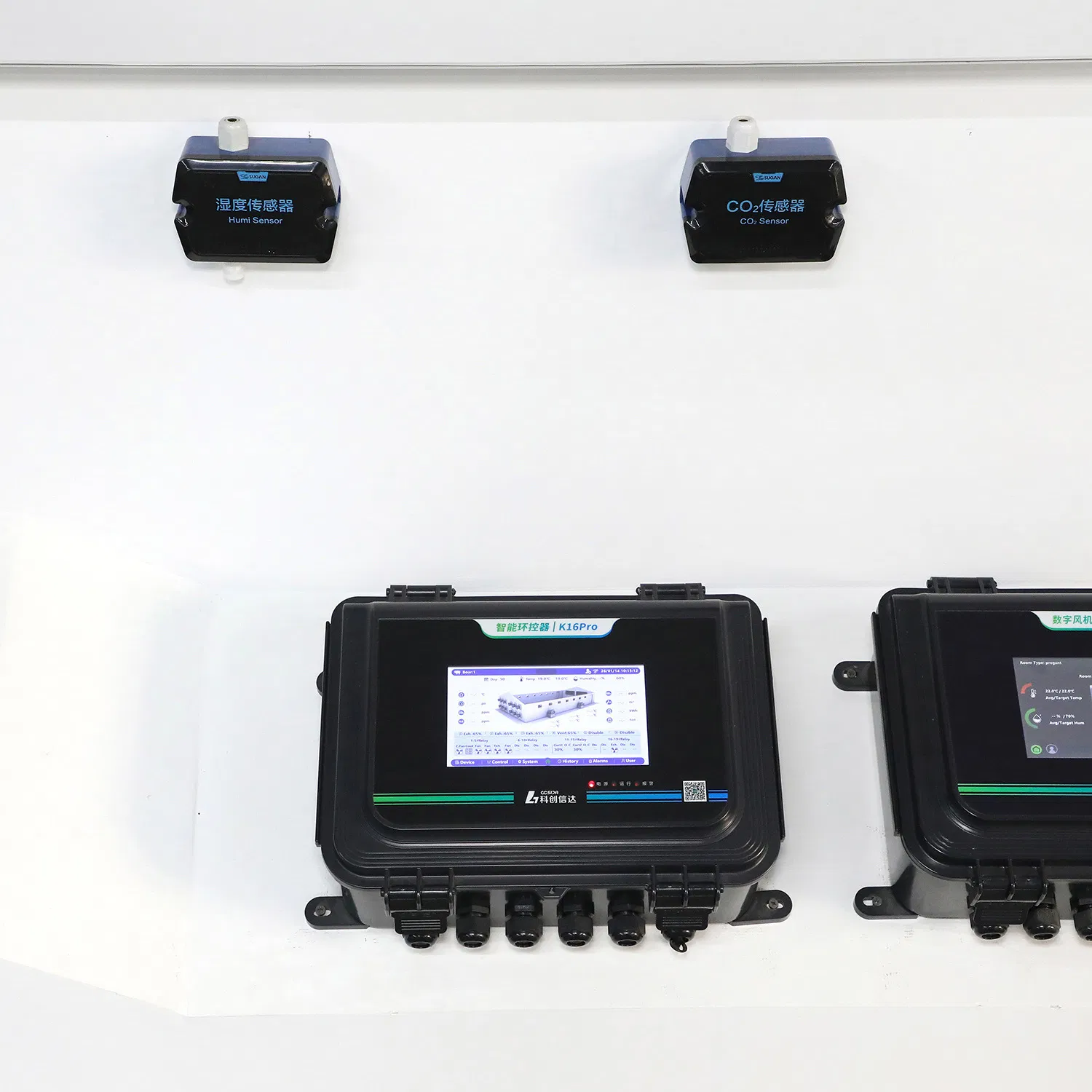

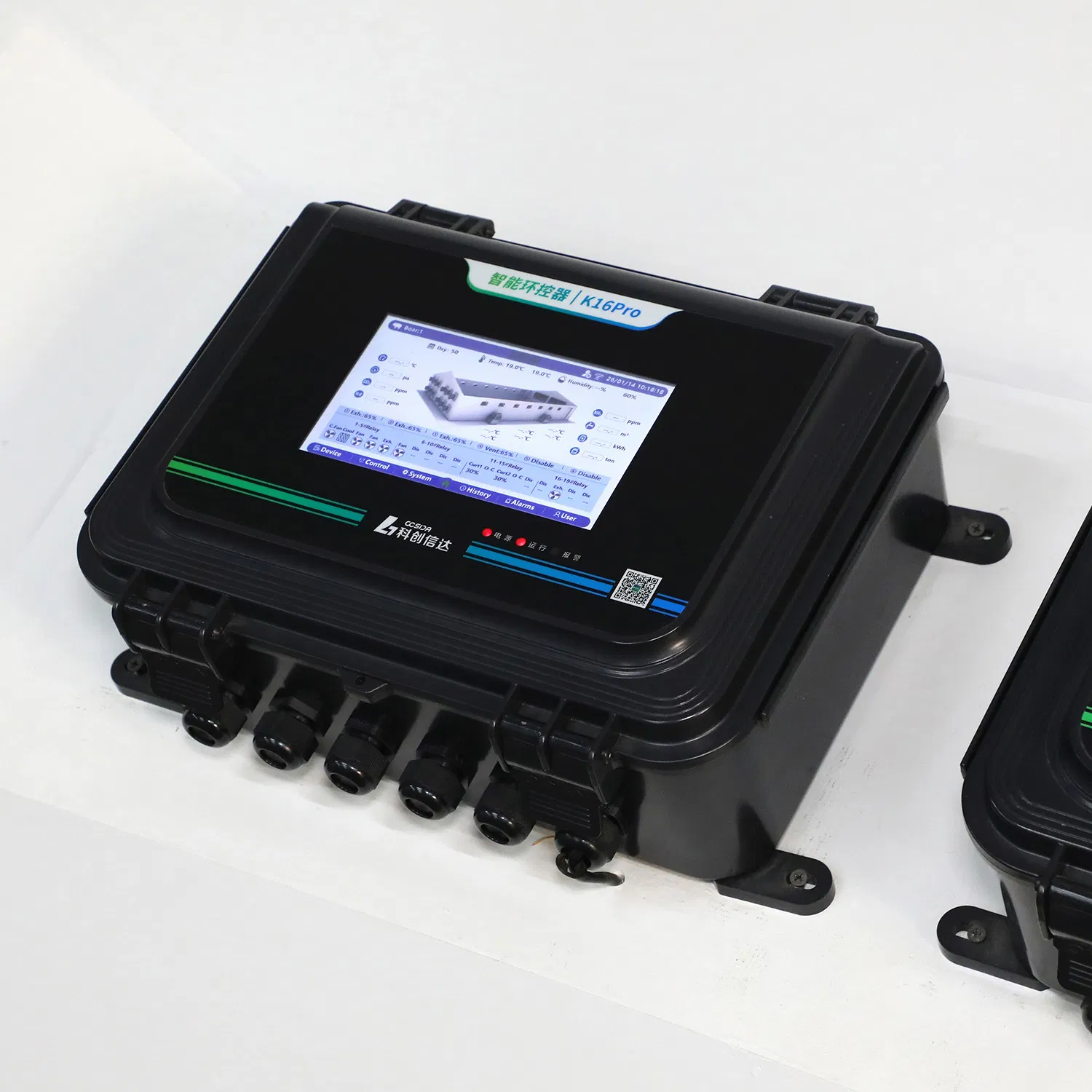

K16 PRO Multi-Sensor Assisted Climate Control System for Large Breeding Barns

Still deciding? Get samples of $ !
Order Sample

Product Description

📊

Product Overview

Model:K16Pro
Type:Climate Control, Breeding
Material:PVC
Display:7 Inch Touch Screen
Rated Voltage:AC85-305V, 50/60Hz
Rated Power:<25W
Control Method:Remote & Onsite Control
Accuracy:0.1 °C

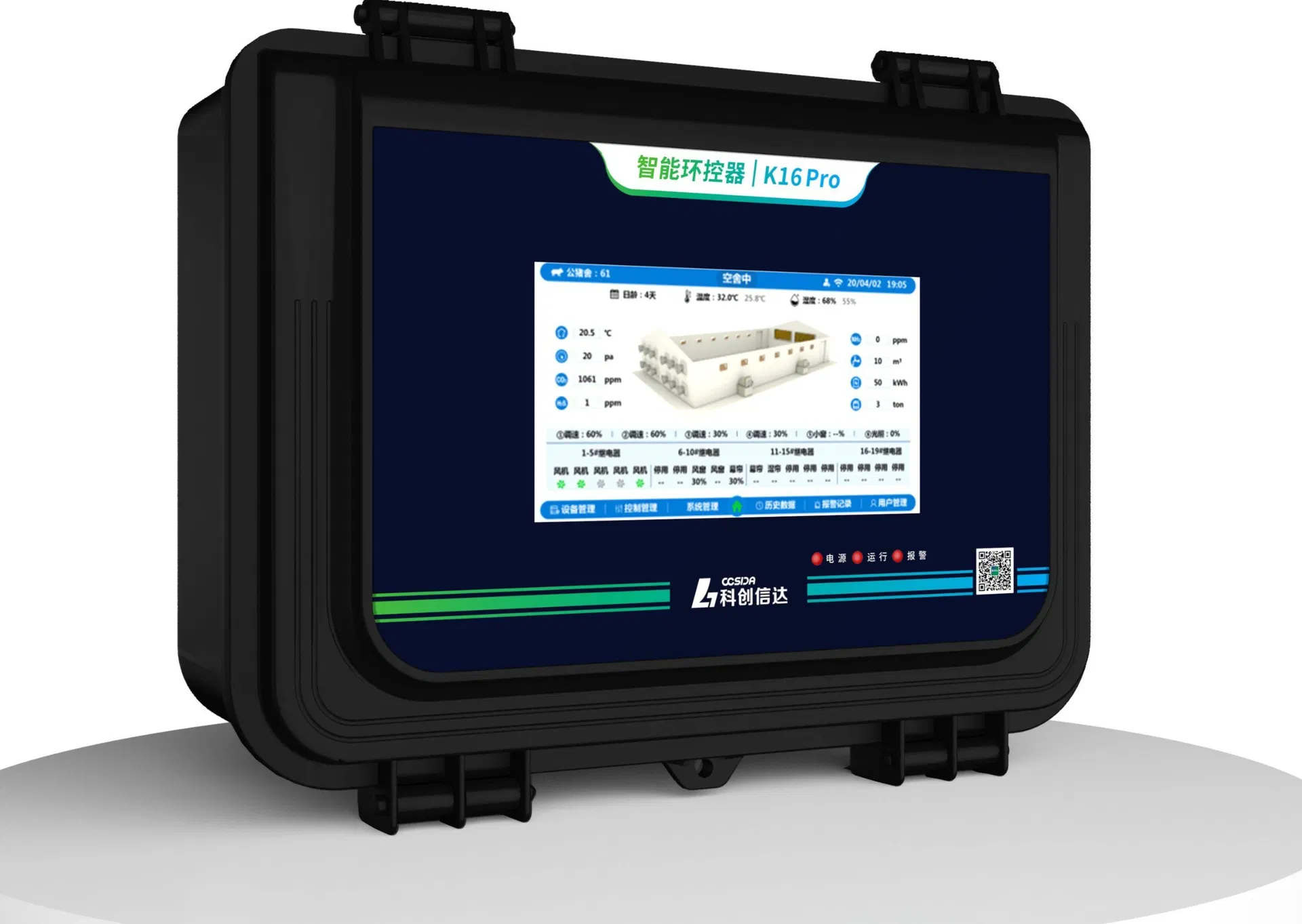

K16 PRO Climate Control System
💡

Advanced IoT Climate Controller

K16PRO Super Brain for Modern Precision Swine Farming

Comprehensive Monitoring: Tracks H2S (Hydrogen Sulfide) and Static Pressure, critical for livestock health and ventilation efficiency.
Production Management: Integrated tracking of water and feed consumption for refined data-driven management.
High Scalability: Equipped with 20 relay outputs to manage complex and large-scale facilities.

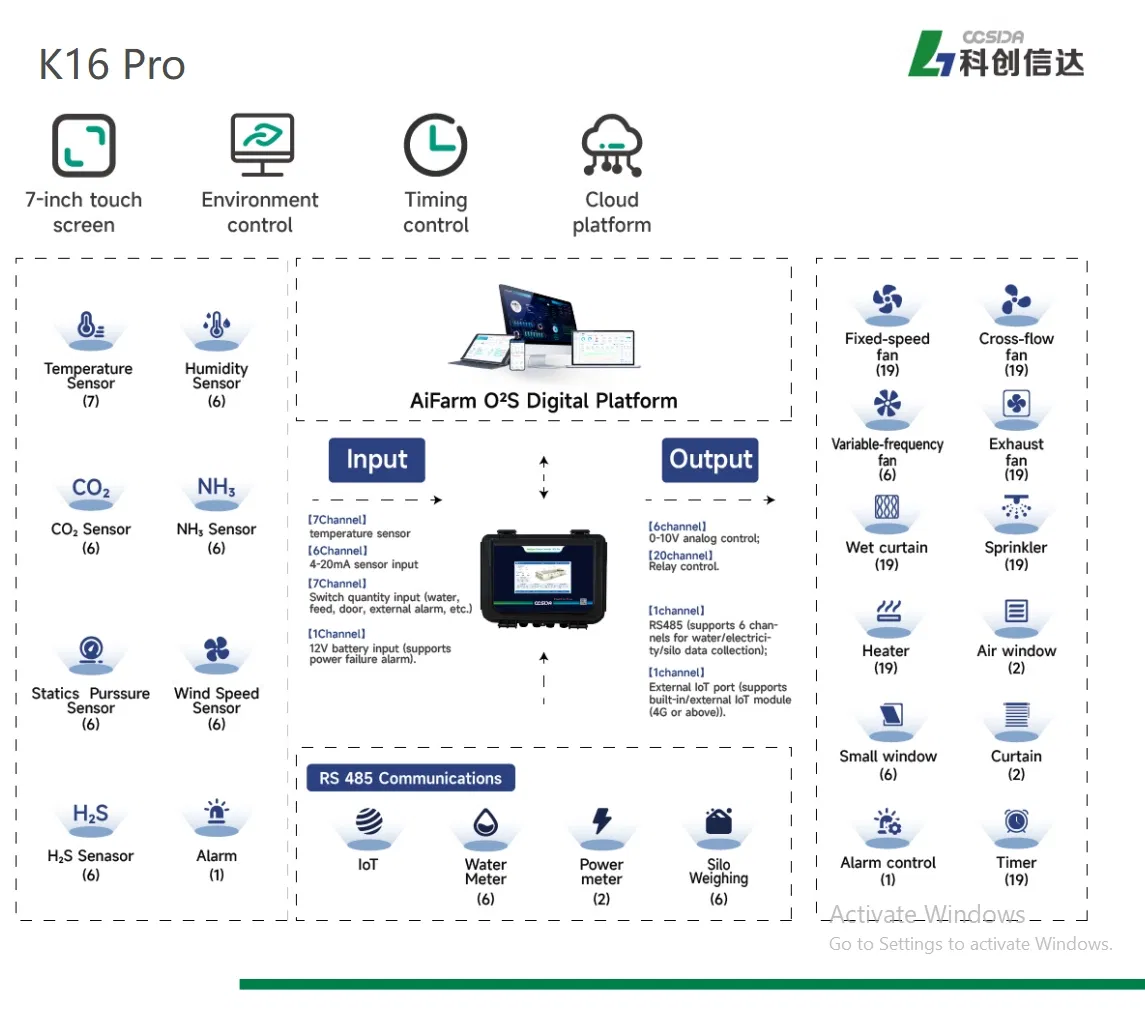

System Structure
Interface Control
⚙️

Interface Configuration

Input Section

  • • 7 channels for high-precision temperature sensors.
  • • 6 channels (4-20mA) for Humidity, CO2, NH3, H2S, and Static Pressure.
  • • Pulse measurement for water and material quantity.

Output & Communication

  • • 6 channels (0-10V) for variable frequency fans and vents.
  • • 20 Relay channels for fans, pumps, heaters, and alarms.
  • • 3 channels 485 communication for IoT expansion.
📋

Detailed Specifications

Specification Chart
Model #K16 ProDisplay7 Inch Touch Screen
Rated Power<25WRelay Output20 Channels
Min. VentilationYesDisplay Accuracy0.1 °C
Rated VoltageAC85-305V, 50/60HzLife SpanAbove 10 Years
Dimensions350*250*130mmCertificationsCE & ISO9001:2015
📦

Packaging & After-Sales

Package Size:35.00cm * 25.00cm * 20.00cm
Gross Weight:5.000kg

Warranty: 12 months free repair for normal usage failures.

Support: Professional installation guidance, remote diagnosis, and operation training.

Spare Parts: Long-term supply of sensors, relays, and touch screens.

Facility Image 1
Facility Image 2
Facility Image 3
Workshop
Production Line
Testing Area

Frequently Asked Questions

What are the primary functions of the K16Pro controller?
The K16Pro is an advanced IoT climate controller designed for precision swine farming. It manages temperature, humidity, ventilation, and monitors critical gases like H2S and CO2, while also tracking water and feed consumption.
How many sensors can be connected to the system?
It supports 7 high-precision temperature sensors and 6 channels of 4-20mA analog sensors for monitoring CO2, ammonia, hydrogen sulfide, and static pressure.
Is the system compatible with remote monitoring?
Yes, the system features both onsite touch screen control and remote control capabilities, supported by RS485 communication interfaces for Internet of Things (IoT) expansion.
What kind of output control does it provide?
It offers 20 relay outputs for constant speed fans, pumps, heaters, and curtains, along with 6 channels of 0-10V analog outputs for variable frequency fans and vents.
How does the K16Pro ensure animal welfare?
By precisely monitoring toxic gas levels (NH3, H2S) and maintaining optimal static pressure and temperature, it creates a stable environment that reduces livestock stress and improves growth rates.
What is the lifespan and power requirement of the unit?
The K16Pro is designed for a lifespan of over 10 years, operating on a rated voltage of AC85-305V with a low power consumption of less than 25W.
