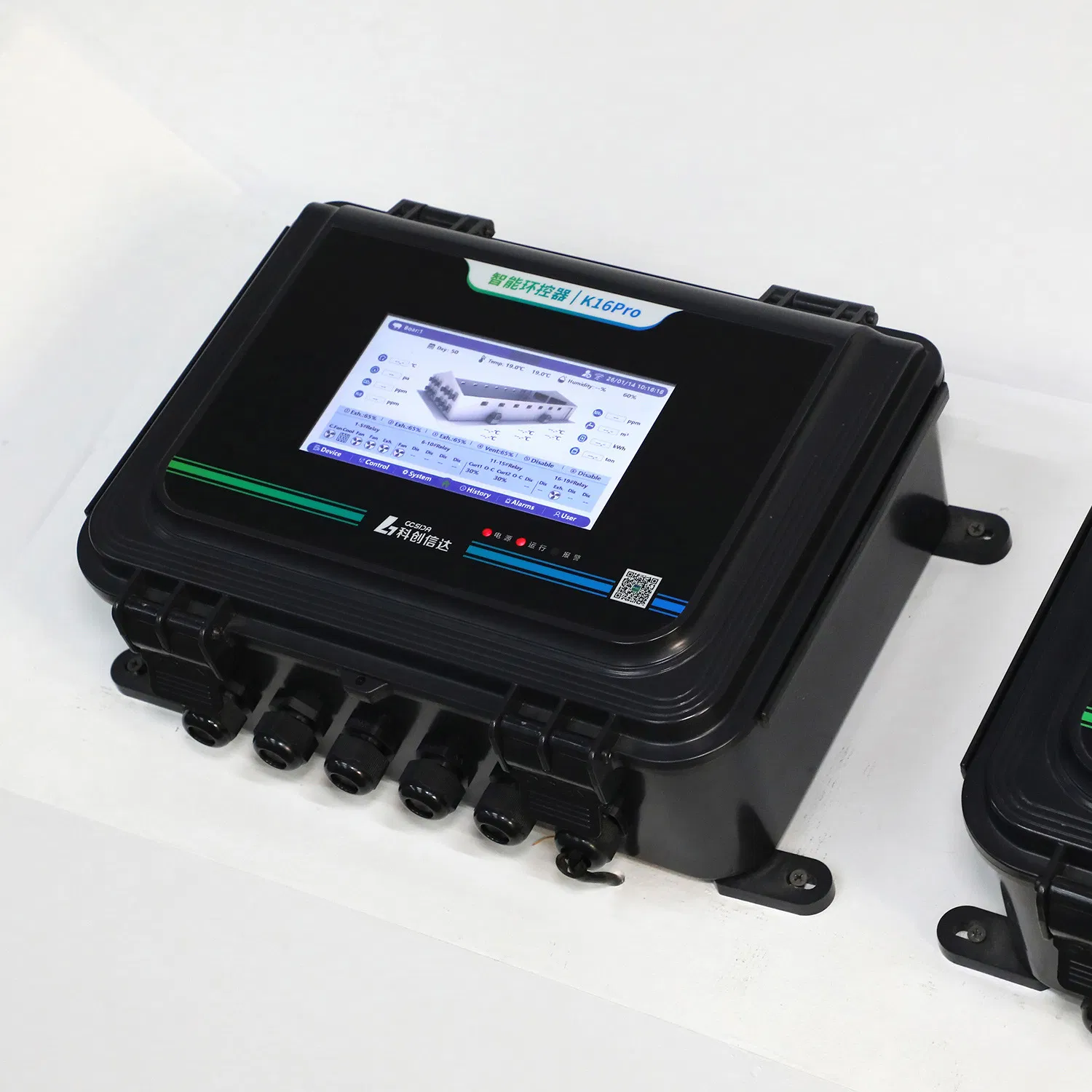

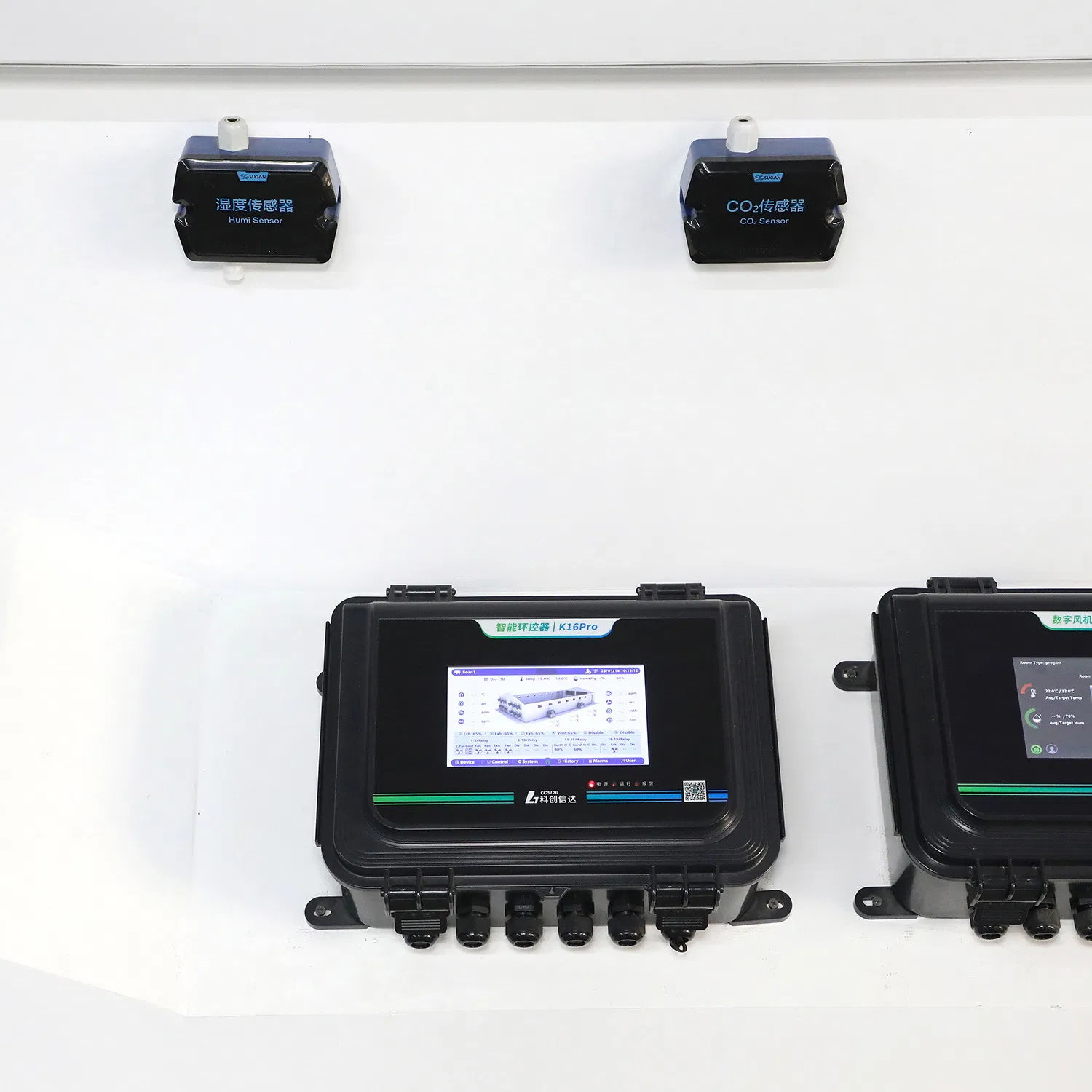

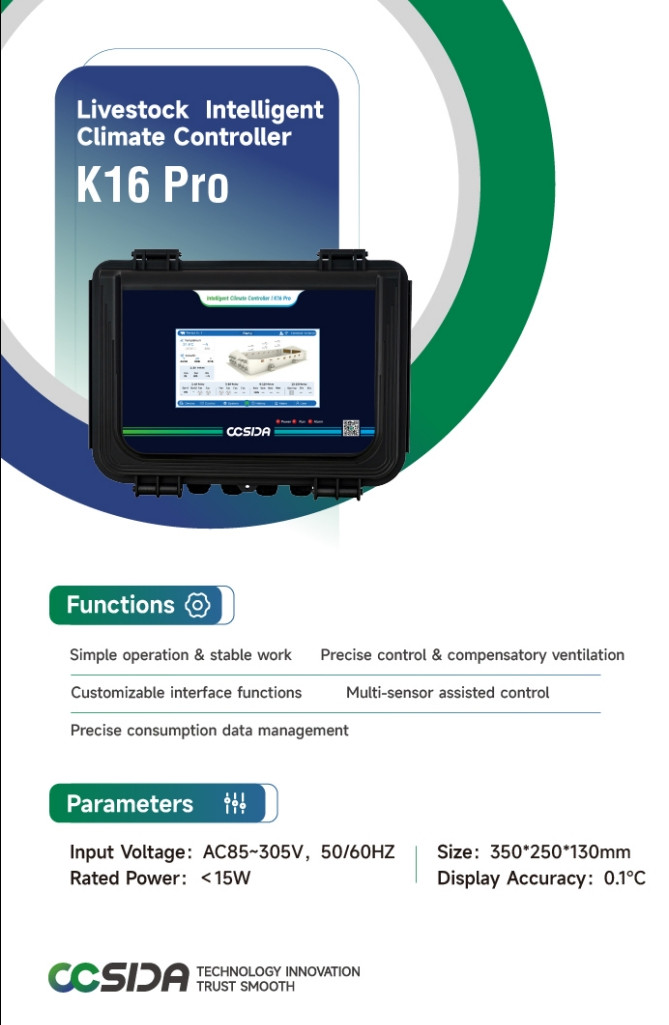

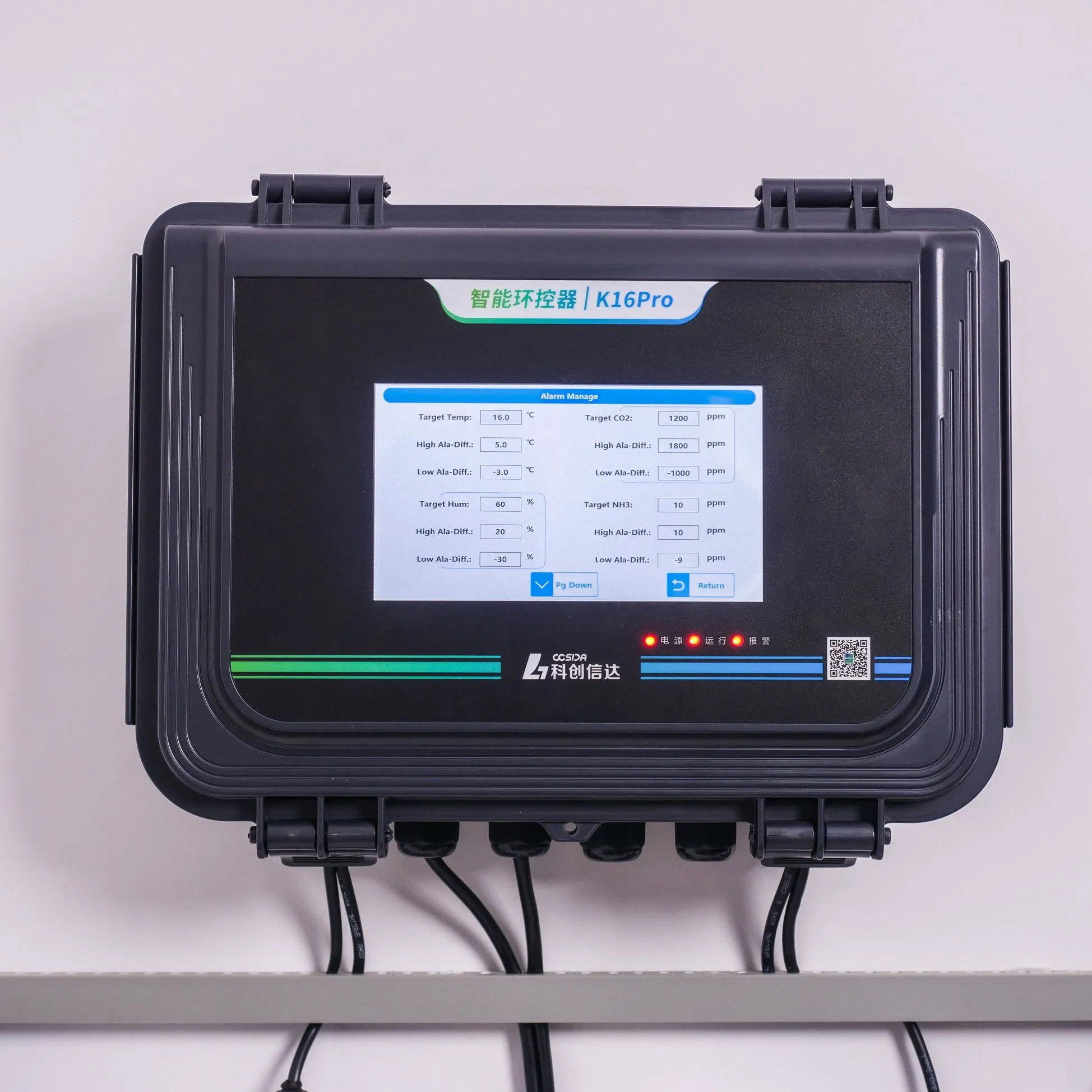

Ccsda K16 PRO Smart Central Control System for Large Scale Modern Farm
Ccsda K16 PRO Smart Central Control System for Large Scale Modern Farm
Ccsda K16 PRO Smart Central Control System for Large Scale Modern Farm
Ccsda K16 PRO Smart Central Control System for Large Scale Modern Farm
Ccsda K16 PRO Smart Central Control System for Large Scale Modern Farm
1 / 5
Ccsda K16 PRO Smart Central Control System for Large Scale Modern Farm
Ccsda K16 PRO Smart Central Control System for Large Scale Modern Farm
Ccsda K16 PRO Smart Central Control System for Large Scale Modern Farm
Ccsda K16 PRO Smart Central Control System for Large Scale Modern Farm
Ccsda K16 PRO Smart Central Control System for Large Scale Modern Farm

Ccsda K16 PRO Smart Central Control System for Large Scale Modern Farm

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Technical Overview
Model NO. K16Pro
Type Climate Control / Breeding
Material PVC
Tiers 4 Tiers
Display 7 Inch Touch Screen
Rated Voltage AC85-305V, 50/60Hz
Control Method Remote & Onsite
Accuracy 0.1 °C
Product Description

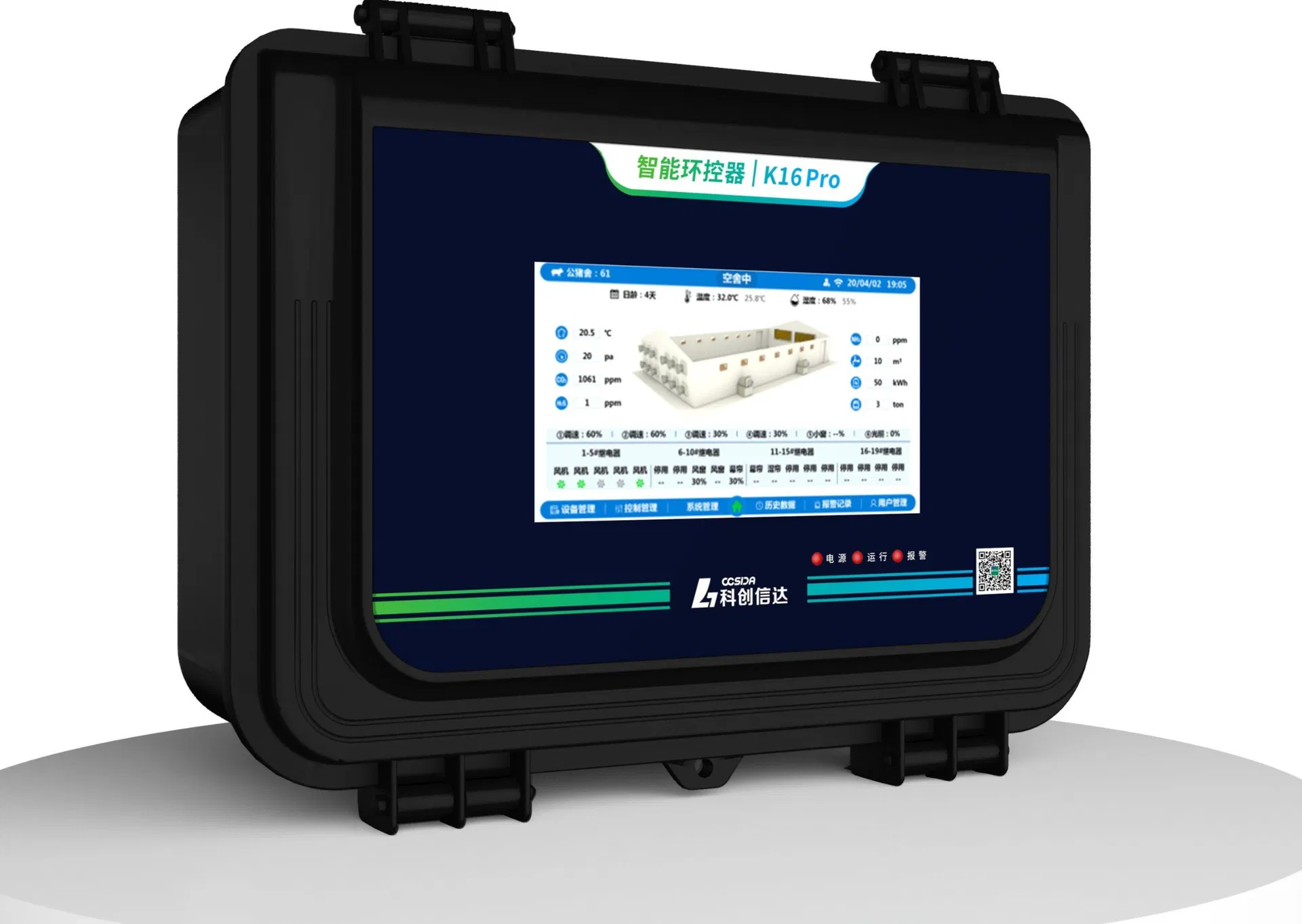

Smart Central Control System

K16PRO Climate Controller for Modern Precision Swine Farming

Super Brain Advanced IoT Solution

Comprehensive Monitoring
Monitors H2S (Hydrogen Sulfide) and Static Pressure, critical for health and efficient ventilation.
Production Management
Tracks water and feed consumption to provide a refined view of production data.

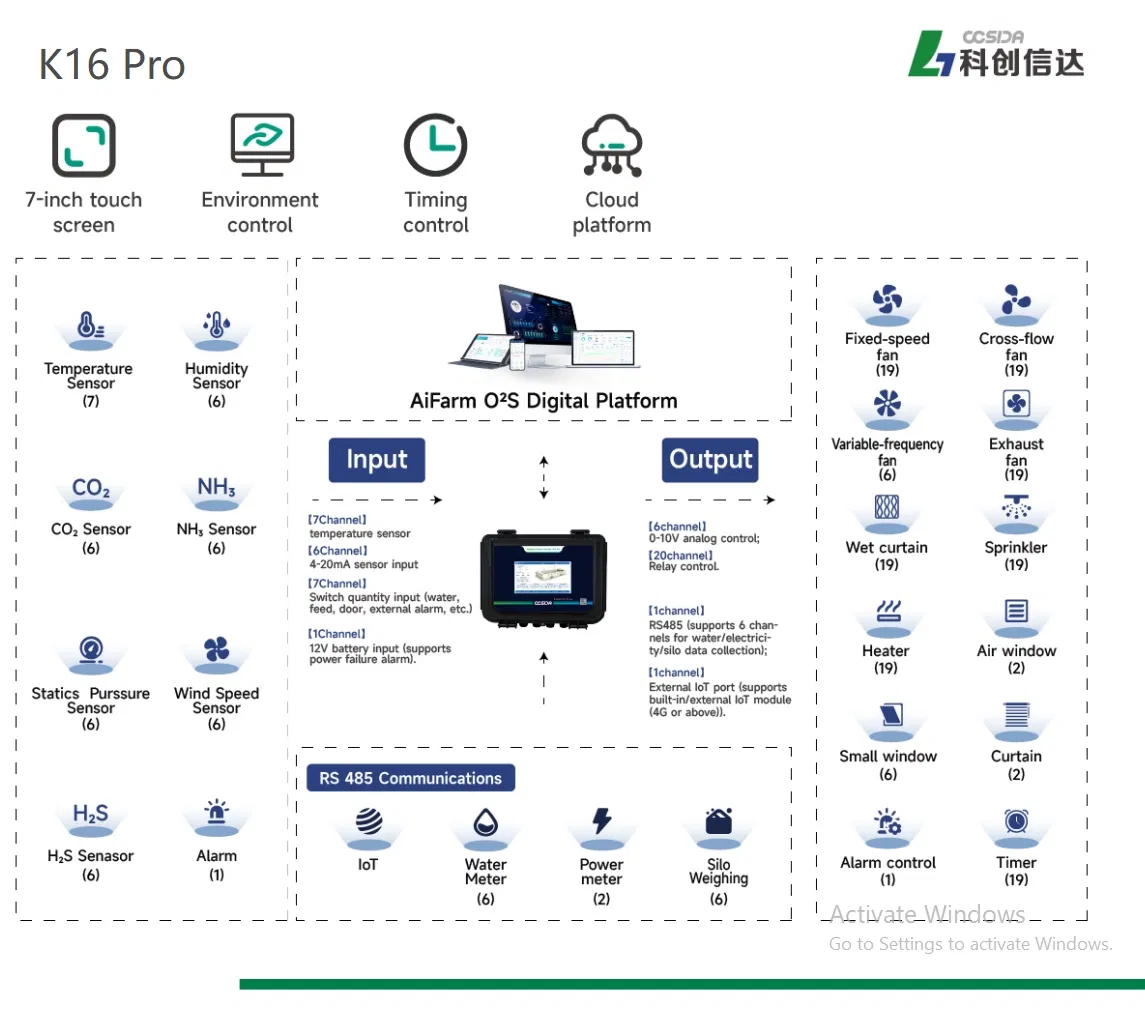

Control System Interface

Input Section

• 7 channels: High-precision temp sensors

• 6 channels: 4-20mA (Humidity, CO2, NH3, H2S, etc.)

• 7 channels: Switch/Pulse (Water, Material, Alarms)

Output & Comm

• 6 channels: 0-10V analog for frequency fans

• 20 channels: Relays (Heaters, Pumps, Curtains)

• 3 channels: 485 Interface for IoT expansion

Technical Specifications
Internal Layout
Dimensions
Parameter Details Parameter Details
Model K16 Pro Display 7 Inch Touch Screen
Rated Power <25W Relay Output 20 Channels
Rated Voltage AC85-305V, 50/60Hz Display Accuracy 0.1 °C
Dimensions 350*250*130mm HS Code 8436290000
Life Span Above 10 Years Weight 5.00kg
Facility Integration
Factory View

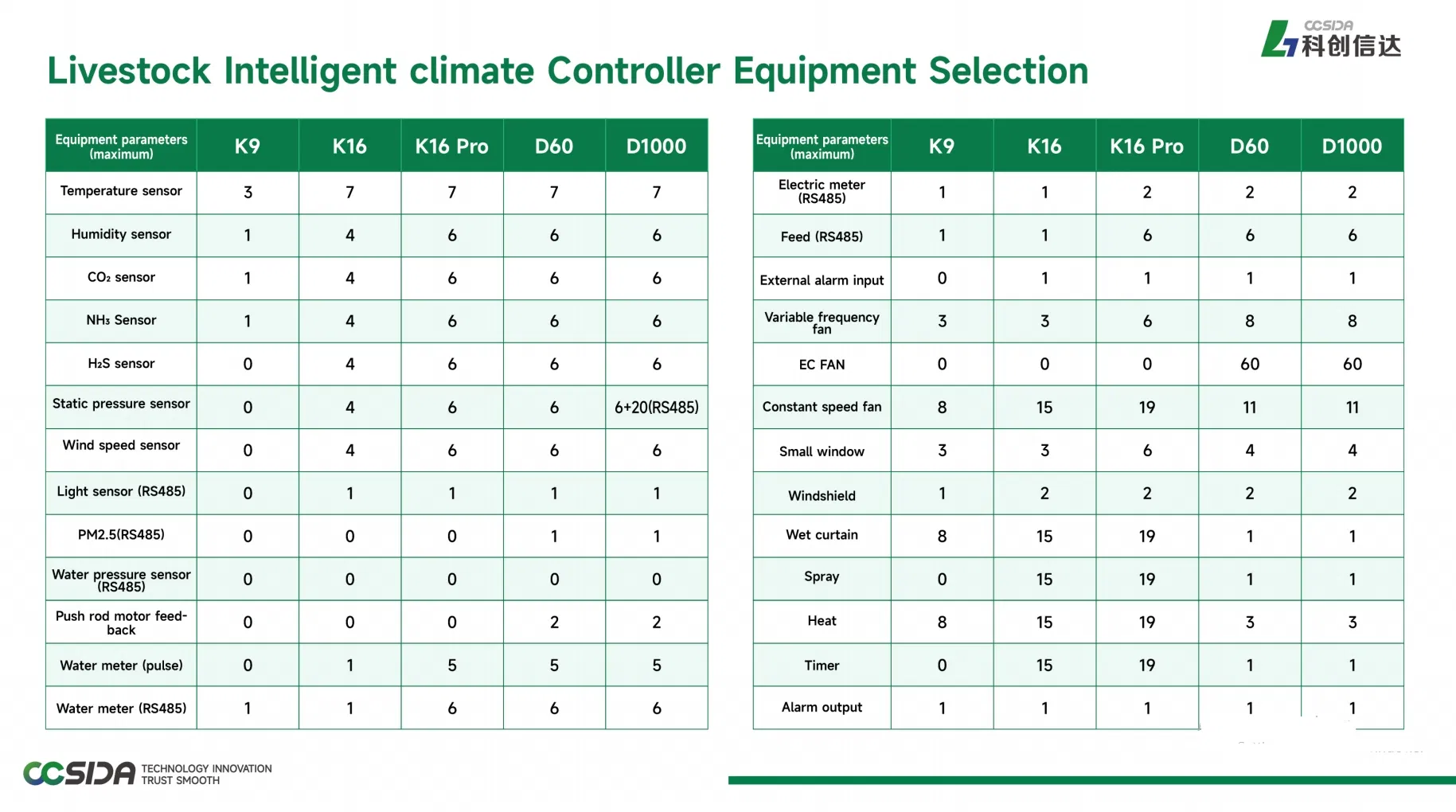

System Wiring
Module 1
Module 2
Module 3
Warranty
12 months base on barcode. Free repair for standard use failures.
Technical Support
Professional guidance, operation training, and remote diagnosis available.
Spare Parts
Long-term supply of sensors, relays, and touch screens.
Application Scenarios

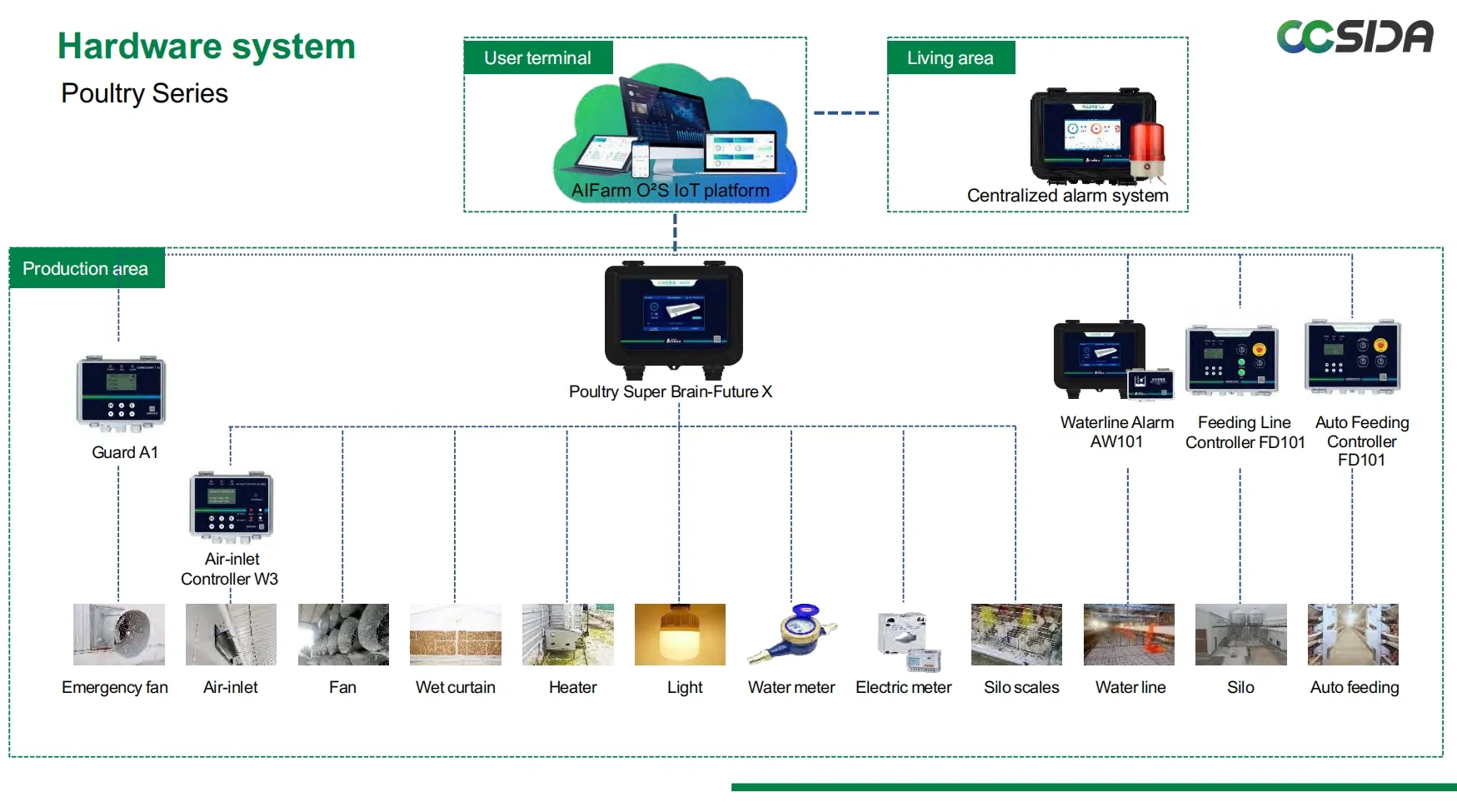

Farm Installation 1

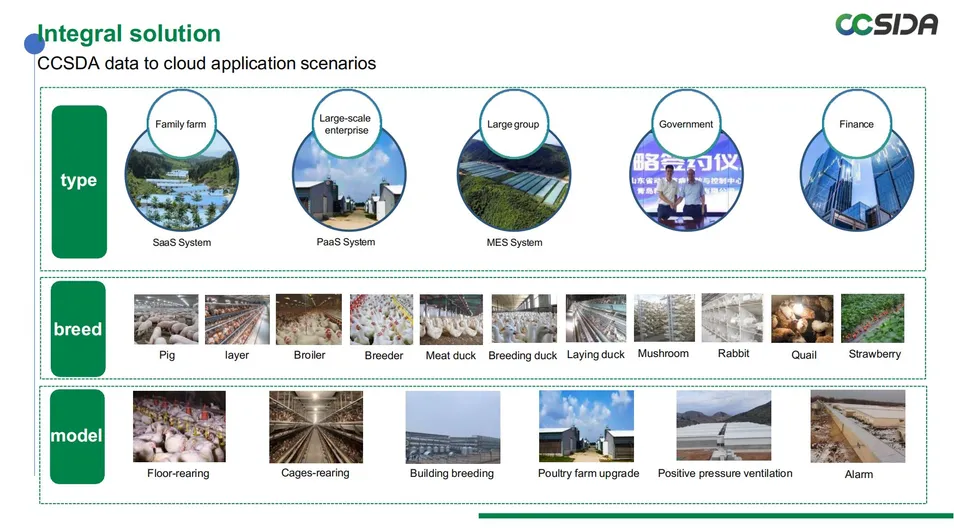

Farm Installation 2

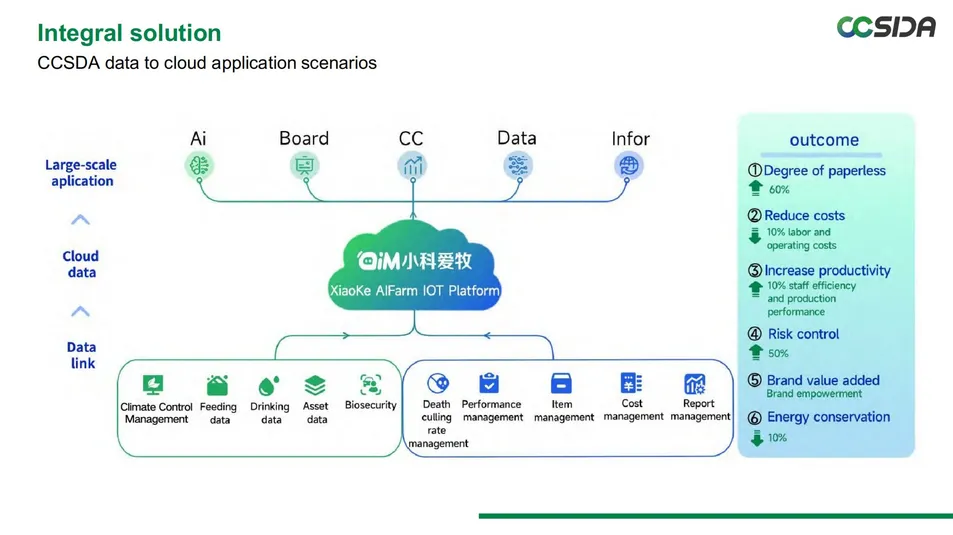

Farm Installation 3
Controller Detail 1
Controller Detail 2
Controller Detail 3
Frequently Asked Questions
Q1: What environments is the K16Pro suitable for?
The K16Pro is designed specifically for large-scale modern swine farming and precision breeding facilities that require strict climate control.
Q2: Which gas levels can the system monitor?
Unlike standard controllers, the K16Pro can monitor H2S (Hydrogen Sulfide), NH3 (Ammonia), and CO2 levels using high-precision 4-20mA signal sensors.
Q3: How many devices can be controlled via the relay outputs?
The system features 20 relay output channels, which can be configured to manage constant speed fans, heaters, water pumps, curtains, and alarms.
Q4: Does the K16Pro support remote operation?
Yes, it supports both onsite control via the 7-inch touch screen and remote control functionality for efficient facility management.
Q5: Can it track consumption data for resources?
Yes, it tracks both water and feed consumption data, allowing managers to optimize production efficiency based on real-time usage.
Q6: What is the warranty and lifespan of the equipment?
The product comes with a 12-month warranty and is designed with high-quality components for a service life exceeding 10 years.
