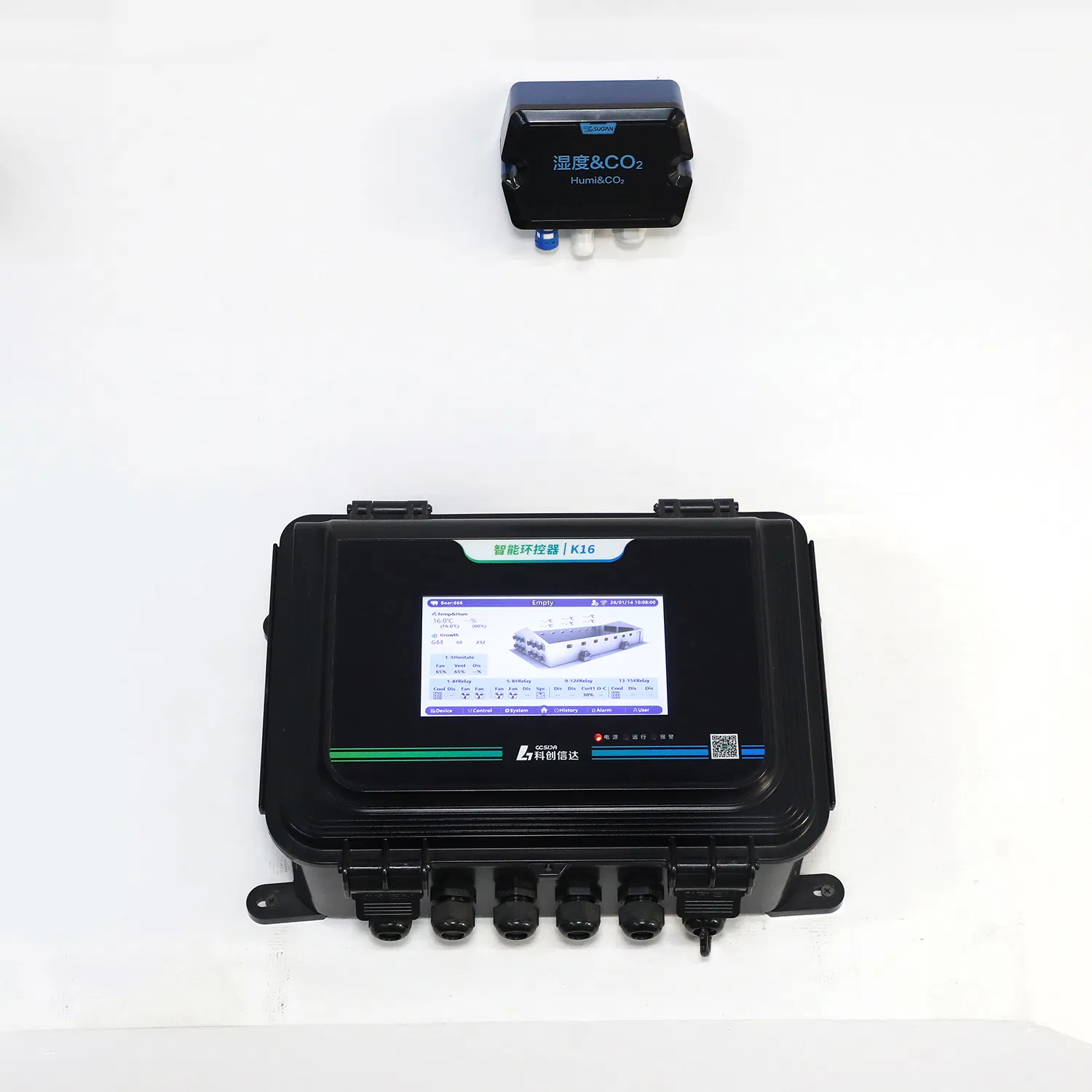

K16 Farm Climate Control System with Exhaust Fan & Cross-Flow Fan Management

1 / 5

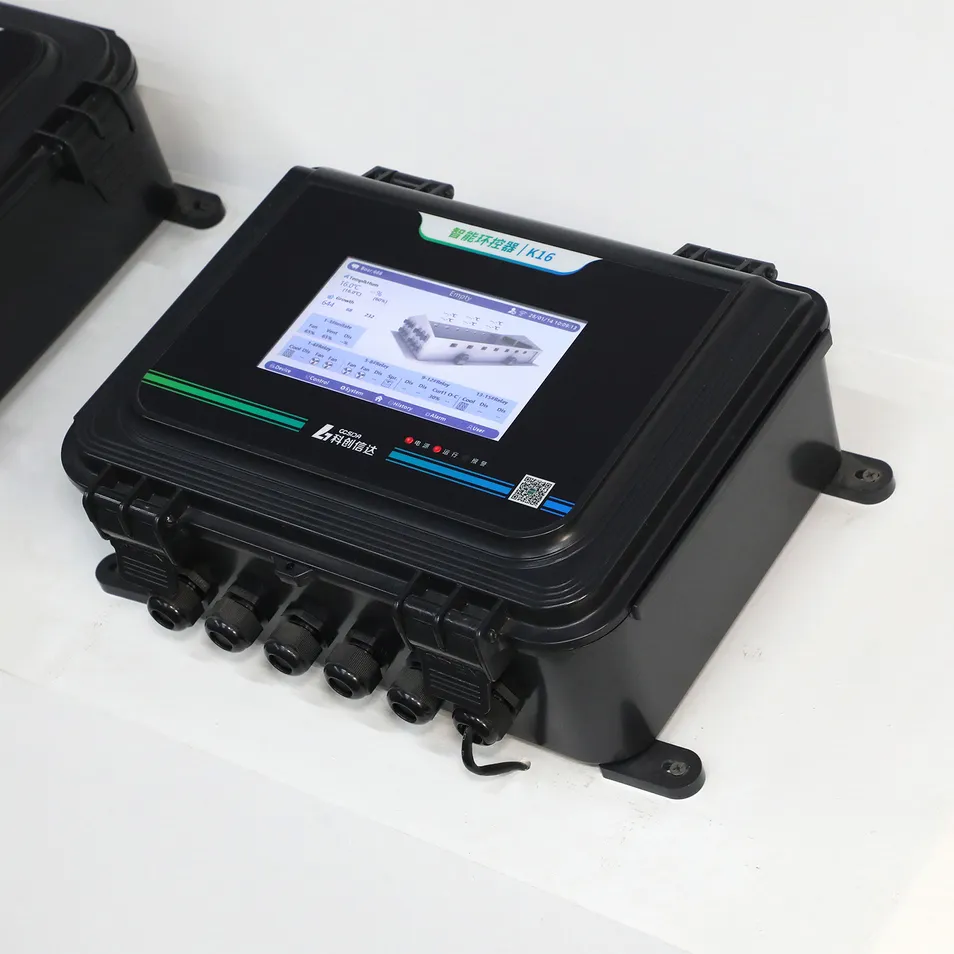

K16 Farm Climate Control System with Exhaust Fan & Cross-Flow Fan Management

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview Product Description Specification After Sales Service Company Profile

Basic Info

Model NO.	K16	Control Method	Remote Control, Onsite Control
Ventilation Level	Yes	Rated Power	<25W
Rated Voltage	AC85-305V, 50/60Hz	Display Accuracy	0.1 °C
Display	7 Inch Touch Screen	Transport Package	Carton
Specification	PVC	Origin	China
HS Code	8436910000	Production Capacity	10000 Pieces Per Year

Packaging & Delivery

Package Size: 100.00cm * 100.00cm * 50.00cm

Package Gross Weight: 5.000kg

Product Description

A cost-effective integrated intelligent control device designed for medium and large-scale poultry farms, integrating multi-parameter environmental monitoring, equipment automation control, and production data management. It supports precise regulation of temperature, humidity, and harmful gas concentrations, suitable for standardized breeding facilities to achieve intelligent ventilation, temperature control, and safety protection, reducing labor costs and improving breeding efficiency.

Core Functions

Multi-parameter Monitoring: Real-time collection of temperature, humidity, CO2, NH3, and optional H2S/static pressure data.
Comprehensive Equipment Control: Automatically regulates variable-speed fans, fixed-speed fans, small windows, heaters, wet curtains, spray systems, and curtains.
Intelligent Curve Setting: Supports up to 10 segments of day-age-based temperature curves.

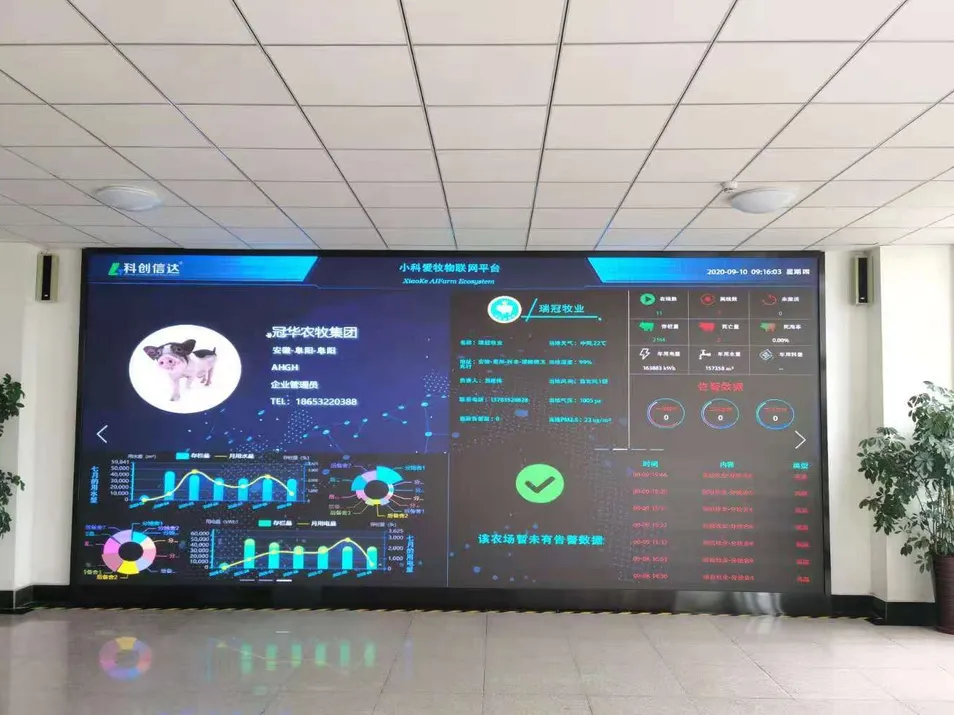

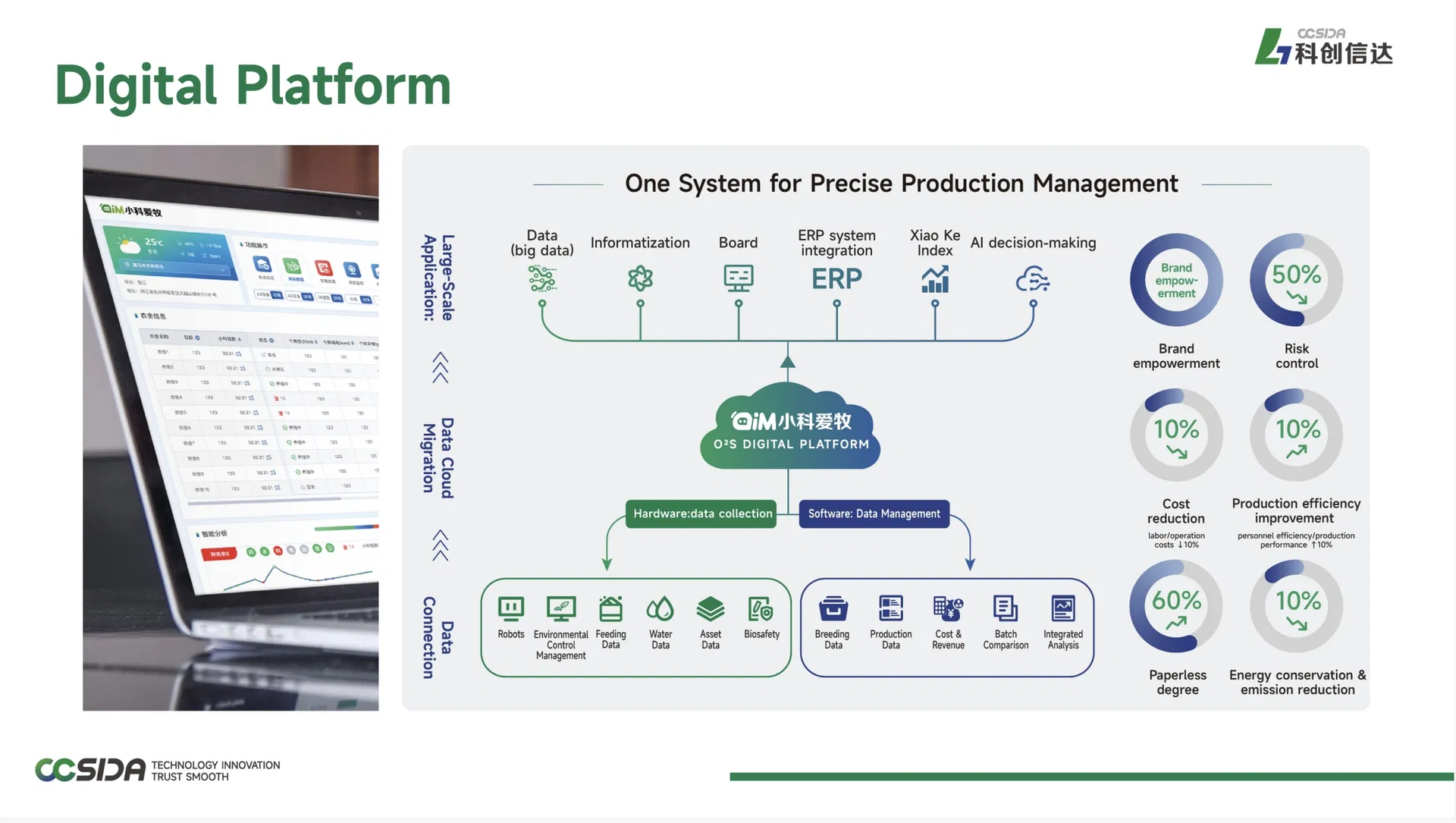

Dual-mode Management: Local control via 7-inch color touchscreen + remote management through IoT platforms.
Production Data Management: Records consumption of water, electricity, and feed; supports USB export.
Comprehensive Alarms: Alerts for sensor faults and environmental parameter overruns.
Fan Duration Auto-adjustment: Automatically adjusts fan operation time based on indoor temperature.

Product Advantages

Industrial-grade Protection: IP65 dustproof and waterproof housing for humid breeding environments.
Flexible Expansion: 2 RS485 ports support connection of smart meters and extended sensors.

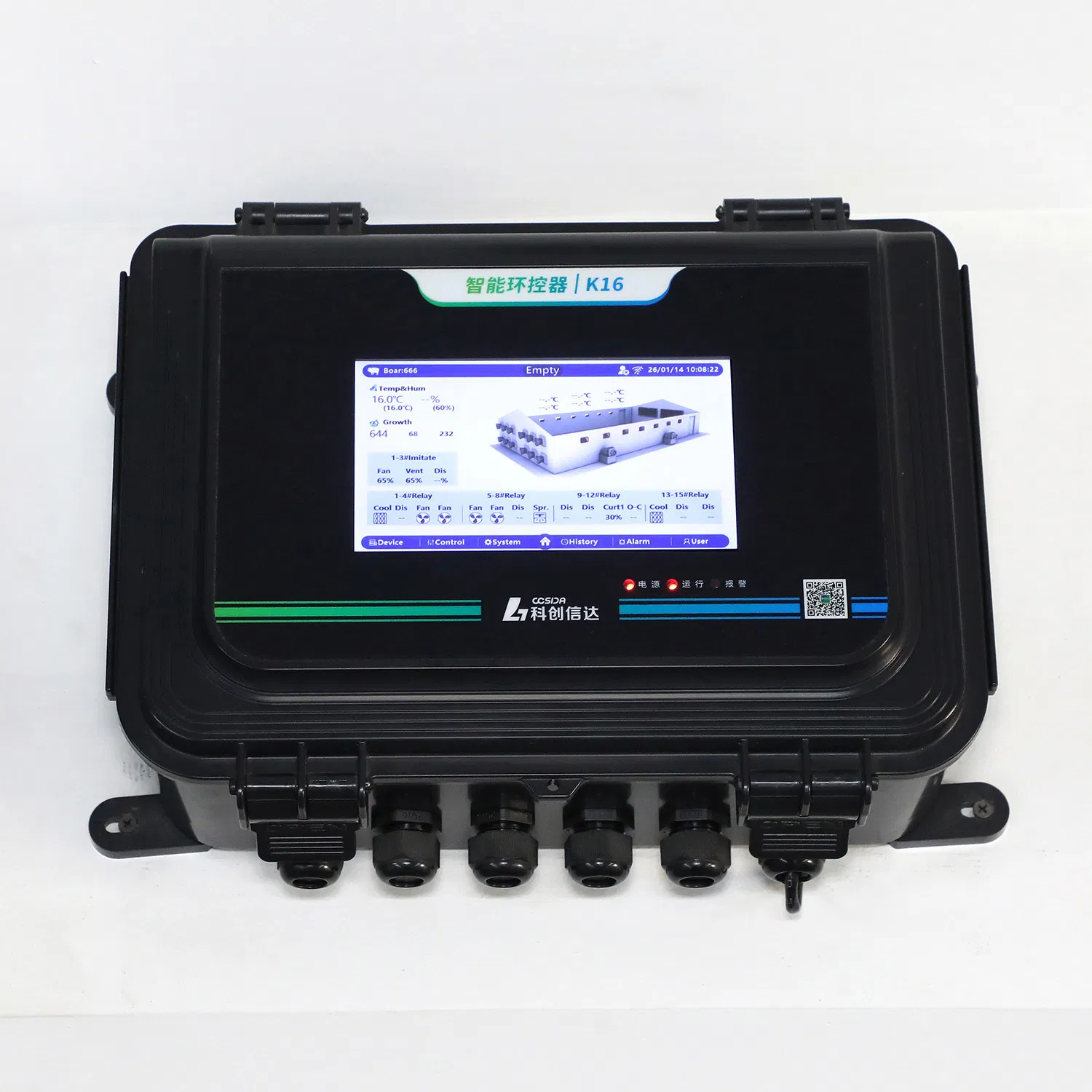

User-friendly Operation: 7-inch color touchscreen with intuitive menus.
Safety & Security: Three-level user permissions and comprehensive alarm mechanism.

Specification

Item	Specification
Input Voltage	AC85-305V, 50/60HZ
Rated Power	<15W
Operating Temperature	-30-60℃ (indoor)
Dimensions	350250130mm
Display	7-inch color touchscreen (0.1℃ accuracy)
Protection Level	IP65 (ABS potting-sealed housing)

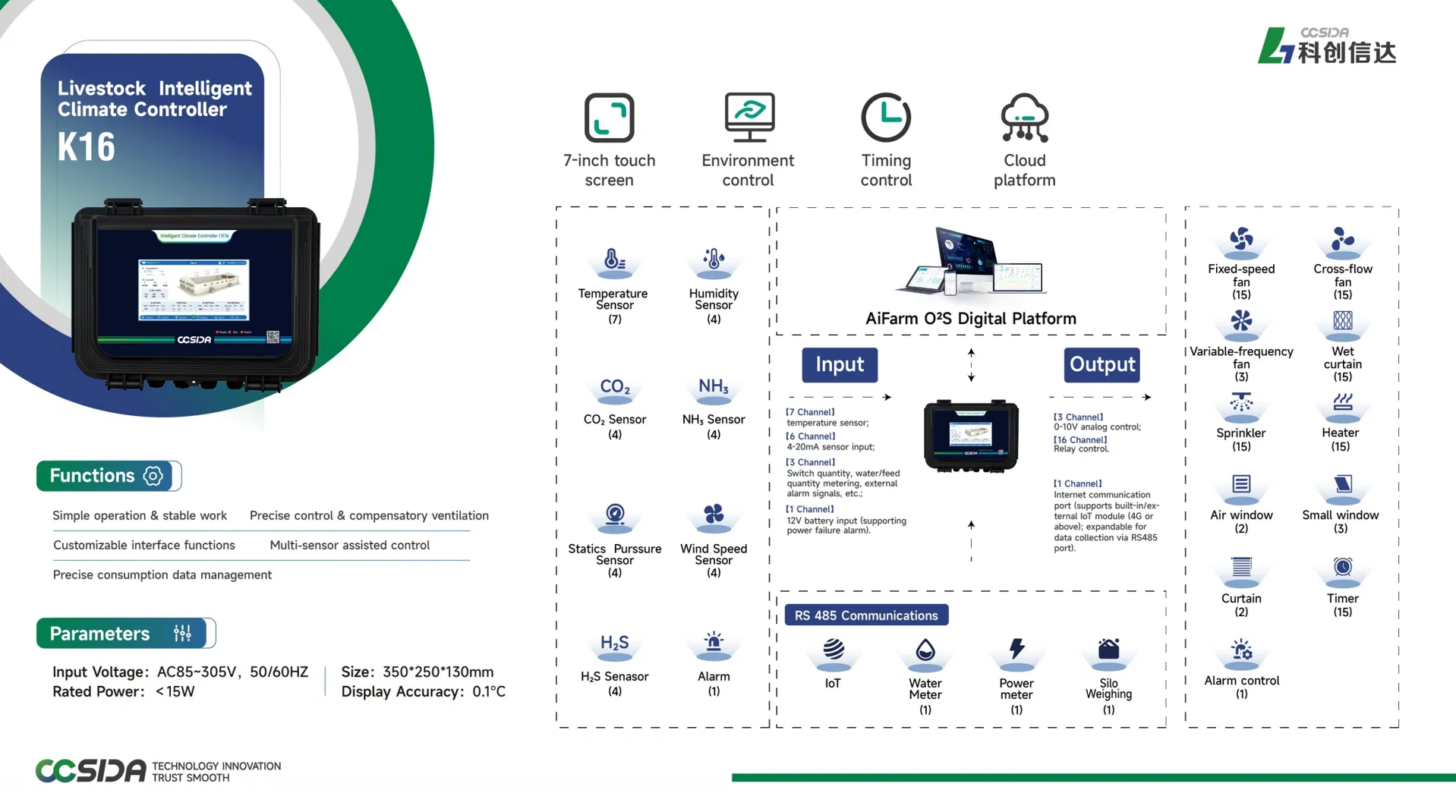

Input Interfaces	7 temp sensors + 4-ch 4-20mA sensors + 3 switch inputs
Output Interfaces	3-ch 0-10V analog + 16-channel relays
Communication	2-channel RS485 (supports IoT, Modbus-RTU)
Data Storage	Historical records, production logs, alarm records

After Sales Service

Warranty Period: 12 months. Free repair for failures under normal use.

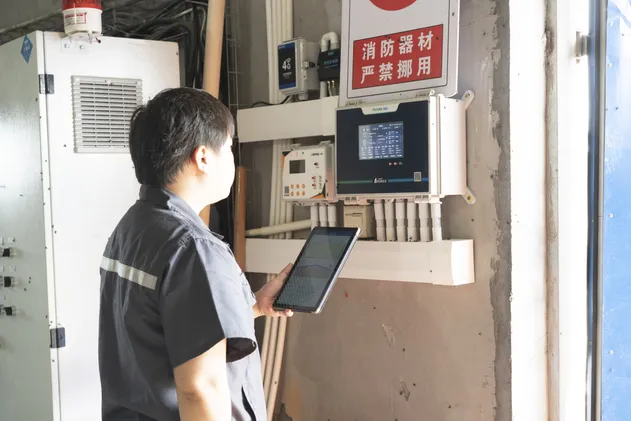

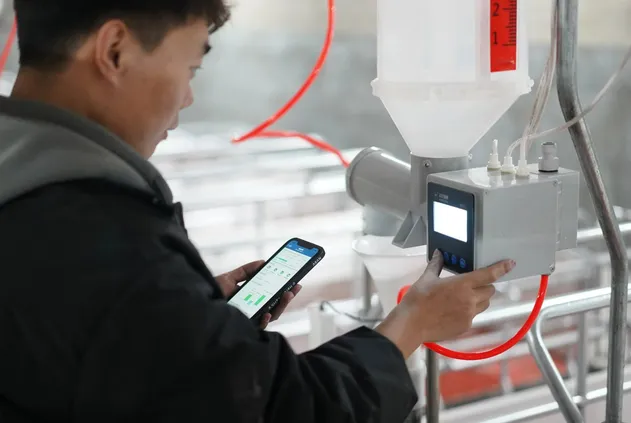

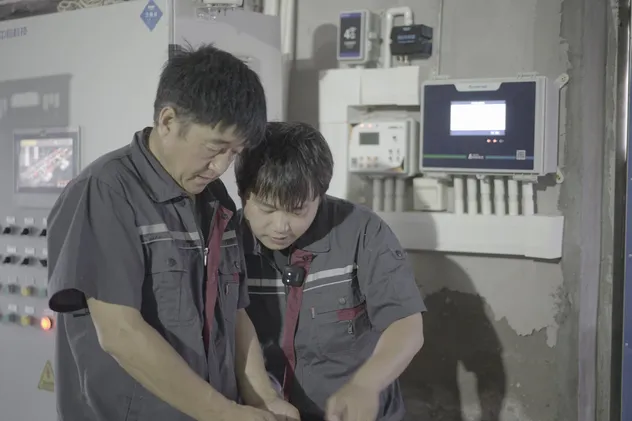

Technical Support: Professional installation guidance and remote fault diagnosis.
Spare Parts: Long-term supply of sensors, relays, and touch screens.

Company Profile

[Product Presentation Video]

Founded in 2014, our enterprise focuses on smart environmental control, smart hardware, and IoT platforms. We provide integrated solutions for digital transformation of agricultural and livestock enterprises through software-hardware integration. With a top-tier EMC laboratory, we connect over 300,000 smart terminals globally.

Frequently Asked Questions

What environment parameters can the K16 monitor?

The K16 system monitors temperature, humidity, CO2, and NH3 in real-time. It also offers optional support for H2S and static pressure data monitoring.

Is the device suitable for harsh farm conditions?

Yes, the system features an IP65-rated ABS potting-sealed housing, making it dustproof and waterproof, specifically designed for humid and dusty breeding environments.

Can I manage the system remotely?

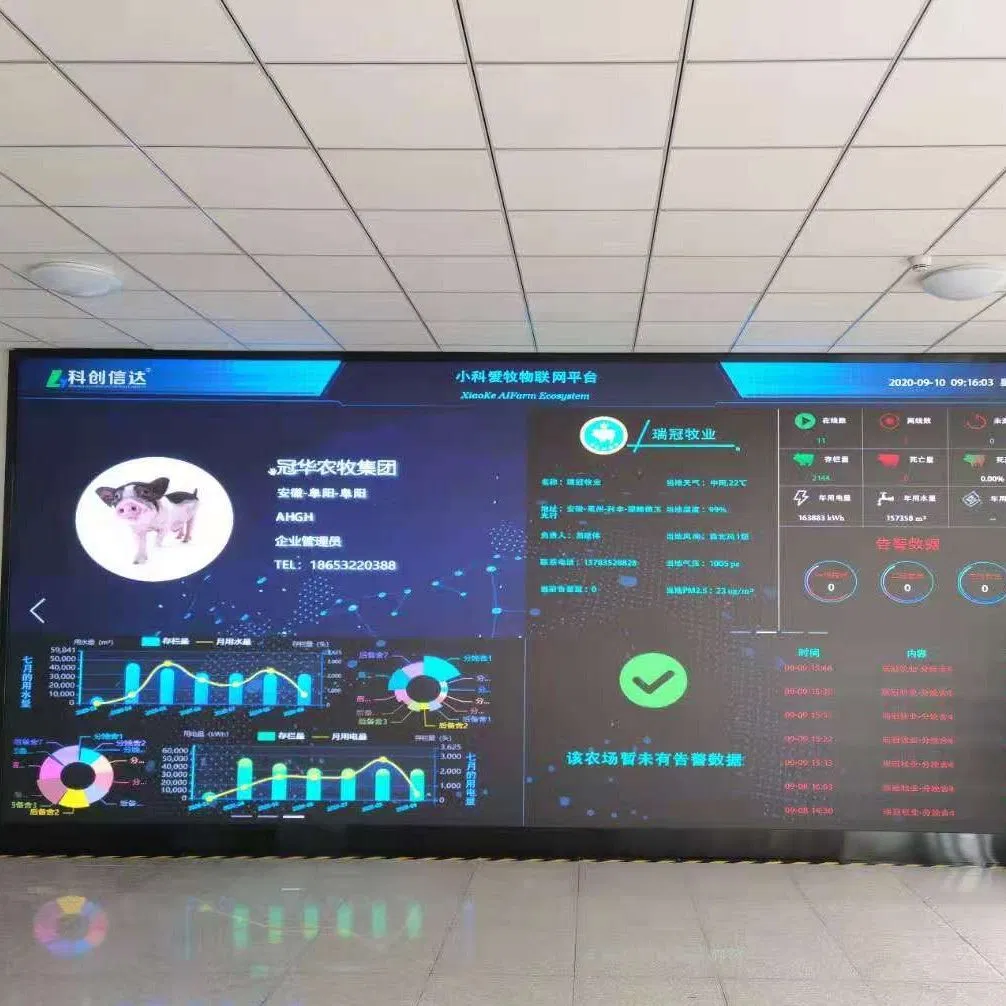

Absolutely. The K16 supports dual-mode management: local operation via a 7-inch touchscreen and remote management through IoT platforms accessible via mobile or PC.

How does the intelligent curve setting work?

It supports up to 10 segments of day-age-based temperature curves, which allows the system to automatically adjust ventilation and temperature as poultry grow.

What kind of alarm system is integrated?

The system includes comprehensive alarms for sensor faults, environmental parameter overruns, and external equipment failures, with real-time logs and remote transmission.

What is the warranty and technical support policy?

We provide a 12-month warranty based on the machine's barcode. Technical support includes professional installation guidance, operation training, and remote fault diagnosis.
