Product Overview
PJS-PIT TYPE SIMPLE LIFTING
This pit type simple lifting stereo garage is mainly used for daily parking of private cars, meeting the parking demands of residents, business people and visitors. It effectively solves local parking shortage, standardizes vehicle parking order and keeps road traffic unobstructed.
The stereo garage makes full use of vertical space to greatly increase parking capacity and save land resources. It features simple operation, fast vehicle access and convenient daily management. Equipped with complete safety protection devices, it can well protect vehicles from scratches and collisions. With good ventilation and sound overall design, it is safe and durable.
Basic Specifications
Installation
Underground Pit
Material
High-Strength Steel
Power Source
Electric (380V/220V)
Safety Features
Emergency Stop, Overload Protection
Certification
CE, ISO, CCC
⚙️
Technical Specification
Applications & Depth

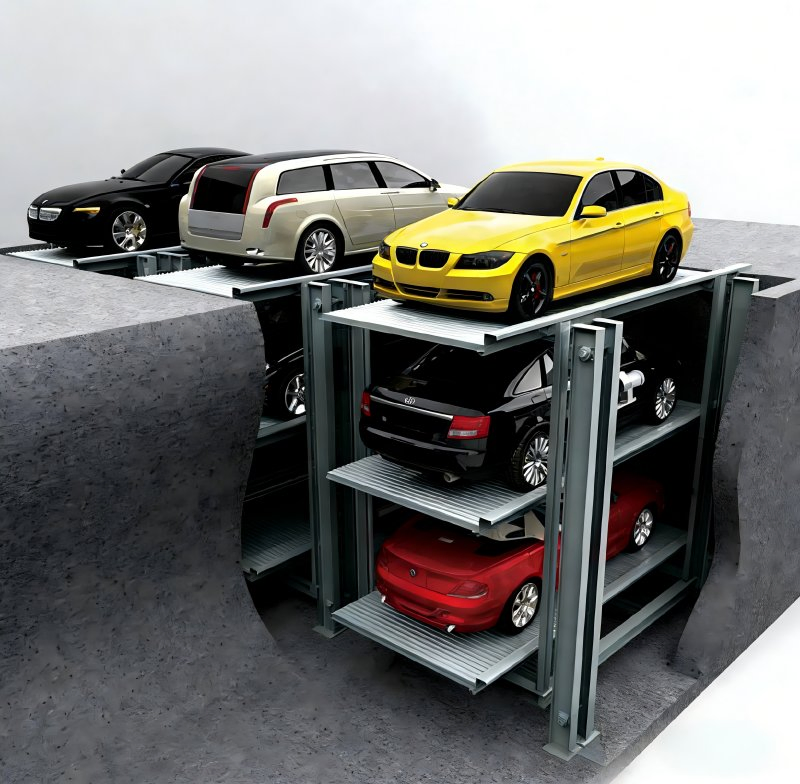

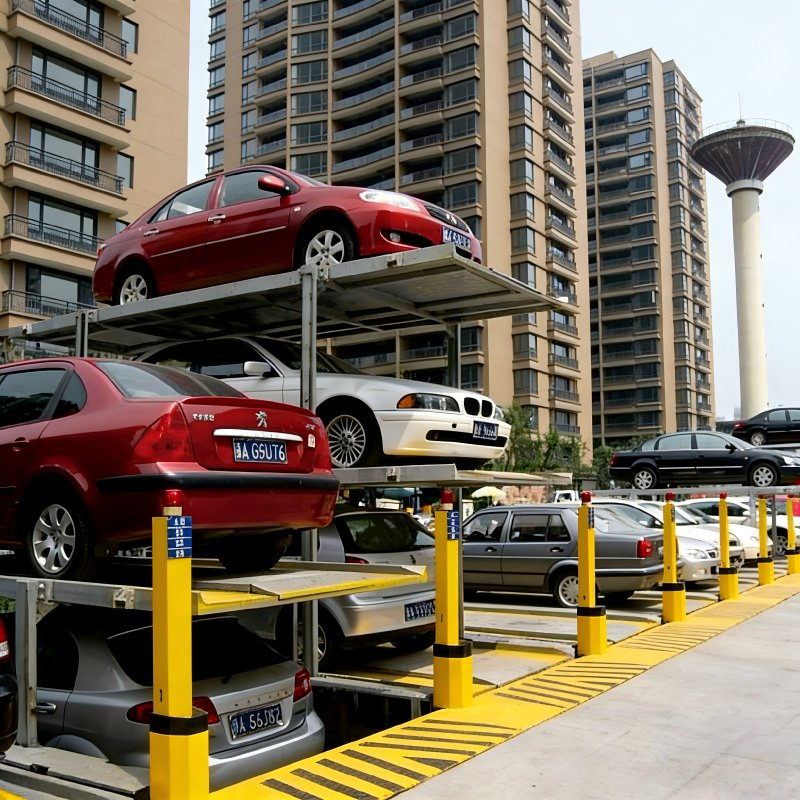

The pit-type simple lifting equipment is built in the pit, ranging from two to four floors. The top floor remains flush with the ground level when not in use, making it ideal for residential areas, basements, and private villas where space is at a premium.
Key Configurations
- Three-story lift-and-lower structure with 2 underground floors.
- Ground stays clear and usable as a flat parking space when idle.
- Simultaneous lifting for efficient vehicle retrieval.
- Customizable lift-and-move underground configurations.
Right Elevation
Left Elevation

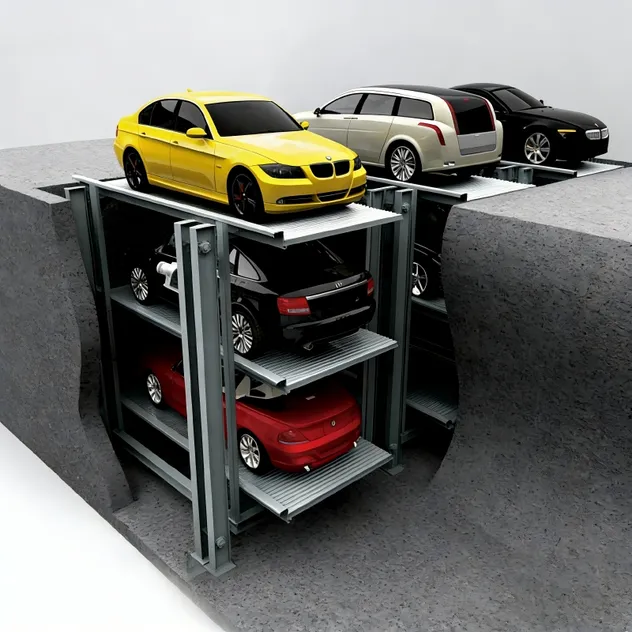

Front Elevation
| ITEM |
MODEL |
ULTRA BIG CAR (T1) |
BIG CAR (D) |
| Car Length |
L (mm) |
5300 |
5000 |
| Car Width |
W (mm) |
2000 |
1850 |
| Car Height |
H (mm) |
1550-1750 |
1550-1750 |
| Load Capacity |
KG |
≤ 2000kg |
| Power Unit |
Motor |
2.2KW |
| Lifting Speed |
M/Min |
2.0 - 4.0 |

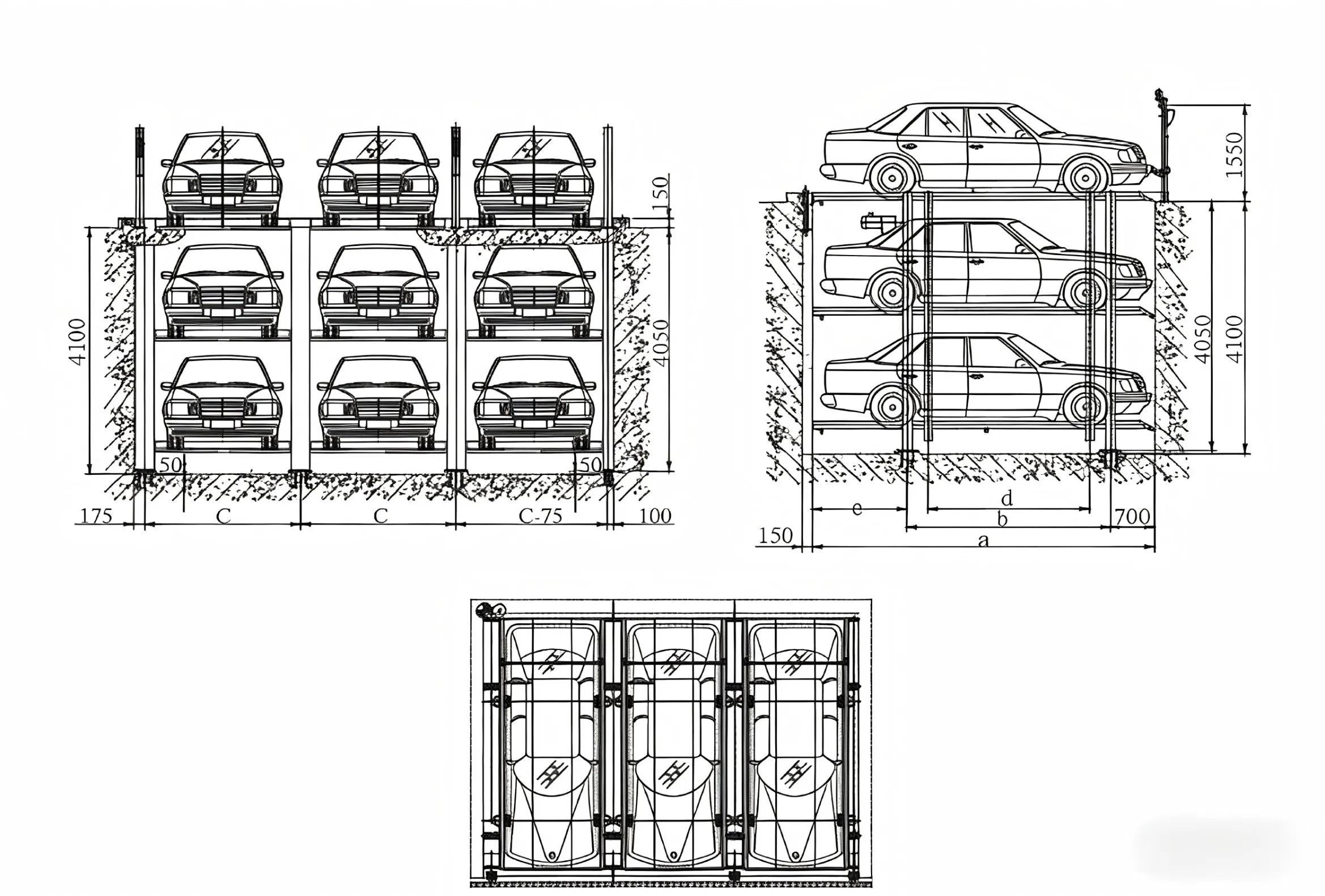

Drawings & Technical Dimensions
🏢
Professional Manufacturer

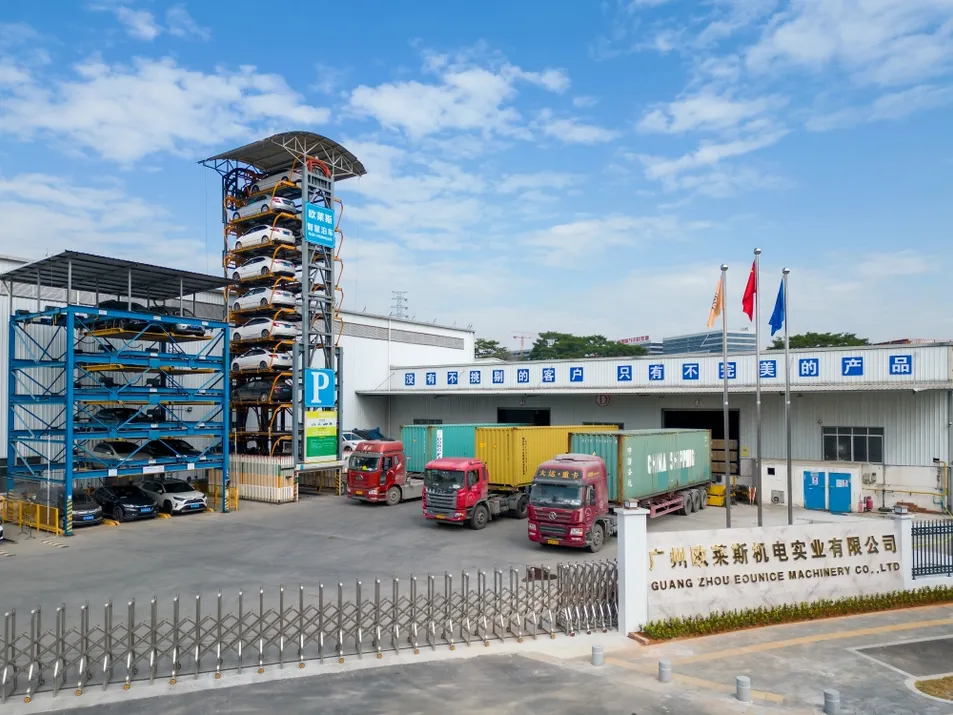

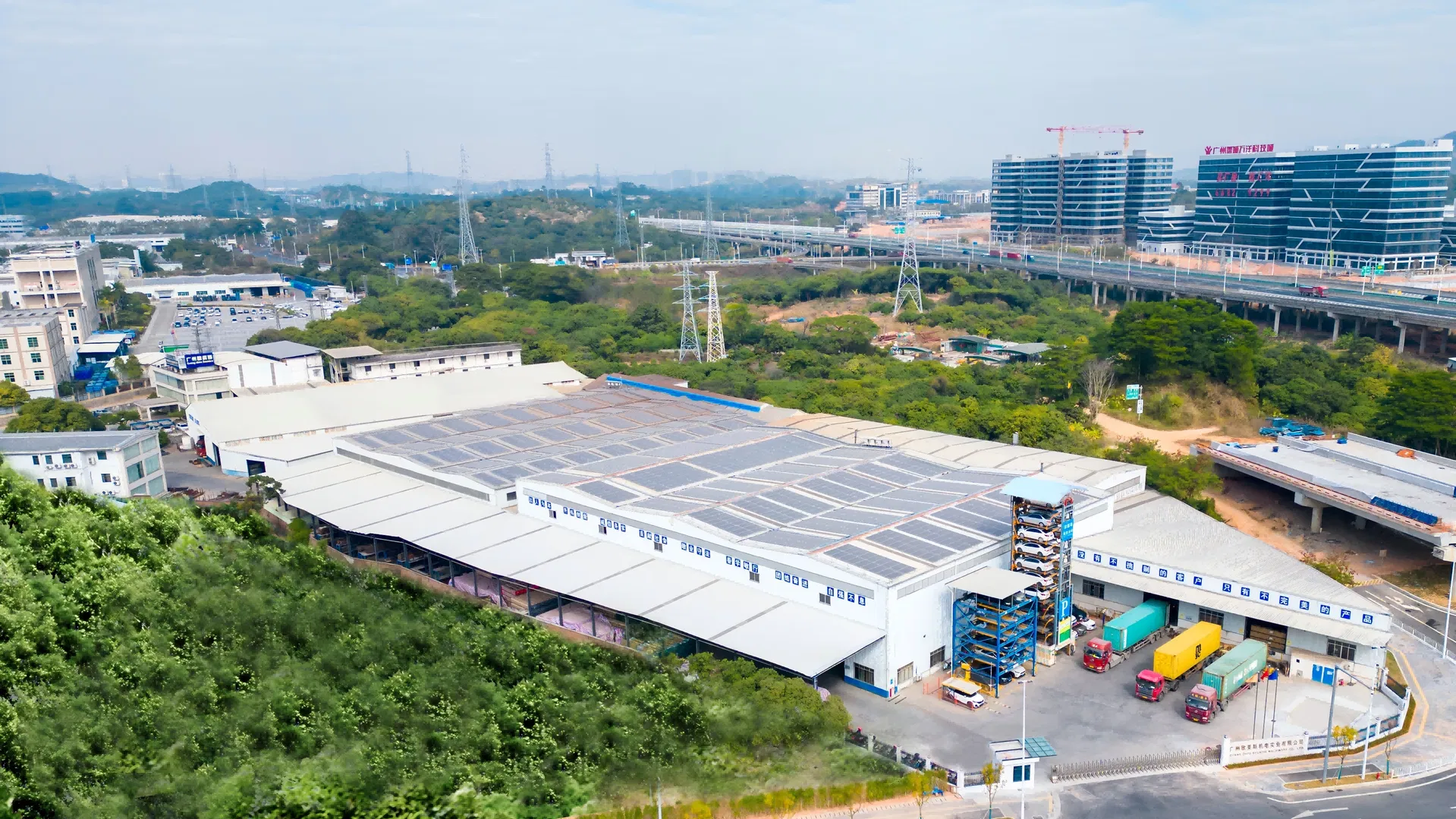

With over two decades of industry expertise, we have evolved into a leading manufacturer of intelligent parking systems and automotive service equipment. Our production facility spans over 30,000 sqm, integrating R&D, manufacturing, sales, and installation.
Why Choose Our Systems?
- Certified Quality: ISO9001, ISO14001, and ISO45001 compliant.
- Diverse Solutions: From vertical rotary (PCX) to simple lifting (PJS).
- Turnkey Projects: Full support from design to after-sales.
- OEM/ODM: Tailored attachments and customized sizes available.
❓
Frequently Asked Questions
What is the standard lead time for an order?
Standard models typically ship within 15–30 days, while customized configurations require 30–45 days depending on the project complexity.
Can the pit depth be customized for my specific site?
Yes, our engineering team can provide tailored designs to meet specific project depth requirements and car size height limits.
What safety features are included in the PJS system?
The system is equipped with an emergency stop button, overload protection, falling prevention devices (pull-type), and limit switches for safe operation.
Is the system suitable for outdoor installation?
The pit-type system is primarily designed for indoor or covered areas like basements and carports. For outdoor use, additional protective roofing and drainage considerations are required.
What kind of maintenance is required for the lift?
Regular checks of the chain drive system, lubrication of moving parts, and inspection of electrical safety sensors are recommended every 6-12 months.
What documents are provided for international shipping?
We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and relevant certifications like CE or COC.
